0-14 — CAMSHAFT AND VALVE (#19544) — 158 parça

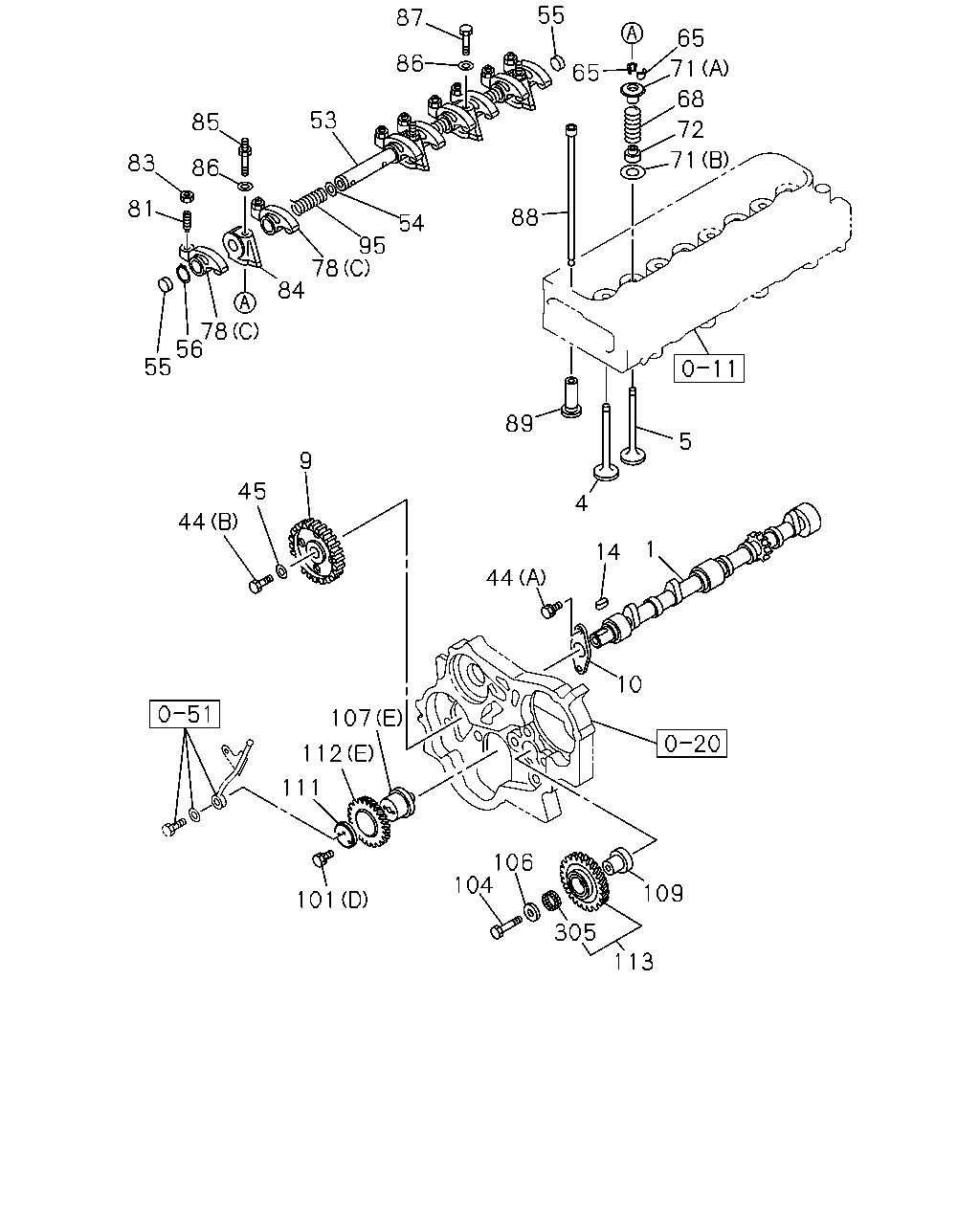

55 87 65 86 71 65 68 53 85 72 71 83 86 81 88 54 95 78 84 78 56 55 89 5 9 45 4 44 1 14 44 10 107 112 111 106 104 109 101 305 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-97077-829-0	01	1	0309-	●
1	CAMSHAFT THA	8-97287-657-0	01	1	0309-		●
4	VALVE; INL	8-97171-398-0	04	1	0309-	●
4	VALVE; INL	8-94464-921-0	04	1	0309-		●
5	VALVE; EXH	8-97171-399-0	04	1	0309-	●
5	VALVE; EXH	8-94433-245-0	04	1	0309-		●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0309-	●
9	GEAR; CM/SHF Z=42	8-97079-212-1	01	1	0309-		●
10	PLATE; THRUST	8-94110-480-1	01	1	0309-		●
14	KEY; CM/SHF	9-08000-718-0	01	1	0309-		●
44	BOLT (A) M8X16 FLANGE	0-28080-816-0	02	1	0309-		●
44	BOLT (B) M12X47	8-94433-407-0	01	1	0309-		●
45	WASHER; GEAR CAM ID=13 OD=36 THA	5-12519-002-1	01	1	0309-0409		●
45	WASHER; GEAR CAM ID=13 OD=36 THA	8-97918-881-0	01	1	0410-0410		●
45	WASHER; GEAR CAM ID=13 OD=36 THA	5-12519-002-1	01	1	0410-		●
53	SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0309-	●
53	SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0309-	●
53	SHAFT; ROCKER ARM THA	8-97036-197-0	01	1	0309-		●
54	WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0309-		●
55	PLUG; ROCKER SHAFT END THA	9-12626-005-0	02	1	0309-		●
56	RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0309-		●
65	COLLAR; SPLIT	5-12565-006-0	16	1	0309-	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	0309-		●
68	SPRING; VLV ID=28.5	8-97023-559-0	08	1	0309-	●
68	SPRING; VLV ID=26.25 THA	8-94433-247-0	08	1	0309-		●
71	SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0309-	●
71	SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0309-	●
71	SEAT; SPR (B) OD=34 THA	5-12563-001-0	08	1	0309-		●
71	SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0309-		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0309-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0309-		●
78	ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0309-	●
78	ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0309-	●
78	ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0309-	●
78	ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0309-	●
78	ARM; ROCKER (C) THA	8-94152-344-0	08	1	0309-		●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0309-	●
81	SCREW; ADJ,ROCKER ARM M8X30 THA	8-94152-283-1	08	1	0309-		●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	08	1	0309-	●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	0309-		●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0309-	●
84	BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0309-	●
84	BRACKET; ROCKER SHAFT,INTER THA	8-94152-345-1	04	1	0309-		●
85	BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	0309-	●
85	BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	0309-	●
85	BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0309-		●
86	WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0309-		●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28080-835-0	04	1	0309-	●
87	BOLT; ROCKER SHAFT M10X60 THA	8-94433-302-0	01	1	0309-		●
88	ROD; PUSH	8-97071-673-0	08	1	0309-		●
89	TAPPET; VLV	8-94438-305-1	08	1	0309-		●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0309-	●
95	SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0309-	●
95	SPRING; ROCKER SHAFT THA	8-94341-905-0	03	1	0309-		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0309-	●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0309-	●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0309-	●
101	BOLT; THRUST COLLAR (D) M8X53 FLANGE	8-97223-999-0	02	1	0309-		●
104	BOLT; SHAFT IDLE THA	8-94109-706-1	01	1	0309-		●
106	WASHER; IDLE GEAR SHAFT ID=13 OD=36 THA	5-12519-002-1	01	1	0309-0409		●
106	WASHER; IDLE GEAR SHAFT ID=13 OD=36 THA	8-97918-881-0	01	1	0410-0410		●
106	WASHER; IDLE GEAR SHAFT ID=13 OD=36 THA	5-12519-002-1	01	1	0410-		●
107	SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0309-	●
107	SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0309-	●
107	SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0309-	●
107	SHAFT; IDLE GEAR POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT<C60> (A)	8-94334-682-0	01	1	0309-	●
107	SHAFT; IDLE GEAR (E) THA	8-97920-007-0	01	1	0309-		●
109	SHAFT; IDLE GEAR	8-97218-780-0	01	1	0309-		●
111	COLLAR; THRUST,IDLE GEAR THA	8-94141-937-1	01	1	0310-		●
111	COLLAR; THRUST,IDLE GEAR THA	8-97912-650-0	01	1	0310-		●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0309-	●
111	COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT<C60> ID=14.5 OD=46	8-97209-728-2	01	1	0309-	●
111	COLLAR; THRUST,IDLE GEAR THA	8-94141-937-1	01	1	0309-0309		●
112	GEAR; IDLE (C) Z=61	8-97094-546-1	01	1	0309-	●
112	GEAR; IDLE (D) Z=41	8-97112-607-0	01	1	0309-	●
112	GEAR; IDLE (A) Z=72-30	8-97227-074-0	01	1	0309-0506	●
112	GEAR; IDLE Z=72-30	8-97227-074-0	01	1	0508-	●
112	GEAR; IDLE POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT<C60> (B) Z=34	8-97120-005-0	01	1	0309-	●
112	GEAR; IDLE (E) Z=31	8-97229-601-0	01	1	0309-		●
112	GEAR; IDLE Z=72-30	8-97227-074-0	01	1	0507-0507	●
113	GEAR; IDLE Z=37	8-97229-602-0	01	1	0309-		●
305	BEARING; IDLE GEAR	8-97218-947-1	01	1	0309-		●

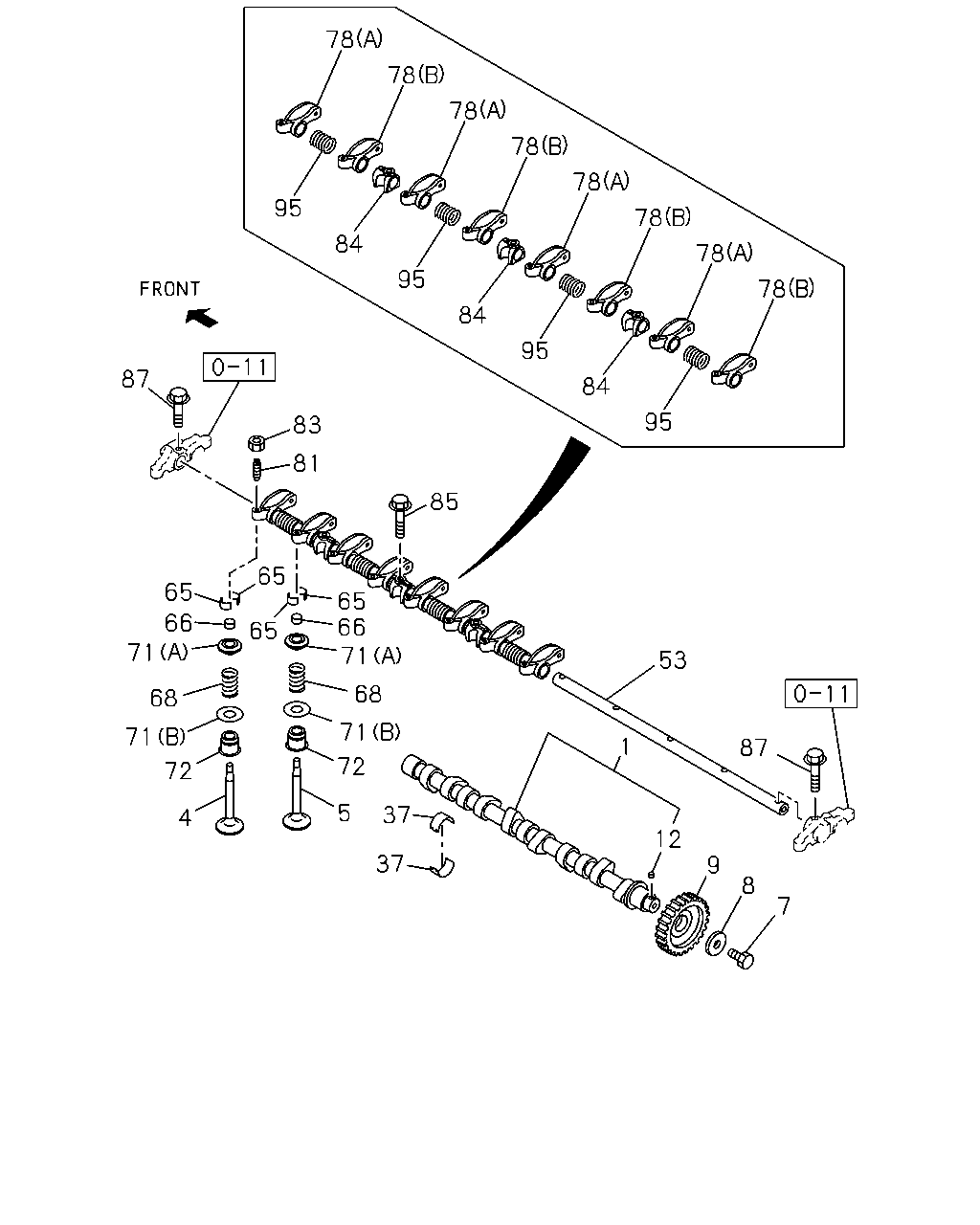

78 78 78 78 78 95 78 84 78 95 78 84 95 87 84 95 83 81 85 65 65 65 66 71 66 71 65 53 68 68 71 71 1 87 72 72 5 37 4 12 37 9 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-97077-829-0	01	1	0309-	●
1	CAMSHAFT THA	8-97287-657-0	01	1	0309-		●
4	VALVE; INL	8-97171-398-0	04	1	0309-	●
4	VALVE; INL	8-94464-921-0	04	1	0309-		●
5	VALVE; EXH	8-97171-399-0	04	1	0309-	●
5	VALVE; EXH	8-94433-245-0	04	1	0309-		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0309-	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0309-	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0309-	●
9	GEAR; CM/SHF Z=42	8-97079-212-1	01	1	0309-		●
12	KEY; CAM GEAR SET	8-94399-487-0	01	1	0309-	●
37	METAL; CM/SHF B=16	8-97356-939-0	10	1	0309-	●
53	SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0309-	●
53	SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0309-	●
53	SHAFT; ROCKER ARM THA	8-97036-197-0	01	1	0309-		●
65	COLLAR; SPLIT	5-12565-006-0	16	1	0309-	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	0309-		●
66	CAP; VLV STEM END	8-94396-015-2	08	1	0309-	●
68	SPRING; VLV ID=28.5	8-97023-559-0	08	1	0309-	●
68	SPRING; VLV ID=26.25 THA	8-94433-247-0	08	1	0309-		●
71	SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0309-	●
71	SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0309-	●
71	SEAT; SPR (B) OD=34 THA	5-12563-001-0	08	1	0309-		●
71	SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0309-		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0309-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0309-		●
78	ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0309-	●
78	ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0309-	●
78	ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0309-	●
78	ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0309-	●
78	ARM; ROCKER (C) THA	8-94152-344-0	08	1	0309-		●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0309-	●
81	SCREW; ADJ,ROCKER ARM M8X30 THA	8-94152-283-1	08	1	0309-		●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	08	1	0309-	●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	0309-		●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0309-	●
84	BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0309-	●
84	BRACKET; ROCKER SHAFT,INTER THA	8-94152-345-1	04	1	0309-		●
85	BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	0309-	●
85	BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	0309-	●
85	BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0309-		●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28080-835-0	04	1	0309-	●
87	BOLT; ROCKER SHAFT M10X60 THA	8-94433-302-0	01	1	0309-		●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0309-	●
95	SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0309-	●
95	SPRING; ROCKER SHAFT THA	8-94341-905-0	03	1	0309-		●

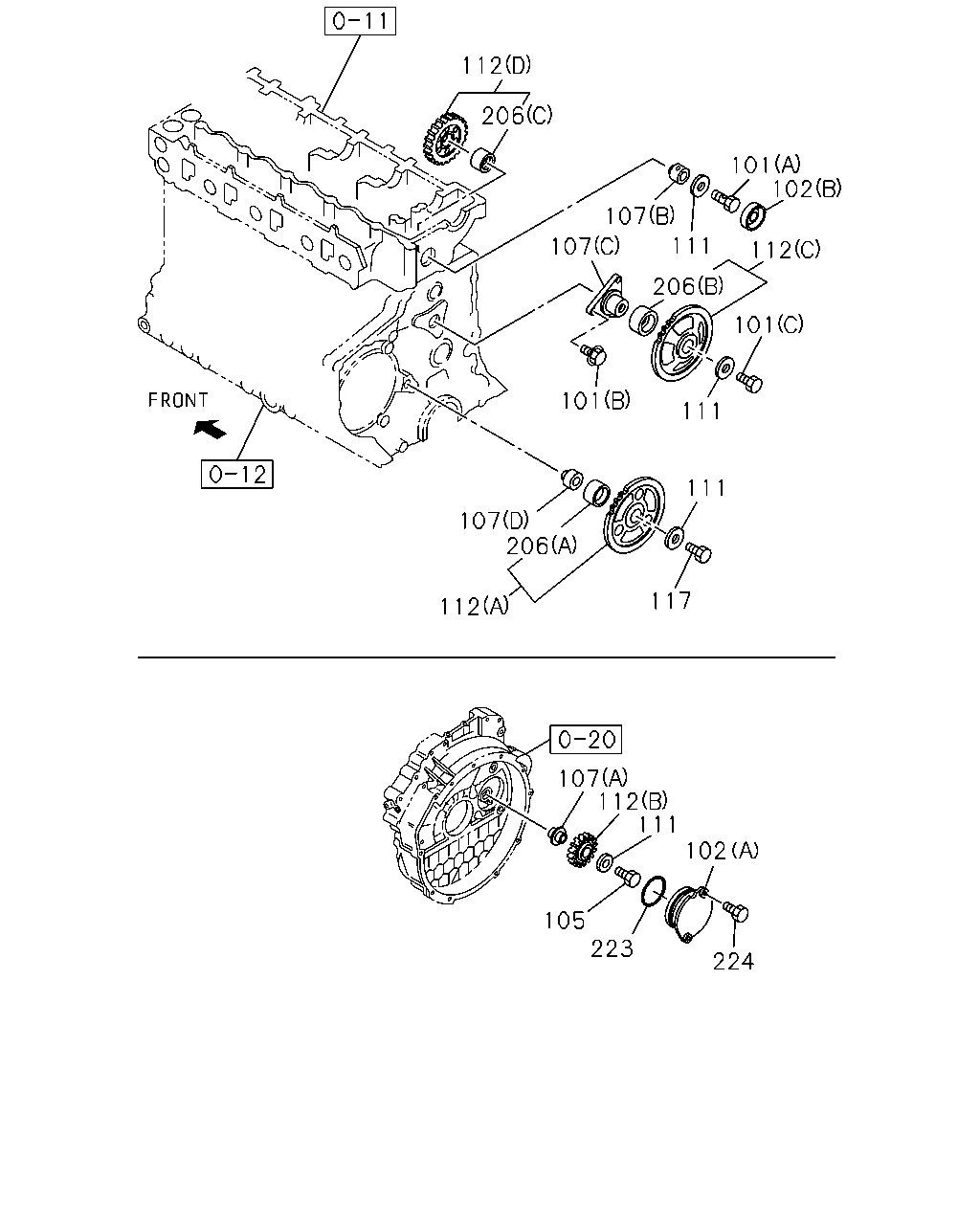

112 206 101 102 107 107 111 112 206 101 101 111 111 107 206 117 112 107 112 111 102 105 223 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0309-	●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0309-	●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0309-	●
101	BOLT; THRUST COLLAR (D) M8X53 FLANGE	8-97223-999-0	02	1	0309-		●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0309-	●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0309-	●
105	BOLT; IDLE GEAR SHAFT POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT<C60> M14X60	9-91666-460-0	01	1	0309-	●
107	SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0309-	●
107	SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0309-	●
107	SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0309-	●
107	SHAFT; IDLE GEAR POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT<C60> (A)	8-94334-682-0	01	1	0309-	●
107	SHAFT; IDLE GEAR (E) THA	8-97920-007-0	01	1	0309-		●
111	COLLAR; THRUST,IDLE GEAR THA	8-94141-937-1	01	1	0310-		●
111	COLLAR; THRUST,IDLE GEAR THA	8-97912-650-0	01	1	0310-		●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0309-	●
111	COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT<C60> ID=14.5 OD=46	8-97209-728-2	01	1	0309-	●
111	COLLAR; THRUST,IDLE GEAR THA	8-94141-937-1	01	1	0309-0309		●
112	GEAR; IDLE (C) Z=61	8-97094-546-1	01	1	0309-	●
112	GEAR; IDLE (D) Z=41	8-97112-607-0	01	1	0309-	●
112	GEAR; IDLE (A) Z=72-30	8-97227-074-0	01	1	0309-0506	●
112	GEAR; IDLE Z=72-30	8-97227-074-0	01	1	0508-	●
112	GEAR; IDLE POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT<C60> (B) Z=34	8-97120-005-0	01	1	0309-	●
112	GEAR; IDLE (E) Z=31	8-97229-601-0	01	1	0309-		●
112	GEAR; IDLE Z=72-30	8-97227-074-0	01	1	0507-0507	●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0309-	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0309-	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0309-	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0309-	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0309-	●
224	BOLT; COVER M8X16 FLANGE	0-28080-816-0	02	1	0309-	●
