Isuzu WW
▶
TRUCKS
▶
NPR
▶
50916 - NPR(BUS CHAS)RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#19534) — 32 parça
Tümü
A - NPC5JK
B - NPC5JN
◀
[111A] WATER HOSE (8 parça)

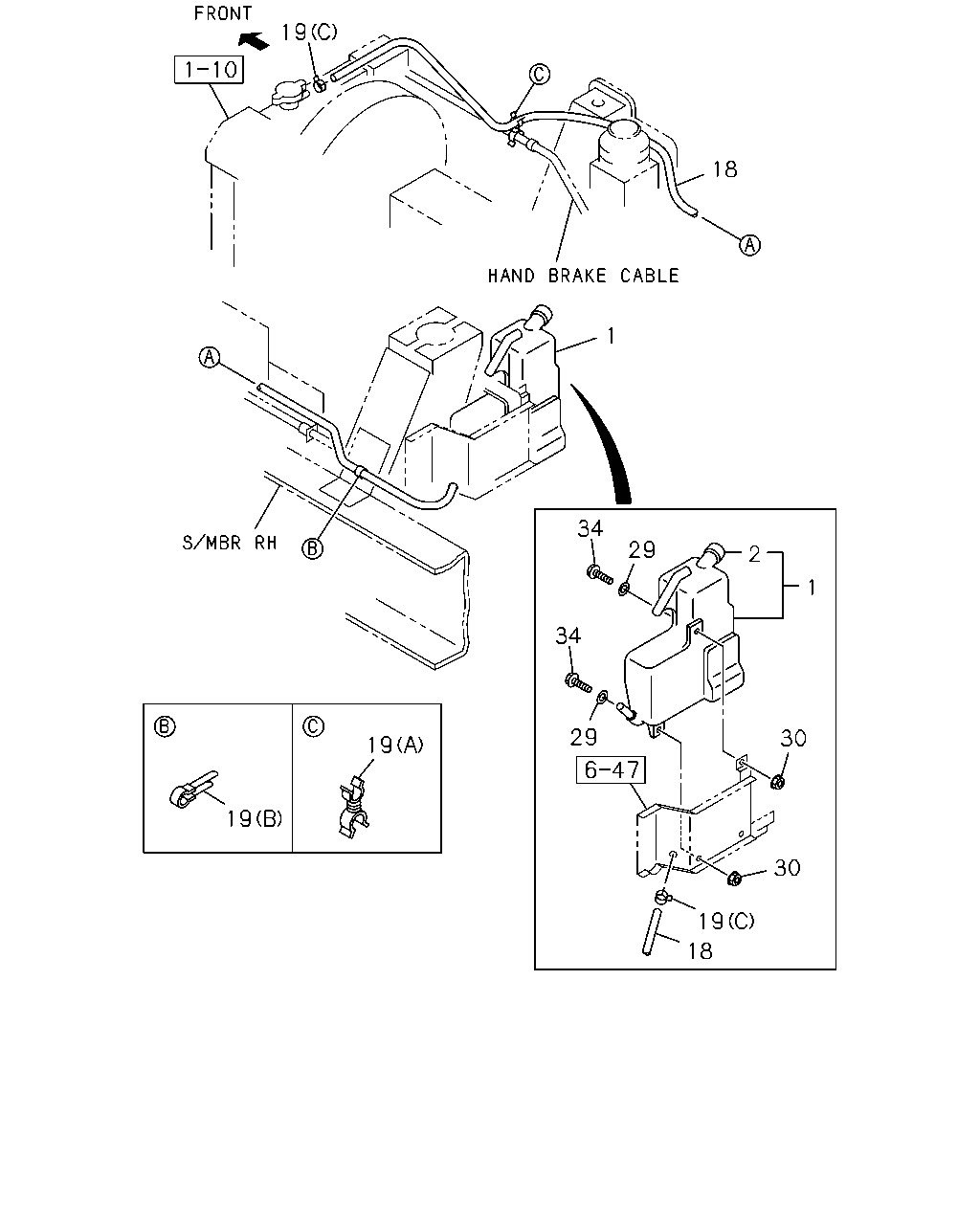

[111A] RAD HOSE AND SURGE TANK (24 parça)
▶
56
128
56
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
55
01.173 HOSE; WATER,RAD OUTLET
8-97124-743-0
01
1
0201-0501
●
55
01.173 HOSE; WATER,RAD OUTLET
4HF1 ENG(RLS)
8-97124-743-0
01
1
0502-
●
55
01.173 HOSE; WATER,RAD OUTLET
8-97330-530-0
01
1
0805-
●
56
01.166 CLIP; WATER HOSE,RAD
ID=40
8-97245-216-0
02
1
0201-0804
●
56
01.166 CLIP; WATER HOSE,RAD
ID=40
8-97245-216-0
02
1
0805-
●
●
128
01.159 HOSE; WATER,RAD INL
8-97147-472-0
01
1
0201-0501
●
128
01.159 HOSE; WATER,RAD INL
4HF1 ENG(RLS)
8-97147-472-0
01
1
0502-
●
128
01.159 HOSE; WATER,RAD INL
8-97330-529-0
01
1
0805-
●
19
18
1
34
29
2
1
34
29
30
19
19
30
19
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
01.219 TANK; SURGE,RAD
8-97210-844-0
01
1
0201-0804
●
1
01.219 TANK; SURGE,RAD
8-97210-844-0
01
1
0805-1010
●
●
1
01.219 TANK; SURGE,RAD
8-98178-177-0
01
1
1011-
●
●
2
01.203 CAP; SURGE TANK
8-97217-796-0
01
1
0201-0804
●
2
01.203 CAP; SURGE TANK
8-97217-796-0
01
1
0805-1010
●
●
2
01.203 CAP; SURGE TANK
8-98178-074-0
01
1
1011-
●
●
18
01.240 HOSE; RAD TO SURGE TANK
L=1595
8-97148-533-2
01
1
0201-
●
18
01.240 HOSE; RAD TO SURGE TANK
L=1520
8-97376-968-1
01
1
0805-
●
19
01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47
5-09700-319-0
01
1
0201-
●
19
01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12
8-94238-610-0
02
1
0201-0804
●
19
01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12
8-94238-610-0
02
1
0805-0911
●
●
19
01.240 CLIP; HOSE,SURGE TANK
(C) ID=12
8-98150-358-0
02
1
0912-
●
●
19
01.240 CLIP; HOSE,SURGE TANK
02.559 (A) ID=10 & 11
8-94438-996-0
01
1
0201-0804
●
19
01.240 CLIP; HOSE,SURGE TANK
02.559 (A) ID=10 & 11
8-94438-996-0
01
1
0805-
●
●
19
01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47
5-09700-319-0
02
1
0805-
●
29
01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18
9-09160-706-0
03
1
0201-0605
●
29
01.203 WASHER; PL,RESERVE TANK
4HF1 ENG(RLS) 00.413 ID=6.4 OD=18
0-91610-706-0
03
1
0606-0804
●
29
01.203 WASHER; PL,RESERVE TANK
00.413 ID=6.4 OD=18
0-91610-706-0
03
1
0805-
●
●
30
01.203 NUT
04.594 M6 FLANGE
0-91150-106-0
03
1
0201-0602
●
30
01.203 NUT
4HF1 ENG(RLS) 01.062 M6 FLANGE
0-91180-106-0
03
1
0603-0804
●
30
01.203 NUT
01.062 M6 FLANGE
0-91180-106-0
03
1
0805-
●
●
34
01.203 BOLT; RESERVE TANK
04.930 M6X20 FLANGE
0-28680-620-0
03
1
0201-0512
●
34
01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.162 M6X20 FLANGE
0-28650-620-0
03
1
0601-0804
●
34
01.203 BOLT; RESERVE TANK
03.162 M6X20 FLANGE
0-28650-620-0
03
1
0805-
●
●
