1-10 — RADIATOR (#19533) — 133 parça

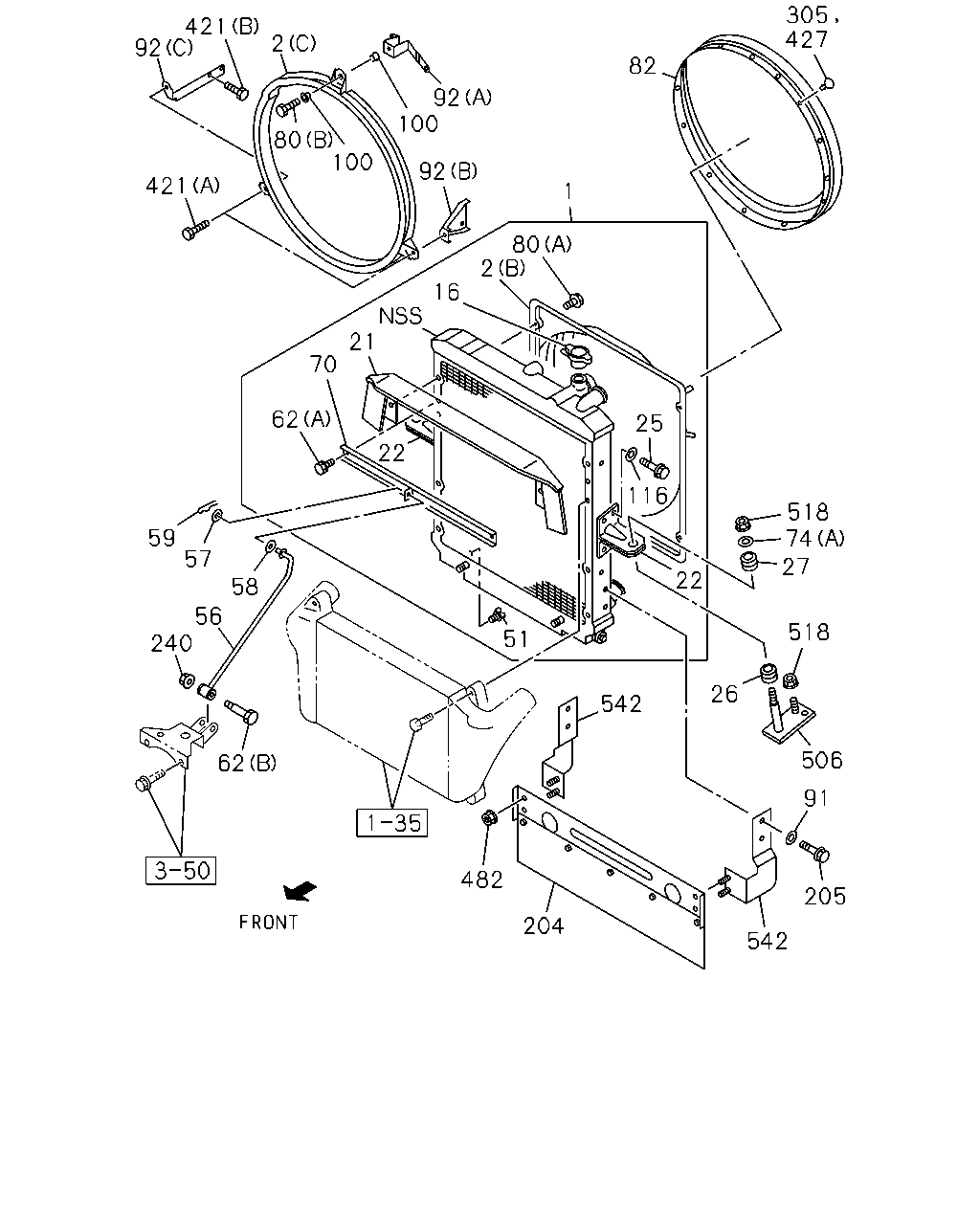

518 74 27 518 26 506 91 205 542 204 482 62 240 58 56 57 59 62 70 21 1 80 2 16 82 305 427 25 116 22 51 92 100 100 80 2 92 421 92 421 524 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM	8-97146-211-1	01	1	0201-	●
1	01.219 RADIATOR ASM	8-97377-241-0	01	1	0805-		●
2	01.277 GUIDE; FAN (A)	8-97066-016-0	01	1	0201-	●
2	01.277 GUIDE; FAN (B)	8-97333-268-0	01	1	0805-		●
2	01.277 GUIDE; FAN (C)	8-97350-995-0	01	1	0805-		●
16	01.203 CAP; RAD	8-97177-872-0	01	1	0201-	●
16	01.203 CAP; RAD	8-97239-187-0	01	1	0805-		●
21	01.276 SEAL; RAD 01.277	8-97332-382-0	01	1	0805-		●
22	01.270 BRACKET; RAD MTG FRAME STRAIGHT TYPE<7KJ>	8-97096-452-0	02	1	0201-0501	●
22	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97096-452-0	02	1	0502-	●
22	01.270 BRACKET; RAD MTG	8-97333-280-0	01	1	0805-		●
22	01.270 BRACKET; RAD MTG	8-97333-281-0	01	1	0805-		●
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0201-0501	●
25	01.271 BOLT; BRKT 4HF1 ENG(RLS) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0502-0512	●
25	01.271 BOLT; BRKT 4HF1 ENG(RLS) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-	●
25	01.271 BOLT; BRKT 08.900 M8X12 FLANGE	0-28080-812-0	08	1	0805-		●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0201-0804	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0805-	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0201-0804	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0805-	●	●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	0201-	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	0805-		●
56	01.270 STAY; RAD	8-97032-798-2	01	1	0201-0301	●
56	01.270 STAY; RAD FRAME STRAIGHT TYPE<7KJ>	8-97032-798-2	01	1	0302-	●
56	01.270 STAY; RAD FRAME STRAIGHT TYPE<7KJ>	8-97032-802-2	01	1	0805-		●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0201-0605	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-0804	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0805-	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0201-0804	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0805-	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0201-0610	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-0804	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0805-	●	●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0201-0804	●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0805-	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0201-0804	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0805-	●	●
70	01.271 STAY; RAD	8-97047-899-0	01	1	0201-	●
70	01.271 STAY; RAD	8-97333-269-0	01	1	0805-		●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0201-0610	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-0804	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0805-	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0201-0501	●
74	01.270 WASHER; PL,CUSHION RUBBER 4HF1 ENG(RLS) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0502-	●
80	01.277 BOLT; FAN GUIDE 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0805-		●
80	01.277 BOLT; FAN GUIDE 01.252 (B) M8X30 W/LK&PL WASHER	0-50640-830-0	03	1	0805-0806		●
80	01.277 BOLT; FAN GUIDE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	0807-		●
82	01.277 COVER; FAN,RAD	8-97332-330-0	01	1	0805-		●
91	01.277 WASHER; PL 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0805-		●
92	01.277 BRACKET; FAN GUIDE (A)	8-97350-996-0	01	1	0805-		●
92	01.277 BRACKET; FAN GUIDE (C)	8-97350-997-0	01	1	0805-		●
92	01.277 BRACKET; FAN GUIDE (B)	8-97350-998-0	01	1	0805-		●
100	01.277 RUBBER; MTG	1-09337-027-0	06	1	0805-		●
116	01.270 WASHER; PL,BRKT 16.674 ID=8.4	9-09160-508-0	08	1	0805-		●
204	01.267 GUIDE ASM; AIR	8-97332-962-1	01	1	0805-		●
205	01.267 BOLT; AIR GUIDE 03.671 M6X10 FLANGE	0-28050-610-0	04	1	0805-		●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0201-0804	●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0805-	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE	1-09470-009-0	12	1	0805-		●
421	01.277 BOLT; BRKT FAN GUIDE 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0805-		●
421	01.277 BOLT; BRKT FAN GUIDE 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0805-		●
427	01.240 CLIP; FAN GUIDE 01.277	1-09470-009-0	01	1	0805-		●
482	01.277 NUT; AIR GUIDE 01.062 M6 FLANGE	0-91180-106-0	04	1	0805-		●
506	01.277 PLATE; RAD	8-97330-527-1	02	1	0805-		●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	0201-0610	●
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0611-0804	●
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0805-	●	●
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0805-		●
542	01.277 BRACKET; AIR GUIDE	8-97332-963-0	01	1	0805-		●
542	01.277 BRACKET; AIR GUIDE	8-97332-964-0	01	1	0805-		●

131 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
131	01.166 CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0201-0804	●
131	01.166 CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0805-	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0201-0804	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0805-	●	●

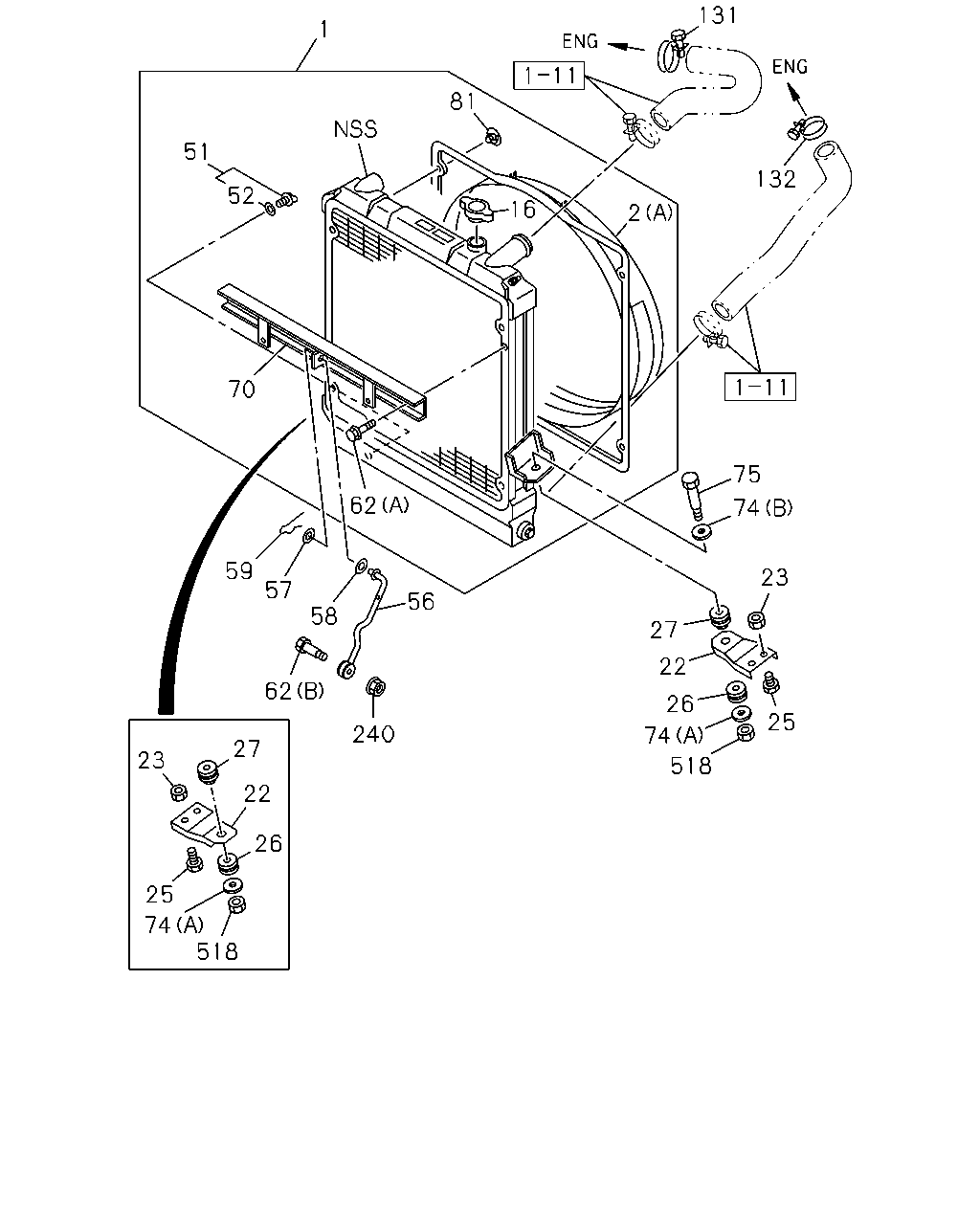

51 1 70 59 57 58 62 240 56 62 23 27 22 26 25 74 518 81 131 132 2 16 75 23 74 27 22 26 74 518 25 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM	8-97146-211-1	01	1	0201-	●
1	01.219 RADIATOR ASM	8-97377-241-0	01	1	0805-		●
2	01.277 GUIDE; FAN (A)	8-97066-016-0	01	1	0201-	●
2	01.277 GUIDE; FAN (B)	8-97333-268-0	01	1	0805-		●
2	01.277 GUIDE; FAN (C)	8-97350-995-0	01	1	0805-		●
16	01.203 CAP; RAD	8-97177-872-0	01	1	0201-	●
16	01.203 CAP; RAD	8-97239-187-0	01	1	0805-		●
22	01.270 BRACKET; RAD MTG FRAME STRAIGHT TYPE<7KJ>	8-97096-452-0	02	1	0201-0501	●
22	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97096-452-0	02	1	0502-	●
22	01.270 BRACKET; RAD MTG	8-97333-280-0	01	1	0805-		●
22	01.270 BRACKET; RAD MTG	8-97333-281-0	01	1	0805-		●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	0201-0501	●
23	01.271 NUT; RAD MTG 4HF1 ENG(RLS) 07.874 M10 FLANGE	5-09440-006-0	04	1	0502-	●
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0201-0501	●
25	01.271 BOLT; BRKT 4HF1 ENG(RLS) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0502-0512	●
25	01.271 BOLT; BRKT 4HF1 ENG(RLS) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-	●
25	01.271 BOLT; BRKT 08.900 M8X12 FLANGE	0-28080-812-0	08	1	0805-		●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0201-0804	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0805-	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0201-0804	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0805-	●	●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	0201-	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	0805-		●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	0201-	●
56	01.270 STAY; RAD	8-97032-798-2	01	1	0201-0301	●
56	01.270 STAY; RAD FRAME STRAIGHT TYPE<7KJ>	8-97032-798-2	01	1	0302-	●
56	01.270 STAY; RAD FRAME STRAIGHT TYPE<7KJ>	8-97032-802-2	01	1	0805-		●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0201-0605	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-0804	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0805-	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0201-0804	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0805-	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0201-0610	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-0804	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0805-	●	●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0201-0804	●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0805-	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0201-0804	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0805-	●	●
70	01.271 STAY; RAD	8-97047-899-0	01	1	0201-	●
70	01.271 STAY; RAD	8-97333-269-0	01	1	0805-		●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0201-0610	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-0804	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0805-	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0201-0501	●
74	01.270 WASHER; PL,CUSHION RUBBER 4HF1 ENG(RLS) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0502-	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0201-0501	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HF1 ENG(RLS) 01.274 M8X63	8-94249-446-0	01	1	0502-	●
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	0201-	●
131	01.166 CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0201-0804	●
131	01.166 CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0805-	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0201-0804	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0805-	●	●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0201-0804	●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0805-	●	●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	0201-0610	●
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0611-0804	●
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0805-	●	●
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0805-		●
