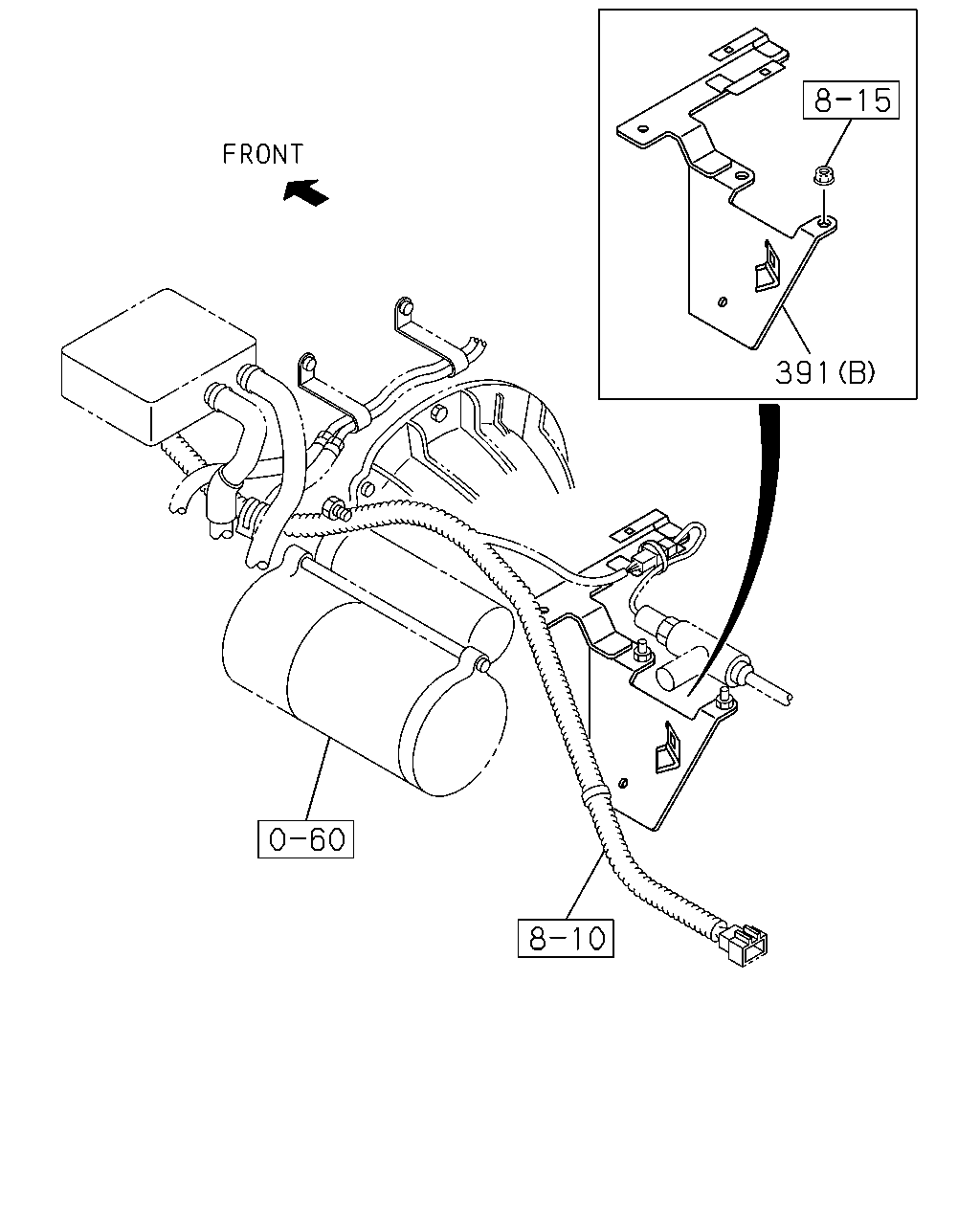

Sayfa 1-01 - Isuzu EPC

391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0201-	●
391	03.452 BRACKET; ENG CONT (B)	8-97357-141-0	01	1	0302-0804	●
391	03.452 BRACKET; ENG CONT (B)	8-97357-141-0	01	1	0805-	●	●

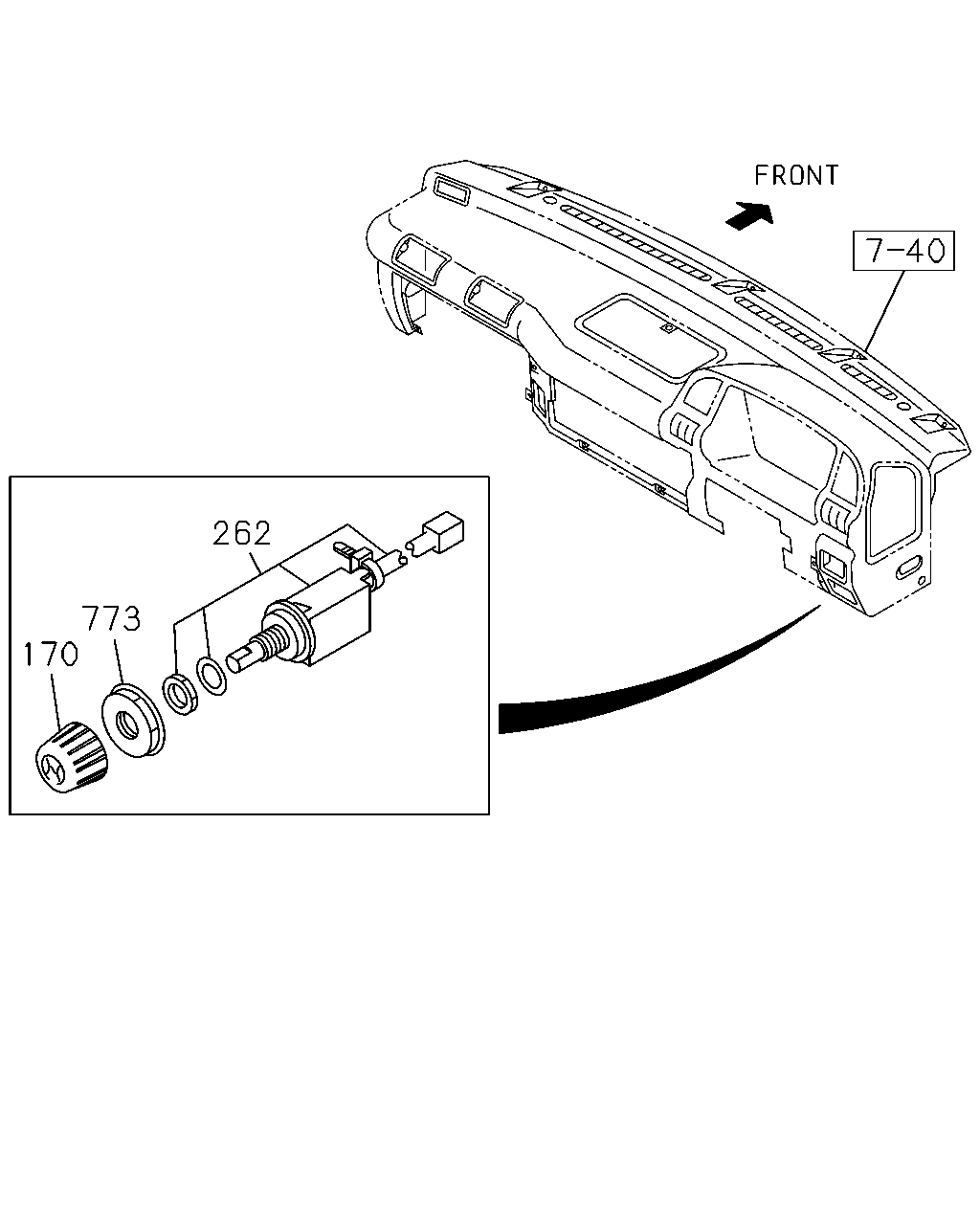

262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
170	03.480 KNOB	8-97310-165-0	01	1	0805-	●
262	03.452 SWITCH; ACCEL,IDLE	8-97215-119-1	01	1	0805-	●
773	03.452 HOLDER; ACCEL PEDAL	8-97352-127-0	01	1	0805-	●

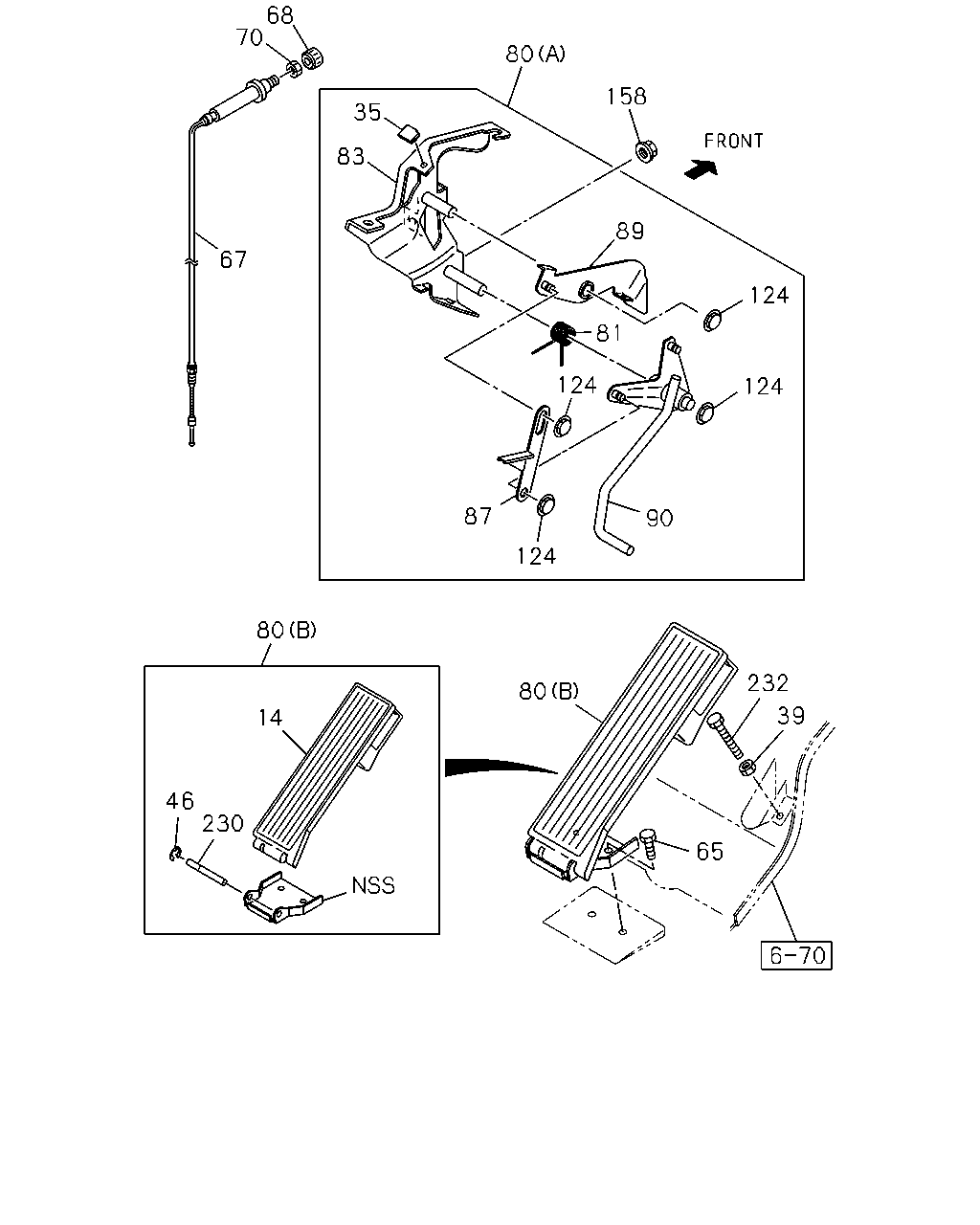

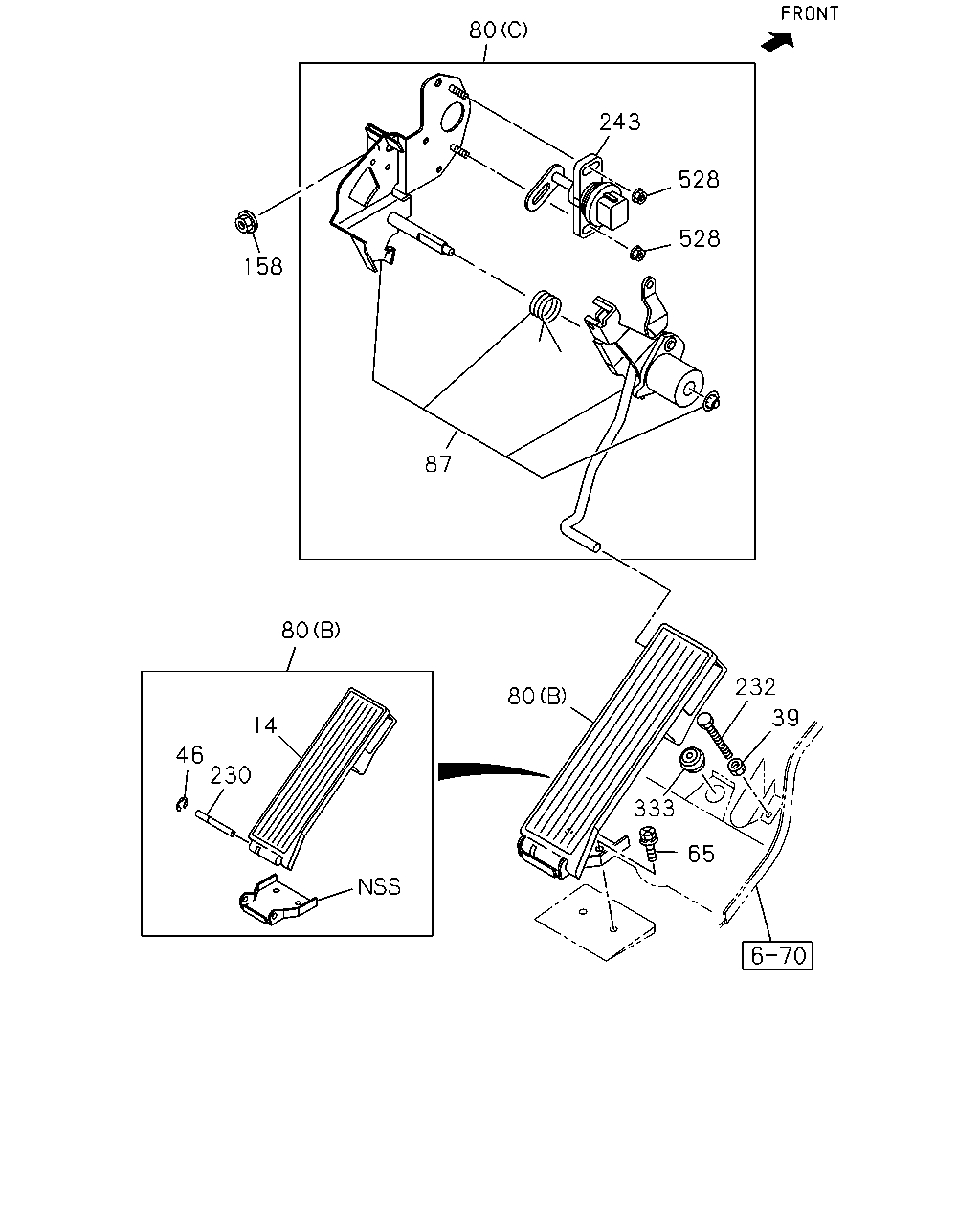

80 243 528 528 158 87 80 232 80 39 14 46 230 333 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0201-0804	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0805-	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0201-0512	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0601-0804	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0805-	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0201-0604	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-0804	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0805-	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0201-0804	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0805-	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	0201-	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0201-0804	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0805-	●	●
80	03.452 LINK ASM; ENG CONT (C)	8-97997-556-8	01	1	0805-		●
87	03.454 LINK; ENG CONT	8-97853-204-1	01	1	0201-	●
87	03.454 LINK; ENG CONT	8-97581-415-6	01	1	0805-		●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0201-0804	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0805-	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0201-0804	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0805-	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	0201-0404	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0405-0804	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0805-	●	●
243	03.425 SENSOR; ACCEL	8-97602-416-0	01	1	0805-0910		●
243	03.425 SENSOR; ACCEL	8-98131-263-0	01	1	0911-		●
333	03.671 GROMMET; HOLE,CABLE 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0805-		●
528	03.463 NUT; ACCEL SENSOR 12.183 M5	8-94169-022-0	02	1	0805-		●

68 70 80 158 35 83 89 67 124 81 124 124 87 90 124 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0201-0804	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0805-	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	01	1	0201-	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0201-0512	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0601-0804	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0805-	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0201-0604	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-0804	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0805-	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0201-0804	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0805-	●	●
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	0201-0501	●
67	03.480 CABLE ASM; IDLE CONT 4HF1 ENG(RLS) L=439	8-97853-058-1	01	1	0502-	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	0201-0501	●
68	03.480 KNOB; IDLE CONT 4HF1 ENG(RLS)	8-97853-765-1	01	1	0502-	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	0201-0501	●
70	03.483 NUT; CONT CABLE 4HF1 ENG(RLS) M18	8-97853-233-0	01	1	0502-	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	0201-	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0201-0804	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0805-	●	●
80	03.452 LINK ASM; ENG CONT (C)	8-97997-556-8	01	1	0805-		●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0201-	●
83	03.452 BRACKET; CONT LINK	8-97853-201-4	01	1	0201-	●
87	03.454 LINK; ENG CONT	8-97853-204-1	01	1	0201-	●
87	03.454 LINK; ENG CONT	8-97581-415-6	01	1	0805-		●
89	03.454 LEVER; RELAY	8-97868-042-0	01	1	0201-	●
90	03.454 LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	0201-	●
124	03.463 NUT; LEVER ID=4.9 PUSH NUT	8-94279-042-0	02	1	0201-	●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0201-	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0201-0804	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0805-	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0201-0804	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0805-	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	0201-0404	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0405-0804	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0805-	●	●

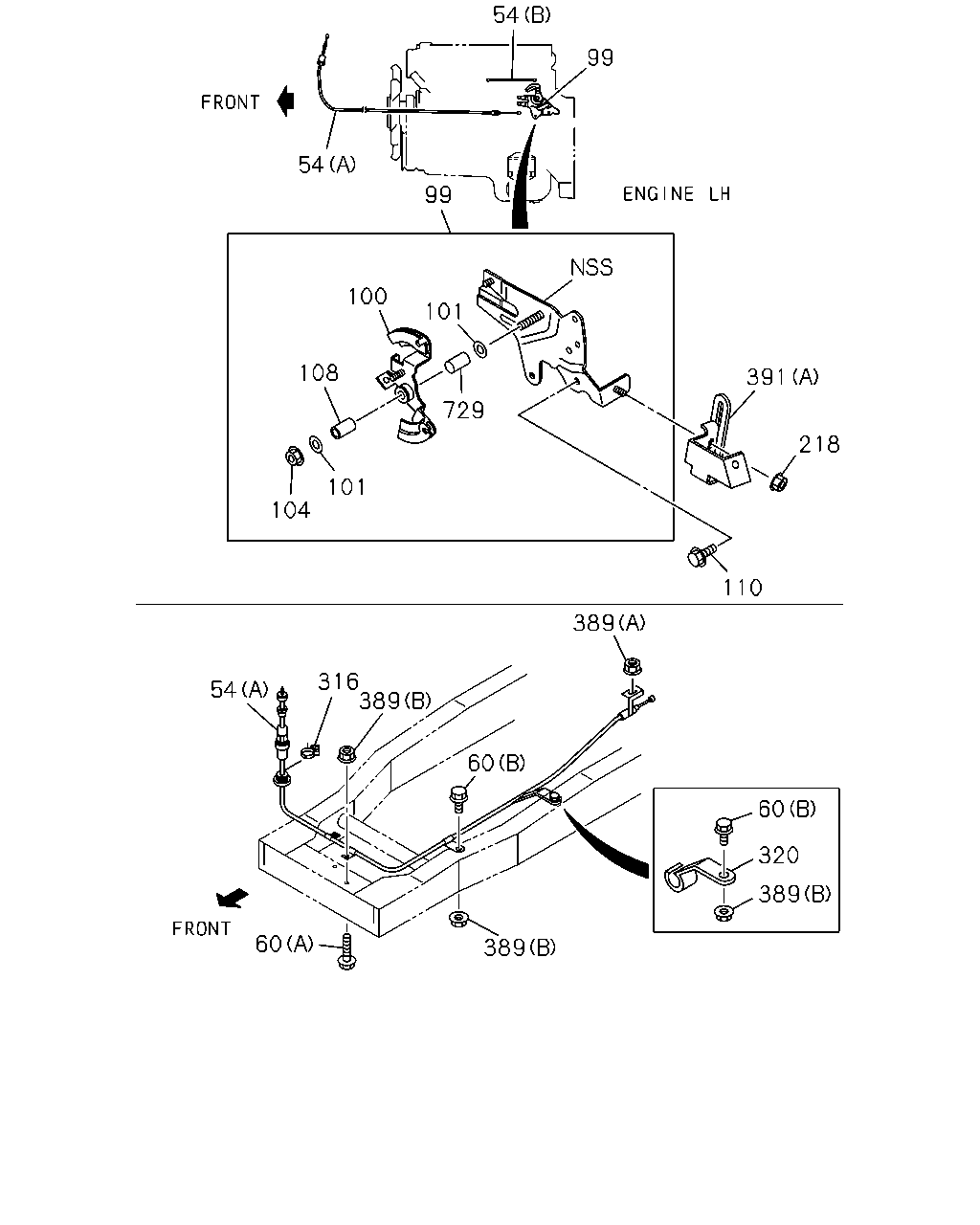

54 99 54 99 100 101 108 391 729 218 101 104 110 389 316 389 54 60 60 320 389 60 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	03.430 CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	0201-0501	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	0502-	●
54	03.430 CABLE; ENG CONT FRAME STRAIGHT TYPE<7KJ> (A) L=2913	8-97167-698-2	01	1	0201-0501	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A) L=2913	8-97167-698-2	01	1	0502-	●
60	08.155 BOLT; CABLE 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0201-0501	●
60	08.155 BOLT; CABLE 4HF1 ENG(RLS) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●
60	08.155 BOLT; CABLE 4HF1 ENG(RLS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
60	08.155 BOLT; CABLE FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0201-0501	●
60	08.155 BOLT; CABLE FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0201-0501	●
60	08.155 BOLT; CABLE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●
60	08.155 BOLT; CABLE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●
60	08.155 BOLT; CABLE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
60	08.155 BOLT; CABLE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF	8-97118-729-0	01	1	0201-0501	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1 ENG(RLS)	8-97118-729-0	01	1	0502-	●
100	03.463 SHAFT ASM; ENG CONT	8-97118-737-0	01	1	0201-0501	●
100	03.463 SHAFT ASM; ENG CONT 4HF1 ENG(RLS)	8-97118-737-0	01	1	0502-	●
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	0201-0501	●
101	03.463 WASHER; ENG CONT 4HF1 ENG(RLS) 01.276	8-94142-117-0	02	1	0502-	●
104	03.463 NUT; ENG CONT 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0501	●
104	03.463 NUT; ENG CONT 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●
104	03.463 NUT; ENG CONT 4HF1 ENG(RLS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●
108	03.463 BUSHING; ENG CONT	8-97120-004-0	01	1	0201-0501	●
108	03.463 BUSHING; ENG CONT 4HF1 ENG(RLS)	8-97120-004-0	01	1	0502-	●
110	03.463 BOLT; BRKT TO HANGER 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0201-0501	●
110	03.463 BOLT; BRKT TO HANGER 4HF1 ENG(RLS) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0502-0512	●
110	03.463 BOLT; BRKT TO HANGER 4HF1 ENG(RLS) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0602	●
218	03.452 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●
316	03.425 CLIP; LAMP BRKT 16.065 ID=9	5-09707-027-0	01	1	0201-0501	●
316	03.425 CLIP; LAMP BRKT 4HF1 ENG(RLS) 16.065 ID=9	5-09707-027-0	01	1	0502-	●
320	03.483 CLIP; FRAME FRAME STRAIGHT TYPE<7KJ> 06.672	8-94178-110-0	01	1	0201-0501	●
320	03.483 CLIP; FRAME 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 06.672	8-94178-110-0	01	1	0502-	●
389	03.483 NUT; ACCEL CONT CABLE FIX 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0201-0501	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●
389	03.483 NUT; ACCEL CONT CABLE FIX 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	0201-0501	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	0502-0805	●
389	03.483 NUT; ACCEL CONT CABLE FIX 03.417 (B) M8 W/LK WASHER	8-97581-234-0	02	1	0806-	●
389	03.483 NUT; ACCEL CONT CABLE FIX FRAME STRAIGHT TYPE<7KJ> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0201-0501	●
389	03.483 NUT; ACCEL CONT CABLE FIX FRAME STRAIGHT TYPE<7KJ> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0201-0501	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0502-0805	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0502-0805	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.417 (B) M8 W/LK WASHER	8-97581-234-0	01	1	0806-	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.417 (B) M8 W/LK WASHER	8-97581-234-0	01	1	0806-	●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0201-	●
391	03.452 BRACKET; ENG CONT (B)	8-97357-141-0	01	1	0302-0804	●
391	03.452 BRACKET; ENG CONT (B)	8-97357-141-0	01	1	0805-	●	●
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	0201-0501	●
729	03.451 COLLAR; JOINT 4HF1 ENG(RLS)	8-97118-760-0	01	1	0502-	●
