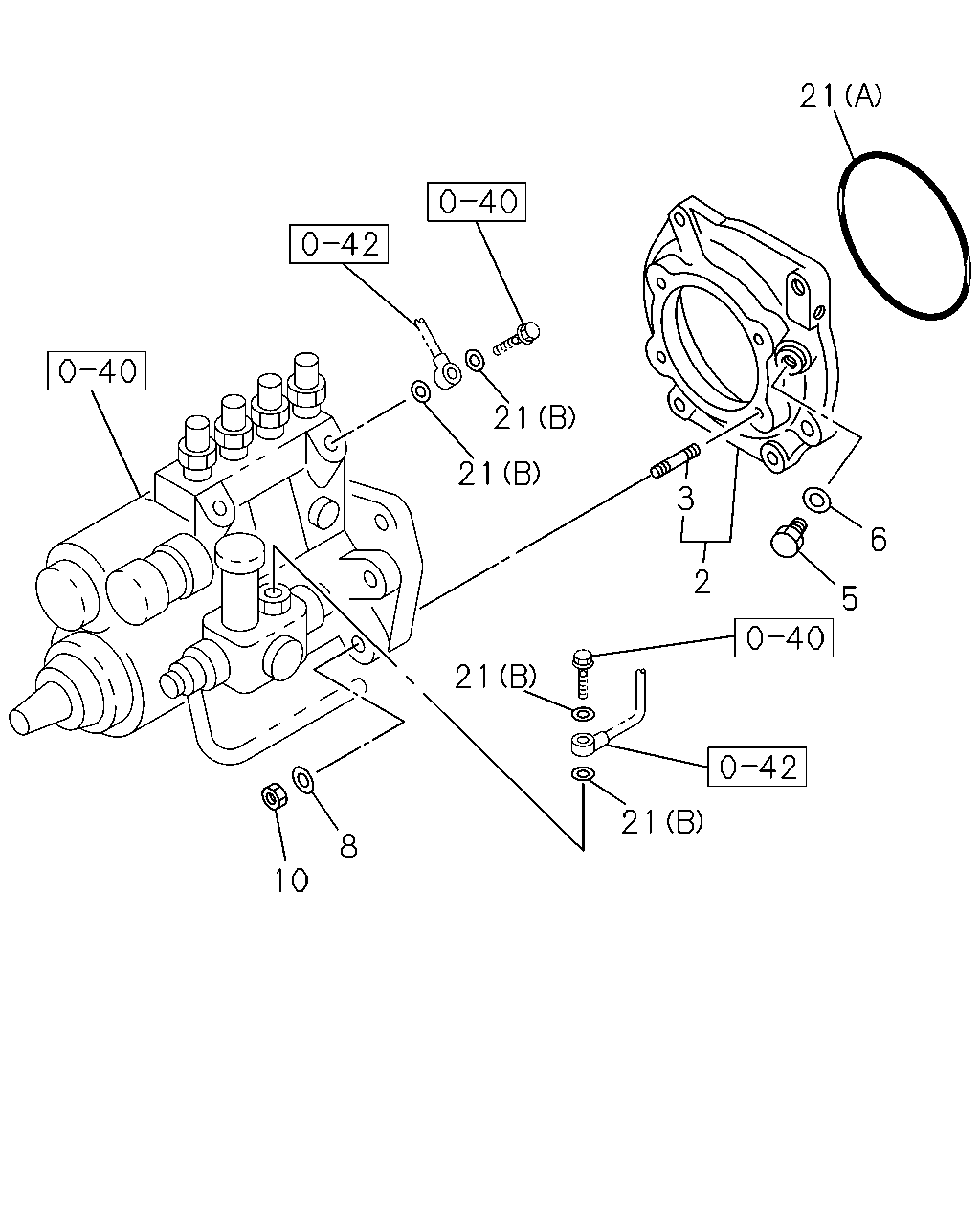

0-86 — MISCELLANEOUS PARTS; INJECTION PUMP (#19531) — 9 parça

21 21 21 3 6 2 5 21 21 8 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97121-616-0	01	1	0201-	●
3	03.330 STUD; HSG BRKT,INJ PUMP 08.981 M10X30 L=45	9-04101-030-0	04	1	0201-	●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	0201-	●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	0201-	●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	0201-	●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	0201-	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	0201-0804	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	0805-	●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	0201-	●
