Isuzu WW
▶
TRUCKS
▶
FSS
▶
10635 - FSS/FTS-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-05 - FRONT PANEL
▶
6-05 — FRONT PANEL
(#1953) — 52 parça
Tümü
A - FSS6MC
B - FSS6MF
C - FTS6MC
D - FTS6MF
◀

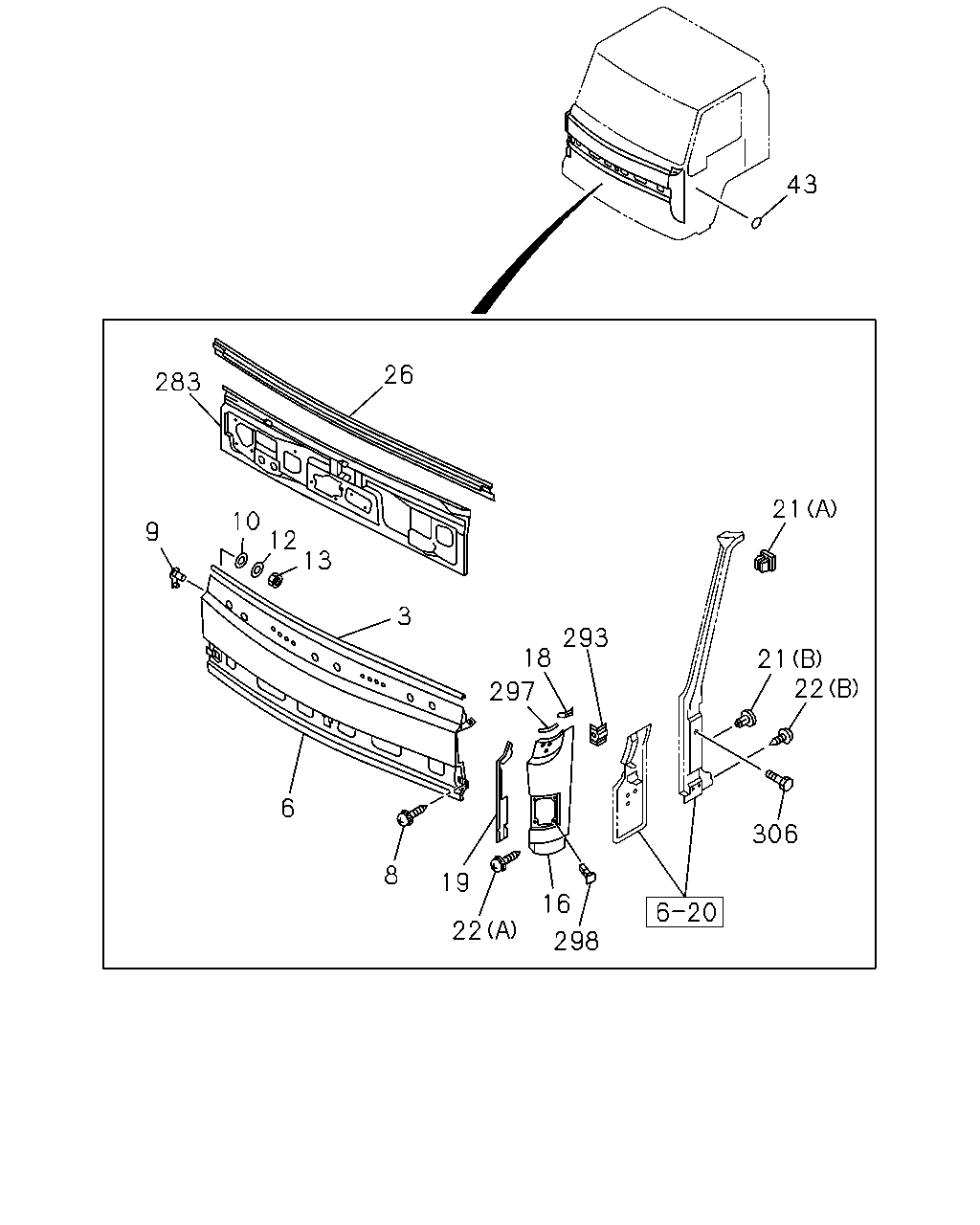

[605A] NO.1 (24 parça)

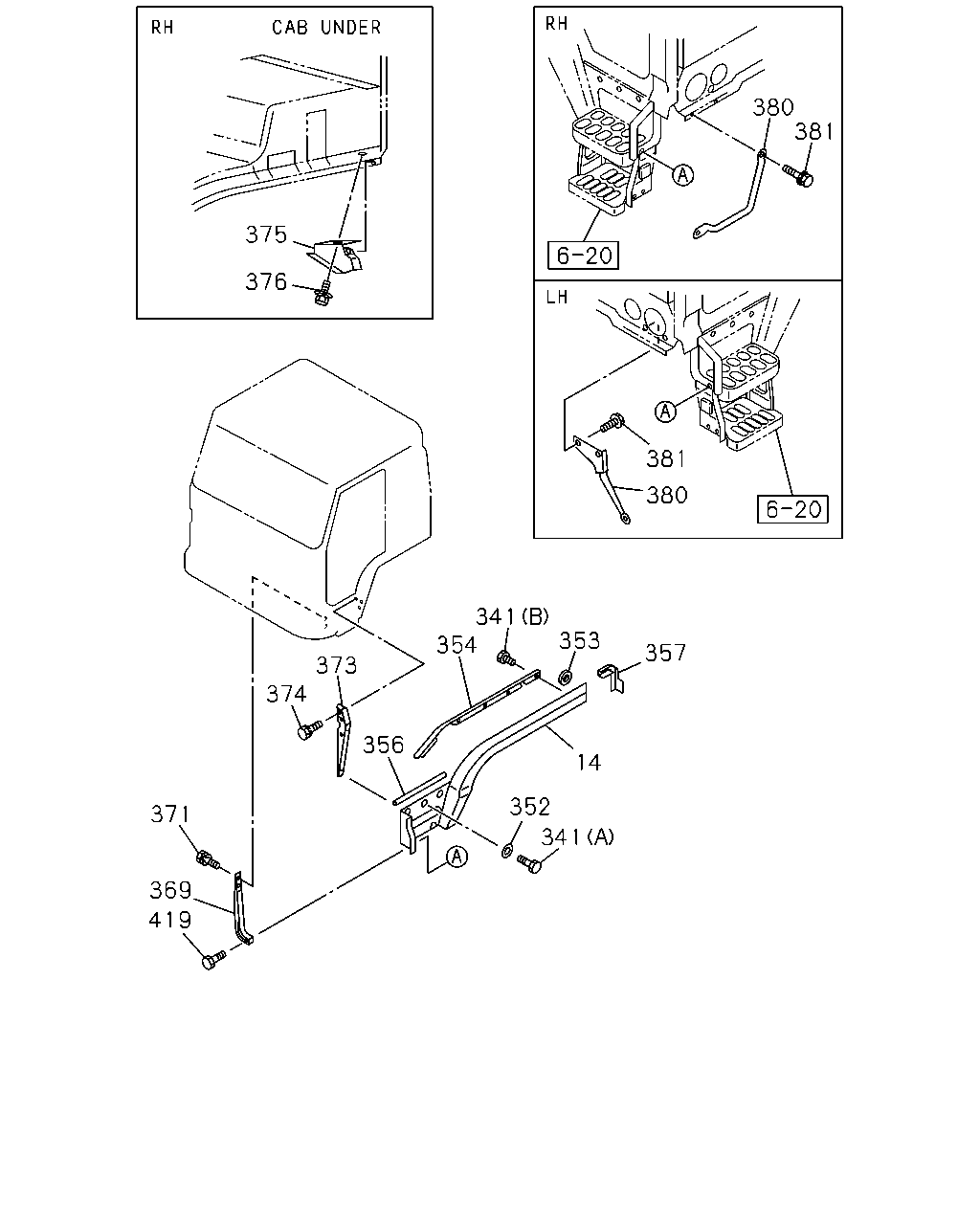

[605A] NO.2 (28 parça)
▶
43
26
283
21
10
12
13
9
3
293
18
21
22
297
6
306
8
19
16
22
298
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
3
FINISHER; FRT PANEL UPR
L=2100
1-71907-093-0
01
1
9207-
●
●
●
●
6
PANEL; FRONT
1-65480-934-1
01
1
9207-
●
●
●
●
8
SCREW; FRT PANEL
M6X16 W/LK&PL WASHER
1-09980-574-0
07
1
9207-
●
●
●
●
9
FASTENER; FRT PANEL TO SIDE PANEL
1-65570-152-1
02
1
9207-
●
●
●
●
10
WASHER; FRT PANEL TO SIDE PANEL
ID=9 OD=20
1-09985-145-0
02
1
9207-
●
●
●
●
12
WASHER; PL,FRT PANEL TO SIDE PANEL
ID=8.4 OD=22
9-09160-708-0
02
1
9207-
●
●
●
●
13
NUT; FRT PANEL TO SIDE PANEL
M8 FLANGE
1-09984-064-0
02
1
9207-
●
●
●
●
16
PANEL; FRONT,SIDE
1-65480-536-9
01
1
9207-
●
●
●
●
16
PANEL; FRONT,SIDE
1-65480-533-9
01
1
9207-
●
●
●
●
18
SEAL; A-POST UPR,FRT SIDE PANEL
1-65570-172-1
01
1
9207-
●
●
●
●
18
SEAL; A-POST UPR,FRT SIDE PANEL
1-65570-171-1
01
1
9207-
●
●
●
●
19
SEAL; FRT SIDE PANEL
1-65580-195-0
01
1
9207-
●
●
●
●
19
SEAL; FRT SIDE PANEL
1-65580-194-0
01
1
9207-
●
●
●
●
21
GROMMET; SCREW,FRT SIDE PANEL
(A) UPPER D=10X16 L=8 M6
1-09983-118-0
02
1
9207-
●
●
●
●
21
GROMMET; SCREW,FRT SIDE PANEL
(B) LOWER D=10X10 L=8 M6
1-09983-119-0
02
1
9207-
●
●
●
●
22
SCREW; FRT PANEL SIDE
(A)
1-09980-574-0
02
1
9207-
●
●
●
●
22
SCREW; FRT PANEL SIDE
(B)
1-09981-426-0
04
1
9207-
●
●
●
●
26
PANEL; REINF,FRT PANEL CENTER,INNER
1-61480-476-3
01
1
9207-
●
●
●
●
43
GROMMET; LOCATION HOLE,A-POST
OD=36 BLACK
1-76798-018-0
02
1
9207-
●
●
●
●
283
PANEL ASM; FRT CENTER,INNER
1-61480-478-5
01
1
9207-
●
●
●
●
293
BRACKET; PANEL
1-61480-496-1
02
1
9207-
●
●
●
●
297
FINISHER; SIDE PANEL,CAB
SERVICED BY L=190
1-71998-300-0
02
1
9207-
●
●
●
●
298
GROMMET; SCREW,LAMP,FRT SIDE PANEL
8-94279-039-0
08
1
9207-
●
●
●
●
306
BOLT; SUPPORT,OUTSIDE MIRROR BRKT
M6X20 W/LK&PL WASHER
1-09980-493-0
01
1
9208-9209
●
●
●
●
380
381
375
376
381
380
341
354
353
357
373
374
356
14
352
371
341
369
419
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
14
FENDER; FRT
1-65480-727-4
01
1
9207-
●
●
●
●
14
FENDER; FRT
1-65480-726-4
01
1
9207-
●
●
●
●
341
BOLT; FENDER TO COWL
(A) M6X20 W/LK&PL WASHER
1-09980-493-0
06
1
9207-
●
●
●
●
341
BOLT; FENDER TO COWL
(B) M6X20 W/LK&PL WASHER
1-09980-495-0
12
1
9207-
●
●
●
●
352
WASHER; NYLON
1-09985-171-0
06
1
9207-
●
●
●
●
353
SPACER; FENDER TO CAB
ID=12.5
1-09503-171-0
02
1
9501-
●
●
●
●
354
SEAL; FENDER SIDE
1-71998-307-1
01
1
9207-
●
●
●
●
354
SEAL; FENDER SIDE
1-71998-306-1
01
1
9207-
●
●
●
●
356
FINISHER; STEP CLOSING,FENDER
1-71998-228-0
01
1
9207-
●
●
●
●
356
FINISHER; STEP CLOSING,FENDER
1-71998-148-1
01
1
9207-
●
●
●
●
357
FINISHER; WIDE FENDER RR
1-71998-311-0
01
1
9207-
●
●
●
●
357
FINISHER; WIDE FENDER RR
1-71998-310-0
01
1
9207-
●
●
●
●
369
SUPPORT; FENDER STEP FRT
1-65680-300-3
01
1
9207-
●
●
●
●
369
SUPPORT; FENDER STEP FRT
1-65680-299-3
01
1
9207-
●
●
●
●
371
BOLT; SUPPORT,FENDER STEP FRT
M8X20 W/LK&PL WASHER
1-09980-496-0
04
1
9207-
●
●
●
●
373
SUPPORT; FENDER STEP REAR
1-65680-280-5
01
1
9207-
●
●
●
●
373
SUPPORT; FENDER STEP REAR
1-65680-279-5
01
1
9207-
●
●
●
●
374
BOLT; SUPPORT,FENDER STEP REAR
M8X20 W/LK&PL WASHER
1-09980-496-0
08
1
9207-
●
●
●
●
375
SUPPORT; FENDER REAR
1-65680-663-0
01
1
9207-
●
●
●
●
376
BOLT; SUPPORT,FENDER RR
M6X20 W/LK&PL WASHER
1-09980-495-0
01
1
9207-
●
●
●
●
380
STAY ASM; FENDER STEP FRT
1-65680-793-0
01
1
9207-
●
●
380
STAY ASM; FENDER STEP FRT
1-65680-843-0
01
1
9207-
●
●
380
STAY ASM; FENDER STEP FRT
1-65680-828-0
01
1
9207-
●
●
380
STAY ASM; FENDER STEP FRT
1-65680-827-0
01
1
9207-
●
●
381
BOLT; STAY,FENDER STEP
M6X20 W/LK&PL WASHER
1-09980-495-0
02
1
9207-
●
●
381
BOLT; STAY,FENDER STEP
M8X20 W/LK&PL WASHER
1-09980-496-0
01
1
9207-
●
●
381
BOLT; STAY,FENDER STEP
M8X20 W/LK&PL WASHER
1-09980-496-0
02
1
9207-
●
●
419
BOLT; STEP
M8X20 W/LK&PL WASHER
1-09980-496-0
08
1
9207-
●
●
●
●
