0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#19523) — 119 parça

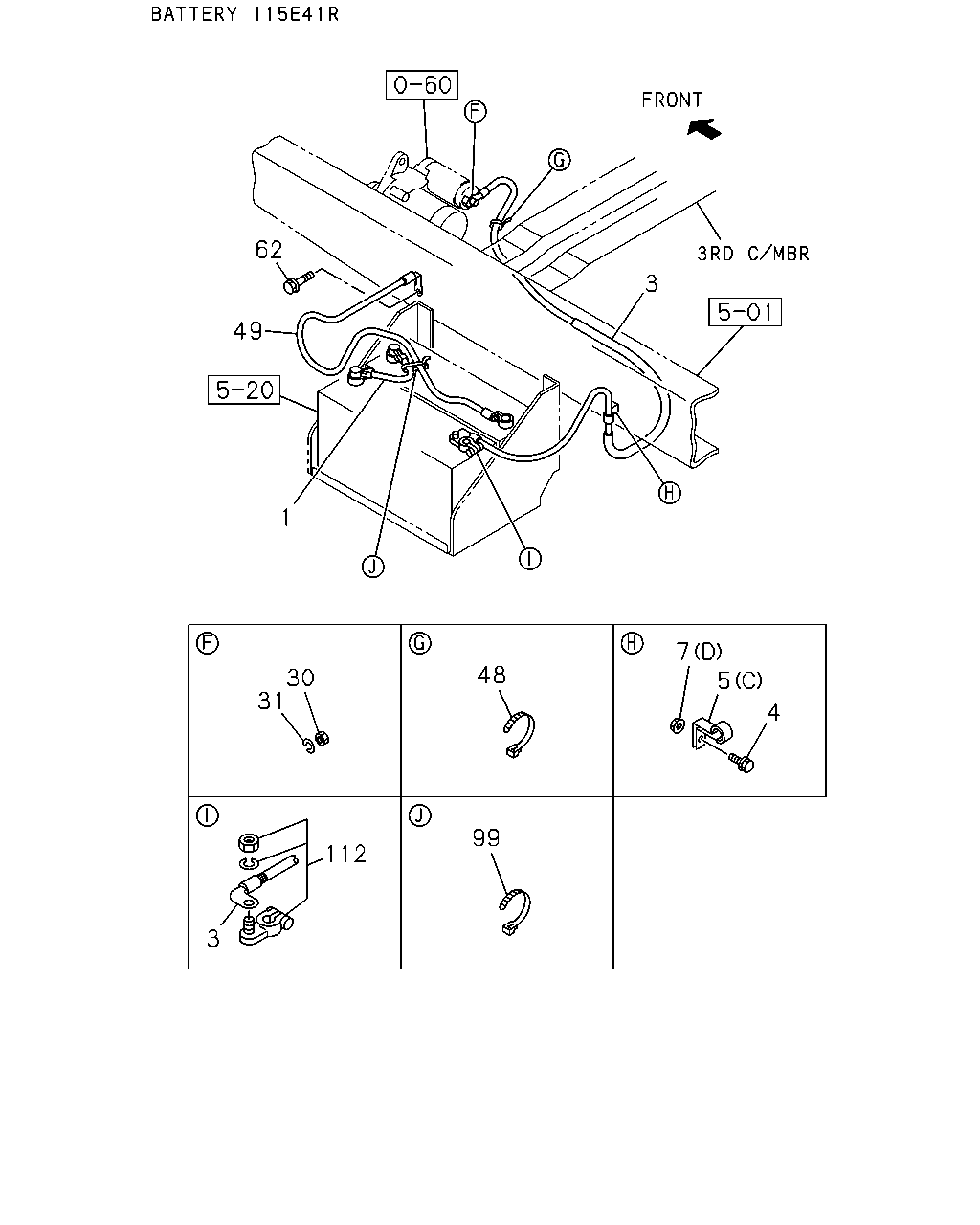

62 3 49 1 7 5 48 30 31 4 99 112 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.341 CABLE; BATTERY L=280	8-97230-719-1	01	1	0201-0501	●
1	02.341 CABLE; BATTERY NPR BUS CHASSIS LONG(NP***K) L=280	8-97230-719-2	01	1	0502-0804	●
1	02.341 CABLE; BATTERY L=280	8-97230-719-2	01	1	0805-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE FRAME STRAIGHT TYPE<7KJ>	8-97215-916-0	01	1	0201-0301	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE FRAME STRAIGHT TYPE<7KJ>	8-97357-101-0	01	1	0302-0302	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE FRAME STRAIGHT TYPE<7KJ>	8-97352-486-1	01	1	0303-0501	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE FRAME STRAIGHT TYPE<7KJ>	8-97377-770-0	01	1	0502-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41R<6XD>	8-98019-816-0	01	1	0805-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41R<6XD>	8-97377-772-1	01	1	0805-		●
4	02.559 BOLT; BATTERY CABLE NPR BUS CHASSIS LONG(NP***K) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0201-0301	●	●
4	02.559 BOLT; BATTERY CABLE BATTERY 115E41R<6XD> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-		●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.430 (B) ID=13 H=15 L=25	1-09700-888-0	01	1	0201-0301	●
5	02.559 CLIP; BATTERY CABLE TO BODY FRAME STRAIGHT TYPE<7KJ> (A) ID=13 L=90	8-97015-782-1	02	1	0201-0303	●
5	02.559 CLIP; BATTERY CABLE TO BODY BATTERY 115E41R<6XD> (C) ID=13 L=16	0-95235-222-0	01	1	0805-		●
7	02.343 NUT; (+) CABLE 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0201-0301	●
7	02.343 NUT; (+) CABLE 00.002 (C) M8	9-09110-508-0	01	1	0201-0301	●
7	02.343 NUT; (+) CABLE FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0201-0303	●
7	02.343 NUT; (+) CABLE BATTERY 115E41R<6XD> 01.062 (D) M8 FLANGE	0-91180-108-0	01	1	0805-		●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0201-0512	●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	0601-0804	●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	0805-	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0201-0603	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	0604-0804	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	0805-	●	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0201-0506	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0507-0804	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0507-0804	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0805-	●	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0805-	●
49	02.342 CABLE; BATTERY TO S/MBR,RH L=200 30BY	9-82933-456-0	01	1	0201-0301	●
49	02.342 CABLE; BATTERY TO S/MBR,RH L=200	8-97231-243-1	01	1	0302-0302	●
49	02.342 CABLE; BATTERY TO S/MBR,RH L=200	8-97231-243-1	01	1	0303-0501	●
49	02.342 CABLE; BATTERY TO S/MBR,RH FRAME STRAIGHT TYPE<7KJ> L=300	8-97230-536-1	01	1	0502-0804	●
49	02.342 CABLE; BATTERY TO S/MBR,RH FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> L=300	8-97230-536-1	01	1	0805-	●	●
49	02.342 CABLE; BATTERY TO S/MBR,RH BATTERY 115E41R<6XD> L=770	8-97350-717-1	01	1	0805-		●
62	02.343 BOLT; EARTH CABLE FIX M8X30 W/LK&PL WASHER	8-97087-204-0	01	1	0201-	●
62	02.343 BOLT; EARTH CABLE FIX M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0805-1004		●
62	02.343 BOLT; EARTH CABLE FIX M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-		●
99	02.343 CLIP; BATTERY CABLE BATTERY 115E41R<6XD> 03.162 L=140	5-09707-031-1	01	1	0805-		●
112	02.343 TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0302-0804	●
112	02.343 TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0805-	●	●

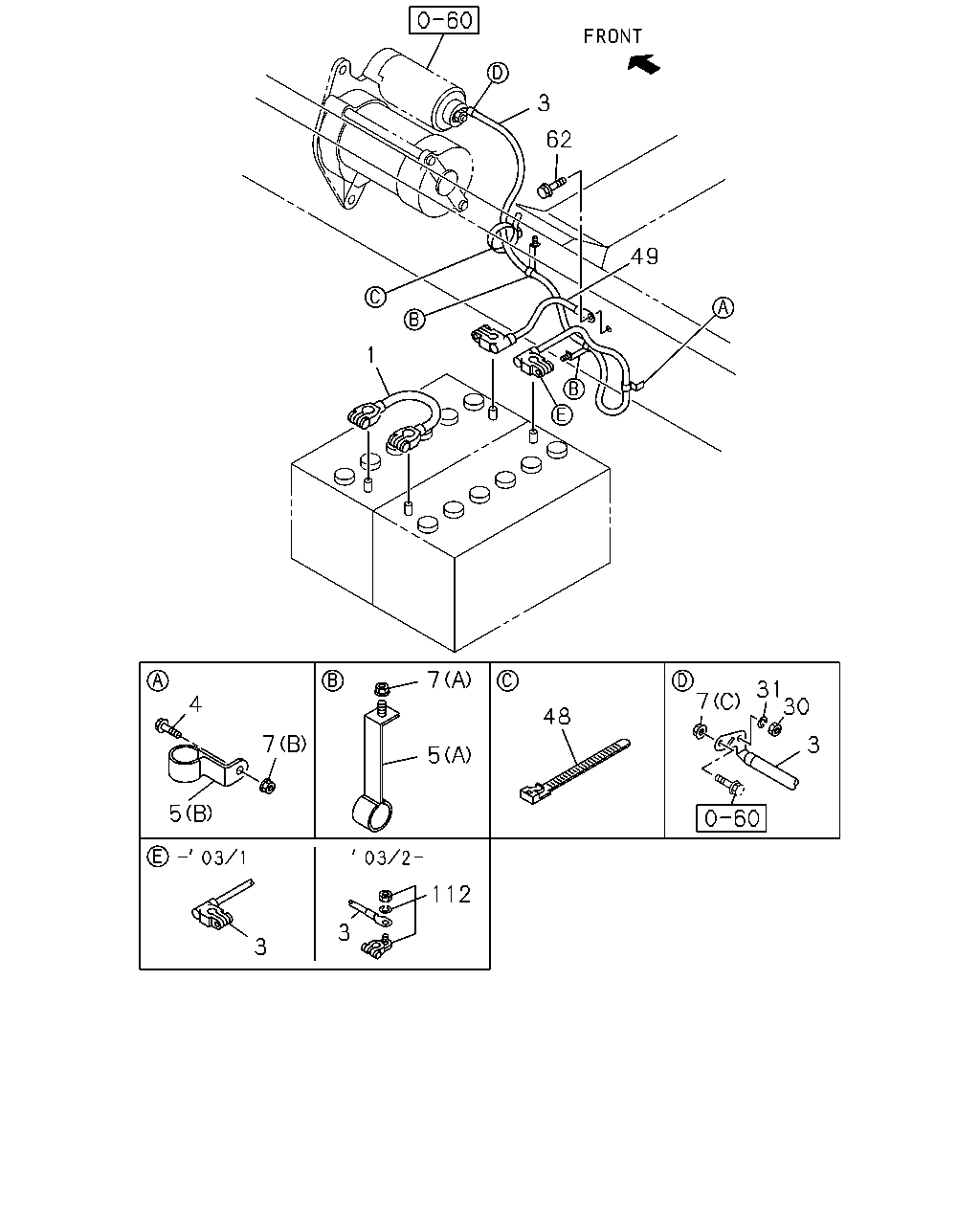

3 62 49 3 1 61 75 48 112 30 31 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.341 CABLE; BATTERY L=280	8-97230-719-1	01	1	0201-0501	●
1	02.341 CABLE; BATTERY NPR BUS CHASSIS LONG(NP***K) L=280	8-97230-719-2	01	1	0502-0804	●
1	02.341 CABLE; BATTERY L=280	8-97230-719-2	01	1	0805-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE FRAME STRAIGHT TYPE<7KJ>	8-97215-916-0	01	1	0201-0301	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE FRAME STRAIGHT TYPE<7KJ>	8-97357-101-0	01	1	0302-0302	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE FRAME STRAIGHT TYPE<7KJ>	8-97352-486-1	01	1	0303-0501	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE FRAME STRAIGHT TYPE<7KJ>	8-97377-770-0	01	1	0502-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41R<6XD>	8-98019-816-0	01	1	0805-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41R<6XD>	8-97377-772-1	01	1	0805-		●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0201-0512	●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	0601-0804	●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	0805-	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0201-0603	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	0604-0804	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	0805-	●	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0201-0506	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0507-0804	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0507-0804	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0805-	●	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0805-	●
49	02.342 CABLE; BATTERY TO S/MBR,RH L=200 30BY	9-82933-456-0	01	1	0201-0301	●
49	02.342 CABLE; BATTERY TO S/MBR,RH L=200	8-97231-243-1	01	1	0302-0302	●
49	02.342 CABLE; BATTERY TO S/MBR,RH L=200	8-97231-243-1	01	1	0303-0501	●
49	02.342 CABLE; BATTERY TO S/MBR,RH FRAME STRAIGHT TYPE<7KJ> L=300	8-97230-536-1	01	1	0502-0804	●
49	02.342 CABLE; BATTERY TO S/MBR,RH FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> L=300	8-97230-536-1	01	1	0805-	●	●
49	02.342 CABLE; BATTERY TO S/MBR,RH BATTERY 115E41R<6XD> L=770	8-97350-717-1	01	1	0805-		●
61	02.333 BRACKET; BATTERY CABLE FRAME STRAIGHT TYPE<7KJ>	8-97369-198-1	01	1	0502-0804	●
61	02.333 BRACKET; BATTERY CABLE FRAME STRAIGHT TYPE<7KJ>	8-97369-198-1	01	1	0805-	●
61	02.333 BRACKET; BATTERY CABLE EXC. BATTERY 115E41R<6XD>	8-97369-198-1	01	1	0805-		●
62	02.343 BOLT; EARTH CABLE FIX M8X30 W/LK&PL WASHER	8-97087-204-0	01	1	0201-	●
62	02.343 BOLT; EARTH CABLE FIX M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0805-1004		●
62	02.343 BOLT; EARTH CABLE FIX M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-		●
75	02.333 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0502-0512	●
75	02.333 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0601-0804	●
75	02.333 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0805-	●
75	02.333 BOLT; BRKT EXC. BATTERY 115E41R<6XD> 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0805-		●
112	02.343 TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0302-0804	●
112	02.343 TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0805-	●	●

3 62 49 1 7 7 31 30 4 48 7 3 5 5 112 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.341 CABLE; BATTERY L=280	8-97230-719-1	01	1	0201-0501	●
1	02.341 CABLE; BATTERY NPR BUS CHASSIS LONG(NP***K) L=280	8-97230-719-2	01	1	0502-0804	●
1	02.341 CABLE; BATTERY L=280	8-97230-719-2	01	1	0805-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE FRAME STRAIGHT TYPE<7KJ>	8-97215-916-0	01	1	0201-0301	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE FRAME STRAIGHT TYPE<7KJ>	8-97357-101-0	01	1	0302-0302	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE FRAME STRAIGHT TYPE<7KJ>	8-97352-486-1	01	1	0303-0501	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE FRAME STRAIGHT TYPE<7KJ>	8-97377-770-0	01	1	0502-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 115E41R<6XD>	8-98019-816-0	01	1	0805-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE EXC. BATTERY 115E41R<6XD>	8-97377-772-1	01	1	0805-		●
4	02.559 BOLT; BATTERY CABLE NPR BUS CHASSIS LONG(NP***K) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0201-0301	●	●
4	02.559 BOLT; BATTERY CABLE BATTERY 115E41R<6XD> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-		●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.430 (B) ID=13 H=15 L=25	1-09700-888-0	01	1	0201-0301	●
5	02.559 CLIP; BATTERY CABLE TO BODY FRAME STRAIGHT TYPE<7KJ> (A) ID=13 L=90	8-97015-782-1	02	1	0201-0303	●
5	02.559 CLIP; BATTERY CABLE TO BODY BATTERY 115E41R<6XD> (C) ID=13 L=16	0-95235-222-0	01	1	0805-		●
7	02.343 NUT; (+) CABLE 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0201-0301	●
7	02.343 NUT; (+) CABLE 00.002 (C) M8	9-09110-508-0	01	1	0201-0301	●
7	02.343 NUT; (+) CABLE FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0201-0303	●
7	02.343 NUT; (+) CABLE BATTERY 115E41R<6XD> 01.062 (D) M8 FLANGE	0-91180-108-0	01	1	0805-		●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0201-0512	●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	0601-0804	●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	0805-	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0201-0603	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	0604-0804	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	0805-	●	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0201-0506	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0507-0804	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0507-0804	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0805-	●	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0805-	●
49	02.342 CABLE; BATTERY TO S/MBR,RH L=200 30BY	9-82933-456-0	01	1	0201-0301	●
49	02.342 CABLE; BATTERY TO S/MBR,RH L=200	8-97231-243-1	01	1	0302-0302	●
49	02.342 CABLE; BATTERY TO S/MBR,RH L=200	8-97231-243-1	01	1	0303-0501	●
49	02.342 CABLE; BATTERY TO S/MBR,RH FRAME STRAIGHT TYPE<7KJ> L=300	8-97230-536-1	01	1	0502-0804	●
49	02.342 CABLE; BATTERY TO S/MBR,RH FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> L=300	8-97230-536-1	01	1	0805-	●	●
49	02.342 CABLE; BATTERY TO S/MBR,RH BATTERY 115E41R<6XD> L=770	8-97350-717-1	01	1	0805-		●
62	02.343 BOLT; EARTH CABLE FIX M8X30 W/LK&PL WASHER	8-97087-204-0	01	1	0201-	●
62	02.343 BOLT; EARTH CABLE FIX M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0805-1004		●
62	02.343 BOLT; EARTH CABLE FIX M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-		●
112	02.343 TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0302-0804	●
112	02.343 TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0805-	●	●
