0-60 — ENGINE ELECTRICAL CONTROL PARTS (#19522) — 90 parça

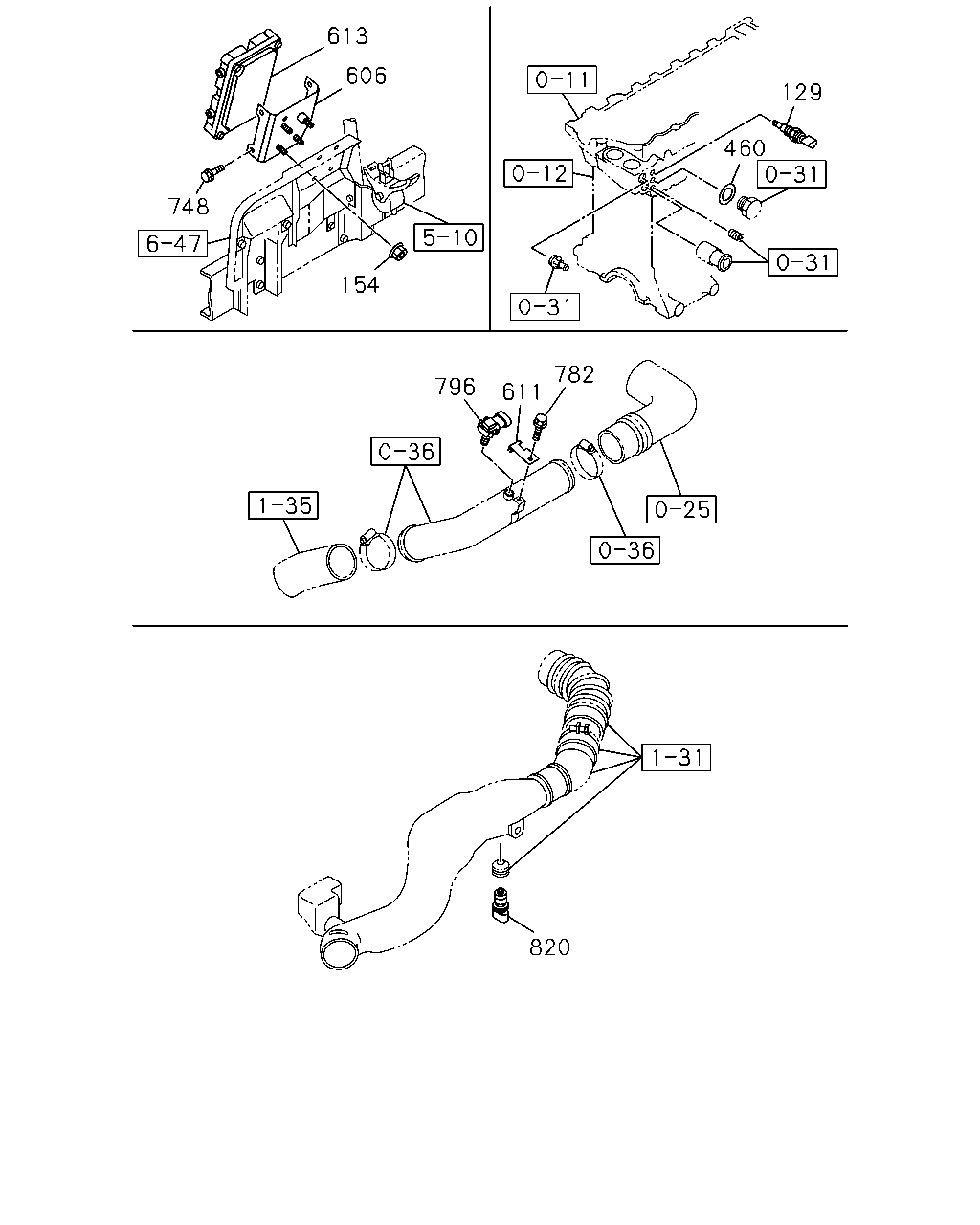

çizim 11489
613 606 129 460 748 154 782 796 611 820
BalonParca AdiParca NoAdetTipApplied Date A B
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0805- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0805-1007 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1008- ●
154 02.510 NUT; BRKT FIX
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 0805- ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 0805- ●
606 03.680 BRACKET; CONT UNIT 8-97369-871-1 01 1 0805- ●
611 01.150 BRACKET; SENSOR 8-97368-621-0 01 1 0805- ●
613 03.670 CONTROL UNIT; ENG 8-98000-594-6 01 1 0805- ●
748 02.500 BOLT; CONT UNIT
M6X10 		0-35050-610-0 03 1 0805- ●
782 02.510 BOLT; SENSOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0805- ●
796 01.150 SENSOR; MAP 8-09373-269-1 01 1 0805-0810 ●
796 01.150 SENSOR; MAP 8-28139-775-0 01 1 0811- ●
820 01.150 SENSOR; INTAKE AIR TEMP 8-12146-830-0 01 1 0805- ●

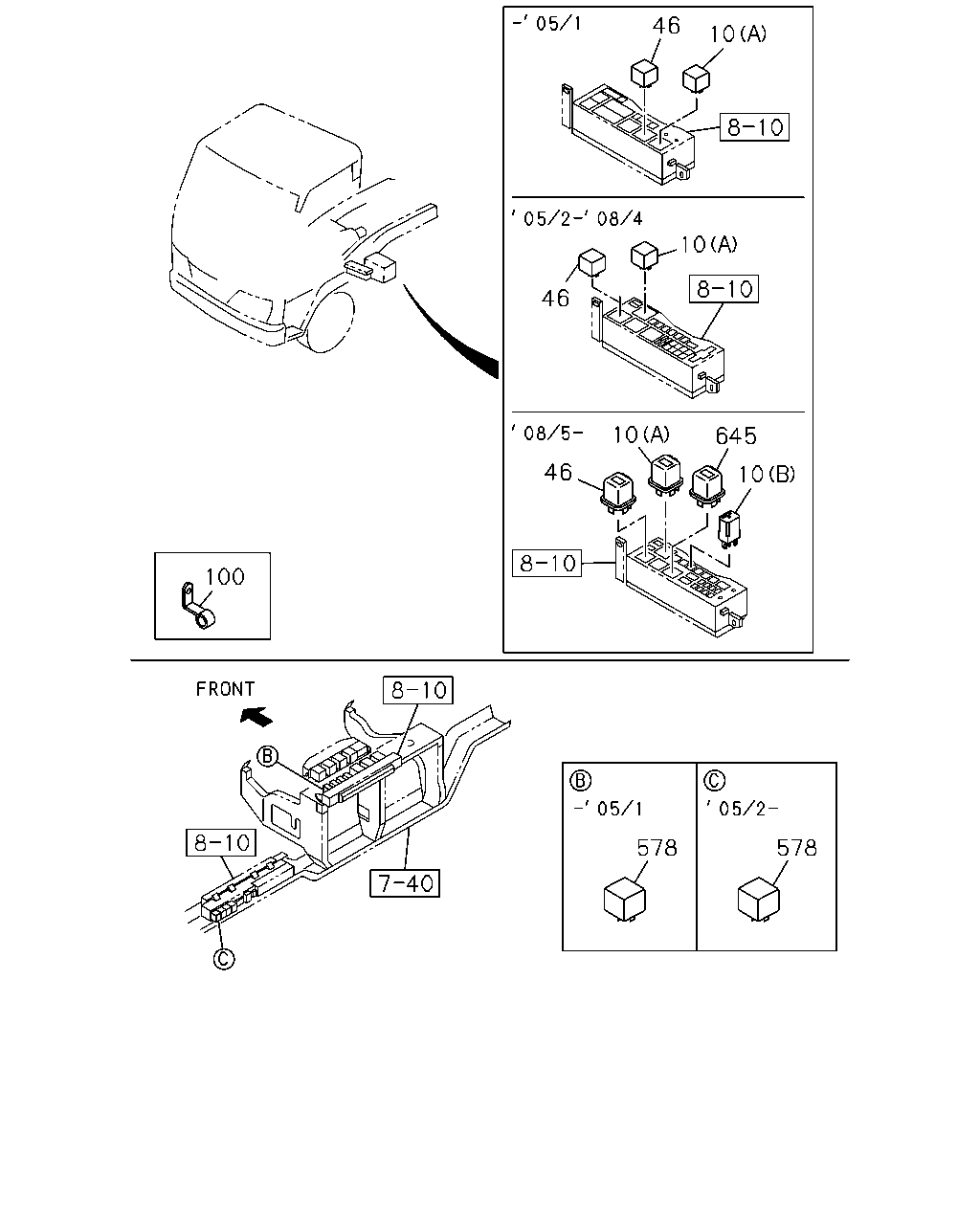

çizim 52209
46 10 10 46 10 645 46 10 100 578 578
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
(A) 24V 50A 		8-97264-947-0 01 1 0201-0804 ●
10 02.100 RELAY; STARTER
(A) 24V 50A 		8-97264-947-0 01 1 0805- ● ●
10 02.100 RELAY; STARTER
08.852 (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0805- ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0201-0804 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> 24V 50A 		8-97173-947-0 01 1 0805- ● ●
100 02.559 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 01 1 0805- ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-2 01 1 0201-0501 ●
578 02.510 RELAY; CHARGE WARNING
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0804 ●
578 02.510 RELAY; CHARGE WARNING
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0805- ● ●
645 02.510 RELAY; ENG CONT
24V 30A MITSUBA 		8-97238-540-0 01 1 0805-1402 ●
645 02.510 RELAY; ENG CONT
02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ●

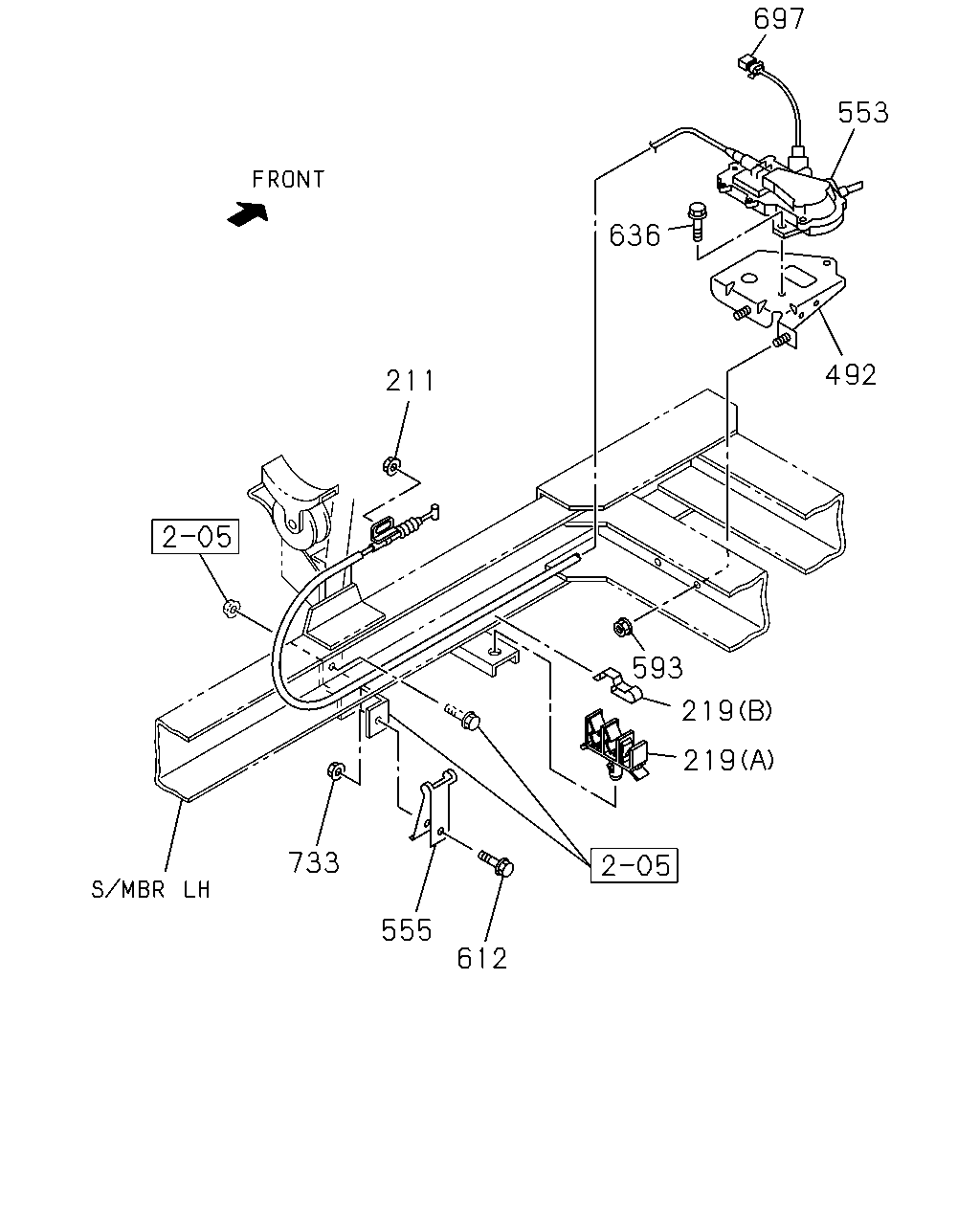

çizim 53205
697 553 636 492 211 593 219 219 733 555 612
BalonParca AdiParca NoAdetTipApplied Date A B
211 02.343 NUT; CABLE FIX
04.594 M6 FLANGE 		0-91150-106-0 01 1 0201-0602 ●
211 02.343 NUT; CABLE FIX
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603- ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (B) T=4.5 & 9 		5-09709-023-0 01 1 0201- ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (A) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0201- ●
492 03.483 BRACKET; ENG STOPPER
NPR BUS CHASSIS LONG(NP***K) FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 0201-0501 ● ●
492 03.483 BRACKET; ENG STOPPER
NPR BUS CHASSIS LONG(NP***K) FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 0502- ●
553 03.485 MOTOR ASM; ENG STOP
NPR BUS CHASSIS LONG(NP***K) FRAME STRAIGHT TYPE<7KJ> 		8-97255-069-1 01 1 0502- ●
553 03.485 MOTOR ASM; ENG STOP
NPR BUS CHASSIS LONG(NP***K) FRAME STRAIGHT TYPE<7KJ> 		8-97255-069-0 01 1 0201-0501 ● ●
555 03.485 BRACKET; ENG STOP 8-97119-039-2 01 1 0201- ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 0201-0602 ●
593 02.483 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0603- ●
612 02.510 BOLT; BRKT
16.585 M8X20 		1-09981-468-0 01 1 0201- ●
636 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0201-0512 ●
636 02.510 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
697 03.726 HARNESS; CABLE
FRAME STRAIGHT TYPE<7KJ> 		8-97126-038-0 01 1 0201- ●
733 02.343 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0201-0602 ●
733 02.343 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ●

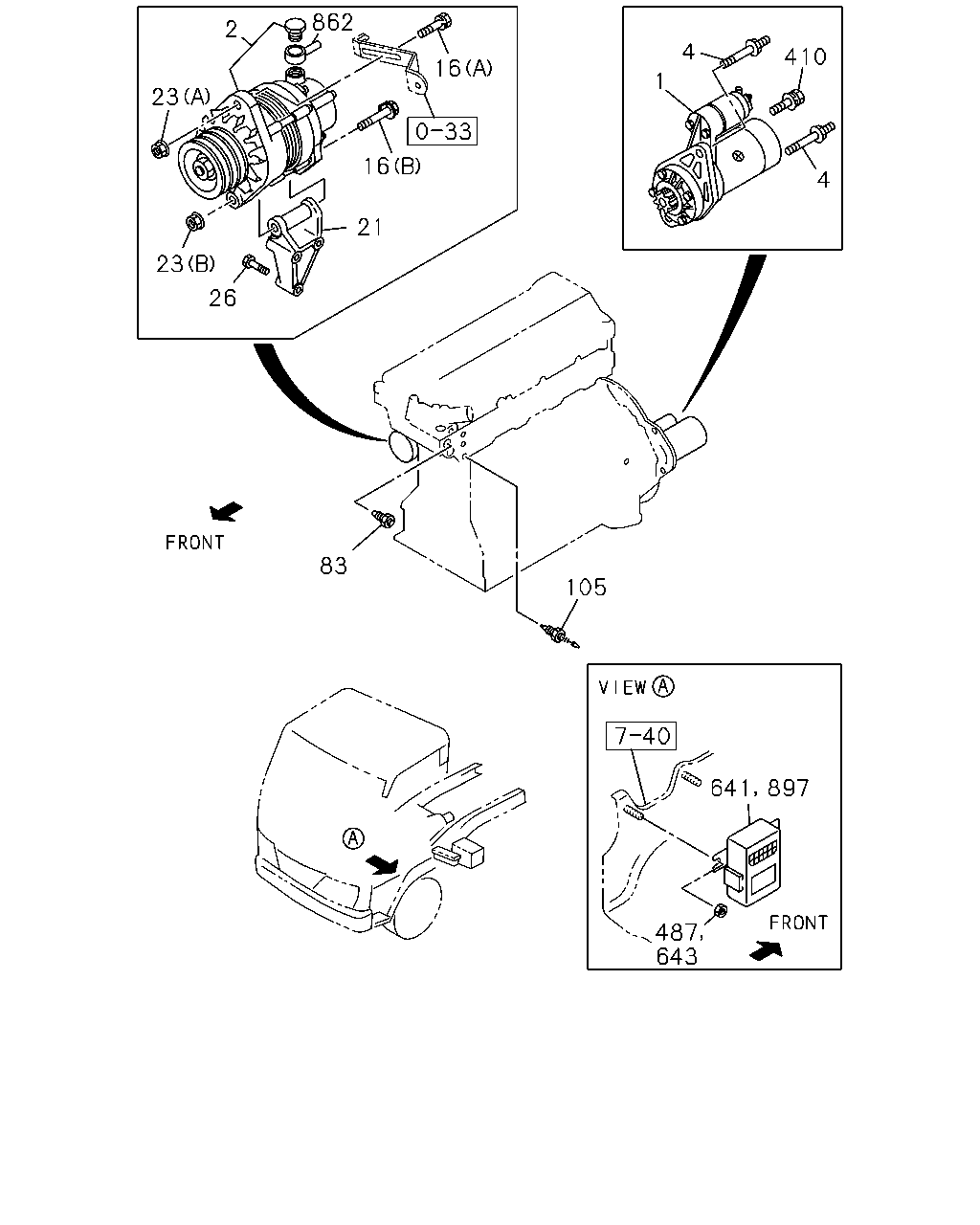

çizim 53531
862 2 4 410 16 1 23 16 4 21 23 26 83 105 487 643 641 897
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0201-0804 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0805-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98222-019-0 01 1 1208-1311 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98245-259-1 01 1 1312- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0201-1006 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A 		8-97175-390-1 01 1 0201-0201 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A 		8-97300-353-0 01 1 0202-0304 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A HITACHI 		8-97351-573-0 01 1 0305-0305 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. IDENTIFICATION LABEL FOR KD<6UT> 24V 60A HITACHI 		8-97351-573-0 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A HITACHI 		8-97351-573-0 01 1 0309- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> 24V 60A 		8-97300-353-0 01 1 0306-0308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 80A HITACHI 		8-97351-574-1 01 1 0805- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0201-0804 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0805- ● ●
16 02.277 BOLT; GEN
02.317 (A) M8X40 W/WASHER 		8-97011-792-4 01 1 0201-0804 ●
16 02.277 BOLT; GEN
02.317 (A) M8X40 W/WASHER 		8-97011-792-4 01 1 0805- ● ●
16 02.277 BOLT; GEN
(B) M10X133 		8-97146-998-0 01 1 0201-0804 ●
16 02.277 BOLT; GEN
(B) M10X133 		8-97146-998-0 01 1 0805- ● ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0201-0804 ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0805- ● ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0201-0602 ●
23 02.277 NUT; GEN
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0603-0804 ●
23 02.277 NUT; GEN
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0805- ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0201-0602 ●
23 02.277 NUT; GEN
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 0603-0804 ●
23 02.277 NUT; GEN
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 0805- ● ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 0201-0512 ●
26 02.277 BOLT; GEN BRKT
02.042 M10X50 FLANGE 		0-28151-050-0 01 1 0601-0804 ●
26 02.277 BOLT; GEN BRKT
02.042 M10X50 FLANGE 		0-28151-050-0 01 1 0805- ● ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 0201-0512 ●
26 02.277 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0601-0804 ●
26 02.277 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0805- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0201- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0201- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0201- ●
410 02.343 BOLT; BRKT,GRAND
12.187 M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 0201-0301 ●
487 02.343 NUT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0805- ●
641 02.510 TIMER; QOS 8-97215-648-0 01 1 0201-0301 ●
641 02.510 TIMER; QOS 8-97361-318-3 01 1 0302- ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 0201-0602 ●
643 02.510 NUT; TIMER,QOS
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ●
862 02.313 CONNECTOR; GEN 8-97351-626-0 01 1 0305-0305 ●
862 02.313 CONNECTOR; GEN
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97351-626-0 01 1 0306-0308 ●
862 02.313 CONNECTOR; GEN 8-97351-626-0 01 1 0309- ●
862 02.313 CONNECTOR; GEN 8-97351-627-0 01 1 0805- ●
897 02.510 DRM 8-98013-144-8 01 1 0805-1401 ●
897 02.510 DRM 8-98260-912-1 01 1 1402- ●
