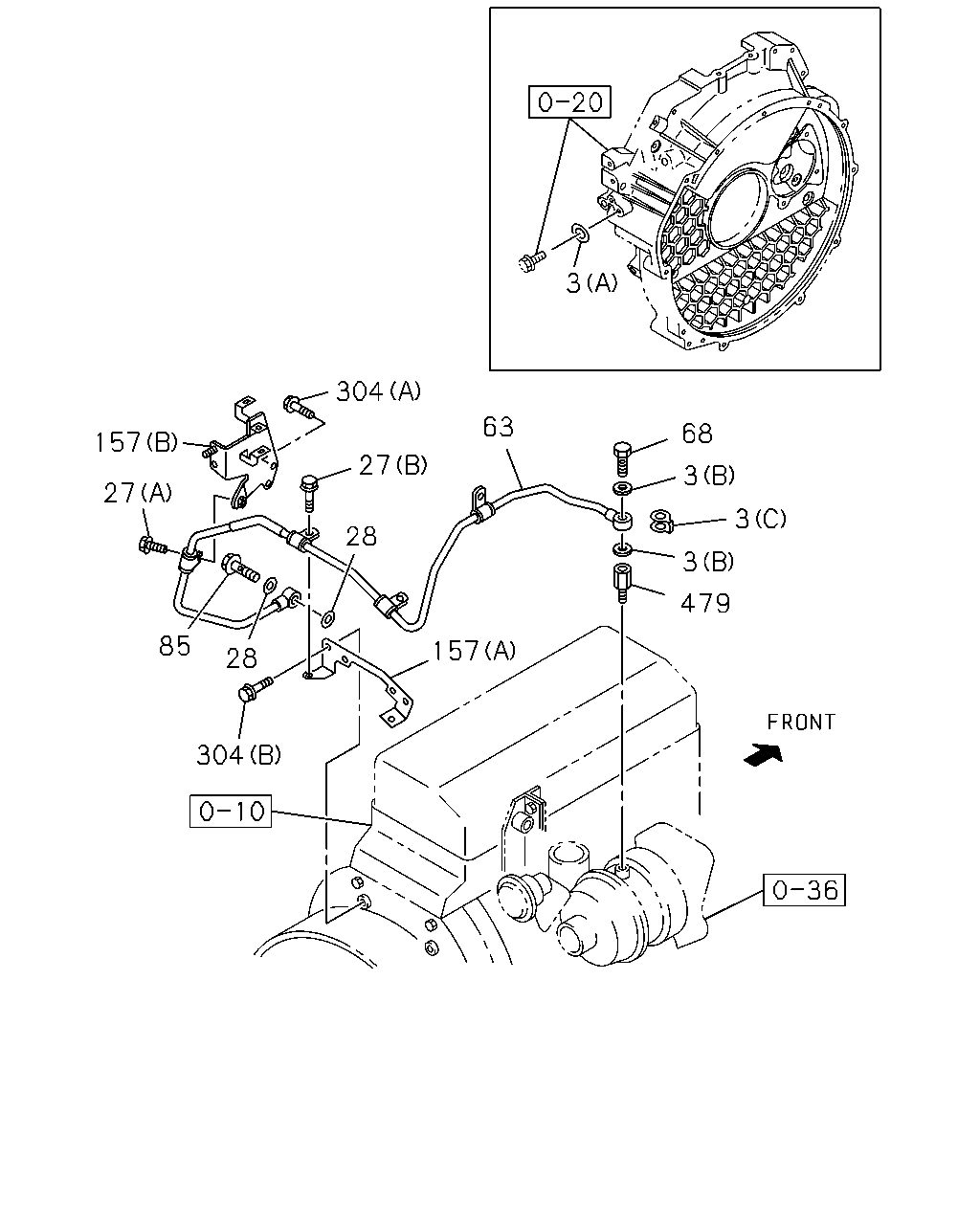

0-52 — OIL AND VACUUM PIPING; ENGINE (#19519) — 54 parça

3 3 3 1 2 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-1	01	1	0201-	●
2	01.531 BOLT; EYE,OIL PIPE M10X21 FLANGE	1-09675-077-0	02	1	0201-0805	●
2	01.531 BOLT; EYE,OIL PIPE 03.162 M10X21 FLANGE	8-97372-238-0	02	1	0806-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0201-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0805-		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0805-1101		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.6	8-97331-137-1	01	1	1102-		●

3 304 63 68 157 27 3 27 3 28 3 479 85 157 28 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0201-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0805-		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0805-1101		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.6	8-97331-137-1	01	1	1102-		●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0201-0512	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-0804	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0805-	●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	0805-		●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0805-		●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	0805-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97385-207-0	01	1	0805-		●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-1	01	1	0805-		●
85	01.531 BOLT; EYE,OIL PIPE FIX M10X28	8-98037-823-0	01	1	0805-		●
157	01.519 BRACKET; OIL PIPE (B)	8-97354-805-1	01	1	0805-		●
157	01.519 BRACKET; OIL PIPE (A)	8-97376-118-0	01	1	0805-		●
304	01.540 BOLT; BRKT,OIL PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0805-		●
304	01.540 BOLT; BRKT,OIL PIPE 00.029 (B) M10X16 FLANGE	0-28151-016-0	02	1	0805-		●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	0805-		●

202 65 89 202 86 202 89 83 27 202 65 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0201-0512	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-0804	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0805-	●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	0805-		●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0805-		●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0201-0804	●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0805-0805	●	●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	8-97372-239-0	01	1	0806-	●	●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	0201-0804	●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	0805-	●	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-670-0	01	1	0201-0306	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0307-0804	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0805-	●	●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	0201-0804	●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	0805-	●	●
89	04.681 CLIP; VAC HOSE NPR BUS CHASSIS LONG(NP***K) 03.280 ID=17.1	8-94122-679-0	02	1	0201-0301	●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	02	1	0302-0804	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	02	1	0302-0804	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	02	1	0805-1302	●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	02	1	0805-1302	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	02	1	1303-	●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	02	1	1303-	●	●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0201-0804	●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0805-	●	●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-0804	●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0805-1312	●	●
202	01.531 GASKET; OIL PIPE (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	0201-0804	●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	0805-	●	●
