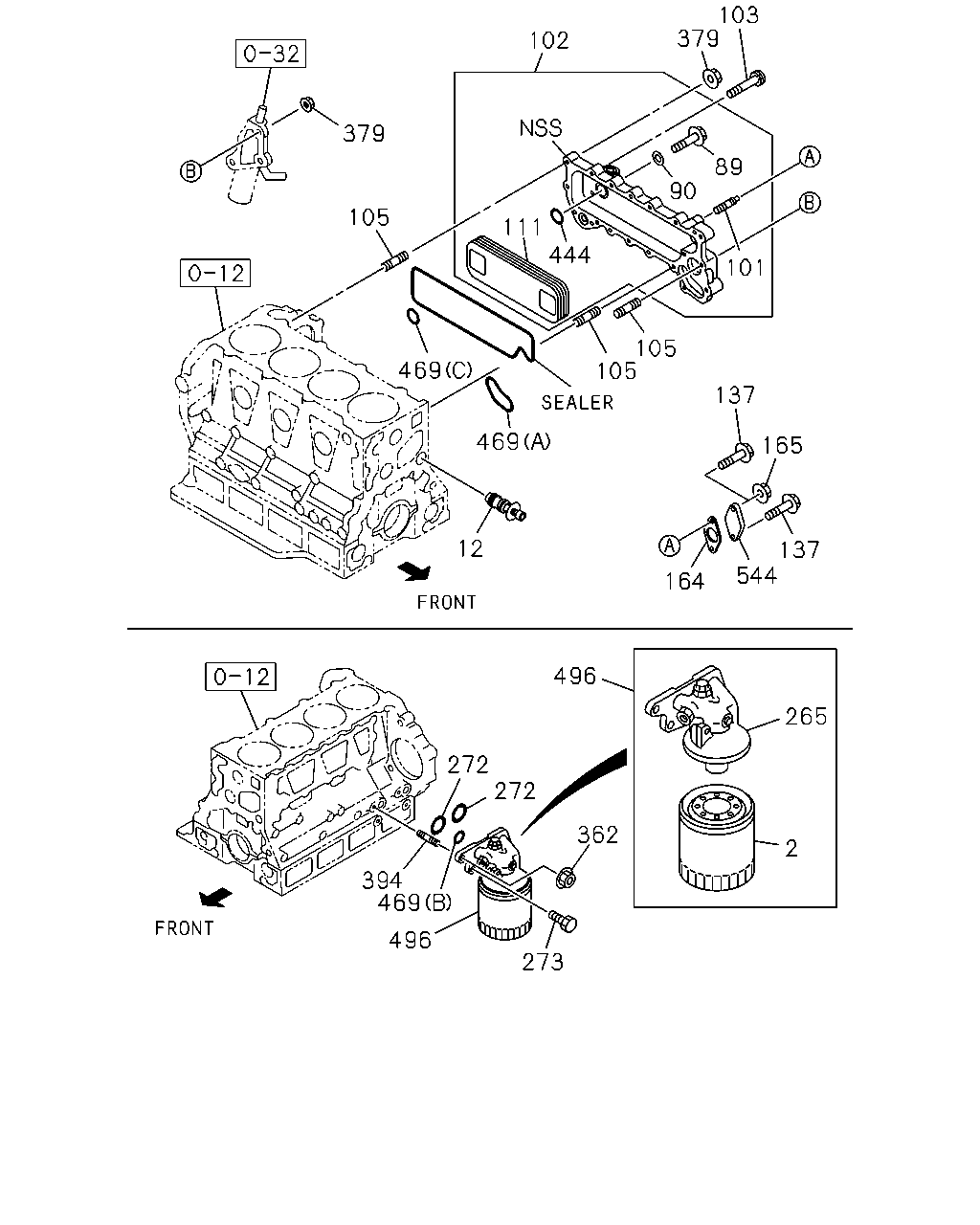

0-50 — OIL COOLER AND OIL FILTER (#19517) — 69 parça

103 379 102 379 90 89 105 111 444 101 105 105 469 137 469 165 12 137 544 164 496 265 272 272 362 2 394 469 496 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	0502-0804	●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	0805-1509	●	●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	0201-0501	●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	0201-0804	●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	0805-1509	●	●
2	01.836 ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-	●	●
12	01.540 VALVE ASM; BYPASS	8-97013-566-2	01	1	0201-0804	●
12	01.540 VALVE ASM; BYPASS	8-97013-566-2	01	1	0805-	●	●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0201-1211	●
89	01.540 BOLT; ELEMENT TO CASE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0805-1211		●
89	01.540 BOLT; ELEMENT TO CASE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1212-	●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	0201-0804	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	0805-	●	●
101	01.540 STUD; OIL COOLER TO PIPE 03.407 M8X20 L=38	0-49740-820-0	01	1	0201-0206	●
102	01.540 COOLER ASM; OIL	8-97212-334-0	01	1	0201-0206	●
102	01.540 COOLER ASM; OIL	8-97333-783-0	01	1	0207-0406	●
102	01.540 COOLER ASM; OIL	8-97385-200-6	01	1	0407-	●
102	01.540 COOLER ASM; OIL	8-98085-312-5	01	1	0805-		●
103	01.540 BOLT; OIL COOLER 07.010 M8X20 FLANGE	0-28080-820-0	07	1	0201-0512	●
103	01.540 BOLT; OIL COOLER 04.338 M8X20 FLANGE	0-28050-820-0	07	1	0601-	●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	07	1	0201-0512	●
103	01.540 BOLT; OIL COOLER 03.162 M8X35 FLANGE	0-28050-835-0	07	1	0601-	●
103	01.540 BOLT; OIL COOLER 04.338 M8X20 FLANGE	0-28050-820-0	08	1	0805-		●
103	01.540 BOLT; OIL COOLER 03.162 M8X35 FLANGE	0-28050-835-0	08	1	0805-		●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0201-0804	●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0805-	●	●
111	01.540 CORE; OIL COOLER	8-97222-512-0	01	1	0201-0206	●
111	01.540 CORE; OIL COOLER	8-97334-101-1	01	1	0207-	●
111	01.540 CORE; OIL COOLER	8-97334-100-2	01	1	0805-		●
137	01.840 BOLT 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0201-0206	●
137	01.840 BOLT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0207-0512	●
137	01.840 BOLT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0804	●
137	01.840 BOLT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0805-	●	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	0201-0804	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	0805-	●	●
165	01.540 NUT; HTR PIPE 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0206	●
265	01.837 BODY; OIL FILTER	8-97096-677-3	01	1	0201-0804	●
265	01.837 BODY; OIL FILTER	8-97096-677-4	01	1	0805-	●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	0201-0211	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0212-0804	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0805-	●	●
273	01.840 BOLT; OIL FILTER 08.900 M10X30 FLANGE	0-28781-030-0	02	1	0201-0512	●
273	01.840 BOLT; OIL FILTER 00.780 M10X30 FLANGE	0-28751-030-0	02	1	0601-0804	●
273	01.840 BOLT; OIL FILTER 00.780 M10X30 FLANGE	0-28751-030-0	02	1	0805-	●	●
362	01.837 NUT; OIL FILTER 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0602	●
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0804	●
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE	0-91180-110-0	02	1	0805-	●	●
379	01.540 NUT; OIL COOLER 07.633 M8 FLANGE	0-91150-108-0	03	1	0201-0602	●
379	01.540 NUT; OIL COOLER 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-0804	●
379	01.540 NUT; OIL COOLER 01.062 M8 FLANGE	0-91180-108-0	03	1	0805-	●	●
394	01.837 STUD; OIL FILTER 03.275 M10X25 L=40	0-49841-025-0	02	1	0201-0512	●
394	01.837 STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	02	1	0601-0804	●
394	01.837 STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	02	1	0805-	●	●
444	01.550 GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	0201-0406	●
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0407-0804	●
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0805-	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0201-0804	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0805-	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	0201-0211	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0212-0804	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0805-	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	0201-0211	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	9-09566-226-0	01	1	0212-0606	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0607-0804	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0805-	●	●
496	01.835 FILTER ASM; OIL	8-97148-268-2	01	1	0201-0804	●
496	01.835 FILTER ASM; OIL	8-97148-268-4	01	1	0805-1509	●	●
496	01.835 FILTER ASM; OIL	8-98328-202-0	01	1	1510-	●	●
544	08.845 COVER; HEATER	8-97147-028-0	01	1	0201-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
