0-32 — WATER PIPING; ENGINE
(#19509) — 16 parça
Tümü
A - 4HF1 ENG
B - 4HK1 ENG
◀

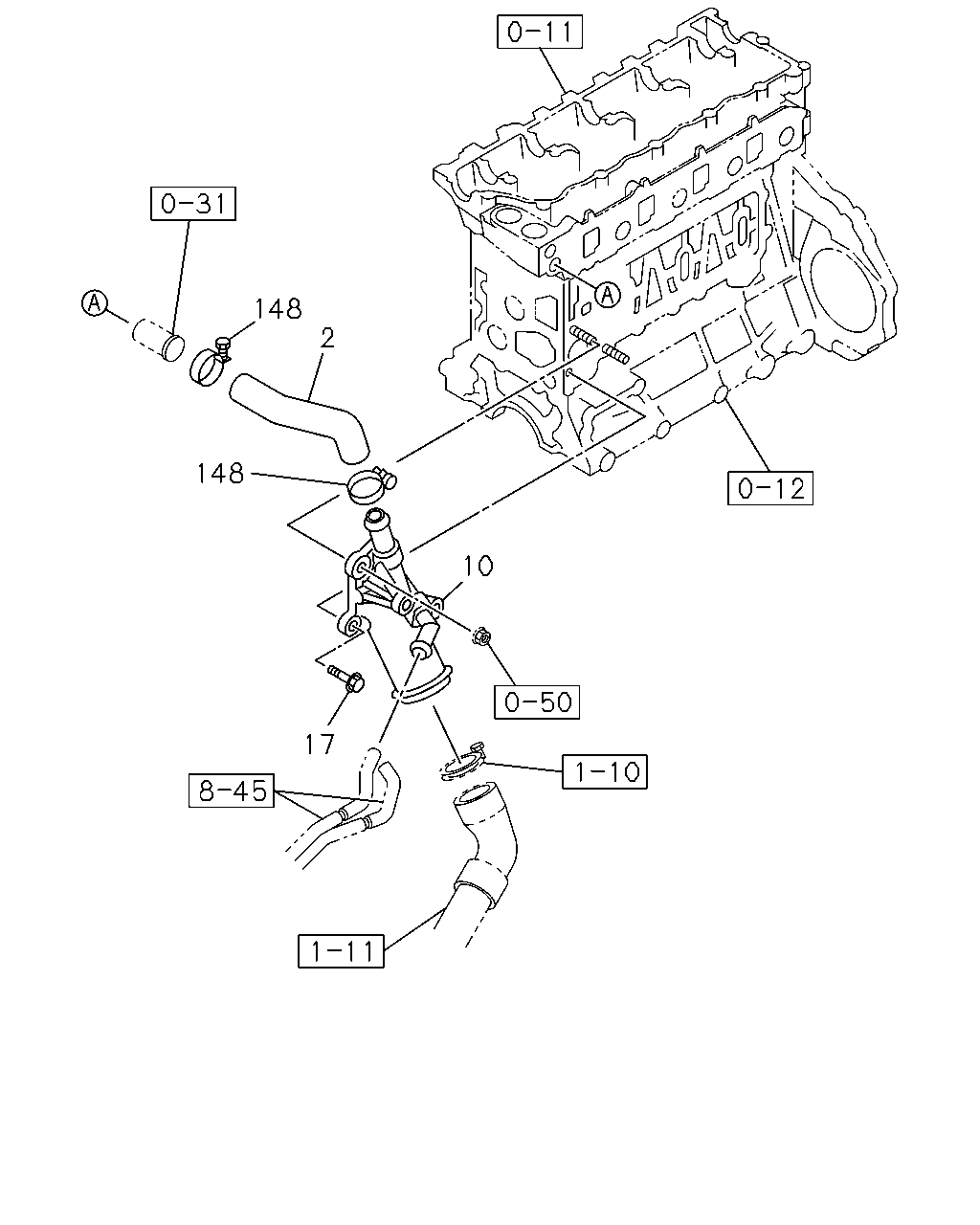

[032A] NO.1 (12 parça)
[032A] NO.2 (4 parça)
▶
148
2
148
10
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
01.097 HOSE; WATER,BY-PASS
8-97209-948-0
01
1
0201-
●
2
01.097 HOSE; WATER,BY-PASS
8-97209-949-1
01
1
0805-
●
10
01.153 PIPE; SUCTION
8-97216-157-1
01
1
0201-1010
●
10
01.153 PIPE; SUCTION
8-98166-992-0
01
1
1011-1202
●
10
01.153 PIPE; SUCTION
8-98212-009-0
01
1
1203-1302
●
10
01.153 PIPE; SUCTION
8-98166-992-0
01
1
1303-
●
10
01.153 PIPE; SUCTION
8-97371-775-1
01
1
0805-1010
●
10
01.153 PIPE; SUCTION
8-98166-991-0
01
1
1011-
●
17
01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE
8-94458-473-1
01
1
0201-0804
●
17
01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE
8-94458-473-1
01
1
0805-
●
●
148
01.097 CLIP; BYPASS HOSE
03.417 ID=30
9-09915-315-1
02
1
0201-0804
●
148
01.097 CLIP; BYPASS HOSE
03.417 ID=30
9-09915-315-1
02
1
0805-
●
●

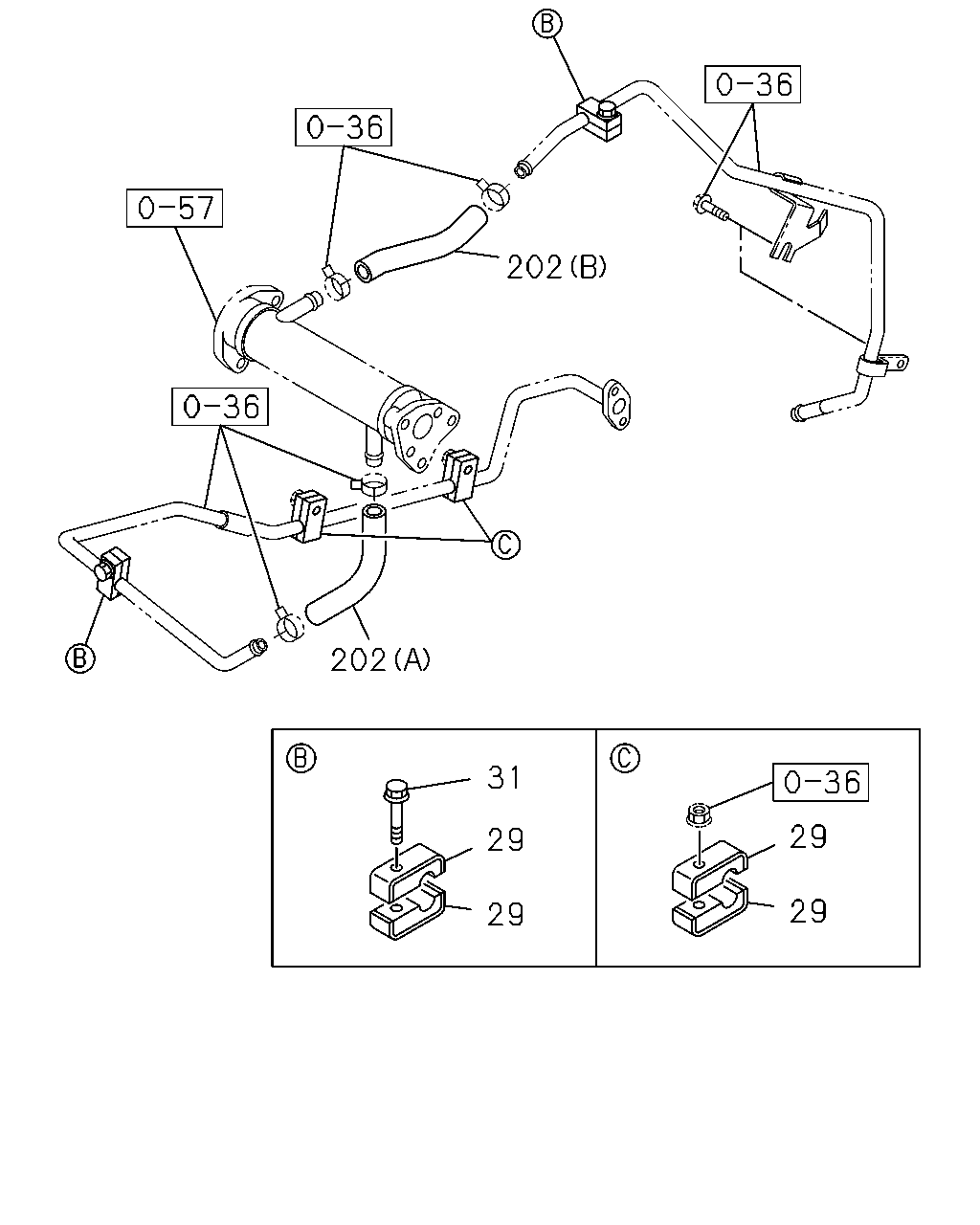

202
202
31
29
29
29
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
29
01.166 CLIP; PIPE
ID=17 L=17
1-09701-284-0
08
1
0805-
●
31
01.159 BOLT; CLIP
02.277 M8X40 FLANGE
0-28050-840-0
03
1
0805-
●
202
01.240 HOSE; RUBBER,EGR COOLER
01.540 (A) L=200 SERVICED BY L=3000
0-03566-300-0
01
1
0805-
●
202
01.240 HOSE; RUBBER,EGR COOLER
01.540 (B)
8-97138-881-0
01
1
0805-
●
