Isuzu WW
▶
TRUCKS
▶
NPR
▶
50916 - NPR(BUS CHAS)RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

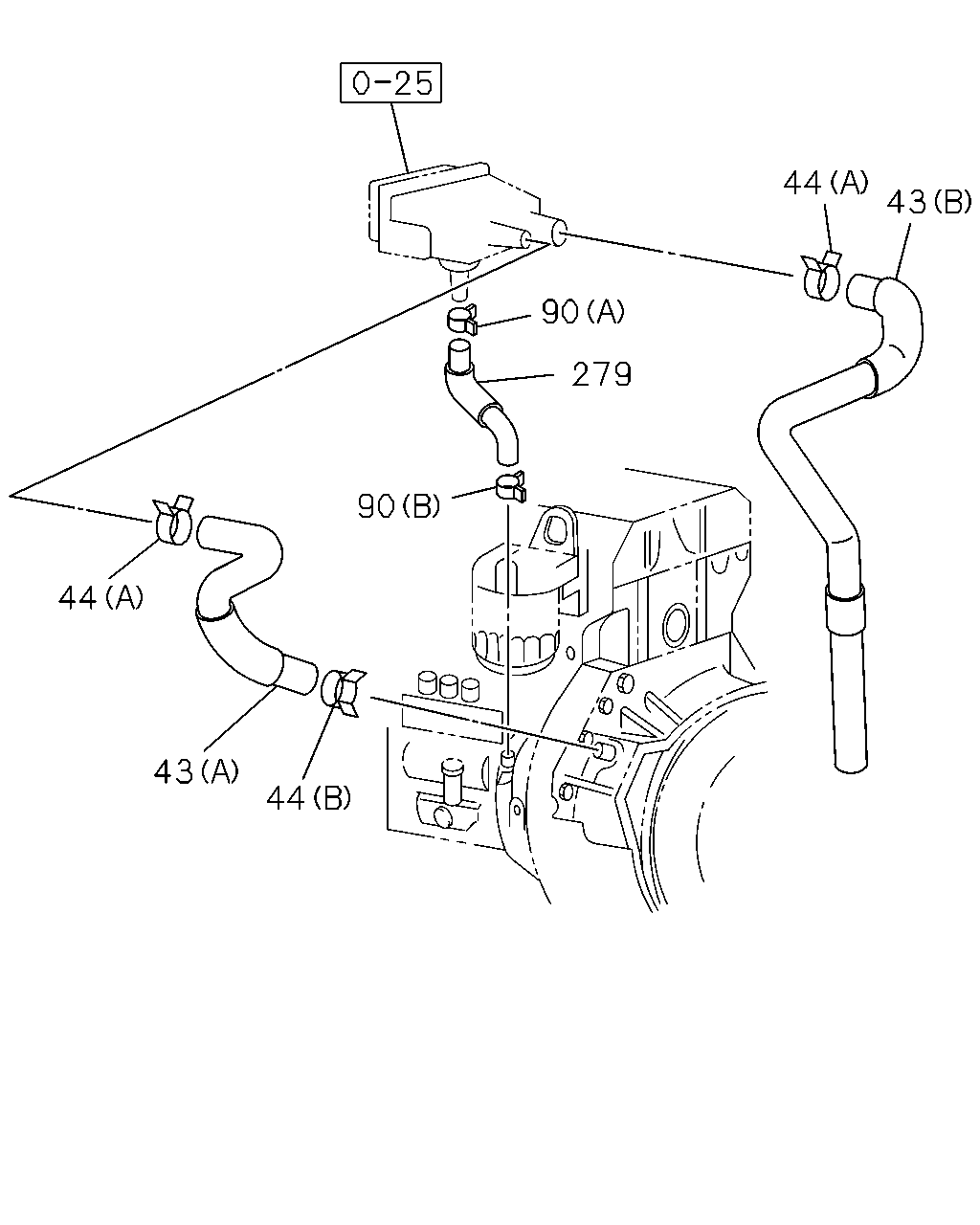

0-28 — VENTILATION SYSTEM
(#19506) — 18 parça
Tümü
A - 4HF1 ENG
B - 4HK1 ENG
◀
[028A] 4HF1 ENG (7 parça)
[028A] 4HK1 ENG (11 parça)
▶
44
44
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
43
03.278 HOSE; PCV
(C)
8-97139-586-3
01
1
0201-0312
●
43
03.278 HOSE; PCV
(C)
8-97375-924-0
01
1
0401-
●
43
03.278 HOSE; PCV
(A)
8-97149-012-3
01
1
0805-
●
43
03.278 HOSE; PCV
(B)
8-98012-831-1
01
1
0805-
●
44
03.278 CLIP; HOSE,PCV
01.252 (A) ID=22.7
8-94466-382-0
02
1
0201-0804
●
44
03.278 CLIP; HOSE,PCV
01.252 (A) ID=22.7
8-94466-382-0
02
1
0805-
●
●
44
03.278 CLIP; HOSE,PCV
06.672 (B) ID=21
8-94242-034-0
01
1
0805-
●
44
43
90
279
90
44
43
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
43
03.278 HOSE; PCV
(C)
8-97139-586-3
01
1
0201-0312
●
43
03.278 HOSE; PCV
(C)
8-97375-924-0
01
1
0401-
●
43
03.278 HOSE; PCV
(A)
8-97149-012-3
01
1
0805-
●
43
03.278 HOSE; PCV
(B)
8-98012-831-1
01
1
0805-
●
44
03.278 CLIP; HOSE,PCV
01.252 (A) ID=22.7
8-94466-382-0
02
1
0201-0804
●
44
03.278 CLIP; HOSE,PCV
01.252 (A) ID=22.7
8-94466-382-0
02
1
0805-
●
●
44
03.278 CLIP; HOSE,PCV
06.672 (B) ID=21
8-94242-034-0
01
1
0805-
●
90
03.358 CLIP; RUBBER HOSE
03.163 (A) ID=11
8-94238-570-0
01
1
0805-
●
90
03.358 CLIP; RUBBER HOSE
01.097 (B) ID=11
8-94238-925-0
01
1
0805-1007
●
90
03.358 CLIP; RUBBER HOSE
03.162 (B) ID=11.5
8-97138-011-0
01
1
1008-
●
279
03.278 HOSE; RUBBER,OIL DRAIN
01.745
8-97328-223-0
01
1
0805-
●
