0-22 — ENGINE MOUNTING (#19503) — 199 parça

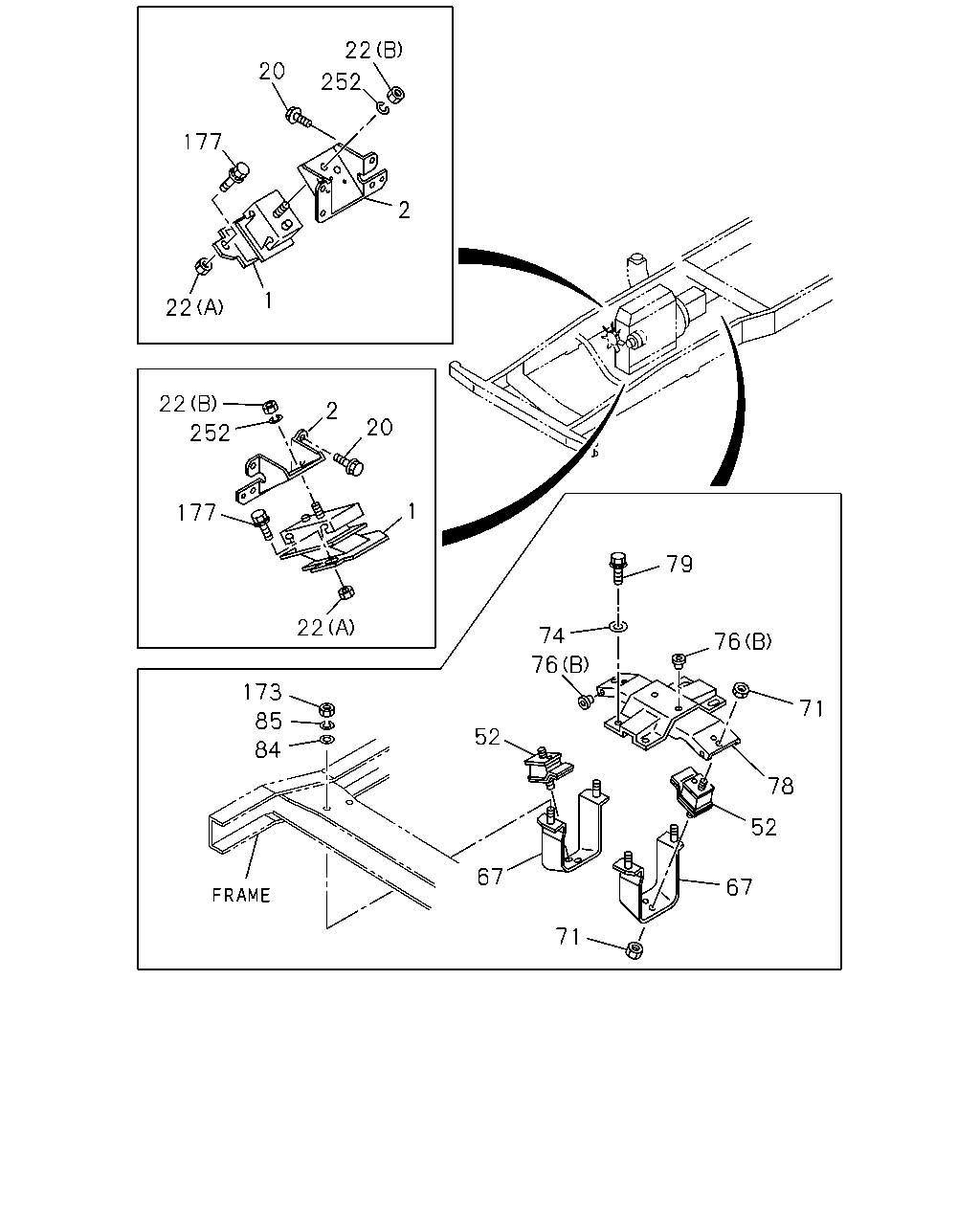

22 252 20 177 22 2 1 22 22 22 20 252 1 2 177 22 173 76 85 71 78 134 84 76 71 52 134 78 76 134 76 67 52 76 76 134 67 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.027 RUBBER; ENG FOOT,FRT NPR BUS CHASSIS LONG(NP***K) FRAME STRAIGHT TYPE<7KJ>	8-97201-671-0	01	1	0201-0501	●	●
1	00.027 RUBBER; ENG FOOT,FRT NPR BUS CHASSIS LONG(NP***K) FRAME STRAIGHT TYPE<7KJ>	8-97201-671-0	01	1	0502-		●
1	00.027 RUBBER; ENG FOOT,FRT NPR BUS CHASSIS LONG(NP***K) FRAME STRAIGHT TYPE<7KJ>	8-97201-669-0	01	1	0201-0501	●	●
1	00.027 RUBBER; ENG FOOT,FRT NPR BUS CHASSIS LONG(NP***K) FRAME STRAIGHT TYPE<7KJ>	8-97201-669-0	01	1	0502-		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97187-417-0	01	1	0805-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97187-416-0	01	1	0805-	●
2	00.029 FOOT; ENG	8-97228-669-2	02	1	0201-0804		●
2	00.029 FOOT; ENG	8-97228-669-2	02	1	0805-	●	●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	0201-0512		●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28161-020-0	08	1	0601-0804		●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28161-020-0	08	1	0805-	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0201-0602		●
22	00.002 NUT; CUSHION RUBBER TO BRKT 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0603-		●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	0201-0512		●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.002 (B) M12	0-91110-512-0	02	1	0601-0612		●
22	00.002 NUT; CUSHION RUBBER TO BRKT 02.042 (C) M12 FLANGE	0-91180-112-0	02	1	0701-0804		●
22	00.002 NUT; CUSHION RUBBER TO BRKT 02.042 (C) M12 FLANGE	0-91180-112-0	02	1	0805-	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 04.085 (A) M10 FLANGE	0-91180-210-0	04	1	0805-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K)	8-94111-903-0	02	1	0201-0301	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-94111-903-0	02	1	0302-0501	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-94111-903-0	02	1	0502-0509		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-94111-903-0	03	1	0510-0510		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-94111-903-1	02	1	0510-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-97039-277-0	02	1	0805-	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K)	8-94384-214-0	01	1	0201-0301	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-567-0	01	1	0302-0501	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-567-1	01	1	0502-		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K)	8-94384-213-0	01	1	0201-0301	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-566-0	01	1	0302-0306	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97371-918-0	01	1	0307-0501	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97371-918-1	01	1	0502-		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97039-282-2	02	1	0805-	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT NPR BUS CHASSIS LONG(NP***K) 04.785 M10 FLANGE	0-91150-110-0	04	1	0201-0301	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM) 04.785 M10 FLANGE	0-91150-110-0	04	1	0302-0501	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM) 04.785 M10 FLANGE	0-91150-110-0	04	1	0502-0602		●
71	00.002 NUT; SUPPORT RUBBER TO BRKT NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0804		●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	0805-	●	●
76	00.002 STOPPER; ENG MTG RUBBER NPR BUS CHASSIS LONG(NP***K) 00.027 (B)	8-94111-904-0	04	1	0201-0203	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (B)	8-94111-904-0	02	1	0204-0301		●
76	00.002 STOPPER; ENG MTG RUBBER NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM) 00.027 (B)	8-94111-904-0	06	1	0302-0501	●	●
76	00.002 STOPPER; ENG MTG RUBBER NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM) 00.027 (B)	8-94111-904-0	06	1	0502-1403		●
76	00.002 STOPPER; ENG MTG RUBBER NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM) (A)	8-97039-947-1	04	1	1404-		●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (B)	8-94111-904-0	02	1	0805-1403	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (B)	8-94111-904-0	02	1	1404-	●	●
76	00.002 STOPPER; ENG MTG RUBBER (A)	8-97039-947-1	02	1	0805-	●
78	00.029 BRACKET; ENG MTG,RR NPR BUS CHASSIS LONG(NP***K)	8-94112-891-2	01	1	0201-0301	●	●
78	00.029 BRACKET; ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-562-0	01	1	0302-0501	●	●
78	00.029 BRACKET; ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-562-1	01	1	0502-		●
78	00.029 BRACKET; ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-563-0	01	1	0302-0501	●	●
78	00.029 BRACKET; ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-563-1	01	1	0502-		●
78	00.029 BRACKET; ENG MTG,RR	8-97307-777-0	01	1	0805-	●
78	00.029 BRACKET; ENG MTG,RR	8-97172-399-1	01	1	0805-	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	0201-0605		●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0606-0804		●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0805-	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	0201-0603		●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	0-91510-610-0	04	1	0604-0610		●
134	00.029 BOLT; SUPPORT BRKT 03.890 M12X25	0-28781-225-0	06	1	0302-0512		●
134	00.029 BOLT; SUPPORT BRKT 09.181 M12X25 FLANGE	0-28751-225-0	06	1	0601-0804		●
134	00.029 BOLT; SUPPORT BRKT 09.181 M12X25 FLANGE	0-28751-225-0	06	1	0805-	●	●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	0201-0512		●
173	00.002 NUT; ENG MTG RR TO FRAME 00.833 M10	0-91110-510-0	04	1	0601-0610		●
173	00.002 NUT; ENG MTG RR TO FRAME 03.162 M10 FLANGE	0-91180-110-0	04	1	0611-0804		●
173	00.002 NUT; ENG MTG RR TO FRAME 03.162 M10 FLANGE	0-91180-110-0	04	1	0805-	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0201-0804		●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0805-	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0201-0603		●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0604-0612		●

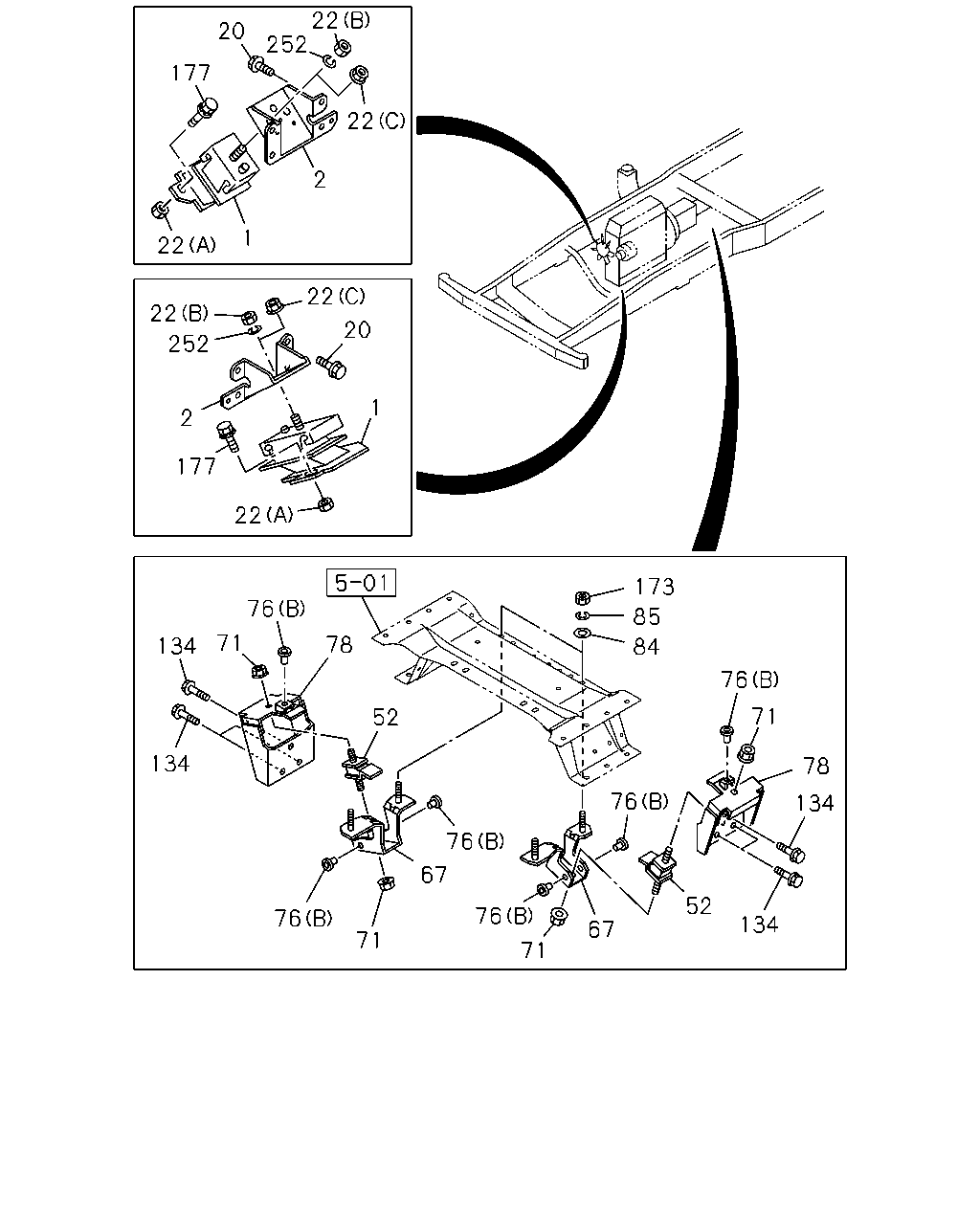

22 20 20 22 177 1 2 177 22 2 1 22 173 84 76 71 134 78 76 52 71 134 78 76 67 134 76 67 76 52 76 134 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.027 RUBBER; ENG FOOT,FRT NPR BUS CHASSIS LONG(NP***K) FRAME STRAIGHT TYPE<7KJ>	8-97201-671-0	01	1	0201-0501	●	●
1	00.027 RUBBER; ENG FOOT,FRT NPR BUS CHASSIS LONG(NP***K) FRAME STRAIGHT TYPE<7KJ>	8-97201-671-0	01	1	0502-		●
1	00.027 RUBBER; ENG FOOT,FRT NPR BUS CHASSIS LONG(NP***K) FRAME STRAIGHT TYPE<7KJ>	8-97201-669-0	01	1	0201-0501	●	●
1	00.027 RUBBER; ENG FOOT,FRT NPR BUS CHASSIS LONG(NP***K) FRAME STRAIGHT TYPE<7KJ>	8-97201-669-0	01	1	0502-		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97187-417-0	01	1	0805-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97187-416-0	01	1	0805-	●
2	00.029 FOOT; ENG	8-97228-669-2	02	1	0201-0804		●
2	00.029 FOOT; ENG	8-97228-669-2	02	1	0805-	●	●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	0201-0512		●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28161-020-0	08	1	0601-0804		●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28161-020-0	08	1	0805-	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0201-0602		●
22	00.002 NUT; CUSHION RUBBER TO BRKT 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0603-		●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	0201-0512		●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.002 (B) M12	0-91110-512-0	02	1	0601-0612		●
22	00.002 NUT; CUSHION RUBBER TO BRKT 02.042 (C) M12 FLANGE	0-91180-112-0	02	1	0701-0804		●
22	00.002 NUT; CUSHION RUBBER TO BRKT 02.042 (C) M12 FLANGE	0-91180-112-0	02	1	0805-	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 04.085 (A) M10 FLANGE	0-91180-210-0	04	1	0805-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K)	8-94111-903-0	02	1	0201-0301	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-94111-903-0	02	1	0302-0501	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-94111-903-0	02	1	0502-0509		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-94111-903-0	03	1	0510-0510		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-94111-903-1	02	1	0510-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-97039-277-0	02	1	0805-	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K)	8-94384-214-0	01	1	0201-0301	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-567-0	01	1	0302-0501	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-567-1	01	1	0502-		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K)	8-94384-213-0	01	1	0201-0301	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-566-0	01	1	0302-0306	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97371-918-0	01	1	0307-0501	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97371-918-1	01	1	0502-		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97039-282-2	02	1	0805-	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT NPR BUS CHASSIS LONG(NP***K) 04.785 M10 FLANGE	0-91150-110-0	04	1	0201-0301	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM) 04.785 M10 FLANGE	0-91150-110-0	04	1	0302-0501	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM) 04.785 M10 FLANGE	0-91150-110-0	04	1	0502-0602		●
71	00.002 NUT; SUPPORT RUBBER TO BRKT NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0804		●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	0805-	●	●
76	00.002 STOPPER; ENG MTG RUBBER NPR BUS CHASSIS LONG(NP***K) 00.027 (B)	8-94111-904-0	04	1	0201-0203	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (B)	8-94111-904-0	02	1	0204-0301		●
76	00.002 STOPPER; ENG MTG RUBBER NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM) 00.027 (B)	8-94111-904-0	06	1	0302-0501	●	●
76	00.002 STOPPER; ENG MTG RUBBER NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM) 00.027 (B)	8-94111-904-0	06	1	0502-1403		●
76	00.002 STOPPER; ENG MTG RUBBER NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM) (A)	8-97039-947-1	04	1	1404-		●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (B)	8-94111-904-0	02	1	0805-1403	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (B)	8-94111-904-0	02	1	1404-	●	●
76	00.002 STOPPER; ENG MTG RUBBER (A)	8-97039-947-1	02	1	0805-	●
78	00.029 BRACKET; ENG MTG,RR NPR BUS CHASSIS LONG(NP***K)	8-94112-891-2	01	1	0201-0301	●	●
78	00.029 BRACKET; ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-562-0	01	1	0302-0501	●	●
78	00.029 BRACKET; ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-562-1	01	1	0502-		●
78	00.029 BRACKET; ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-563-0	01	1	0302-0501	●	●
78	00.029 BRACKET; ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-563-1	01	1	0502-		●
78	00.029 BRACKET; ENG MTG,RR	8-97307-777-0	01	1	0805-	●
78	00.029 BRACKET; ENG MTG,RR	8-97172-399-1	01	1	0805-	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	0201-0605		●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0606-0804		●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0805-	●	●
134	00.029 BOLT; SUPPORT BRKT 03.890 M12X25	0-28781-225-0	06	1	0302-0512		●
134	00.029 BOLT; SUPPORT BRKT 09.181 M12X25 FLANGE	0-28751-225-0	06	1	0601-0804		●
134	00.029 BOLT; SUPPORT BRKT 09.181 M12X25 FLANGE	0-28751-225-0	06	1	0805-	●	●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	0201-0512		●
173	00.002 NUT; ENG MTG RR TO FRAME 00.833 M10	0-91110-510-0	04	1	0601-0610		●
173	00.002 NUT; ENG MTG RR TO FRAME 03.162 M10 FLANGE	0-91180-110-0	04	1	0611-0804		●
173	00.002 NUT; ENG MTG RR TO FRAME 03.162 M10 FLANGE	0-91180-110-0	04	1	0805-	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0201-0804		●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0805-	●	●

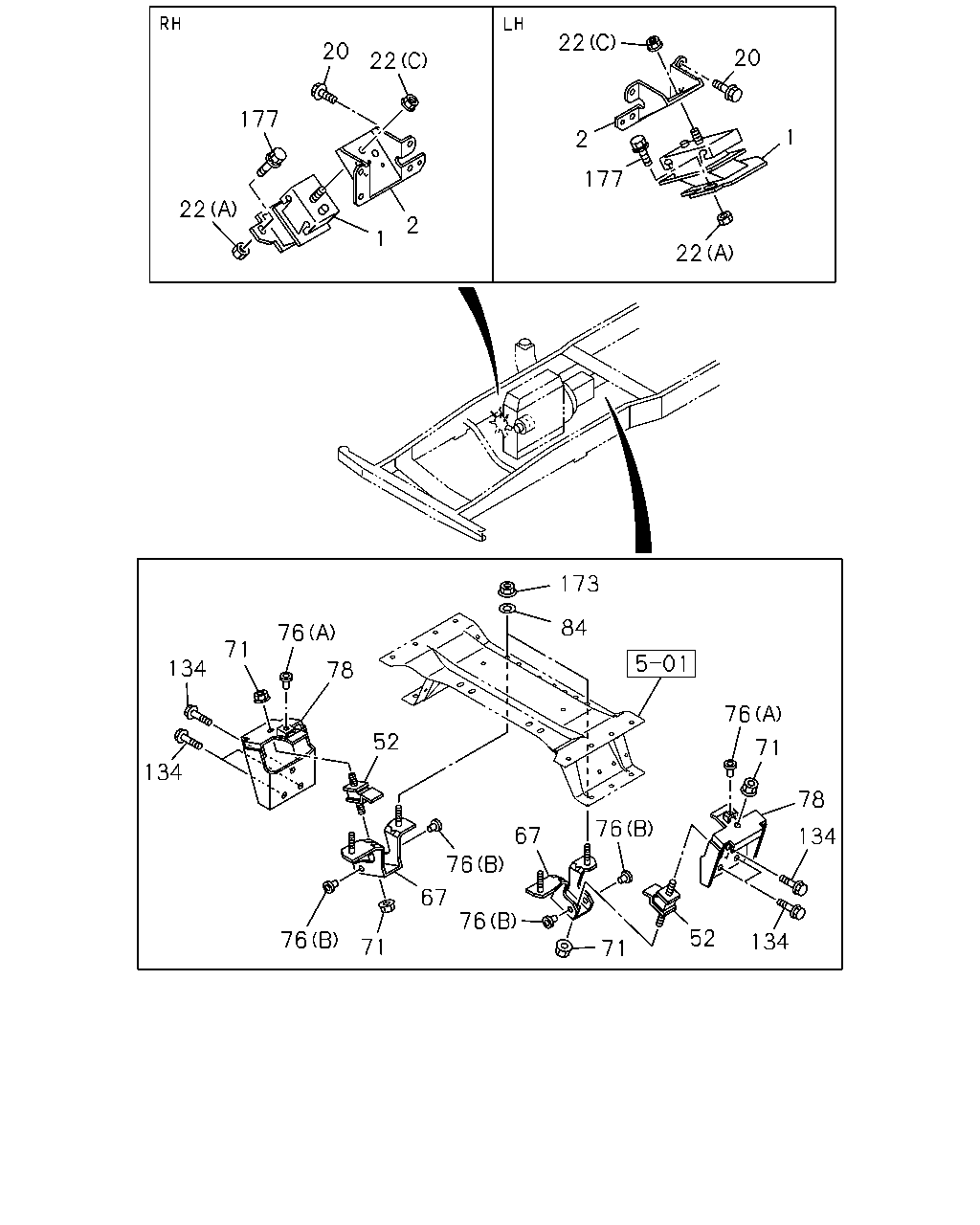

22 20 252 177 2 1 22 22 2 20 252 1 177 79 22 74 76 76 173 71 85 52 84 78 52 67 67 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.027 RUBBER; ENG FOOT,FRT NPR BUS CHASSIS LONG(NP***K) FRAME STRAIGHT TYPE<7KJ>	8-97201-671-0	01	1	0201-0501	●	●
1	00.027 RUBBER; ENG FOOT,FRT NPR BUS CHASSIS LONG(NP***K) FRAME STRAIGHT TYPE<7KJ>	8-97201-671-0	01	1	0502-		●
1	00.027 RUBBER; ENG FOOT,FRT NPR BUS CHASSIS LONG(NP***K) FRAME STRAIGHT TYPE<7KJ>	8-97201-669-0	01	1	0201-0501	●	●
1	00.027 RUBBER; ENG FOOT,FRT NPR BUS CHASSIS LONG(NP***K) FRAME STRAIGHT TYPE<7KJ>	8-97201-669-0	01	1	0502-		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97187-417-0	01	1	0805-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97187-416-0	01	1	0805-	●
2	00.029 FOOT; ENG	8-97228-669-2	02	1	0201-0804		●
2	00.029 FOOT; ENG	8-97228-669-2	02	1	0805-	●	●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	0201-0512		●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28161-020-0	08	1	0601-0804		●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28161-020-0	08	1	0805-	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0201-0602		●
22	00.002 NUT; CUSHION RUBBER TO BRKT 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0603-		●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	0201-0512		●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.002 (B) M12	0-91110-512-0	02	1	0601-0612		●
22	00.002 NUT; CUSHION RUBBER TO BRKT 02.042 (C) M12 FLANGE	0-91180-112-0	02	1	0701-0804		●
22	00.002 NUT; CUSHION RUBBER TO BRKT 02.042 (C) M12 FLANGE	0-91180-112-0	02	1	0805-	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 04.085 (A) M10 FLANGE	0-91180-210-0	04	1	0805-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K)	8-94111-903-0	02	1	0201-0301	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-94111-903-0	02	1	0302-0501	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-94111-903-0	02	1	0502-0509		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-94111-903-0	03	1	0510-0510		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-94111-903-1	02	1	0510-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-97039-277-0	02	1	0805-	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K)	8-94384-214-0	01	1	0201-0301	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-567-0	01	1	0302-0501	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-567-1	01	1	0502-		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K)	8-94384-213-0	01	1	0201-0301	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-566-0	01	1	0302-0306	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97371-918-0	01	1	0307-0501	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97371-918-1	01	1	0502-		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97039-282-2	02	1	0805-	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT NPR BUS CHASSIS LONG(NP***K) 04.785 M10 FLANGE	0-91150-110-0	04	1	0201-0301	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM) 04.785 M10 FLANGE	0-91150-110-0	04	1	0302-0501	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM) 04.785 M10 FLANGE	0-91150-110-0	04	1	0502-0602		●
71	00.002 NUT; SUPPORT RUBBER TO BRKT NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0804		●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	0805-	●	●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA NPR BUS CHASSIS LONG(NP***K) 04.085 ID=10.5 OD=22	9-09164-610-0	02	1	0201-0301	●	●
76	00.002 STOPPER; ENG MTG RUBBER NPR BUS CHASSIS LONG(NP***K) 00.027 (B)	8-94111-904-0	04	1	0201-0203	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (B)	8-94111-904-0	02	1	0204-0301		●
76	00.002 STOPPER; ENG MTG RUBBER NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM) 00.027 (B)	8-94111-904-0	06	1	0302-0501	●	●
76	00.002 STOPPER; ENG MTG RUBBER NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM) 00.027 (B)	8-94111-904-0	06	1	0502-1403		●
76	00.002 STOPPER; ENG MTG RUBBER NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM) (A)	8-97039-947-1	04	1	1404-		●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (B)	8-94111-904-0	02	1	0805-1403	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (B)	8-94111-904-0	02	1	1404-	●	●
76	00.002 STOPPER; ENG MTG RUBBER (A)	8-97039-947-1	02	1	0805-	●
78	00.029 BRACKET; ENG MTG,RR NPR BUS CHASSIS LONG(NP***K)	8-94112-891-2	01	1	0201-0301	●	●
78	00.029 BRACKET; ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-562-0	01	1	0302-0501	●	●
78	00.029 BRACKET; ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-562-1	01	1	0502-		●
78	00.029 BRACKET; ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-563-0	01	1	0302-0501	●	●
78	00.029 BRACKET; ENG MTG,RR NPR BUS CHASSIS LONG(NP***K) M/T MYY5T(RSM)	8-97325-563-1	01	1	0502-		●
78	00.029 BRACKET; ENG MTG,RR	8-97307-777-0	01	1	0805-	●
78	00.029 BRACKET; ENG MTG,RR	8-97172-399-1	01	1	0805-	●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS NPR BUS CHASSIS LONG(NP***K) 03.417 M10X25 FLANGE	0-28081-025-0	04	1	0201-0301	●	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	0201-0605		●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0606-0804		●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0805-	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	0201-0603		●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	0-91510-610-0	04	1	0604-0610		●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	0201-0512		●
173	00.002 NUT; ENG MTG RR TO FRAME 00.833 M10	0-91110-510-0	04	1	0601-0610		●
173	00.002 NUT; ENG MTG RR TO FRAME 03.162 M10 FLANGE	0-91180-110-0	04	1	0611-0804		●
173	00.002 NUT; ENG MTG RR TO FRAME 03.162 M10 FLANGE	0-91180-110-0	04	1	0805-	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0201-0804		●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0805-	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0201-0603		●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0604-0612		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
