0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#19502) — 144 parça

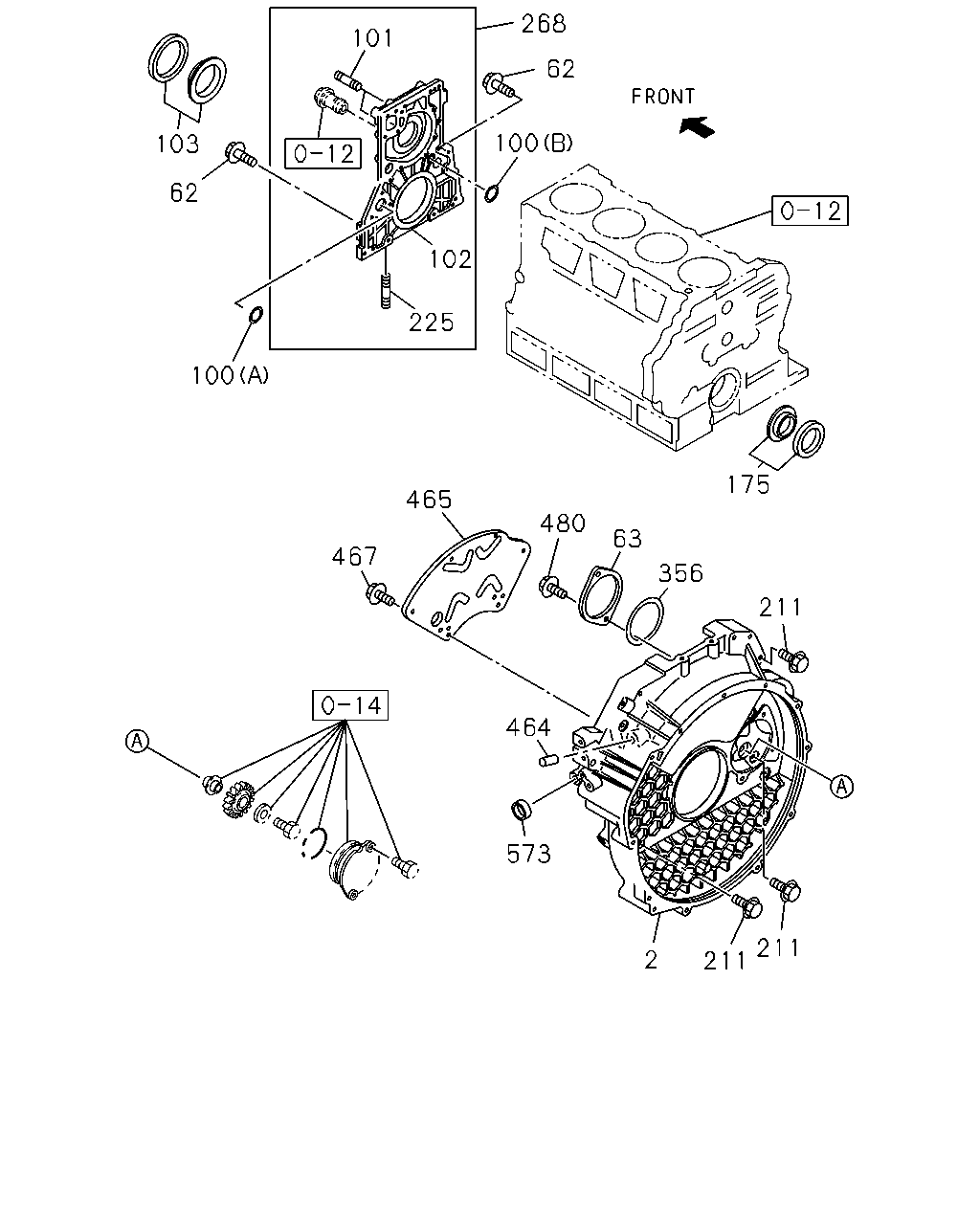

268 101 62 100 103 62 102 225 100 175 465 480 63 467 356 211 464 573 211 2 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	00.683 HOUSING; FLYWHEEL	8-97241-584-0	01	1	0201-0308	●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-6	01	1	0309-	●
2	00.683 HOUSING; FLYWHEEL	8-97364-901-5	01	1	0805-		●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0201-0512	●
62	00.206 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	06	1	0601-0804	●
62	00.206 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	06	1	0805-	●	●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	0201-0512	●
62	00.206 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	05	1	0601-0706	●
62	00.206 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	06	1	0707-0804	●
62	00.206 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	06	1	0805-	●	●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0201-0706	●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	02	1	0707-0804	●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	02	1	0805-	●	●
62	00.206 BOLT; COVER 04.686 M8X30 FLANGE	0-28680-830-0	01	1	0306-0512	●
62	00.206 BOLT; COVER 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0601-0804	●
62	00.206 BOLT; COVER 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0805-	●	●
63	00.206 COVER; P/S EXC. POWER STEERING<N40>	8-97126-392-0	01	1	0201-	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0201-0804	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0805-	●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0201-0804	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0805-	●	●
101	01.073 STUD; WATER PUMP 00.206 LOWER M8X18 L=29	8-97028-541-0	01	1	0201-0804	●
101	01.073 STUD; WATER PUMP 00.206 LOWER M8X18 L=29	8-97028-541-0	01	1	0805-	●	●
101	01.073 STUD; WATER PUMP 01.428 UPPER M8X18 L=30	9-04110-818-0	01	1	0201-0604	●
101	01.073 STUD; WATER PUMP 01.428 UPPER M8X18 L=30	0-41010-818-0	01	1	0605-0804	●
101	01.073 STUD; WATER PUMP 01.428 UPPER M8X18 L=30	0-41010-818-0	01	1	0805-	●	●
102	00.137 RETAINER; FRT ANTI EROSION SPEC<7XK>	8-98081-351-1	01	1	0812-	●
102	00.137 RETAINER; FRT	8-97094-943-3	01	1	0201-0706	●
102	00.137 RETAINER; FRT	8-98039-932-1	01	1	0707-0804	●
102	00.137 RETAINER; FRT	8-98039-932-1	01	1	0805-0811	●	●
102	00.137 RETAINER; FRT EXC. ANTI EROSION SPEC<7XK>	8-98039-932-2	01	1	0812-	●
102	00.137 RETAINER; FRT	8-98039-932-2	01	1	0812-		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-94369-518-0	01	1	0201-0205	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-97329-780-0	01	1	0206-0804	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-97329-780-0	01	1	0805-	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	0201-0205	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0206-0804	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0805-	●	●
211	00.669 BOLT; HSG M10X40 FLANGE	0-28781-040-0	01	1	0201-0512	●
211	00.669 BOLT; HSG 00.029 M10X40 FLANGE	0-28751-040-0	01	1	0601-0804	●
211	00.669 BOLT; HSG 00.029 M10X40 FLANGE	0-28751-040-0	01	1	0805-	●	●
211	00.669 BOLT; HSG M8X65 W/PL WASHER	8-94388-781-0	02	1	0201-	●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0201-1102	●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-98179-087-1	09	1	1103-	●
211	00.669 BOLT; HSG M12X30 FLANGE	8-97135-419-0	01	1	0201-0804	●
211	00.669 BOLT; HSG M12X30 FLANGE	8-97135-419-0	01	1	0805-	●	●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> M14X35 FLANGE	0-28791-435-0	01	1	0201-0512	●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> M14X35 FLANGE	0-28761-435-0	01	1	0601-	●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0805-1102		●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1103-		●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0201-	●
268	00.206 COVER; FRT ANTI EROSION SPEC<7XK>	8-98079-080-1	01	1	0812-	●
268	00.206 COVER; FRT	8-97259-416-0	01	1	0201-0706	●
268	00.206 COVER; FRT	8-98039-931-1	01	1	0707-0811	●
268	00.206 COVER; FRT EXC. ANTI EROSION SPEC<7XK>	8-98039-931-2	01	1	0812-	●
268	00.206 COVER; FRT	8-97148-937-3	01	1	0805-		●
356	00.207 GASKET; COVER EXC. POWER STEERING<N40> 06.673	8-97101-875-2	01	1	0201-	●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0201-0804	●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0805-	●	●
465	00.686 PLATE; FLYWHEEL HSG 00.669	8-94370-384-3	01	1	0201-0308	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	0309-	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-823-0	01	1	0805-		●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0201-0507	●
467	00.686 BOLT; PLATE 05.815 M6X10	0-20800-610-0	06	1	0508-0804	●
467	00.686 BOLT; PLATE 05.815 M6X10	0-20800-610-0	06	1	0805-0805	●	●
467	00.686 BOLT; PLATE 06.321 M6X10	8-98030-649-0	06	1	0806-	●	●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE	0-28181-028-0	02	1	0201-0805	●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40> 04.439 M10X28 FLANGE	8-98044-944-0	02	1	0806-1010	●
480	00.206 BOLT; COVER EXC. POWER STEERING<N40> 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1011-	●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0201-	●

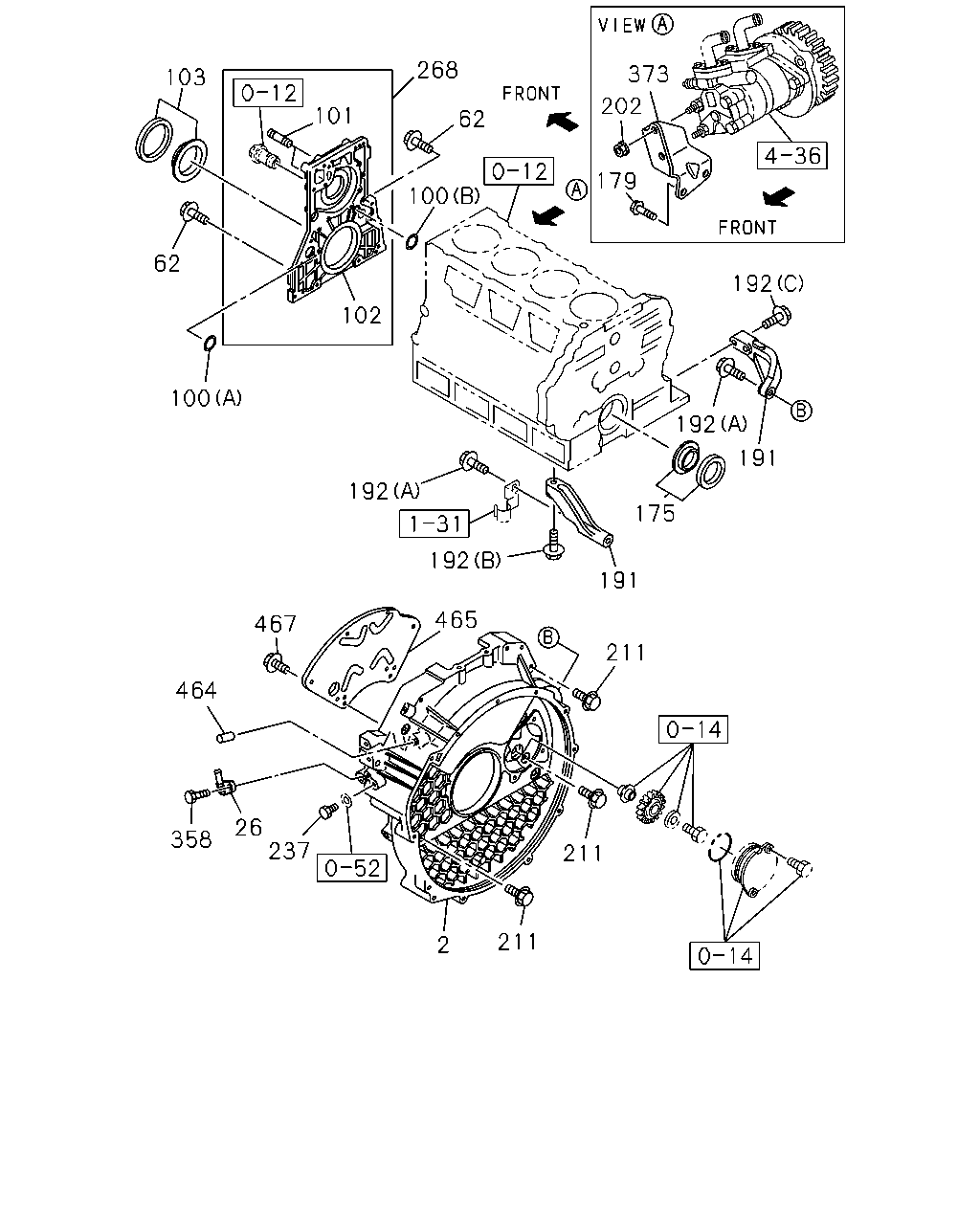

268 373 103 202 101 62 179 100 62 192 102 100 192 191 192 175 192 191 465 467 211 464 26 237 358 211 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	00.683 HOUSING; FLYWHEEL	8-97241-584-0	01	1	0201-0308	●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-6	01	1	0309-	●
2	00.683 HOUSING; FLYWHEEL	8-97364-901-5	01	1	0805-		●
26	03.306 ADAPTER	8-97354-819-0	01	1	0805-		●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0201-0512	●
62	00.206 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	06	1	0601-0804	●
62	00.206 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	06	1	0805-	●	●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	0201-0512	●
62	00.206 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	05	1	0601-0706	●
62	00.206 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	06	1	0707-0804	●
62	00.206 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	06	1	0805-	●	●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0201-0706	●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	02	1	0707-0804	●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	02	1	0805-	●	●
62	00.206 BOLT; COVER 04.686 M8X30 FLANGE	0-28680-830-0	01	1	0306-0512	●
62	00.206 BOLT; COVER 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0601-0804	●
62	00.206 BOLT; COVER 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0805-	●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0201-0804	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0805-	●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0201-0804	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0805-	●	●
101	01.073 STUD; WATER PUMP 00.206 LOWER M8X18 L=29	8-97028-541-0	01	1	0201-0804	●
101	01.073 STUD; WATER PUMP 00.206 LOWER M8X18 L=29	8-97028-541-0	01	1	0805-	●	●
101	01.073 STUD; WATER PUMP 01.428 UPPER M8X18 L=30	9-04110-818-0	01	1	0201-0604	●
101	01.073 STUD; WATER PUMP 01.428 UPPER M8X18 L=30	0-41010-818-0	01	1	0605-0804	●
101	01.073 STUD; WATER PUMP 01.428 UPPER M8X18 L=30	0-41010-818-0	01	1	0805-	●	●
102	00.137 RETAINER; FRT ANTI EROSION SPEC<7XK>	8-98081-351-1	01	1	0812-	●
102	00.137 RETAINER; FRT	8-97094-943-3	01	1	0201-0706	●
102	00.137 RETAINER; FRT	8-98039-932-1	01	1	0707-0804	●
102	00.137 RETAINER; FRT	8-98039-932-1	01	1	0805-0811	●	●
102	00.137 RETAINER; FRT EXC. ANTI EROSION SPEC<7XK>	8-98039-932-2	01	1	0812-	●
102	00.137 RETAINER; FRT	8-98039-932-2	01	1	0812-		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-94369-518-0	01	1	0201-0205	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-97329-780-0	01	1	0206-0804	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-97329-780-0	01	1	0805-	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	0201-0205	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0206-0804	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0805-	●	●
179	00.206 BOLT; BRKT 00.004 M10X18 FLANGE	0-28181-018-0	02	1	0805-		●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	0805-		●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	0805-		●
192	00.206 BOLT; STAY TO HSG 00.685 (C) M12X50 FLANGE	0-28151-250-0	02	1	0805-		●
192	00.206 BOLT; STAY TO HSG 02.510 (B) M12X100 FLANGE	0-28151-200-0	01	1	0805-		●
192	00.206 BOLT; STAY TO HSG 09.171 (A) M10X40 FLANGE	0-28151-040-0	02	1	0805-		●
202	00.206 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0805-		●
211	00.669 BOLT; HSG M10X40 FLANGE	0-28781-040-0	01	1	0201-0512	●
211	00.669 BOLT; HSG 00.029 M10X40 FLANGE	0-28751-040-0	01	1	0601-0804	●
211	00.669 BOLT; HSG 00.029 M10X40 FLANGE	0-28751-040-0	01	1	0805-	●	●
211	00.669 BOLT; HSG M8X65 W/PL WASHER	8-94388-781-0	02	1	0201-	●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0201-1102	●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-98179-087-1	09	1	1103-	●
211	00.669 BOLT; HSG M12X30 FLANGE	8-97135-419-0	01	1	0201-0804	●
211	00.669 BOLT; HSG M12X30 FLANGE	8-97135-419-0	01	1	0805-	●	●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> M14X35 FLANGE	0-28791-435-0	01	1	0201-0512	●
211	00.669 BOLT; HSG EXC. POWER STEERING<N40> M14X35 FLANGE	0-28761-435-0	01	1	0601-	●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0805-1102		●
211	00.669 BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1103-		●
237	00.686 PLUG; FLYWHEEL HSG 06.225 M10X12 FLANGE	0-28051-012-0	01	1	0805-		●
268	00.206 COVER; FRT ANTI EROSION SPEC<7XK>	8-98079-080-1	01	1	0812-	●
268	00.206 COVER; FRT	8-97259-416-0	01	1	0201-0706	●
268	00.206 COVER; FRT	8-98039-931-1	01	1	0707-0811	●
268	00.206 COVER; FRT EXC. ANTI EROSION SPEC<7XK>	8-98039-931-2	01	1	0812-	●
268	00.206 COVER; FRT	8-97148-937-3	01	1	0805-		●
358	00.206 BOLT; ADAPTER 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0805-		●
373	00.206 BRACKET; PUMP	8-97149-333-0	01	1	0805-		●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0201-0804	●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0805-	●	●
465	00.686 PLATE; FLYWHEEL HSG 00.669	8-94370-384-3	01	1	0201-0308	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	0309-	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-823-0	01	1	0805-		●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0201-0507	●
467	00.686 BOLT; PLATE 05.815 M6X10	0-20800-610-0	06	1	0508-0804	●
467	00.686 BOLT; PLATE 05.815 M6X10	0-20800-610-0	06	1	0805-0805	●	●
467	00.686 BOLT; PLATE 06.321 M6X10	8-98030-649-0	06	1	0806-	●	●
