0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#19501) — 142 parça

40 49 38 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	00.666 FLYWHEEL	8-97115-782-0	01	1	0201-0301	●
12	00.666 FLYWHEEL	8-97330-892-1	01	1	0302-	●
12	00.666 FLYWHEEL	8-97326-227-2	01	1	0805-		●
35	00.673 GEAR; RING Z=138	8-97046-366-0	01	1	0201-0804	●
35	00.673 GEAR; RING Z=138	8-97046-366-1	01	1	0805-	●	●
38	00.862 WASHER; FLYWHEEL 00.669 ID=42 OD=110	8-94310-615-0	01	1	0201-0301	●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0302-0804	●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0805-	●	●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0201-0804	●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0805-	●	●
49	00.669 BEARING; PILOT 00.649	8-97031-741-0	01	1	0201-0301	●
49	00.669 BEARING; PILOT	8-97258-239-0	01	1	0302-0804	●
49	00.669 BEARING; PILOT	8-97258-239-0	01	1	0805-	●	●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	0302-0804	●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	0805-	●	●

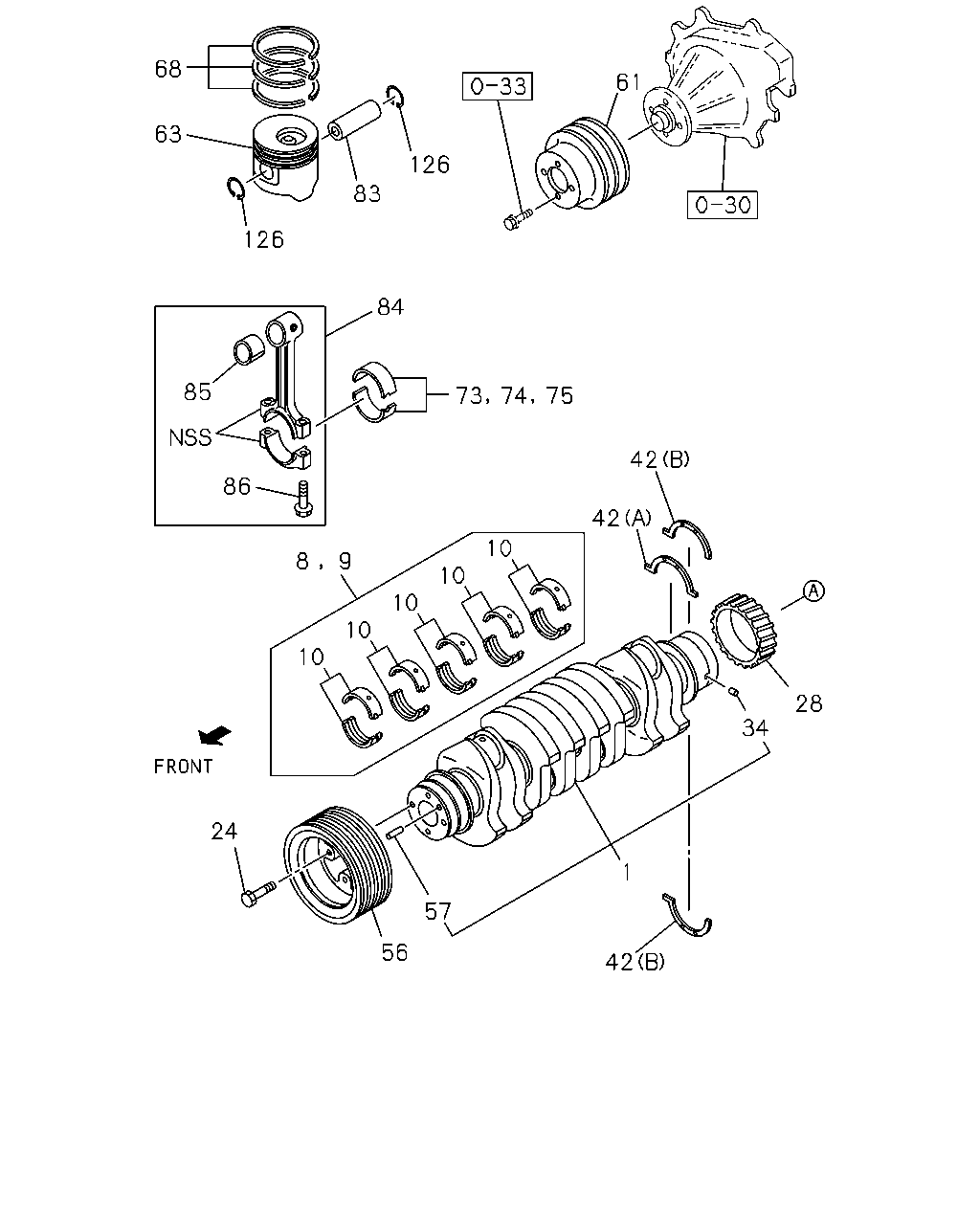

68 61 63 126 83 126 84 85 73 74 75 42 86 42 10 8 9 10 10 10 10 28 34 24 1 57 56 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	0201-	●
1	00.646 CRANKSHAFT	8-98029-270-0	01	1	0805-		●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	5-87310-546-0	01	1	0201-	●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	5-87310-547-0	01	1	0201-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97219-456-0	05	1	0201-0303	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	0304-0804	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	0805-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97219-457-0	05	1	0201-0303	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	0304-0804	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	0805-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97219-458-0	05	1	0201-0303	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	0304-0804	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	0805-	●	●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	0201-0804	●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	0805-	●	●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	0201-	●
28	00.728 GEAR; CR/SHF Z=42	8-94394-342-4	01	1	0805-		●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	02	1	0502-	●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0805-		●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0201-0501	●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0201-0703	●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-0804	●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0805-	●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0201-0703	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-0804	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0805-	●	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	0201-0804	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	0805-	●	●
57	00.662 PIN; PULLEY 00.862 OD=8 L=20	9-08150-820-0	04	1	0502-	●
57	00.662 PIN; PULLEY 00.862 OD=8 L=20	9-08150-820-0	02	1	0805-		●
57	00.662 PIN; PULLEY 08.939 OD=8 L=16	9-08150-816-0	02	1	0201-0212	●
57	00.662 PIN; PULLEY 08.939 OD=8 L=20	9-08160-820-0	02	1	0301-0304	●
57	00.662 PIN; PULLEY 00.862 OD=8 L=20	9-08150-820-0	02	1	0305-0501	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	0201-	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97364-396-1	01	1	0805-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-2	04	1	0201-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97602-800-0	08	1	0805-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	0201-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97603-423-1	04	1	0805-		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	0201-	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	0201-	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	0811-		●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	0811-		●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	0201-	●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	0201-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	0201-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	04	1	0805-		●
84	00.603 ROD ASM; CONN	8-97135-032-6	04	1	0201-	●
84	00.603 ROD ASM; CONN	8-98018-425-3	04	1	0805-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	0201-0805	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. 00.603	8-98075-233-0	04	1	0806-0905	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	04	1	0906-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	0805-		●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0201-0804	●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0805-1004	●	●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1005-	●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	08	1	0201-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	08	1	0805-		●

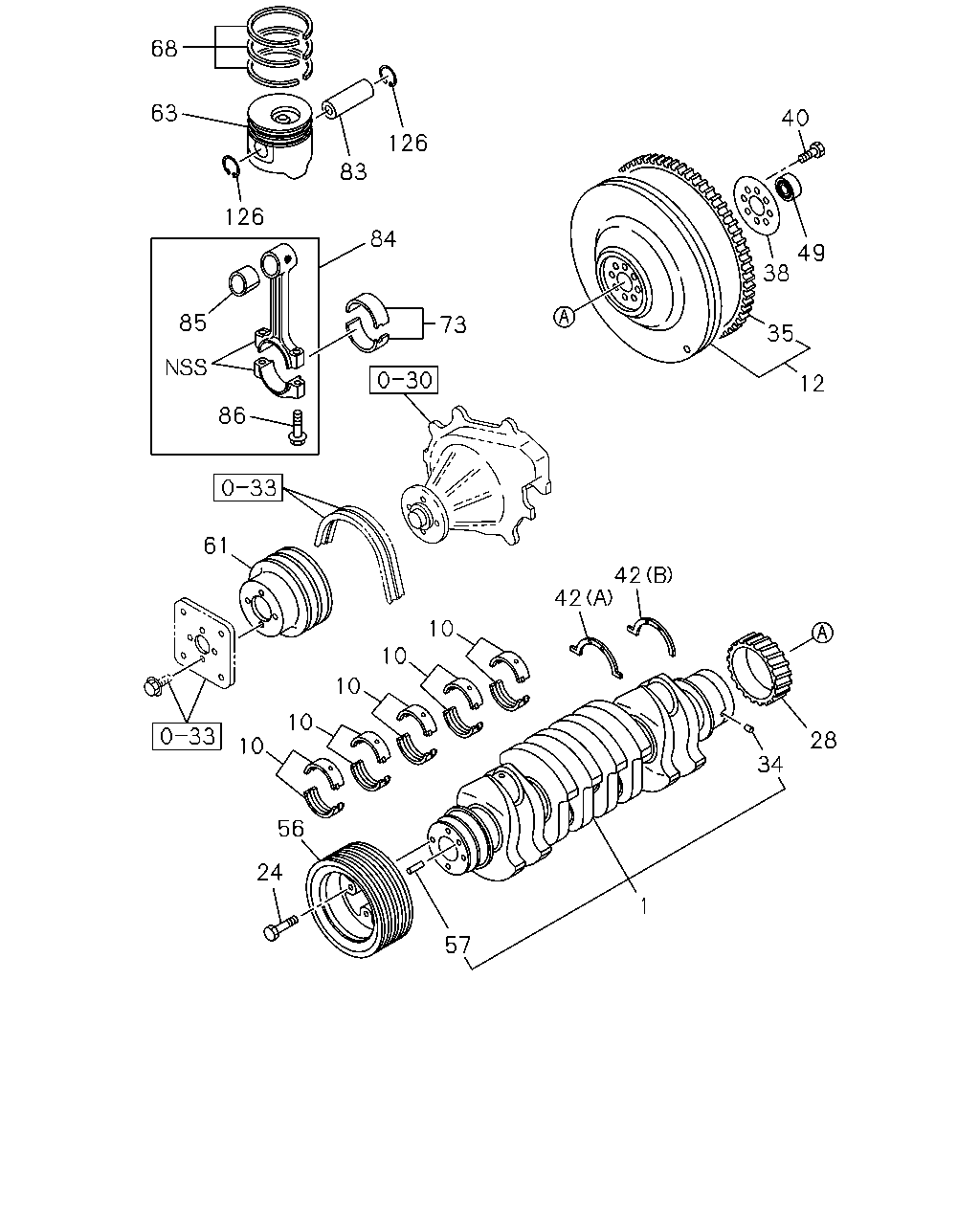

68 63 40 126 83 126 84 49 38 85 73 35 12 86 61 42 42 10 10 10 10 28 10 34 56 24 1 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	0201-	●
1	00.646 CRANKSHAFT	8-98029-270-0	01	1	0805-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97219-456-0	05	1	0201-0303	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	0304-0804	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	0805-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97219-457-0	05	1	0201-0303	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	0304-0804	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	0805-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97219-458-0	05	1	0201-0303	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	0304-0804	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	0805-	●	●
12	00.666 FLYWHEEL	8-97115-782-0	01	1	0201-0301	●
12	00.666 FLYWHEEL	8-97330-892-1	01	1	0302-	●
12	00.666 FLYWHEEL	8-97326-227-2	01	1	0805-		●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	0201-0804	●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	0805-	●	●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	0201-	●
28	00.728 GEAR; CR/SHF Z=42	8-94394-342-4	01	1	0805-		●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	02	1	0502-	●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0805-		●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0201-0501	●
35	00.673 GEAR; RING Z=138	8-97046-366-0	01	1	0201-0804	●
35	00.673 GEAR; RING Z=138	8-97046-366-1	01	1	0805-	●	●
38	00.862 WASHER; FLYWHEEL 00.669 ID=42 OD=110	8-94310-615-0	01	1	0201-0301	●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0302-0804	●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0805-	●	●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0201-0804	●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0805-	●	●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0201-0703	●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-0804	●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0805-	●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0201-0703	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-0804	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0805-	●	●
49	00.669 BEARING; PILOT 00.649	8-97031-741-0	01	1	0201-0301	●
49	00.669 BEARING; PILOT	8-97258-239-0	01	1	0302-0804	●
49	00.669 BEARING; PILOT	8-97258-239-0	01	1	0805-	●	●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	0302-0804	●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	0805-	●	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	0201-0804	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	0805-	●	●
57	00.662 PIN; PULLEY 00.862 OD=8 L=20	9-08150-820-0	04	1	0502-	●
57	00.662 PIN; PULLEY 00.862 OD=8 L=20	9-08150-820-0	02	1	0805-		●
57	00.662 PIN; PULLEY 08.939 OD=8 L=16	9-08150-816-0	02	1	0201-0212	●
57	00.662 PIN; PULLEY 08.939 OD=8 L=20	9-08160-820-0	02	1	0301-0304	●
57	00.662 PIN; PULLEY 00.862 OD=8 L=20	9-08150-820-0	02	1	0305-0501	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	0201-	●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97364-396-1	01	1	0805-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97176-657-2	04	1	0201-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97602-800-0	08	1	0805-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97109-462-0	04	1	0201-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97603-423-1	04	1	0805-		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	0201-	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	0201-	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	0811-		●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	0811-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	0201-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	04	1	0805-		●
84	00.603 ROD ASM; CONN	8-97135-032-6	04	1	0201-	●
84	00.603 ROD ASM; CONN	8-98018-425-3	04	1	0805-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	0201-0805	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. 00.603	8-98075-233-0	04	1	0806-0905	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	04	1	0906-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	0805-		●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0201-0804	●
86	00.623 BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0805-1004	●	●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1005-	●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	08	1	0201-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	08	1	0805-		●
