Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#19500) — 246 parça

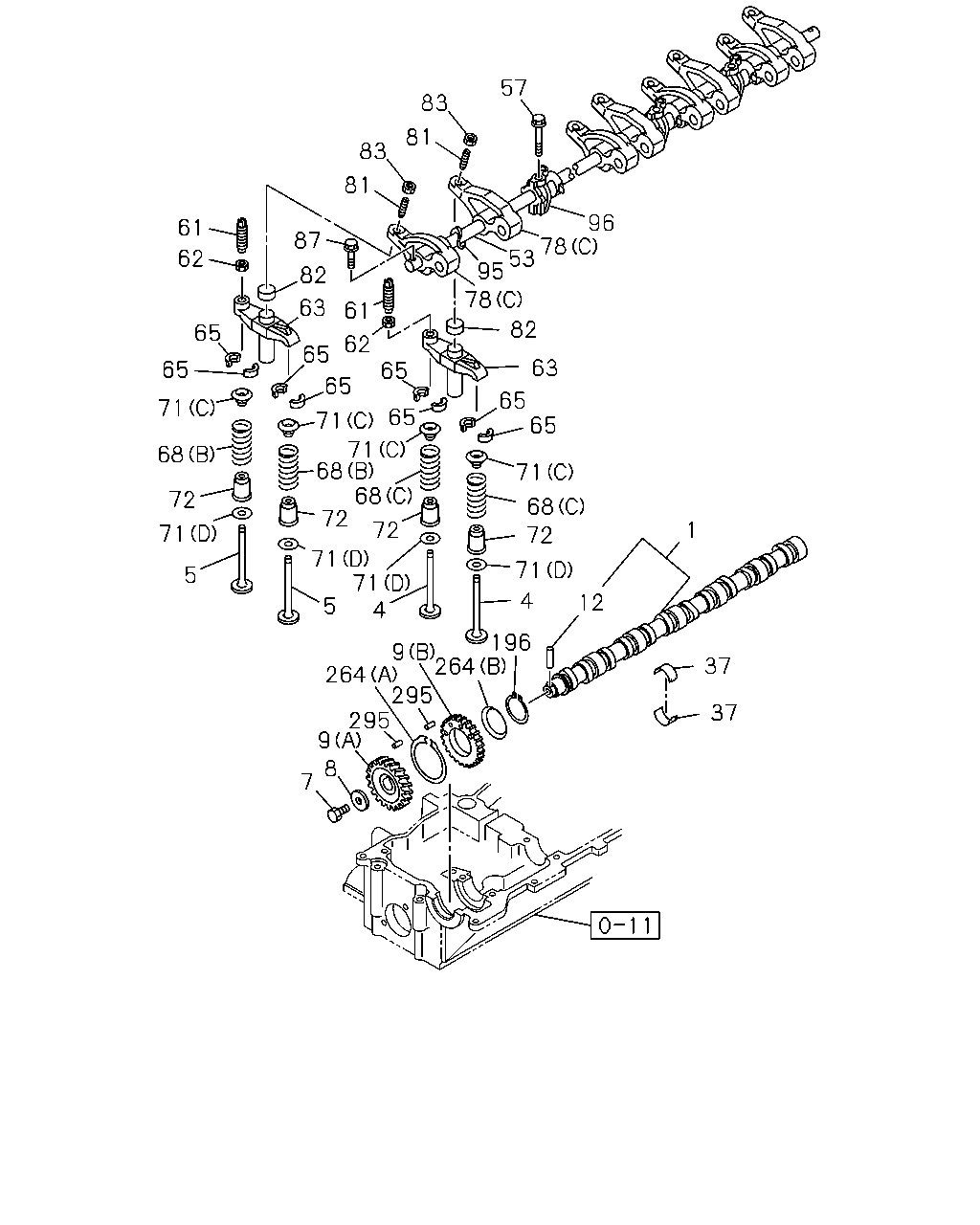

57 83 81 83 81 96 78 53 95 87 61 62 82 78 63 61 82 65 62 65 63 65 65 65 65 65 71 65 71 71 68 68 72 68 71 72 68 72 1 71 72 71 71 4 71 5 4 12 5 196 9 264 295 295 9 8 37 264 37 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.519 CAMSHAFT	8-97077-829-0	01	1	0201-	●
1	00.519 CAMSHAFT	8-97262-166-0	01	1	0805-		●
4	00.296 VALVE; INL	8-97171-398-0	04	1	0201-	●
4	00.296 VALVE; INL	8-94395-882-2	08	1	0805-		●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	0201-	●
5	00.297 VALVE; EXH	8-97209-876-4	08	1	0805-		●
7	00.738 BOLT; CM/SHF GEAR 08.900 M14X40	9-92061-440-0	01	1	0201-0204	●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0205-0804	●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0805-	●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0201-0804	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0805-	●	●
9	00.736 GEAR; CM/SHF (C) Z=70 OD=208.6	8-97088-057-2	01	1	0201-	●
9	00.736 GEAR; CM/SHF (A) SUB Z=35	8-97300-972-2	01	1	0805-		●
9	00.736 GEAR; CM/SHF (B) MAIN Z=35	8-97309-327-2	01	1	0805-		●
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	02	1	0805-		●
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	0201-	●
37	00.539 METAL; CM/SHF	8-97112-638-0	10	1	0201-0209	●
37	00.539 METAL; CM/SHF B=16	8-97356-939-0	10	1	0210-0706	●
37	00.539 METAL; CM/SHF B=16	8-97386-189-0	10	1	0707-0804	●
37	00.539 METAL; CM/SHF B=16	8-97386-189-0	10	1	0805-	●	●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0201-	●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0201-	●
53	00.353 SHAFT; ROCKER ARM	8-97389-921-0	01	1	0805-		●
57	00.349 BOLT; ROCKER ARM BRKT M10X62 FLANGE	8-94393-131-0	03	1	0805-		●
61	00.349 SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	0805-		●
62	00.349 NUT; ADJ SCREW LK BRIDGE 00.429 M8 FLANGE	9-09844-574-0	08	1	0805-		●
63	00.349 BRIDGE	8-94392-002-3	08	1	0805-		●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	0201-	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	32	1	0805-		●
68	00.303 SPRING; VLV (A) ID=28.5	8-97023-559-0	08	1	0201-	●
68	00.303 SPRING; VLV (B) MARK RED	8-97210-682-0	08	1	0805-		●
68	00.303 SPRING; VLV (C) MARK BLUE	8-97352-888-0	08	1	0805-		●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0201-	●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0201-	●
71	00.309 SEAT; SPR (C) OD=32.8 T=12.75	8-94390-783-2	16	1	0805-		●
71	00.309 SEAT; SPR (D) ID=14.3 T=1.0	8-94391-468-0	16	1	0805-		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0201-	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	0805-		●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0201-	●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0201-	●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0201-	●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0201-	●
78	00.333 ARM; ROCKER (C) INLET	8-97306-421-3	04	1	0805-		●
78	00.333 ARM; ROCKER (C) EXHAUST	8-97306-424-3	04	1	0805-		●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0201-	●
81	00.429 SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	0805-		●
82	00.356 CAP; ROCKER SHAFT 00.303	8-94396-015-2	08	1	0805-		●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	0201-0512	●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0601-	●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0805-		●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	0201-0512	●
87	00.349 BOLT; ROCKER SHAFT 03.162 M8X35 FLANGE	0-28050-835-0	02	1	0601-	●
87	00.349 BOLT; ROCKER SHAFT 02.277 M8X40 FLANGE	0-28050-840-0	02	1	0805-		●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0201-	●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0201-	●
95	00.376 SPRING; ROCKER SHAFT	8-94392-999-0	04	1	0805-		●
96	00.349 BRACKET; ROCKER ARM SHAFT	8-97334-414-0	03	1	0805-		●
196	00.724 RING; SNAP 04.545 ID=50.8	9-09180-055-0	01	1	0805-		●
264	00.349 SPRING; GEAR (A)	8-97190-117-1	01	1	0805-		●
264	00.349 SPRING; GEAR (B)	8-97190-118-1	01	1	0805-		●
295	00.533 PIN; CM/SHF GEAR OD=4 L=8.0	8-97213-454-0	02	1	0805-		●

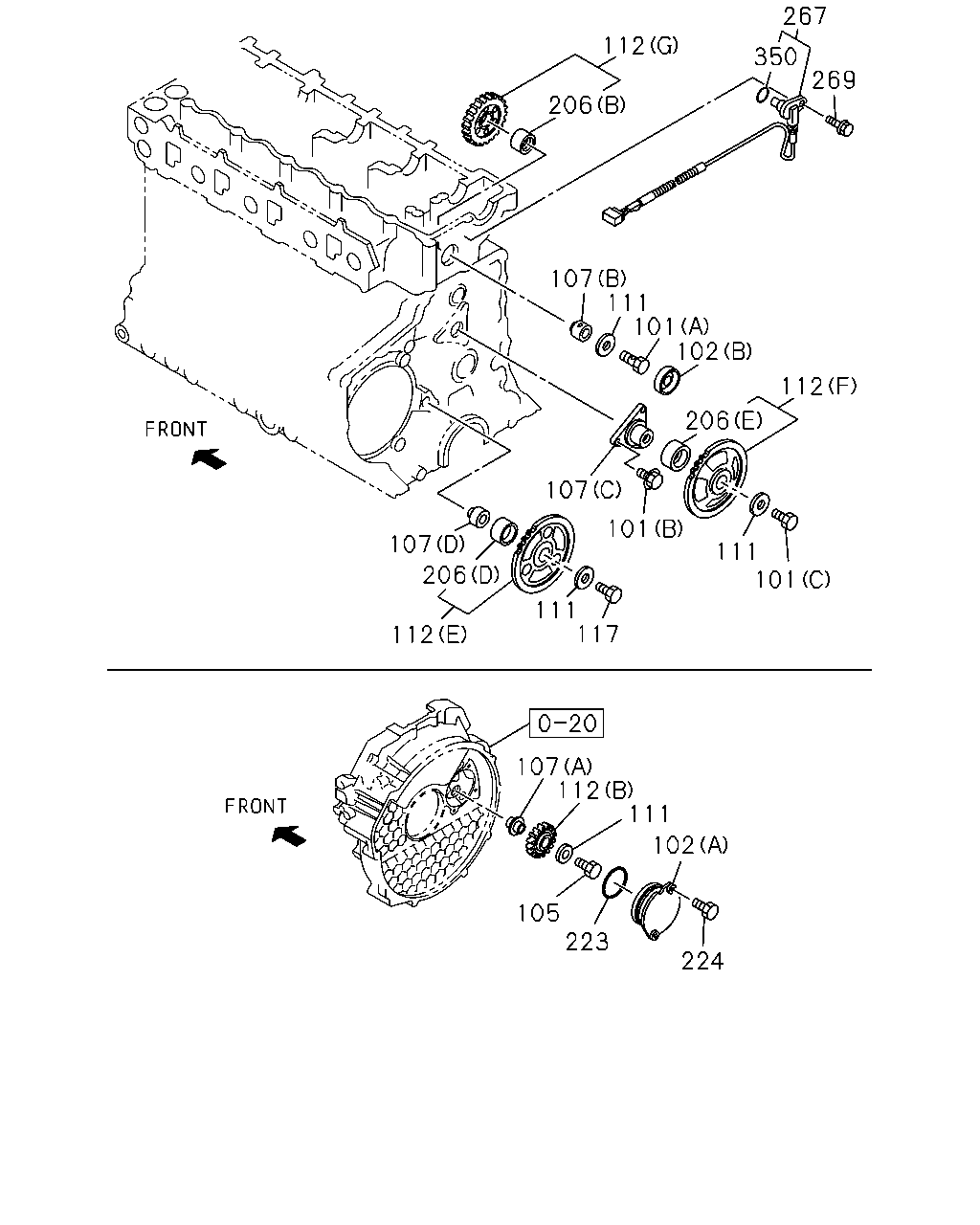

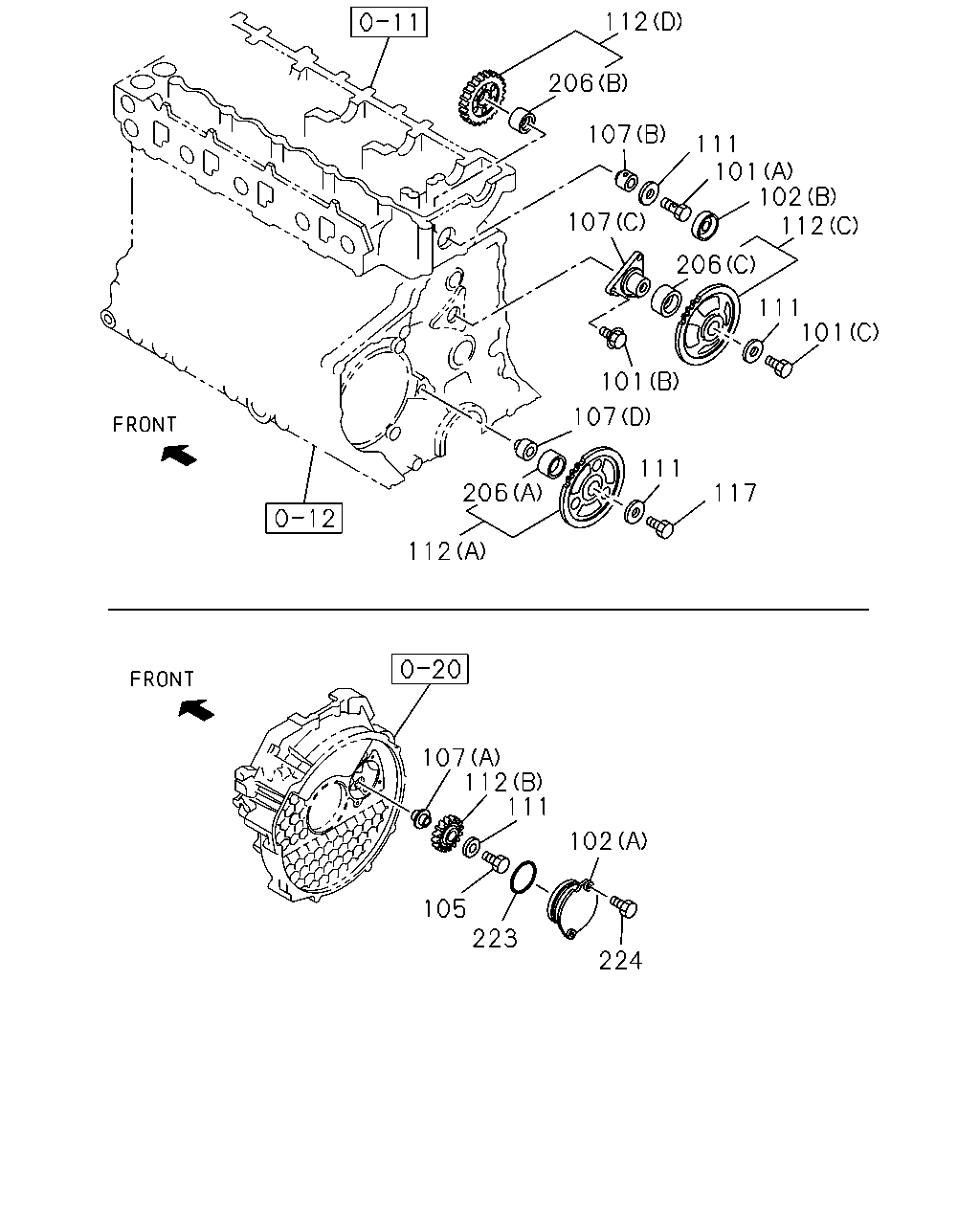

112 206 107 111 101 102 112 107 206 111 101 101 107 111 206 117 112 107 112 111 102 105 223 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0201-0804	●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0805-	●	●
101	00.724 BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	0201-0203	●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0204-0512	●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-0804	●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0805-	●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0201-0804	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0805-1310	●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-	●	●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0201-0804	●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0805-	●	●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0201-0804	●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0805-	●	●
105	00.724 BOLT; IDLE GEAR SHAFT NPR BUS CHASSIS LONG(NP***K) POWER STEERING<N40> 08.900 M14X60	9-91666-460-0	01	1	0201-0303	●	●
105	00.724 BOLT; IDLE GEAR SHAFT NPR BUS CHASSIS LONG(NP***K) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> POWER STEERING<N40> 08.900 M14X60	9-91666-460-0	01	1	0304-0501	●	●
105	00.724 BOLT; IDLE GEAR SHAFT NPR BUS CHASSIS LONG(NP***K) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> POWER STEERING<N40> 08.900 M14X60	9-91666-460-0	01	1	0502-0512	●
105	00.724 BOLT; IDLE GEAR SHAFT NPR BUS CHASSIS LONG(NP***K) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> POWER STEERING<N40> M14X60	0-16956-460-0	01	1	0601-0804	●
105	00.724 BOLT; IDLE GEAR SHAFT POWER STEERING<N40> M14X60	0-16956-460-0	01	1	0805-	●	●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0201-0609	●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0610-0804	●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0805-	●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0201-0804	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0805-	●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97189-244-0	01	1	0201-0203	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0204-0804	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0805-	●	●
107	00.724 SHAFT; IDLE GEAR NPR BUS CHASSIS LONG(NP***K) POWER STEERING<N40> (A)	8-94334-682-0	01	1	0201-0303	●	●
107	00.724 SHAFT; IDLE GEAR NPR BUS CHASSIS LONG(NP***K) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> POWER STEERING<N40> (A)	8-94334-682-0	01	1	0304-0501	●	●
107	00.724 SHAFT; IDLE GEAR NPR BUS CHASSIS LONG(NP***K) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> POWER STEERING<N40> (A)	8-94334-682-0	01	1	0502-0804	●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-1	01	1	0805-	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0201-	●
111	00.724 COLLAR; THRUST,IDLE GEAR NPR BUS CHASSIS LONG(NP***K) POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-1	01	1	0201-0303	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR NPR BUS CHASSIS LONG(NP***K) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-1	01	1	0304-0501	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR NPR BUS CHASSIS LONG(NP***K) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	0502-	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	0805-		●
112	00.724 GEAR; IDLE (D) Z=122	8-97088-053-2	01	1	0201-	●
112	00.724 GEAR; IDLE (C) Z=82	8-97088-055-2	01	1	0201-	●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97227-213-0	01	1	0201-	●
112	00.724 GEAR; IDLE NPR BUS CHASSIS LONG(NP***K) POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	0201-0303	●	●
112	00.724 GEAR; IDLE NPR BUS CHASSIS LONG(NP***K) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	0304-0501	●	●
112	00.724 GEAR; IDLE NPR BUS CHASSIS LONG(NP***K) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> POWER STEERING<N40> (B) Z=34	8-97120-005-1	01	1	0502-0804	●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-1	01	1	0805-	●	●
112	00.724 GEAR; IDLE (E) Z=72-60-30	8-97600-586-1	01	1	0805-1402		●
112	00.724 GEAR; IDLE (E) Z=72-60-30	8-98254-970-0	01	1	1403-		●
112	00.724 GEAR; IDLE (F) Z=61	8-97606-767-0	01	1	0805-		●
112	00.724 GEAR; IDLE (G) Z=41	8-97606-929-0	01	1	0805-		●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0201-0804	●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0805-	●	●
206	00.724 BUSHING; IDLE GEAR (D) AFTER PRESS FITTING, MACHINE IT.	1-12528-028-0	01	1	0805-1402		●
206	00.724 BUSHING; IDLE GEAR (D) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1403-		●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0201-	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0201-0802	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0803-0804	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0805-	●	●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0201-0809	●
206	00.724 BUSHING; IDLE GEAR (E) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0805-0809		●
206	00.724 BUSHING; IDLE GEAR (E) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0810-	●	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). 04.854 ID=105.6	1-09623-247-0	01	1	0201-0211	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0212-0804	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0805-	●	●
224	00.724 BOLT; COVER 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0201-0512	●
224	00.724 BOLT; COVER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-0804	●
224	00.724 BOLT; COVER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0805-	●	●

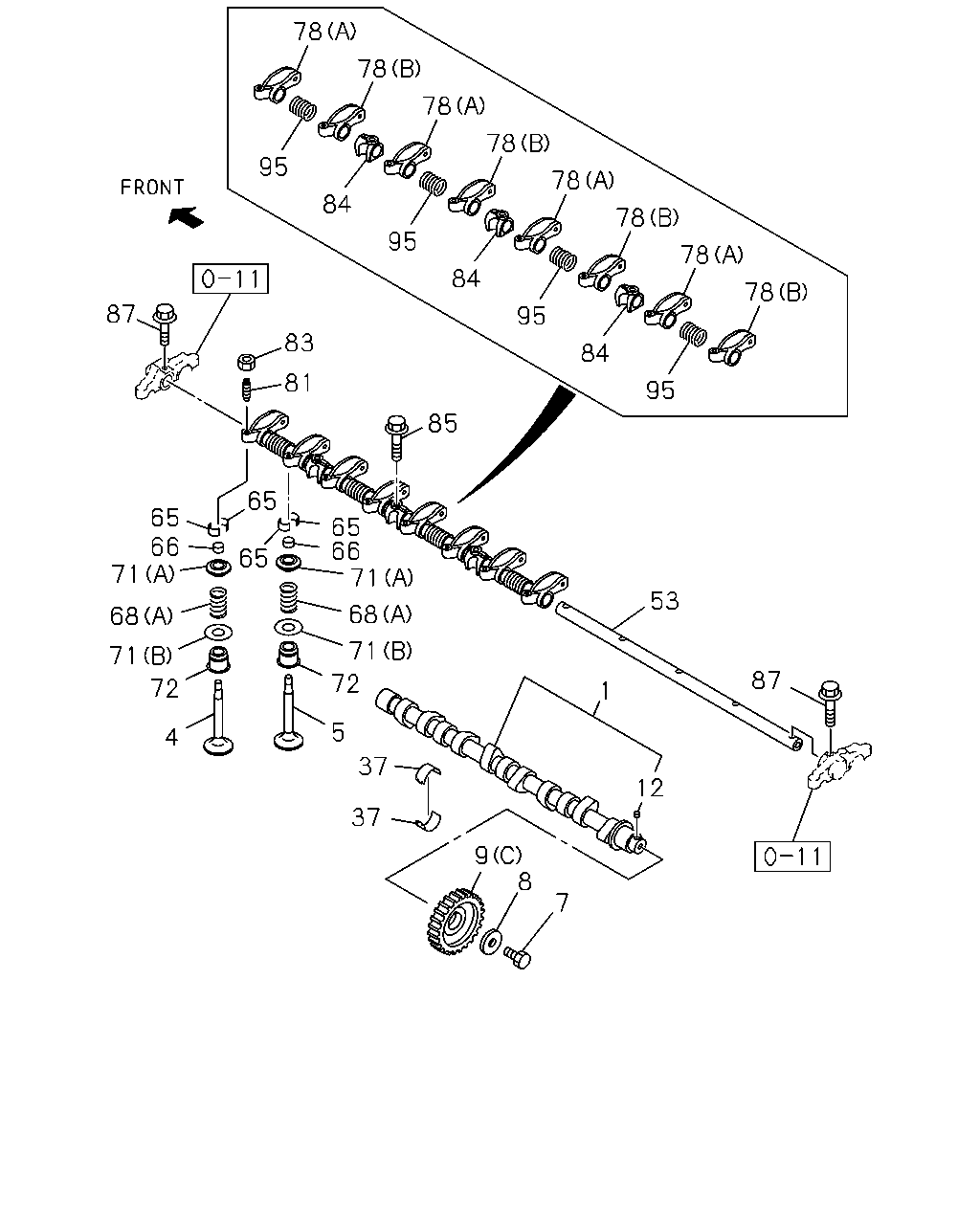

78 78 78 78 95 78 84 78 95 78 84 78 87 95 83 84 81 95 85 65 65 66 71 65 66 71 65 53 68 68 71 71 87 72 72 1 5 4 37 12 37 9 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.519 CAMSHAFT	8-97077-829-0	01	1	0201-	●
1	00.519 CAMSHAFT	8-97262-166-0	01	1	0805-		●
4	00.296 VALVE; INL	8-97171-398-0	04	1	0201-	●
4	00.296 VALVE; INL	8-94395-882-2	08	1	0805-		●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	0201-	●
5	00.297 VALVE; EXH	8-97209-876-4	08	1	0805-		●
7	00.738 BOLT; CM/SHF GEAR 08.900 M14X40	9-92061-440-0	01	1	0201-0204	●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0205-0804	●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0805-	●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0201-0804	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0805-	●	●
9	00.736 GEAR; CM/SHF (C) Z=70 OD=208.6	8-97088-057-2	01	1	0201-	●
9	00.736 GEAR; CM/SHF (A) SUB Z=35	8-97300-972-2	01	1	0805-		●
9	00.736 GEAR; CM/SHF (B) MAIN Z=35	8-97309-327-2	01	1	0805-		●
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	02	1	0805-		●
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	0201-	●
37	00.539 METAL; CM/SHF	8-97112-638-0	10	1	0201-0209	●
37	00.539 METAL; CM/SHF B=16	8-97356-939-0	10	1	0210-0706	●
37	00.539 METAL; CM/SHF B=16	8-97386-189-0	10	1	0707-0804	●
37	00.539 METAL; CM/SHF B=16	8-97386-189-0	10	1	0805-	●	●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0201-	●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0201-	●
53	00.353 SHAFT; ROCKER ARM	8-97389-921-0	01	1	0805-		●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	0201-	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	32	1	0805-		●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	0201-	●
68	00.303 SPRING; VLV (A) ID=28.5	8-97023-559-0	08	1	0201-	●
68	00.303 SPRING; VLV (B) MARK RED	8-97210-682-0	08	1	0805-		●
68	00.303 SPRING; VLV (C) MARK BLUE	8-97352-888-0	08	1	0805-		●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0201-	●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0201-	●
71	00.309 SEAT; SPR (C) OD=32.8 T=12.75	8-94390-783-2	16	1	0805-		●
71	00.309 SEAT; SPR (D) ID=14.3 T=1.0	8-94391-468-0	16	1	0805-		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0201-	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	0805-		●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0201-	●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0201-	●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0201-	●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0201-	●
78	00.333 ARM; ROCKER (C) INLET	8-97306-421-3	04	1	0805-		●
78	00.333 ARM; ROCKER (C) EXHAUST	8-97306-424-3	04	1	0805-		●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0201-	●
81	00.429 SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	0805-		●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	0201-0512	●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0601-	●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0805-		●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0201-	●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0201-	●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	0201-	●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	0201-	●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	0201-0512	●
87	00.349 BOLT; ROCKER SHAFT 03.162 M8X35 FLANGE	0-28050-835-0	02	1	0601-	●
87	00.349 BOLT; ROCKER SHAFT 02.277 M8X40 FLANGE	0-28050-840-0	02	1	0805-		●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0201-	●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0201-	●
95	00.376 SPRING; ROCKER SHAFT	8-94392-999-0	04	1	0805-		●

267 112 350 269 206 107 111 101 102 112 206 107 101 107 111 101 206 111 117 112 107 112 111 102 105 223 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0201-0804	●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0805-	●	●
101	00.724 BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	0201-0203	●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0204-0512	●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-0804	●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0805-	●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0201-0804	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0805-1310	●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-	●	●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0201-0804	●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0805-	●	●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0201-0804	●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0805-	●	●
105	00.724 BOLT; IDLE GEAR SHAFT NPR BUS CHASSIS LONG(NP***K) POWER STEERING<N40> 08.900 M14X60	9-91666-460-0	01	1	0201-0303	●	●
105	00.724 BOLT; IDLE GEAR SHAFT NPR BUS CHASSIS LONG(NP***K) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> POWER STEERING<N40> 08.900 M14X60	9-91666-460-0	01	1	0304-0501	●	●
105	00.724 BOLT; IDLE GEAR SHAFT NPR BUS CHASSIS LONG(NP***K) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> POWER STEERING<N40> 08.900 M14X60	9-91666-460-0	01	1	0502-0512	●
105	00.724 BOLT; IDLE GEAR SHAFT NPR BUS CHASSIS LONG(NP***K) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> POWER STEERING<N40> M14X60	0-16956-460-0	01	1	0601-0804	●
105	00.724 BOLT; IDLE GEAR SHAFT POWER STEERING<N40> M14X60	0-16956-460-0	01	1	0805-	●	●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0201-0609	●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0610-0804	●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0805-	●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0201-0804	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0805-	●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97189-244-0	01	1	0201-0203	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0204-0804	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0805-	●	●
107	00.724 SHAFT; IDLE GEAR NPR BUS CHASSIS LONG(NP***K) POWER STEERING<N40> (A)	8-94334-682-0	01	1	0201-0303	●	●
107	00.724 SHAFT; IDLE GEAR NPR BUS CHASSIS LONG(NP***K) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> POWER STEERING<N40> (A)	8-94334-682-0	01	1	0304-0501	●	●
107	00.724 SHAFT; IDLE GEAR NPR BUS CHASSIS LONG(NP***K) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> POWER STEERING<N40> (A)	8-94334-682-0	01	1	0502-0804	●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-1	01	1	0805-	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0201-	●
111	00.724 COLLAR; THRUST,IDLE GEAR NPR BUS CHASSIS LONG(NP***K) POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-1	01	1	0201-0303	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR NPR BUS CHASSIS LONG(NP***K) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-1	01	1	0304-0501	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR NPR BUS CHASSIS LONG(NP***K) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	0502-	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	0805-		●
112	00.724 GEAR; IDLE (D) Z=122	8-97088-053-2	01	1	0201-	●
112	00.724 GEAR; IDLE (C) Z=82	8-97088-055-2	01	1	0201-	●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97227-213-0	01	1	0201-	●
112	00.724 GEAR; IDLE NPR BUS CHASSIS LONG(NP***K) POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	0201-0303	●	●
112	00.724 GEAR; IDLE NPR BUS CHASSIS LONG(NP***K) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	0304-0501	●	●
112	00.724 GEAR; IDLE NPR BUS CHASSIS LONG(NP***K) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> POWER STEERING<N40> (B) Z=34	8-97120-005-1	01	1	0502-0804	●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-1	01	1	0805-	●	●
112	00.724 GEAR; IDLE (E) Z=72-60-30	8-97600-586-1	01	1	0805-1402		●
112	00.724 GEAR; IDLE (E) Z=72-60-30	8-98254-970-0	01	1	1403-		●
112	00.724 GEAR; IDLE (F) Z=61	8-97606-767-0	01	1	0805-		●
112	00.724 GEAR; IDLE (G) Z=41	8-97606-929-0	01	1	0805-		●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0201-0804	●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0805-	●	●
206	00.724 BUSHING; IDLE GEAR (D) AFTER PRESS FITTING, MACHINE IT.	1-12528-028-0	01	1	0805-1402		●
206	00.724 BUSHING; IDLE GEAR (D) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1403-		●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0201-	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0201-0802	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0803-0804	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0805-	●	●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0201-0809	●
206	00.724 BUSHING; IDLE GEAR (E) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0805-0809		●
206	00.724 BUSHING; IDLE GEAR (E) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0810-	●	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). 04.854 ID=105.6	1-09623-247-0	01	1	0201-0211	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0212-0804	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0805-	●	●
224	00.724 BOLT; COVER 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0201-0512	●
224	00.724 BOLT; COVER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-0804	●
224	00.724 BOLT; COVER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0805-	●	●
267	00.724 SENSOR; CAM ANGLE 09.761	8-97329-775-1	01	1	0805-		●
269	00.685 BOLT; SENSOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0805-		●
350	00.724 GASKET; SENSOR,CAM ANGLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97387-194-0	01	1	0805-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
