6-01 — FRONT BUMPER (#1950) — 67 parça

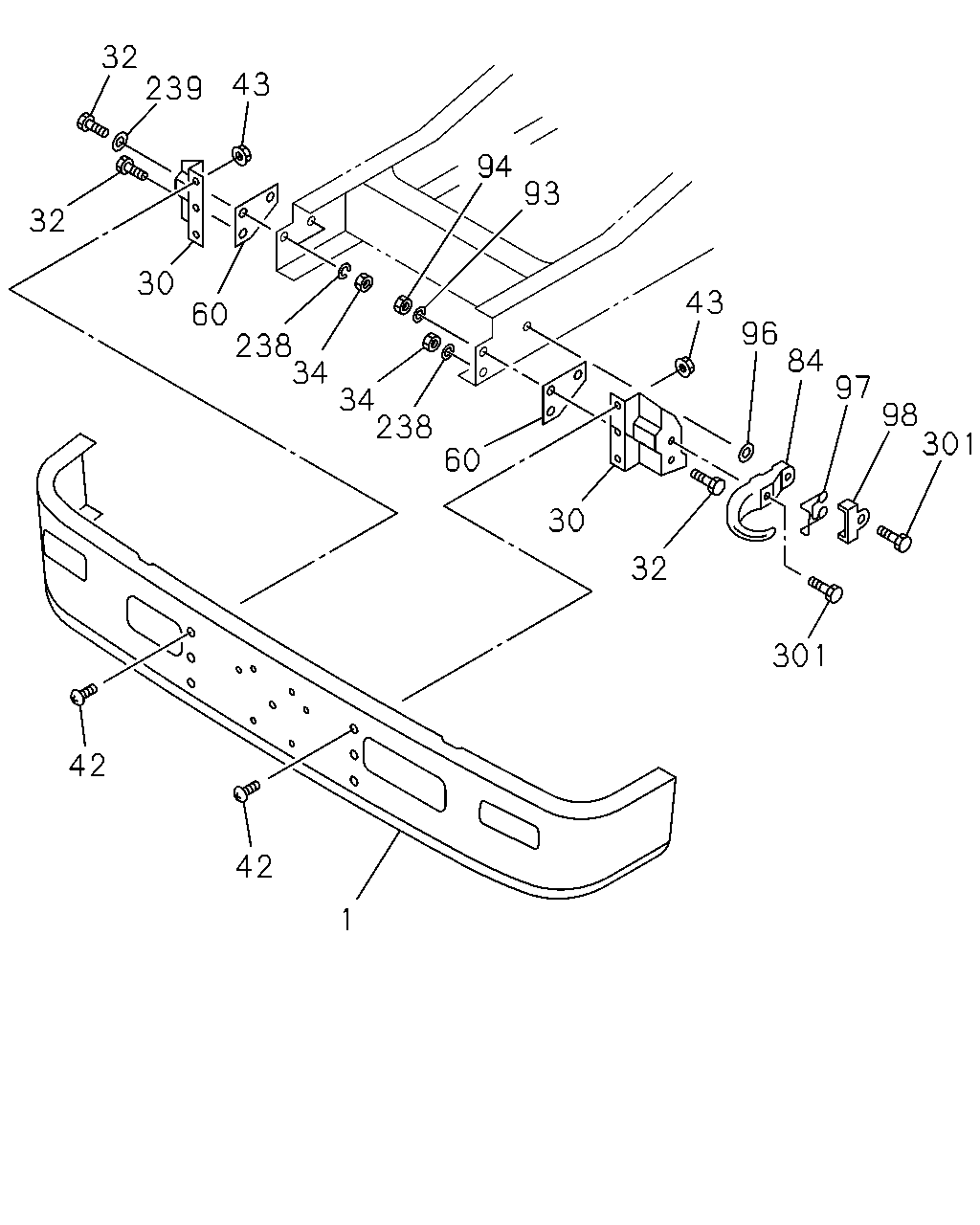

32 239 43 94 93 32 30 43 60 238 34 34 238 60 96 84 97 98 301 30 32 301 42 42 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7>	1-71210-299-5	01	1	9207-	●	●	●	●
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7> WHITE	1-71210-241-6	01	1	9207-	●	●	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-143-0	01	1	9207-	●	●	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-130-0	01	1	9207-	●	●	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>	1-71230-113-3	01	1	9207-	●	●	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>	1-71230-114-3	01	1	9207-	●	●	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X40	0-20801-640-0	03	1	9207-	●	●	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X30 W/LK WASHER	0-50041-030-0	06	1	9207-	●	●	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	03	1	9207-	●	●	●	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10	9-09110-510-0	06	1	9207-	●	●	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	06	1	9207-	●	●	●	●
42	BOLT; BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	04	1	9207-	●	●	●	●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	06	1	9207-	●	●	●	●
43	NUT; BRKT TO BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	04	1	9207-	●	●	●	●
60	SPACER; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-57189-172-0	01	1	9207-	●	●
60	SPACER; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-57189-173-0	01	1	9207-	●	●
84	HOOK REINFORCEMENT BUMPER<VG7>	1-57181-027-1	01	1	9207-	●	●
84	HOOK	1-57181-027-1	01	1	9207-			●	●
84	HOOK EXC. REINFORCEMENT BUMPER<VG7>	1-57181-020-1	01	1	9207-	●	●
93	WASHER; LK,HOOK REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	02	1	9207-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9207-			●	●
93	WASHER; LK,HOOK EXC. REINFORCEMENT BUMPER<VG7> ID=14.2	9-09150-514-0	02	1	9207-	●	●
94	NUT; HOOK REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	02	1	9207-	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	9207-			●	●
94	NUT; HOOK EXC. REINFORCEMENT BUMPER<VG7> M14	9-99110-414-0	02	1	9207-	●	●
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7>	9-09857-022-0	01	1	9207-			●	●
97	SPRING; FRT HOOK REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	9207-	●	●
97	SPRING; FRT HOOK	9-53519-003-0	01	1	9207-			●	●
98	STOPPER; SPR,FRT HOOK REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	9207-	●	●
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	9207-			●	●
238	WASHER; LK,BUMPER BRKT REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	03	1	9207-	●	●	●	●
239	WASHER; PL,BRKT REINFORCEMENT BUMPER<VG7>	9-09857-022-0	02	1	9207-	●	●	●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9207-	●	●
301	BOLT; HOOK TO FRAME M16X60	0-10811-660-0	01	1	9207-			●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X75	0-10811-675-0	01	1	9207-	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M14X55	0-10811-455-0	01	1	9207-	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M14X70	0-10811-470-0	01	1	9207-	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	9207-			●	●

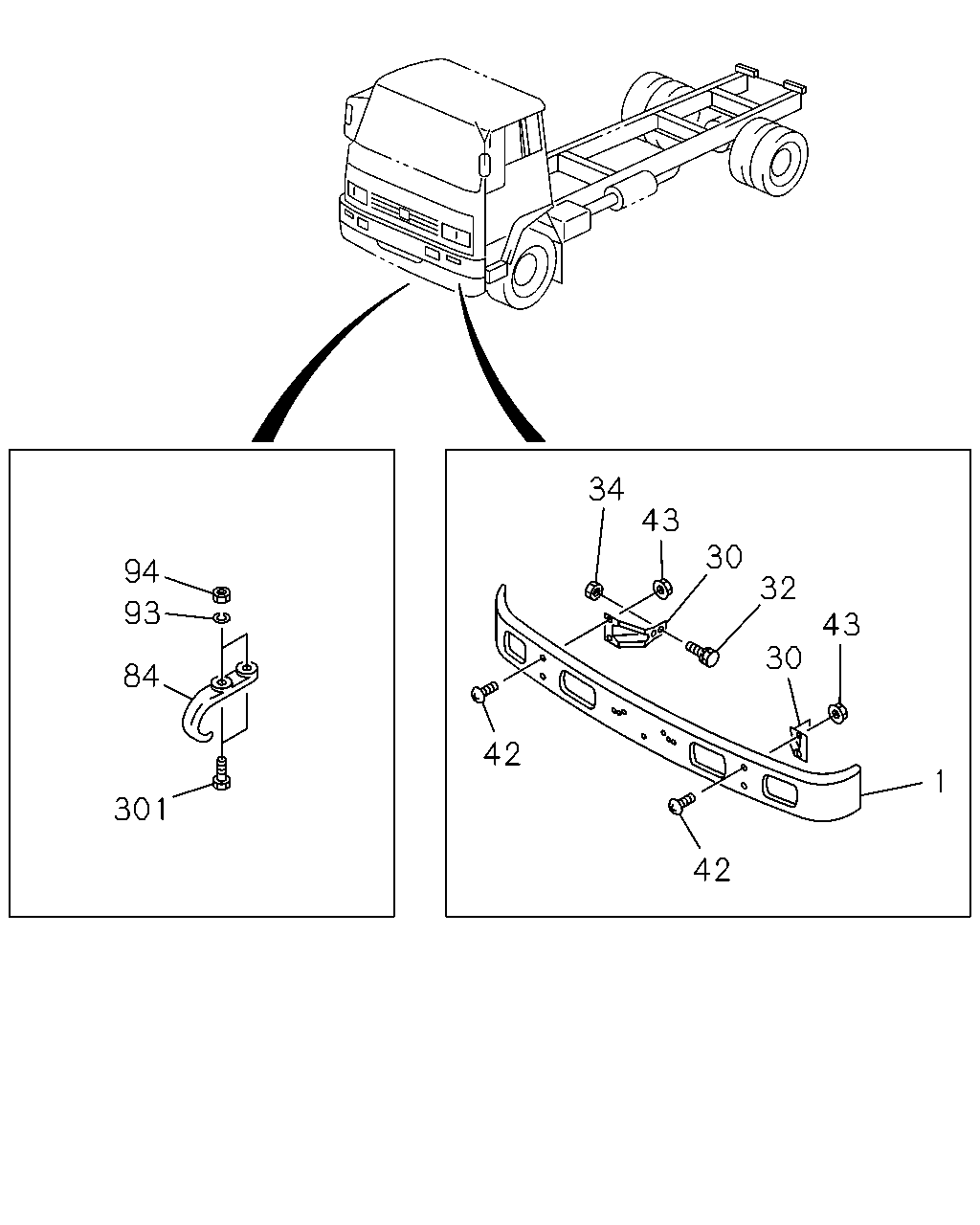

34 43 30 94 32 93 43 30 84 42 1 301 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7>	1-71210-299-5	01	1	9207-	●	●	●	●
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7> WHITE	1-71210-241-6	01	1	9207-	●	●	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-143-0	01	1	9207-	●	●	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-130-0	01	1	9207-	●	●	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>	1-71230-113-3	01	1	9207-	●	●	●	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>	1-71230-114-3	01	1	9207-	●	●	●	●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X40	0-20801-640-0	03	1	9207-	●	●	●	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X30 W/LK WASHER	0-50041-030-0	06	1	9207-	●	●	●	●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	03	1	9207-	●	●	●	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10	9-09110-510-0	06	1	9207-	●	●	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	06	1	9207-	●	●	●	●
42	BOLT; BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	04	1	9207-	●	●	●	●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	06	1	9207-	●	●	●	●
43	NUT; BRKT TO BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	04	1	9207-	●	●	●	●
84	HOOK REINFORCEMENT BUMPER<VG7>	1-57181-027-1	01	1	9207-	●	●
84	HOOK	1-57181-027-1	01	1	9207-			●	●
84	HOOK EXC. REINFORCEMENT BUMPER<VG7>	1-57181-020-1	01	1	9207-	●	●
93	WASHER; LK,HOOK REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	02	1	9207-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9207-			●	●
93	WASHER; LK,HOOK EXC. REINFORCEMENT BUMPER<VG7> ID=14.2	9-09150-514-0	02	1	9207-	●	●
94	NUT; HOOK REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	02	1	9207-	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	9207-			●	●
94	NUT; HOOK EXC. REINFORCEMENT BUMPER<VG7> M14	9-99110-414-0	02	1	9207-	●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9207-	●	●
301	BOLT; HOOK TO FRAME M16X60	0-10811-660-0	01	1	9207-			●	●
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X75	0-10811-675-0	01	1	9207-	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M14X55	0-10811-455-0	01	1	9207-	●	●
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M14X70	0-10811-470-0	01	1	9207-	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10811-670-0	01	1	9207-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
