Isuzu WW
▶
TRUCKS
▶
FSR
▶
10625 - FSR-LHD
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

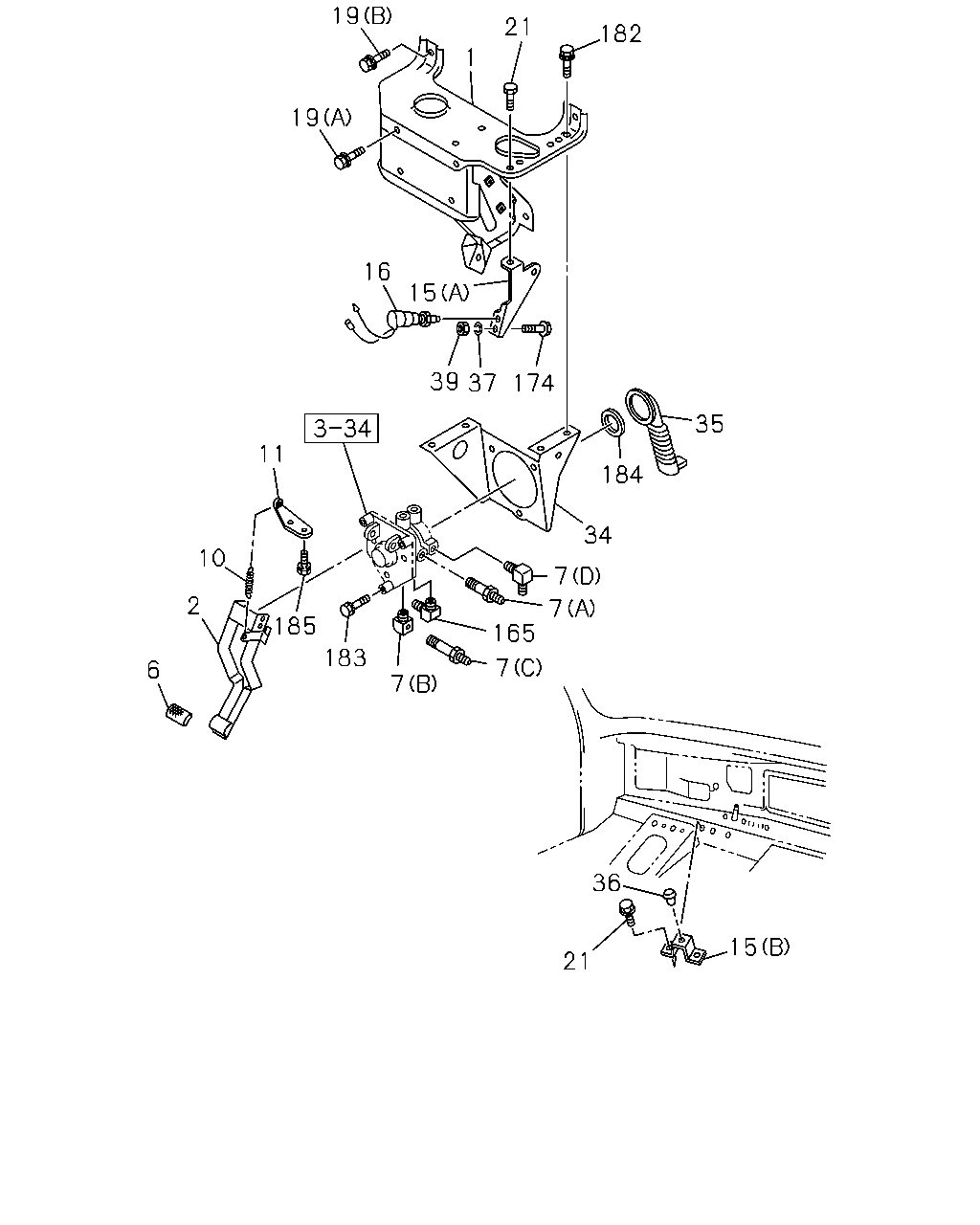

3-10 — BRAKE PEDAL AND CONTROL
(#195) — 33 parça
19
21
182
1
19
16
15
174
35
11
184
34
10
7
2
7
185
165
183
7
6
7
36
15
21
39
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
1-73998-563-4
01
1
9212-
2
PEDAL; BRK
TAIWAN EQUIPMENT(WW5)
1-47311-108-0
01
1
9212-
2
PEDAL; BRK
EXC. TAIWAN EQUIPMENT(WW5)
1-47311-105-0
01
1
9212-
6
COVER; BRK PEDAL
8-94204-810-0
01
1
9212-
7
CONNECTOR; BRK VALVE
(C)
1-09650-150-2
01
1
9212-
7
CONNECTOR; BRK VALVE
(D)
1-09650-180-1
02
1
9212-9302
7
CONNECTOR; BRK VALVE
(D)
1-09650-438-0
02
1
9303-
7
CONNECTOR; BRK VALVE
(A)
1-09650-233-1
01
1
9212-
7
CONNECTOR; BRK VALVE
(B)
1-09664-049-1
01
1
9212-9302
7
CONNECTOR; BRK VALVE
(B) PT3/8 ELBOW
1-09660-696-0
01
1
9303-
10
SPRING; RETURN,BRK PEDAL
8-94251-601-0
01
1
9212-
11
BRACKET; RETURN SPRING
1-73997-820-0
01
1
9212-
15
BRACKET ASM; STOPPER,BRK PEDAL
(A)
1-73997-821-1
01
1
9212-
15
BRACKET ASM; STOPPER,BRK PEDAL
(B)
1-73998-450-0
01
1
9212-
16
SWITCH; STOP LAMP
1-82380-036-1
01
1
9212-
19
BOLT; BRKT
(A) M8X20
1-09980-435-0
01
1
9212-
19
BOLT; BRKT
(B) M8X20
1-09980-529-0
03
1
9212-
21
BOLT; STOPPER BRKT
M6X20 W/LK&PL WASHER
0-50140-620-0
01
1
9212-
21
BOLT; STOPPER BRKT
M8X20 W/LK&PL WASHER
0-50140-820-0
01
1
9212-
21
BOLT; STOPPER BRKT
M6X16 W/LK&PL WASHER
1-09980-458-0
02
1
9212-
34
BRACKET ASM; BRK VLV
1-73997-771-1
01
1
9212-
35
DUCT ASM; AIR,BRK VLV EXH
1-76377-099-1
01
1
9212-
36
STOPPER; BRK PEDAL
1-47319-014-1
01
1
9212-
37
WASHER; LK,STOPPER
ID=10.2
9-09150-510-0
01
1
9212-
39
NUT; STOPPER LK
M10
9-09111-410-0
01
1
9212-
165
CONNECTOR; SECONDARY DELIVERY
M16 & PT3/8 ELBOW
1-09650-180-1
01
1
9212-9302
165
CONNECTOR; SECONDARY DELIVERY
M16 & PT3/8 ELBOW
1-09650-438-0
01
1
9303-
174
STOPPER; REBOUND,BRK PEDAL UPR
9-54359-079-0
01
1
9212-
182
BOLT; BRK VLV BRKT
M8X20 W/LK&PL WASHER
0-50140-820-0
04
1
9212-
183
BOLT; BRK VLV
M10X25 W/LK WASHER
0-50041-025-0
01
1
9212-
183
BOLT; BRK VLV
M10X35 W/LK WASHER
0-50041-035-0
02
1
9212-
184
SEAL; AIR DUCT
1-76377-102-0
01
1
9212-
185
BOLT; BRKT
M6X12 W/LK&PL WASHER
0-50140-612-0
02
1
9212-
