0-12 — CYLINDER BLOCK (#19498) — 116 parça

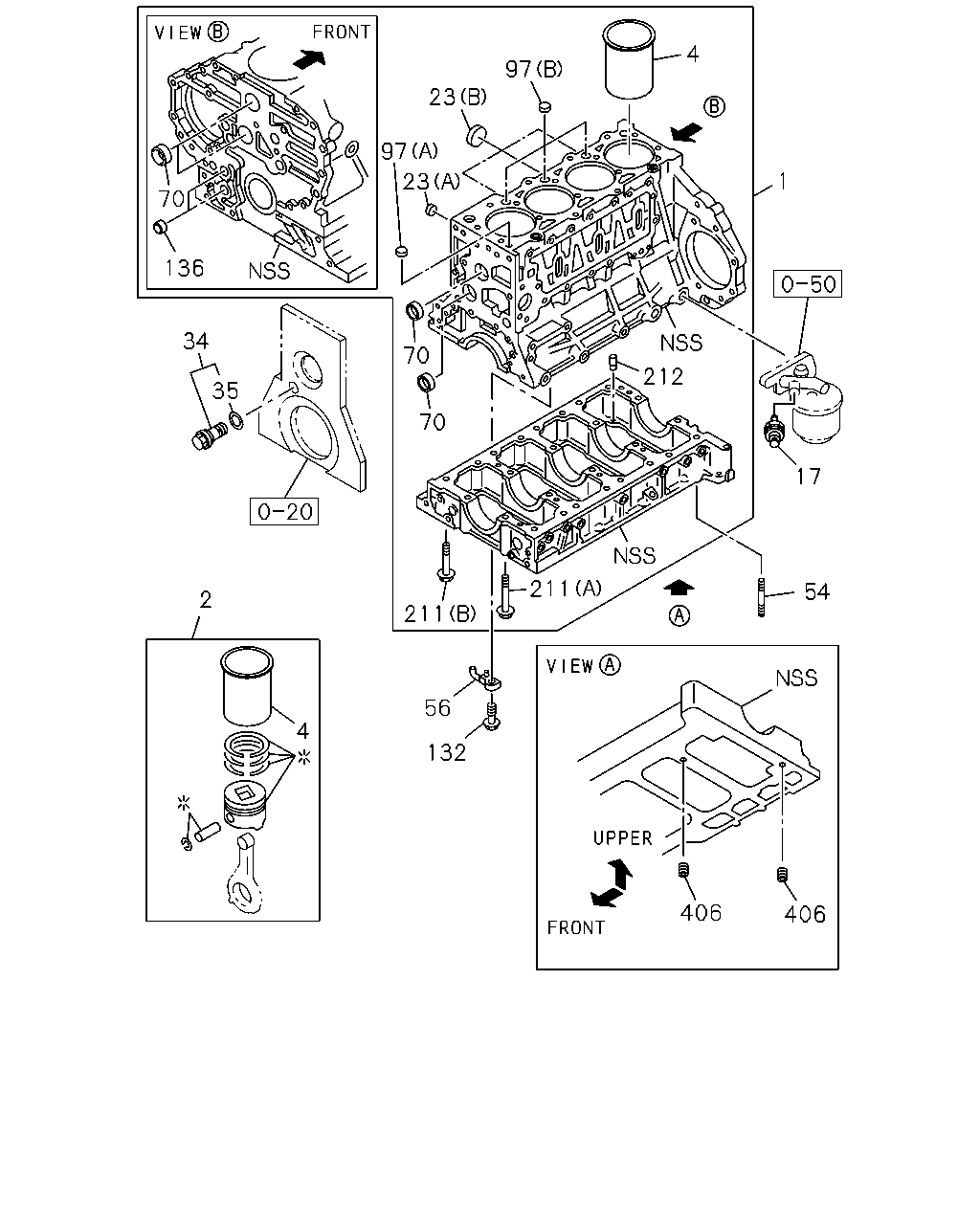

4 97 23 70 97 1 23 136 34 70 212 35 70 17 211 54 2 211 56 4 132 406 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-97163-853-7	01	1	0201-	●
1	00.033 BLOCK ASM; CYL	8-98005-443-7	01	1	0805-1209		●
1	00.033 BLOCK ASM; CYL	8-98204-528-0	01	1	1210-		●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-4	04	1	0201-	●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-4	04	1	0201-	●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87815-151-3	04	1	0805-		●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87815-152-3	04	1	0805-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-1	04	1	0201-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-1	04	1	0201-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	0805-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	0805-		●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0201-0804	●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0805-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	0201-0804	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	0805-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0201-0804	●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0805-	●	●
34	01.609 VALVE; OIL RELIEF	8-94386-047-1	01	1	0201-0706	●
34	01.609 VALVE; OIL RELIEF 00.213	8-97328-859-0	01	1	0707-0804	●
34	01.609 VALVE; OIL RELIEF 00.213	8-97328-859-0	01	1	0805-	●	●
35	01.609 GASKET; RELIEF VLV ID=23.3	8-94173-412-0	01	1	0201-	●
54	01.428 STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	0805-		●
56	01.519 JET; OIL,PISTON COOLING	8-94370-579-1	04	1	0201-	●
56	01.519 JET; OIL,PISTON COOLING	8-98020-649-0	04	1	0805-1007		●
56	01.519 JET; OIL,PISTON COOLING	8-98173-342-0	04	1	1008-		●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	0201-0804	●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	0805-	●	●
70	00.034 CUP; SEALING,FRT & RR 00.293 OD=25	1-09600-016-0	01	1	0805-		●
97	00.034 CUP; SEALING 00.253 (A) OD=16	5-11129-006-0	01	1	0805-		●
97	00.034 CUP; SEALING 00.253 (B) OD=22	8-97209-609-0	03	1	0805-		●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	0201-0704	●
132	01.519 VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	0705-0804	●
132	01.519 VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	0805-	●	●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0302-0804	●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0805-0812	●	●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-	●	●
211	01.428 BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	0201-0804	●
211	01.428 BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	0805-	●	●
211	01.428 BOLT; CRANKCASE 00.293 (A) M14X115 W/FLANGE	8-97077-638-0	10	1	0201-0804	●
211	01.428 BOLT; CRANKCASE 00.293 (A) M14X115 W/FLANGE	8-97077-638-0	10	1	0805-	●	●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	0201-0804	●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	0805-	●	●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	0201-0804	●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	0805-	●	●

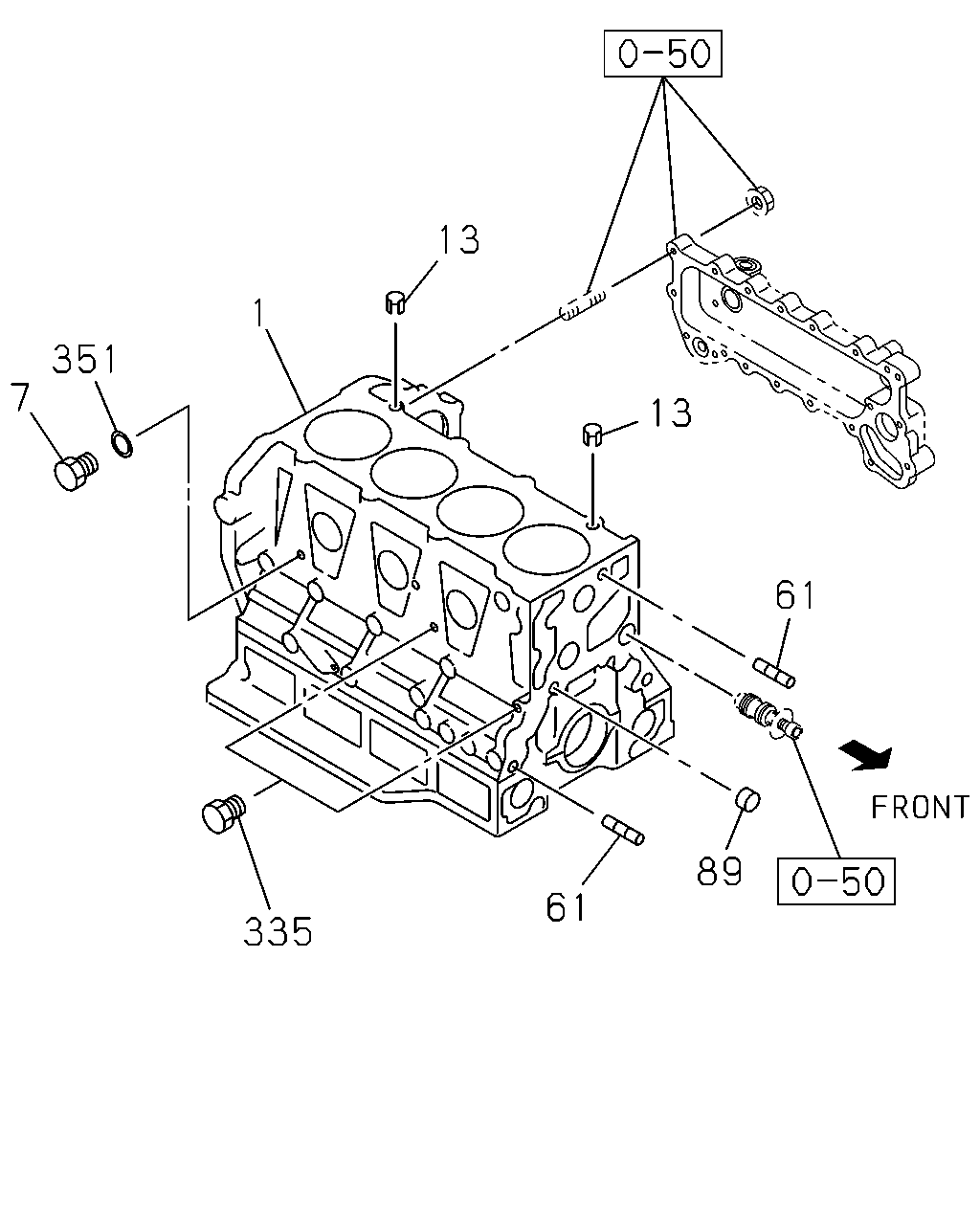

13 1 351 7 13 61 89 61 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-97163-853-7	01	1	0201-	●
1	00.033 BLOCK ASM; CYL	8-98005-443-7	01	1	0805-1209		●
1	00.033 BLOCK ASM; CYL	8-98204-528-0	01	1	1210-		●
7	00.034 PLUG; WATER DRAIN 04.105 M10X7	9-09861-010-0	01	1	0201-0208	●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0209-0804	●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0805-	●	●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	0201-0804	●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	0805-	●	●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	0201-0804	●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	0805-	●	●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	0201-0804	●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	0805-	●	●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	01	1	0201-0712	●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97329-617-0	01	1	0801-	●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97329-617-0	02	1	0805-		●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0201-0804	●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0805-	●	●

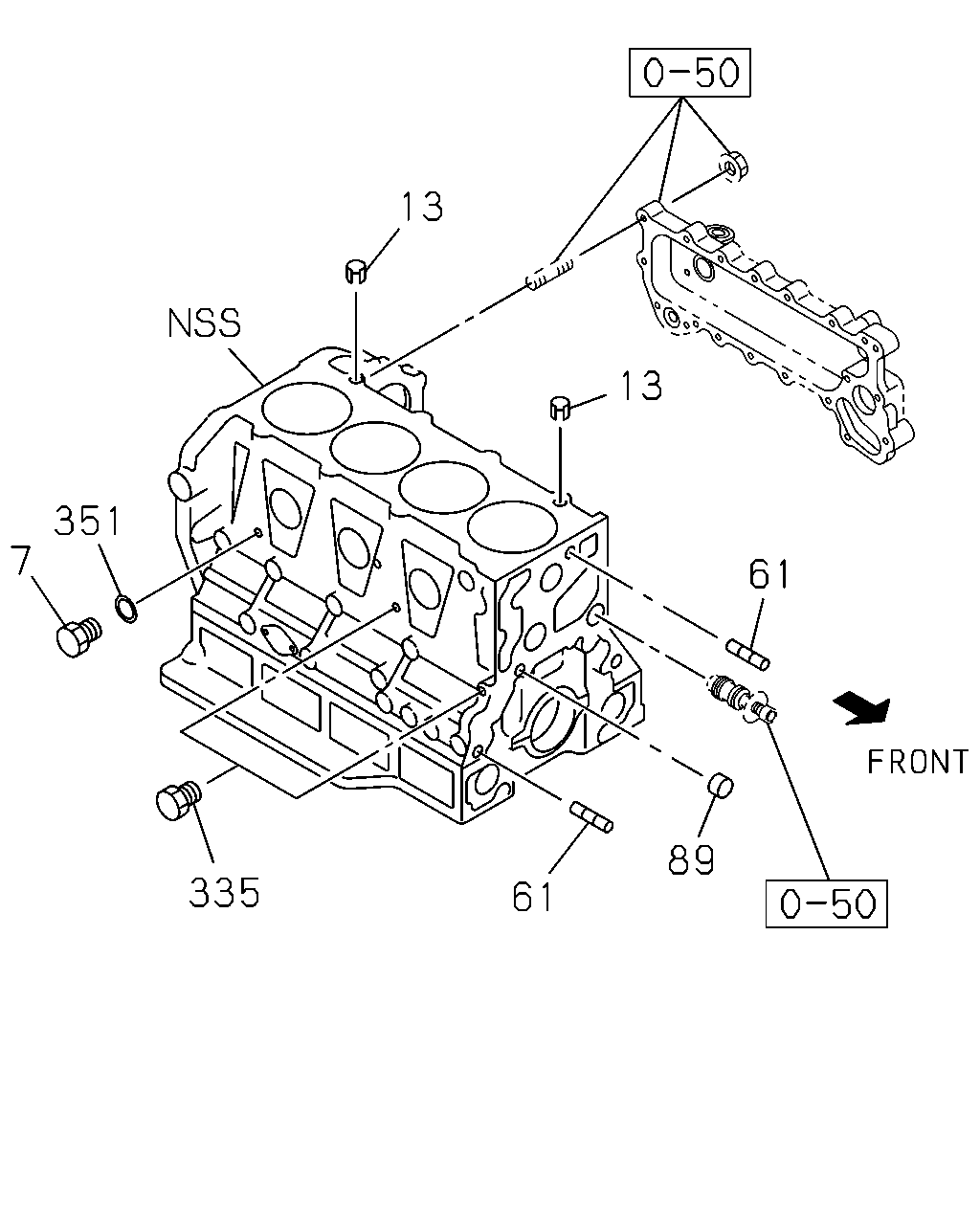

13 13 351 7 61 89 335 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	00.034 PLUG; WATER DRAIN 04.105 M10X7	9-09861-010-0	01	1	0201-0208	●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0209-0804	●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0805-	●	●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	0201-0804	●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	0805-	●	●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	0201-0804	●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	0805-	●	●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	0201-0804	●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	0805-	●	●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	01	1	0201-0712	●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97329-617-0	01	1	0801-	●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97329-617-0	02	1	0805-		●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0201-0804	●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0805-	●	●

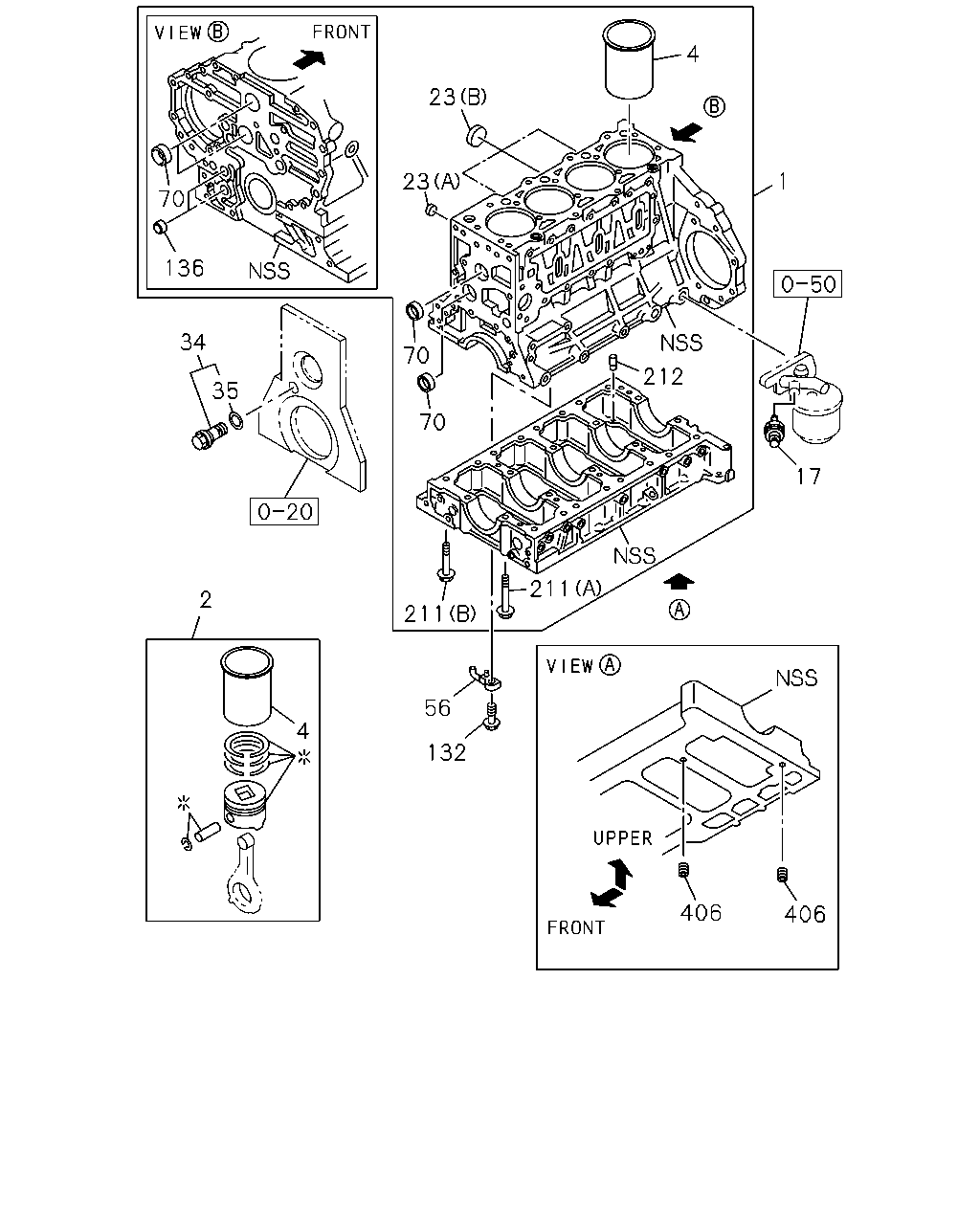

4 23 70 1 23 136 34 70 212 35 70 17 211 2 211 56 4 132 406 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-97163-853-7	01	1	0201-	●
1	00.033 BLOCK ASM; CYL	8-98005-443-7	01	1	0805-1209		●
1	00.033 BLOCK ASM; CYL	8-98204-528-0	01	1	1210-		●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-4	04	1	0201-	●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-4	04	1	0201-	●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87815-151-3	04	1	0805-		●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87815-152-3	04	1	0805-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-1	04	1	0201-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-1	04	1	0201-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	0805-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	0805-		●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0201-0804	●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0805-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	0201-0804	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	0805-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0201-0804	●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0805-	●	●
34	01.609 VALVE; OIL RELIEF	8-94386-047-1	01	1	0201-0706	●
34	01.609 VALVE; OIL RELIEF 00.213	8-97328-859-0	01	1	0707-0804	●
34	01.609 VALVE; OIL RELIEF 00.213	8-97328-859-0	01	1	0805-	●	●
35	01.609 GASKET; RELIEF VLV ID=23.3	8-94173-412-0	01	1	0201-	●
56	01.519 JET; OIL,PISTON COOLING	8-94370-579-1	04	1	0201-	●
56	01.519 JET; OIL,PISTON COOLING	8-98020-649-0	04	1	0805-1007		●
56	01.519 JET; OIL,PISTON COOLING	8-98173-342-0	04	1	1008-		●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	0201-0804	●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	0805-	●	●
70	00.034 CUP; SEALING,FRT & RR 00.293 OD=25	1-09600-016-0	01	1	0805-		●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	0201-0704	●
132	01.519 VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	0705-0804	●
132	01.519 VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	0805-	●	●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0302-0804	●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0805-0812	●	●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-	●	●
211	01.428 BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	0201-0804	●
211	01.428 BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	0805-	●	●
211	01.428 BOLT; CRANKCASE 00.293 (A) M14X115 W/FLANGE	8-97077-638-0	10	1	0201-0804	●
211	01.428 BOLT; CRANKCASE 00.293 (A) M14X115 W/FLANGE	8-97077-638-0	10	1	0805-	●	●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	0201-0804	●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	0805-	●	●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	0201-0804	●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	0805-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
