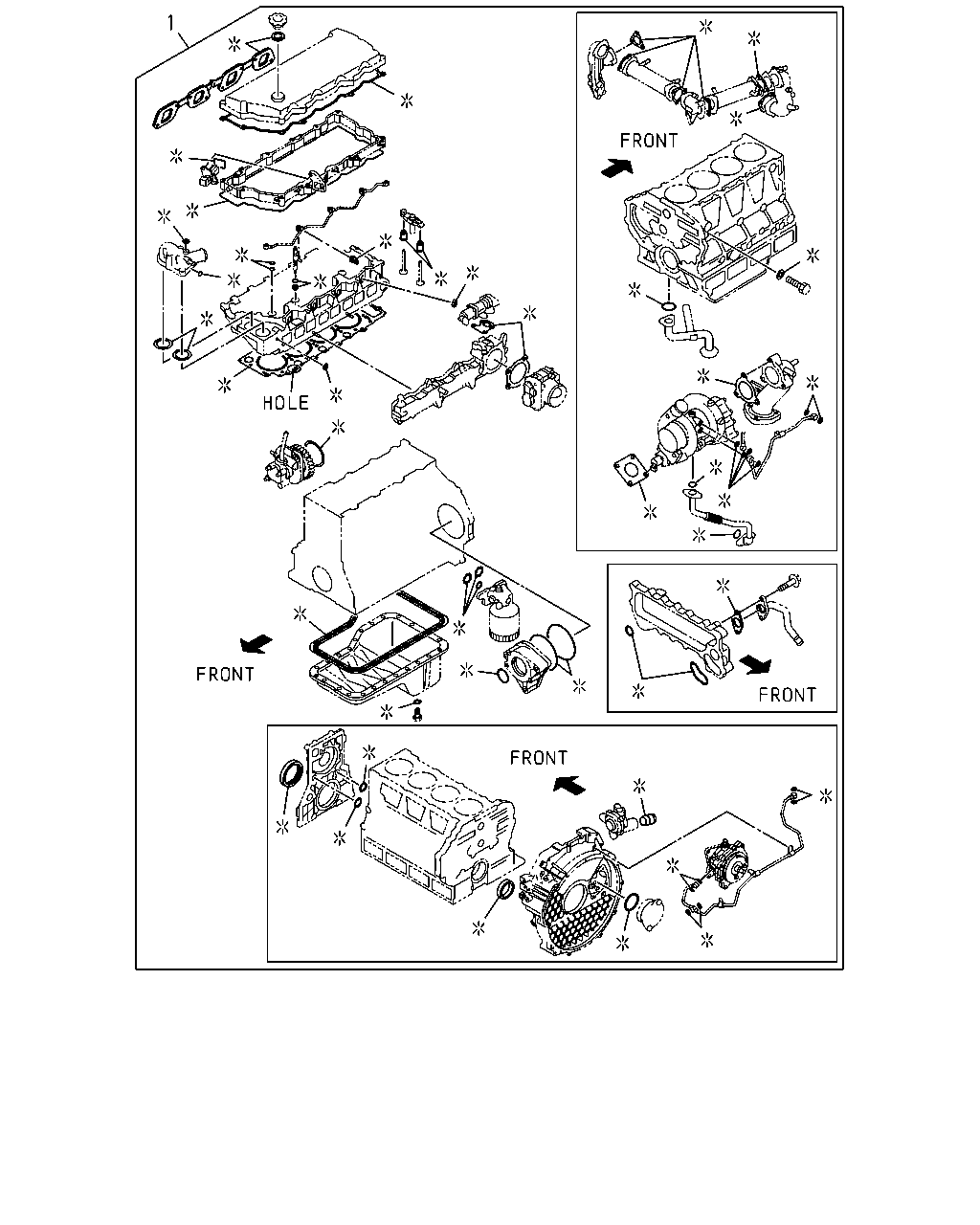

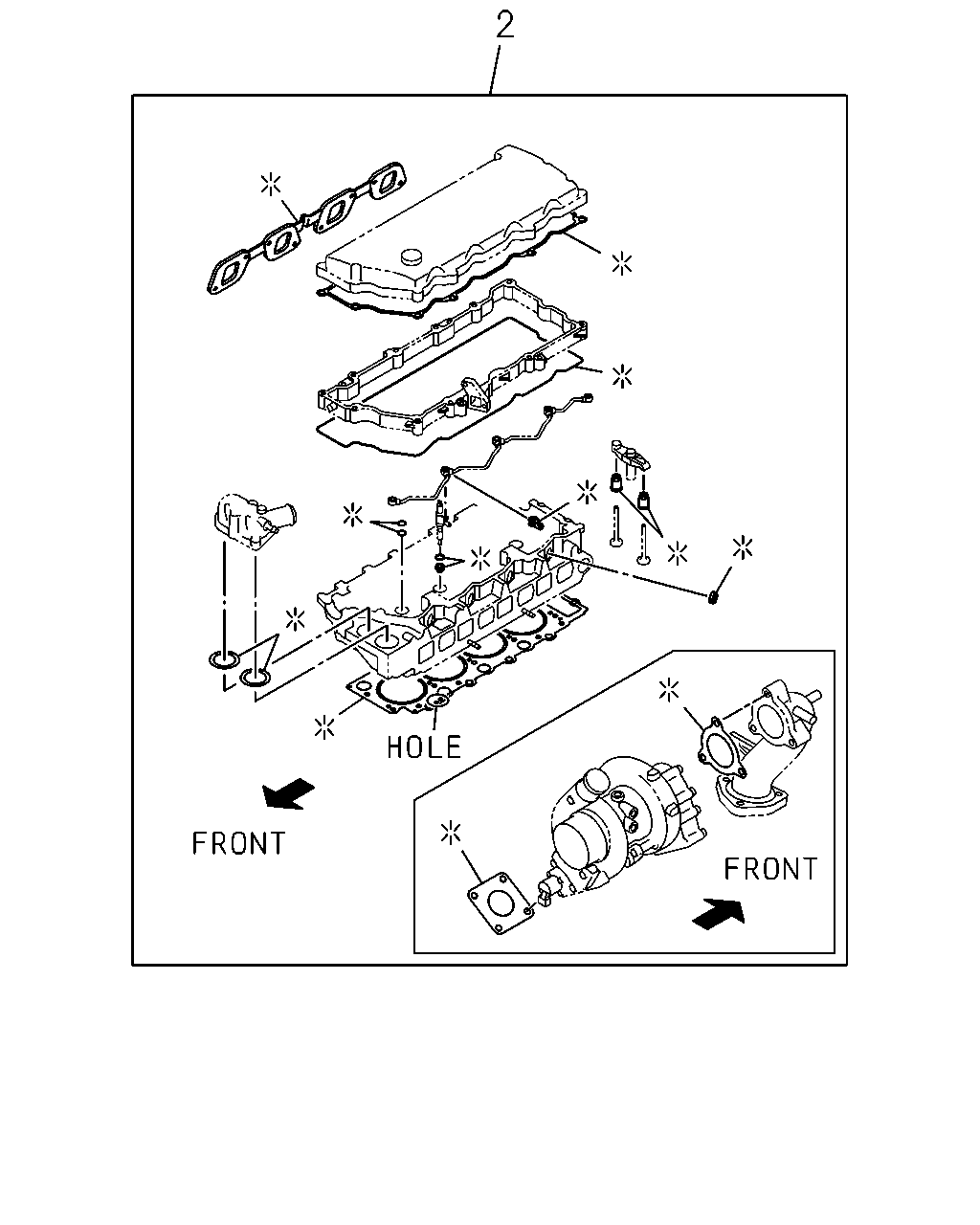

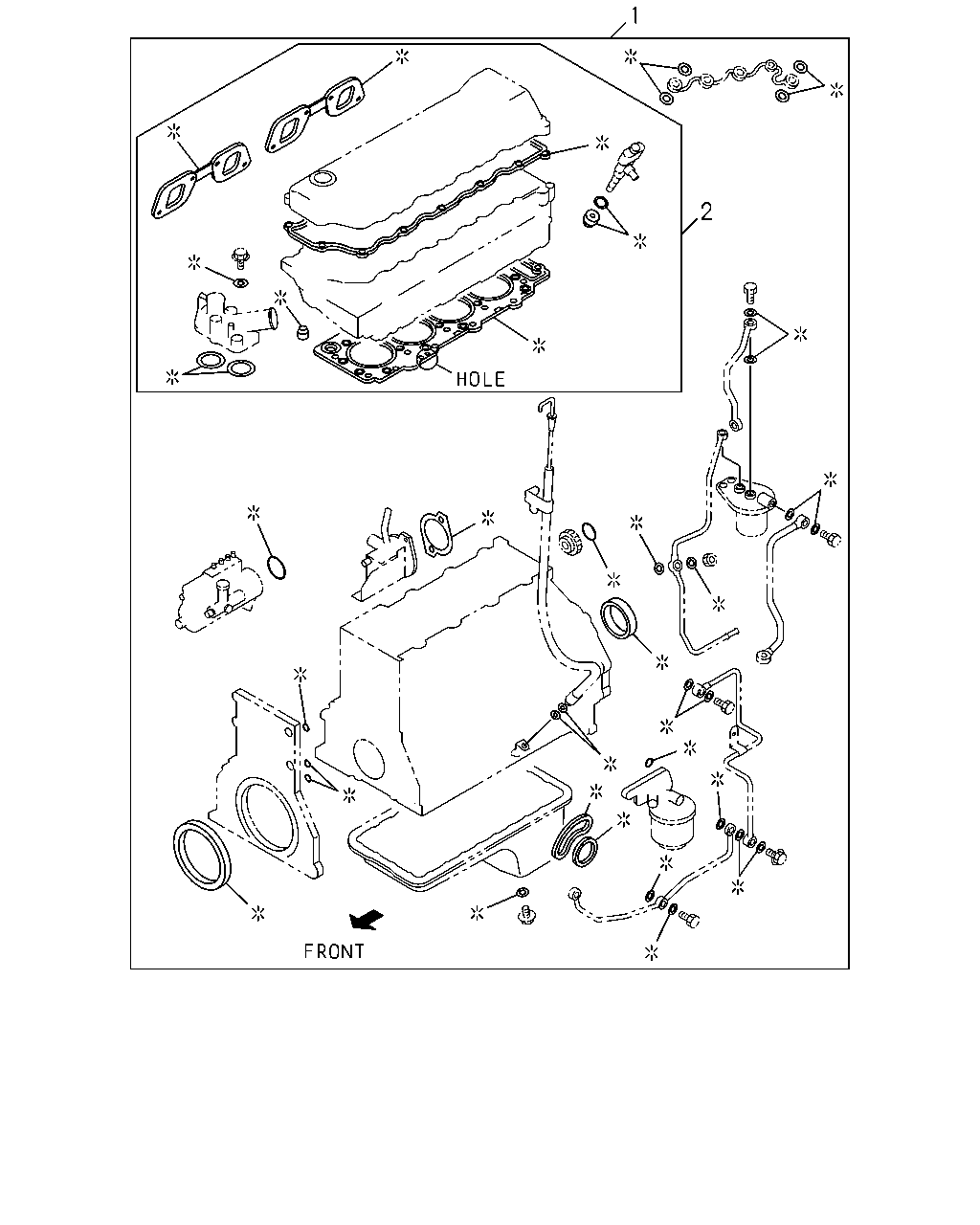

0-05 — ENGINE GASKET KIT (#19495) — 108 parça

1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-223-1	01	1	0201-0210	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-344-4	01	1	0211-0910	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-428-4	01	1	0911-1312	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-207-1	01	1	1401-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-224-1	01	1	0201-0210	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-345-4	01	1	0211-0910	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-429-4	01	1	0911-1312	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-208-1	01	1	1401-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-225-1	01	1	0201-0210	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-346-4	01	1	0211-0910	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-430-4	01	1	0911-1312	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-209-1	01	1	1401-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-193-1	01	1	0805-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-473-0	01	1	0903-0908		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-540-1	01	1	0909-1005		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-786-0	01	1	1006-1006		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-792-0	01	1	1007-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-999-2	01	1	1102-1312		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-085-0	01	1	1401-1501		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-729-0	01	1	1502-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-194-1	01	1	0805-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-474-0	01	1	0903-0908		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-541-1	01	1	0909-1005		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-787-0	01	1	1006-1006		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-793-0	01	1	1007-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87816-001-2	01	1	1102-1312		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-086-0	01	1	1401-1501		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-730-0	01	1	1502-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-195-1	01	1	0805-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-475-0	01	1	0903-0908		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-542-1	01	1	0909-1005		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-788-0	01	1	1006-1006		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-794-0	01	1	1007-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87816-002-2	01	1	1102-1312		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-087-0	01	1	1401-1501		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-731-0	01	1	1502-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87814-229-1	01	1	0201-0910	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87813-957-4	01	1	0911-1312	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87817-123-1	01	1	1401-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87814-230-1	01	1	0201-0910	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87813-958-4	01	1	0911-1312	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87817-124-1	01	1	1401-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87814-231-1	01	1	0201-0910	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87813-959-4	01	1	0911-1312	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87817-125-1	01	1	1401-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-127-1	01	1	0805-0908		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-543-3	01	1	0909-1501		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87817-732-0	01	1	1502-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-128-1	01	1	0805-0908		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-544-3	01	1	0909-1501		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87817-733-0	01	1	1502-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-129-1	01	1	0805-0908		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-545-3	01	1	0909-1501		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87817-734-0	01	1	1502-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87814-229-1	01	1	0201-0910	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87813-957-4	01	1	0911-1312	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87817-123-1	01	1	1401-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87814-230-1	01	1	0201-0910	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87813-958-4	01	1	0911-1312	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87817-124-1	01	1	1401-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87814-231-1	01	1	0201-0910	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87813-959-4	01	1	0911-1312	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87817-125-1	01	1	1401-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-127-1	01	1	0805-0908		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-543-3	01	1	0909-1501		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87817-732-0	01	1	1502-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-128-1	01	1	0805-0908		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-544-3	01	1	0909-1501		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87817-733-0	01	1	1502-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-129-1	01	1	0805-0908		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-545-3	01	1	0909-1501		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87817-734-0	01	1	1502-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-223-1	01	1	0201-0210	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-344-4	01	1	0211-0910	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87814-428-4	01	1	0911-1312	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-207-1	01	1	1401-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-224-1	01	1	0201-0210	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-345-4	01	1	0211-0910	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87814-429-4	01	1	0911-1312	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-208-1	01	1	1401-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-225-1	01	1	0201-0210	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-346-4	01	1	0211-0910	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87814-430-4	01	1	0911-1312	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-209-1	01	1	1401-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-193-1	01	1	0805-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-473-0	01	1	0903-0908		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-540-1	01	1	0909-1005		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-786-0	01	1	1006-1006		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-792-0	01	1	1007-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-999-2	01	1	1102-1312		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-085-0	01	1	1401-1501		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-729-0	01	1	1502-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-194-1	01	1	0805-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-474-0	01	1	0903-0908		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-541-1	01	1	0909-1005		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-787-0	01	1	1006-1006		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-793-0	01	1	1007-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87816-001-2	01	1	1102-1312		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-086-0	01	1	1401-1501		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-730-0	01	1	1502-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-195-1	01	1	0805-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-475-0	01	1	0903-0908		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-542-1	01	1	0909-1005		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-788-0	01	1	1006-1006		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-794-0	01	1	1007-1101		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87816-002-2	01	1	1102-1312		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-087-0	01	1	1401-1501		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-731-0	01	1	1502-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
