◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 50915 - NP/NQ BUS LHDEXC.EU4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#19491) — 36 parça

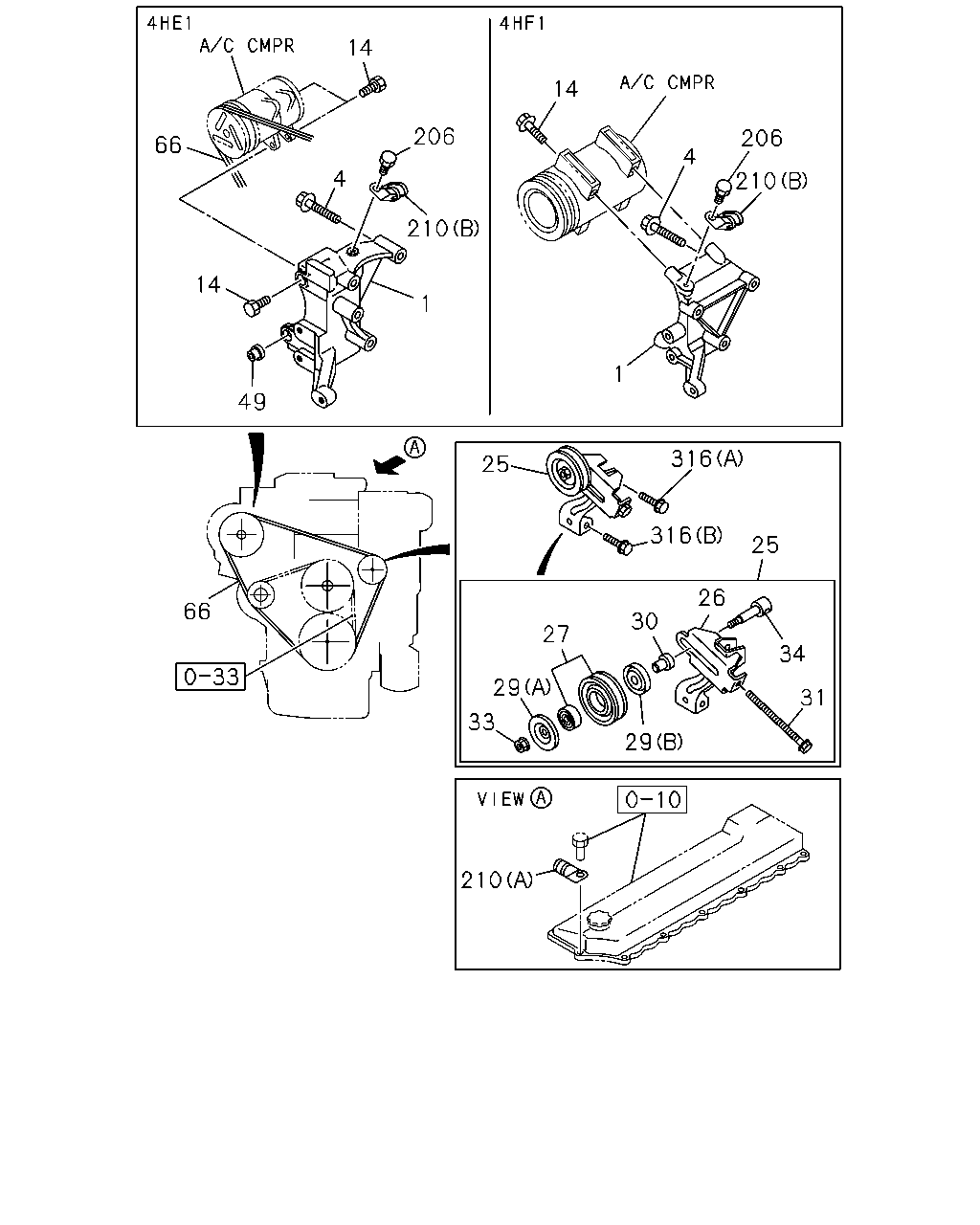

çizim 48008
14 14 206 206 66 4 4 210 210 14 1 1 49 316 25 316 25 26 66 30 27 34 29 31 33 29 210
BalonParca AdiParca NoAdetTipApplied Date
1 09.242 BRACKET; A/C
4HE1-TCS ENG(RDS) AIR CONDITIONER MANUAL CONT(C60) 		8-97116-230-2 01 1 0507-
1 09.242 BRACKET; A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97305-489-0 01 1 0507-
4 09.171 BOLT; A/C CMPR BRKT
4HE1-TCS ENG(RDS) AIR CONDITIONER MANUAL CONT(C60) 01.062 M10X85 FLANGE 		8-94397-359-1 02 1 0507-
4 09.171 BOLT; A/C CMPR BRKT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE 		8-94399-863-1 02 1 0507-0805
4 09.171 BOLT; A/C CMPR BRKT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE 		8-97365-449-0 02 1 0806-
4 09.171 BOLT; A/C CMPR BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.516 M10X110 FLANGE 		0-28186-011-0 01 1 0507-0512
4 09.171 BOLT; A/C CMPR BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) M10X110 FLANGE 		0-28156-011-0 01 1 0601-
14 09.171 BOLT; CMPR
4HE1-TCS ENG(RDS) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40 		0-28281-040-0 04 1 0507-0512
14 09.171 BOLT; CMPR
4HE1-TCS ENG(RDS) AIR CONDITIONER MANUAL CONT(C60) M10X40 FLANGE 		0-28251-040-0 04 1 0601-
14 09.171 BOLT; CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) M8X90 FLANGE 		0-28080-890-0 04 1 0507-0512
14 09.171 BOLT; CMPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 0601-
25 09.180 PULLEY ASM; IDLER,CMPR
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 0507-
26 09.180 BRACKET; IDLE PULLEY,A/C
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-1 01 1 0507-
27 09.180 PULLEY; IDLE,A/C
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 0507-
29 09.181 COVER; DUST,IDLE PULLEY
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 0507-
29 09.181 COVER; DUST,IDLE PULLEY
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 0507-
30 09.181 COLLAR; IDLE PULLEY
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 0507-
31 09.181 BOLT; ADJ,IDLE PULLEY
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 0507-
33 09.181 NUT; IDLER PULLEY
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 0507-
34 09.181 SHAFT; IDLE PULLEY
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 0507-
49 09.171 COLLAR; BRKT,CMPR
4HE1-TCS ENG(RDS) AIR CONDITIONER MANUAL CONT(C60) 		8-94201-057-1 02 1 0507-
66 01.066 BELT; A/C CMPR
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-3 01 1 0507-
66 01.066 BELT; A/C CMPR
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-097-0 01 1 0507-
206 09.242 BOLT; CLIP BRKT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE 		0-28280-612-0 01 1 0507-0512
206 09.242 BOLT; CLIP BRKT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.216 M6X12 FLANGE 		0-28250-612-0 01 1 0601-
210 09.242 CLIP; HARNESS
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0507-
210 09.242 CLIP; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0102-0112
210 09.242 CLIP; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0201-0501
210 09.242 CLIP; HARNESS
4HF1 ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0201-0501
210 09.242 CLIP; HARNESS
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0502-0506
210 09.242 CLIP; HARNESS
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0502-0506
210 09.242 CLIP; HARNESS
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0507-0801
210 09.242 CLIP; HARNESS
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802-
316 09.242 BOLT; BRKT FIX
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE 		0-28080-850-0 01 1 0507-0512
316 09.242 BOLT; BRKT FIX
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 0601-
316 09.242 BOLT; BRKT FIX
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 0507-
