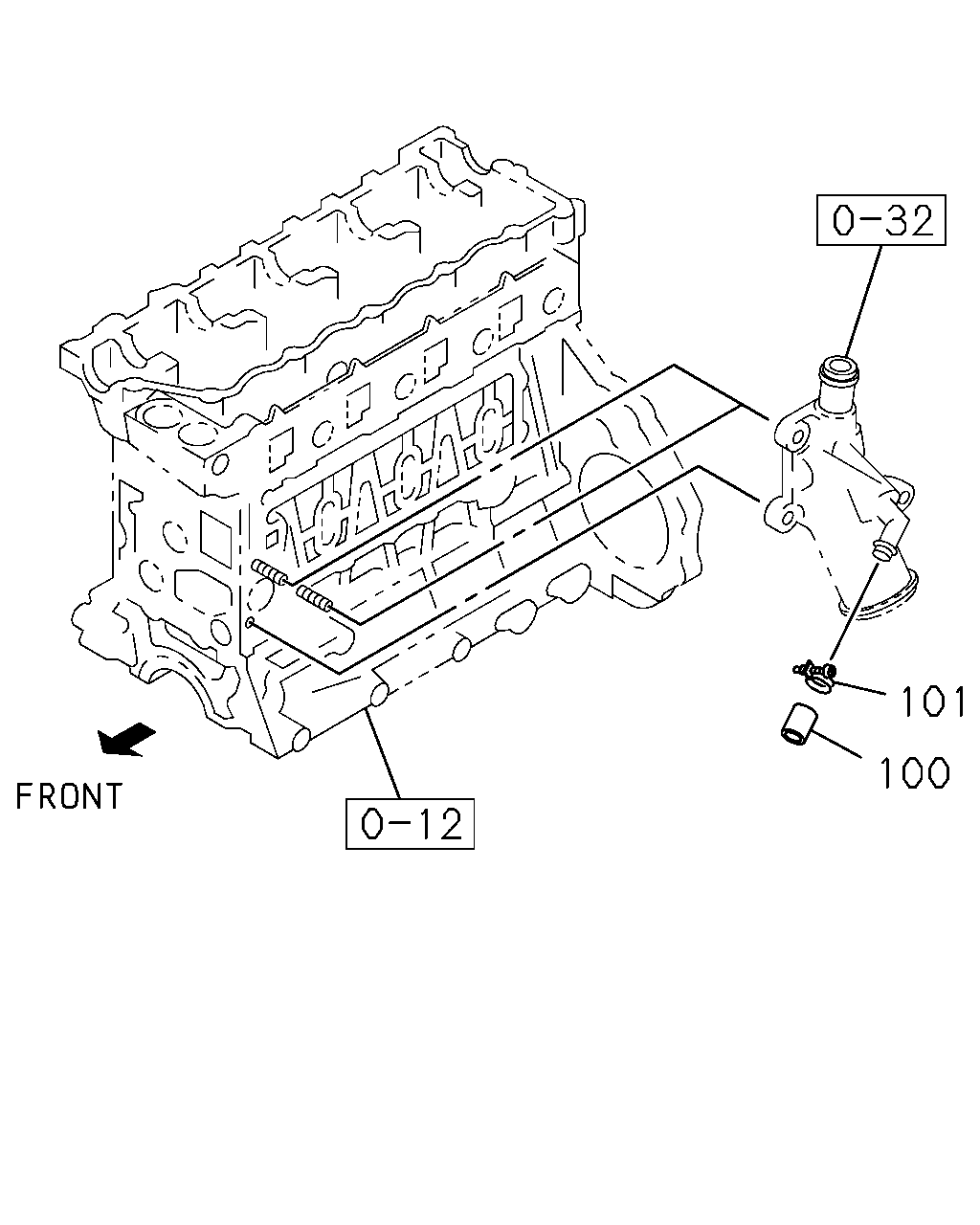

8-45 — HEATER PIPING (#19490) — 18 parça

101 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	08.846 CAP; RUBBER,WATER PIPE 4HF1 ENG(RLS) POWER STEERING<N40> EXC. VEHICLE CATEGORY NQR<7NQ> 01.166	8-94107-793-0	01	1	1303-
100	08.846 CAP; RUBBER,WATER PIPE 4HF1 ENG(RLS) EXC. POWER STEERING<N40> 01.166	8-94107-793-0	01	1	1303-
100	08.846 CAP; RUBBER,WATER PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.166	8-94107-793-0	01	1	0102-0112
100	08.846 CAP; RUBBER,WATER PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.166	8-94107-793-0	01	1	0201-0501
100	08.846 CAP; RUBBER,WATER PIPE 4HF1 ENG(RLS) 01.166	8-94107-793-0	01	1	0201-0501
100	08.846 CAP; RUBBER,WATER PIPE 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> 01.166	8-94107-793-0	01	1	0502-0506
100	08.846 CAP; RUBBER,WATER PIPE 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> 01.166	8-94107-793-0	01	1	0502-0506
100	08.846 CAP; RUBBER,WATER PIPE 4HE1-TCS ENG(RDS) 01.166	8-94107-793-0	01	1	0507-1202
100	08.846 CAP; RUBBER,WATER PIPE 4HF1 ENG(RLS) EXC. AIR CONDITIONER MANUAL CONT(C60) 01.166	8-94107-793-0	01	1	0507-1202
101	08.846 CLIP; CAP,WATER PIPE 4HF1 ENG(RLS) POWER STEERING<N40> EXC. VEHICLE CATEGORY NQR<7NQ> 01.166 ID=25	8-94233-115-0	01	1	1303-
101	08.846 CLIP; CAP,WATER PIPE 4HF1 ENG(RLS) EXC. POWER STEERING<N40> 01.166 ID=25	8-94233-115-0	01	1	1303-
101	08.846 CLIP; CAP,WATER PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.166 ID=25	8-94233-115-0	01	1	0102-0112
101	08.846 CLIP; CAP,WATER PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.166 ID=25	8-94233-115-0	01	1	0201-0501
101	08.846 CLIP; CAP,WATER PIPE 4HF1 ENG(RLS) 01.166 ID=25	8-94233-115-0	01	1	0201-0501
101	08.846 CLIP; CAP,WATER PIPE 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> 01.166 ID=25	8-94233-115-0	01	1	0502-0506
101	08.846 CLIP; CAP,WATER PIPE 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> 01.166 ID=25	8-94233-115-0	01	1	0502-0506
101	08.846 CLIP; CAP,WATER PIPE 4HE1-TCS ENG(RDS) 01.166 ID=25	8-94233-115-0	01	1	0507-1202
101	08.846 CLIP; CAP,WATER PIPE 4HF1 ENG(RLS) EXC. AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	8-94233-115-0	01	1	0507-1202
