◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 50915 - NP/NQ BUS LHDEXC.EU4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#19489) — 8 parça

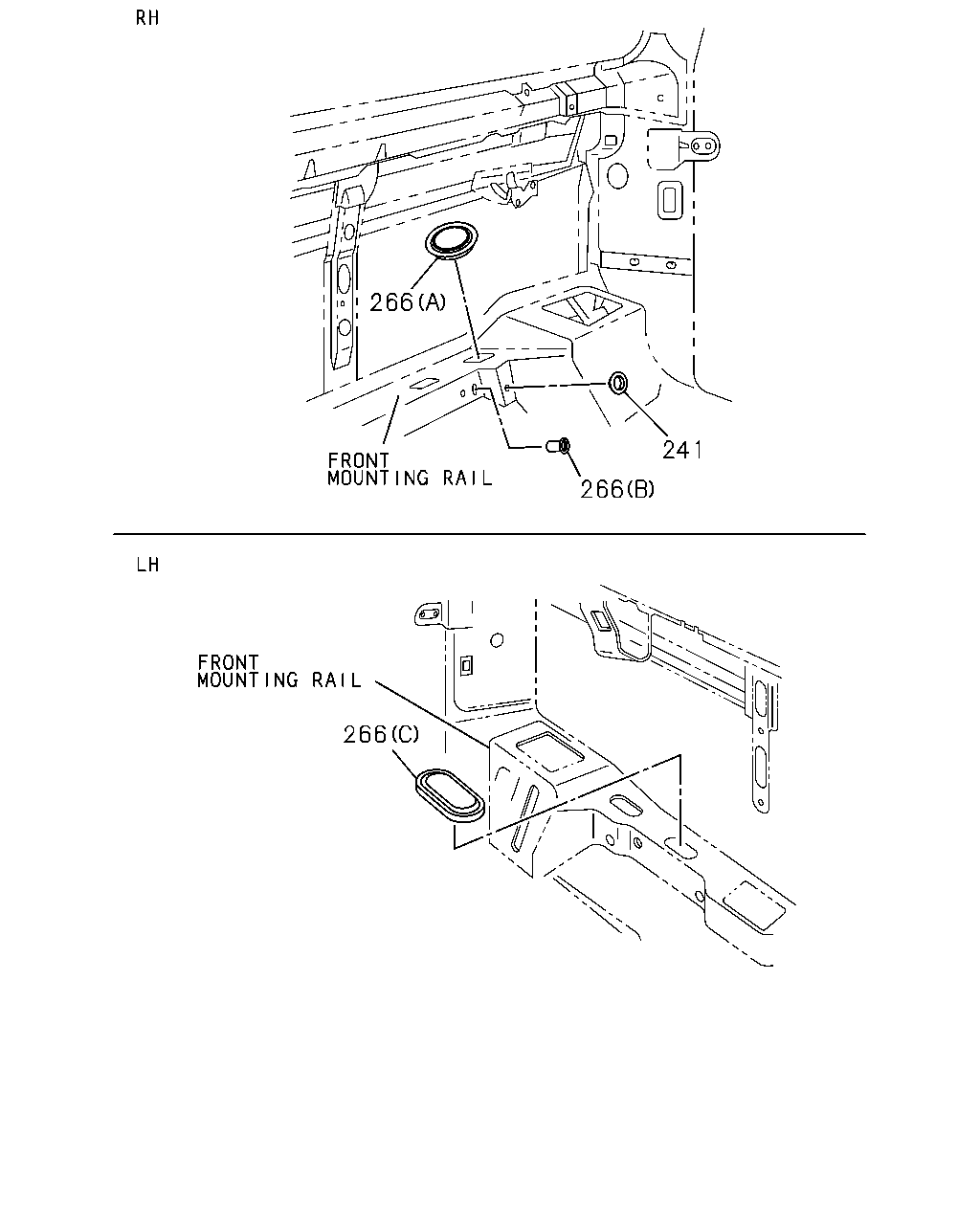

çizim 51397
266 241 266 266
BalonParca AdiParca NoAdetTipApplied Date
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE 8-97037-392-0 01 1 0102-0506
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97037-392-0 01 1 0507-
266 08.845 PLUG; HTR HOLE
(A) H=78 B=37 		8-97036-019-0 01 1 0102-0506
266 08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) H=78 B=37 		8-97036-019-0 01 1 0507-
266 08.845 PLUG; HTR HOLE
(C) H=69.5 B=29.5 		8-97036-020-0 01 1 0102-0506
266 08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) H=69.5 B=29.5 		8-97036-020-0 01 1 0507-
266 08.845 PLUG; HTR HOLE
09.211 (B) OD=13 		9-09756-019-0 01 1 0102-0506
266 08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.211 (B) OD=13 		9-09756-019-0 01 1 0507-
