◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 50915 - NP/NQ BUS LHDEXC.EU4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#19486) — 75 parça
çizim 10256
249 307 104 257
BalonParca AdiParca NoAdetTipApplied Date
104 09.778 COVER; SW HOLE,FOG LAMP
09.744 		8-97136-694-0 01 1 0102-
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 0102-
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0102-0102
257 16.081 COVER; HOLE,SW
09.744 (B) 		8-97136-694-0 01 1 0102-0501
257 16.081 COVER; HOLE,SW
09.744 (B) 		8-97136-694-0 01 1 0502-
257 16.081 COVER; HOLE,SW
09.744 (B) 		8-97136-694-0 01 1 0502-
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0102-
çizim 11167
85 311
BalonParca AdiParca NoAdetTipApplied Date
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 0102-0104
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-0501
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-
311 02.596 RELAY; CORNERING LAMP
02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 0102-0104
311 02.596 RELAY; CORNERING LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-0501
311 02.596 RELAY; CORNERING LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-
çizim 12289
21 1 3 385 26 257
BalonParca AdiParca NoAdetTipApplied Date
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97287-890-2 01 1 0102-0301
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97364-074-0 01 1 0302-0501
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97383-517-0 01 1 0502-
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97364-075-0 01 1 0302-0501
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97383-518-0 01 1 0502-
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97287-882-2 01 1 0102-0301
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97364-070-0 01 1 0302-0501
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97383-513-0 01 1 0502-
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97364-071-0 01 1 0302-0501
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97383-514-0 01 1 0502-
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 0102-0604
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		0-36220-520-0 04 1 0605-0612
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 04 1 0701-
21 02.575 SWITCH; CLU
04.054 		8-94331-723-1 01 1 0102-0112
21 02.575 SWITCH; CLU
FLOOR REMOTE SHIFT<M11> 04.054 		8-94331-723-1 01 1 0201-0212
21 02.575 SWITCH; CLU
FLOOR REMOTE SHIFT<M11> 		8-97358-248-0 01 1 0301-0301
21 02.575 SWITCH; CLU
4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0302-0501
21 02.575 SWITCH; CLU
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0502-
26 03.636 SWITCH; ACCEL 8-97855-192-0 01 1 0102-0301
26 03.636 SWITCH; ACCEL
4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> 		8-97855-192-0 01 1 0302-0501
26 03.636 SWITCH; ACCEL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97855-192-0 01 1 0502-
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0102-0102
257 16.081 COVER; HOLE,SW
09.744 (B) 		8-97136-694-0 01 1 0102-0501
257 16.081 COVER; HOLE,SW
09.744 (B) 		8-97136-694-0 01 1 0502-
257 16.081 COVER; HOLE,SW
09.744 (B) 		8-97136-694-0 01 1 0502-
385 08.909 SCREW; ACCEL SW
03.451 M3X16 TAPPING 		0-71280-316-0 02 1 0102-0301
385 08.909 SCREW; ACCEL SW
4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> 03.451 M3X16 TAPPING 		0-71280-316-0 02 1 0302-0501
385 08.909 SCREW; ACCEL SW
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 03.451 M3X16 TAPPING 		0-71280-316-0 02 1 0502-0603
385 08.909 SCREW; ACCEL SW
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 03.425 M3X16 TAPPING 		0-71340-316-0 02 1 0604-
çizim 13392
186
BalonParca AdiParca NoAdetTipApplied Date
186 09.277 BRACKET; RELAY BOX
EXC. CHARGE AIR COOLER<6PL> 		8-97088-652-1 01 1 0201-0301
186 09.277 BRACKET; RELAY BOX
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97088-652-1 01 1 0302-0501
186 09.277 BRACKET; RELAY BOX
4HF1 ENG(RLS) 		8-97088-652-1 01 1 0502-

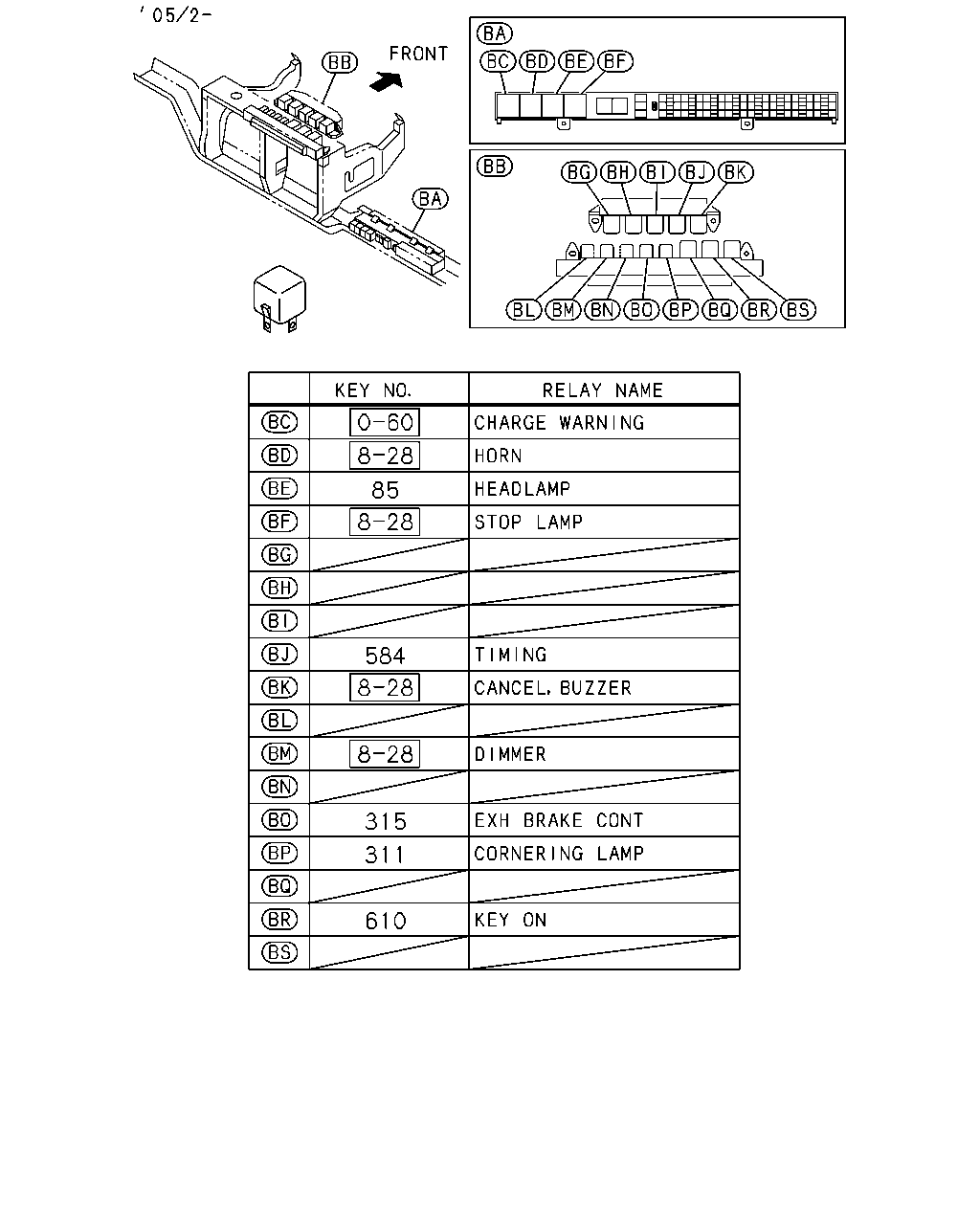

çizim 47461
85 584 315 311 610
BalonParca AdiParca NoAdetTipApplied Date
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 0102-0104
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-0501
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-
311 02.596 RELAY; CORNERING LAMP
02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 0102-0104
311 02.596 RELAY; CORNERING LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-0501
311 02.596 RELAY; CORNERING LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-
315 09.277 RELAY; EXH BRAKE CONT
02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 0102-0104
315 09.277 RELAY; EXH BRAKE CONT
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-0301
315 09.277 RELAY; EXH BRAKE CONT
4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0501
315 09.277 RELAY; EXH BRAKE CONT
4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0501
315 09.277 RELAY; EXH BRAKE CONT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-
315 09.277 RELAY; EXH BRAKE CONT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0102-0104
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-0501
584 02.510 RELAY; TIMING
4HE1-TCS ENG(RDS) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0502-

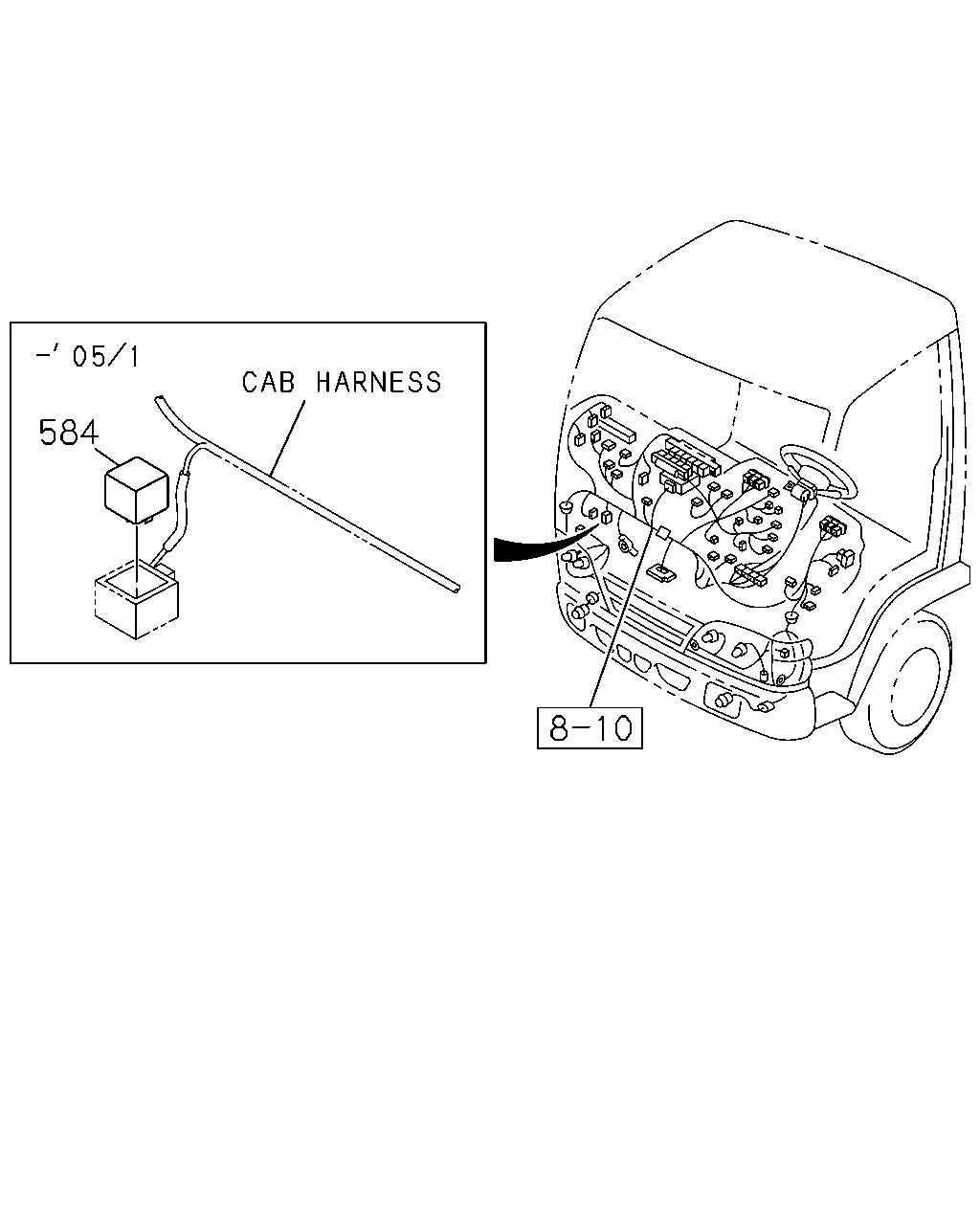

çizim 50087
584
BalonParca AdiParca NoAdetTipApplied Date
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0102-0104
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-0501
584 02.510 RELAY; TIMING
4HE1-TCS ENG(RDS) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-

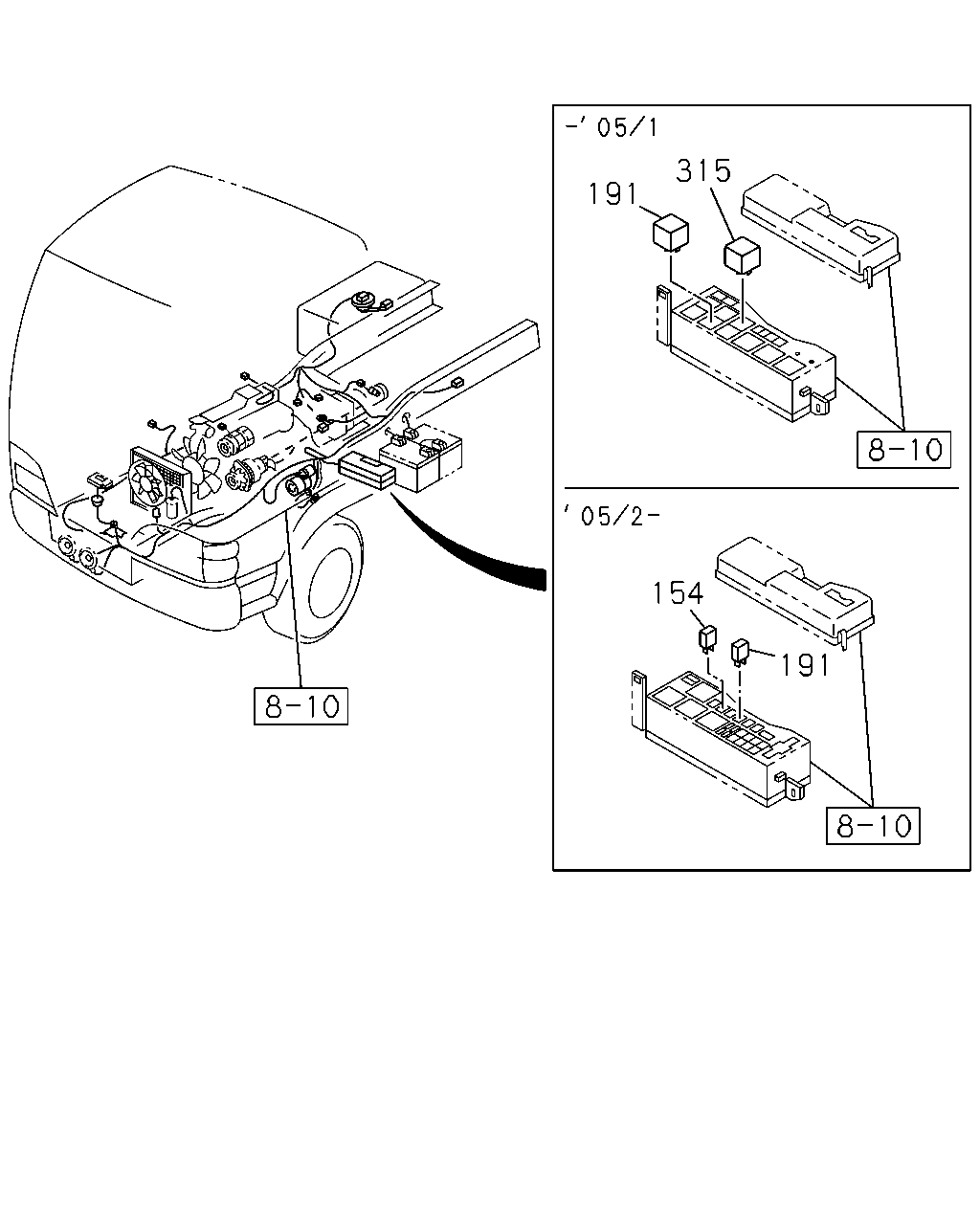

çizim 50500
315 191 154 191
BalonParca AdiParca NoAdetTipApplied Date
154 09.277 RELAY; CONDENSER FAN
4HE1-TCS ENG(RDS) AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-
191 02.510 RELAY; EXH BRK CUT
24V 12.5A MITUBA 		8-97062-815-1 01 1 0102-0104
191 02.510 RELAY; EXH BRK CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-0301
191 02.510 RELAY; EXH BRK CUT
4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0501
191 02.510 RELAY; EXH BRK CUT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-
315 09.277 RELAY; EXH BRAKE CONT
02.510 24V 12.5A MITUBA 		8-97062-815-1 01 1 0102-0104
315 09.277 RELAY; EXH BRAKE CONT
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105-0301
315 09.277 RELAY; EXH BRAKE CONT
4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0501
315 09.277 RELAY; EXH BRAKE CONT
4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0302-0501
315 09.277 RELAY; EXH BRAKE CONT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-
315 09.277 RELAY; EXH BRAKE CONT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-
