Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#19484) — 261 parça

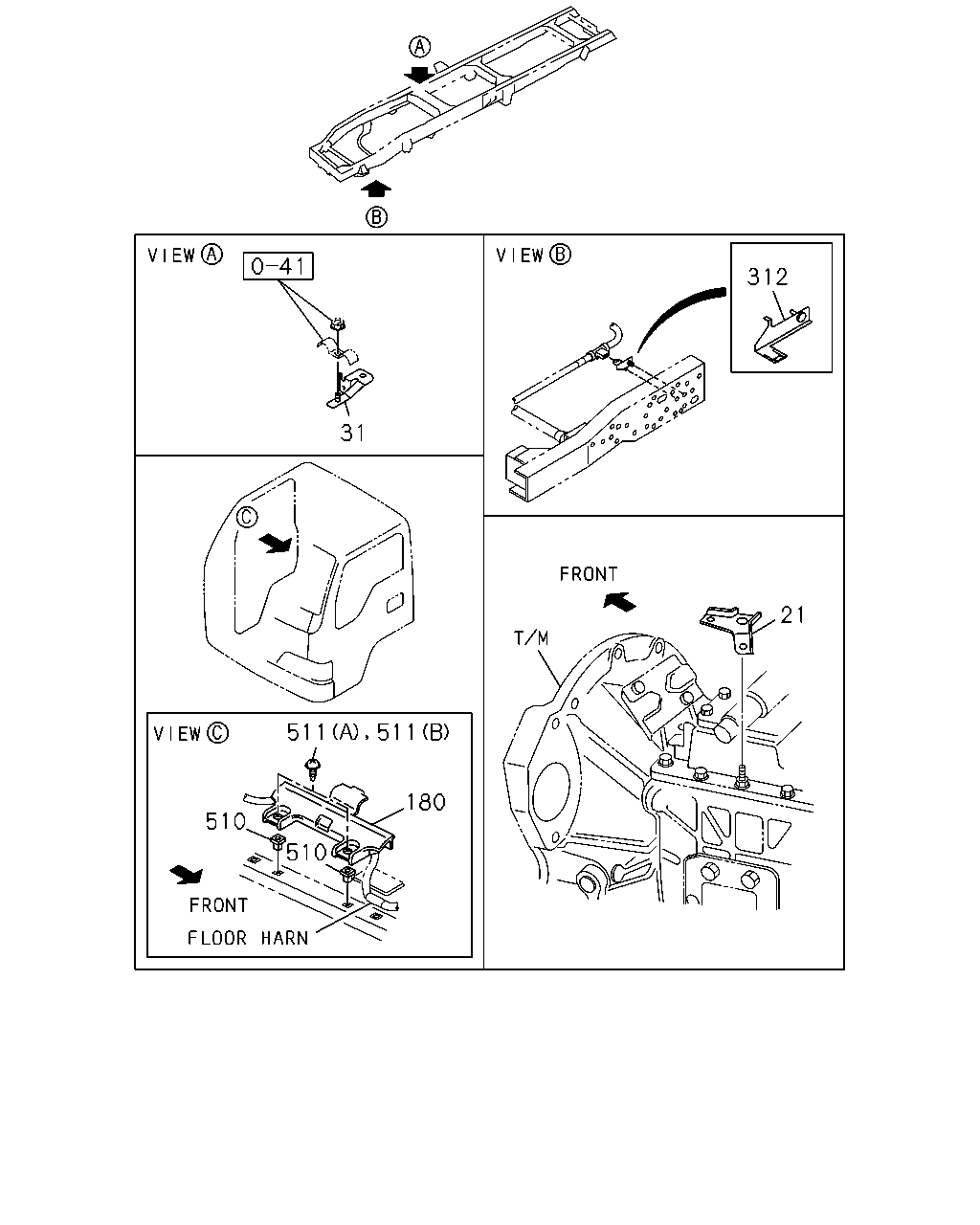

312 31 21 511 180 510 510 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	02.483 BRACKET; ENG HARNESS 4HE1 ENG(RLY)	8-97061-052-1	01	1	0102-0112
21	02.483 BRACKET; ENG HARNESS 4HE1 ENG(RLY) M/T MBP6P(RNC)	8-97061-052-1	01	1	0201-0301
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> L=47	8-97042-635-0	03	1	0706-
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1 ENG(RLY) L=47	8-97042-635-0	01	1	0102-0112
31	02.559 BRACKET; HARNESS CLIP,PIPE L=47	8-97042-635-0	01	1	0201-0301
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> L=47	8-97042-635-0	01	1	0302-0501
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> L=47	8-97042-635-0	01	1	0502-0705
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) L=47	8-97042-635-0	01	1	0706-
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> L=73	8-97077-845-0	02	1	0102-0112
31	02.559 BRACKET; HARNESS CLIP,PIPE FRAME STRAIGHT TYPE<7KJ> L=73	8-97077-845-0	02	1	0201-0301
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> L=73	8-97077-845-0	02	1	0302-0501
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> L=73	8-97077-845-0	02	1	0502-0705
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) L=73	8-97077-845-0	02	1	0706-
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	0102-
312	02.559 BRACKET; CLIP HARNESS 4HE1 ENG(RLY)	8-97017-072-2	01	1	0102-0112
312	02.559 BRACKET; CLIP HARNESS	8-97017-072-2	01	1	0201-0301
312	02.559 BRACKET; CLIP HARNESS 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97017-072-2	01	1	0302-0501
312	02.559 BRACKET; CLIP HARNESS FRAME STRAIGHT TYPE<7KJ>	8-97017-072-2	01	1	0502-
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0102-
511	02.559 SCREW; HARNESS COVER 08.845 (A) M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0102-0604
511	02.559 SCREW; HARNESS COVER 16.800 (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0605-0702
511	02.559 SCREW; HARNESS COVER 04.681 (B) T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	0703-

8 386 139 377 386 377 386 239 8 38 239 38 19 219 294 219 294 515 294 469 515 519 525 511 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	02.559 BOLT; BRKT,CONNECTOR (B) M8X25 FLANGE	0-28680-825-0	01	1	0102-0512
8	02.559 BOLT; BRKT,CONNECTOR 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-
8	02.559 BOLT; BRKT,CONNECTOR 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0102-1210
8	02.559 BOLT; BRKT,CONNECTOR 02.587 (A) M6X19.5 W/LK&PL WASHER	8-97360-226-0	03	1	1211-
19	02.559 BOLT; PROTECTOR 4HE1 ENG(RLY) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0102-0112
19	02.559 BOLT; PROTECTOR 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0201-0301
19	02.559 BOLT; PROTECTOR 4HF1 ENG(RLS),4HE1 ENG(RLY) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0302-0501
19	02.559 BOLT; PROTECTOR 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0502-0506
19	02.559 BOLT; PROTECTOR FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0507-0512
19	02.559 BOLT; PROTECTOR FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0601-
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) M8X25 FLANGE	0-28680-825-0	01	1	0102-0112
38	02.559 BOLT; CLIP,HARNESS FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	0102-0112
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	0102-0112
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) M8X25 FLANGE	0-28680-825-0	01	1	0201-0301
38	02.559 BOLT; CLIP,HARNESS FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	0201-0301
38	02.559 BOLT; CLIP,HARNESS FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	0201-0301
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	0201-0301
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) M8X25 FLANGE	0-28680-825-0	01	1	0302-0501
38	02.559 BOLT; CLIP,HARNESS 4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	0302-0501
38	02.559 BOLT; CLIP,HARNESS FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	0302-0501
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	0302-0501
38	02.559 BOLT; CLIP,HARNESS FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
38	02.559 BOLT; CLIP,HARNESS 4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) (A) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
38	02.559 BOLT; CLIP,HARNESS 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
38	02.559 BOLT; CLIP,HARNESS FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
38	02.559 BOLT; CLIP,HARNESS 4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
38	02.559 BOLT; CLIP,HARNESS 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
38	02.559 BOLT; CLIP,HARNESS 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.686 (B) M8X30 FLANGE	0-28680-830-0	01	1	0102-0112
38	02.559 BOLT; CLIP,HARNESS FRAME STRAIGHT TYPE<7KJ> 04.686 (B) M8X30 FLANGE	0-28680-830-0	01	1	0201-0301
38	02.559 BOLT; CLIP,HARNESS 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.686 (B) M8X30 FLANGE	0-28680-830-0	01	1	0302-0501
38	02.559 BOLT; CLIP,HARNESS 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.686 (B) M8X30 FLANGE	0-28680-830-0	01	1	0502-0512
38	02.559 BOLT; CLIP,HARNESS 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
139	02.559 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0102-0512
139	02.559 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0601-
219	02.559 NUT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0102-0112
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0102-0112
219	02.559 NUT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0102-0112
219	02.559 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0102-0112
219	02.559 NUT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0201-0301
219	02.559 NUT FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0201-0301
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0201-0301
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0201-0301
219	02.559 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0201-0301
219	02.559 NUT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0302-0501
219	02.559 NUT 4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0302-0501
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0302-0501
219	02.559 NUT 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0302-0501
219	02.559 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0302-0501
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0502-0602
219	02.559 NUT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0502-0602
219	02.559 NUT 4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0502-0602
219	02.559 NUT 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0502-0602
219	02.559 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0502-0602
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0603-
219	02.559 NUT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0603-
219	02.559 NUT 4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0603-
219	02.559 NUT 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0603-
219	02.559 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0603-
219	02.559 NUT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0102-0112
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0201-0301
219	02.559 NUT 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0302-0303
219	02.559 NUT 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0304-0501
219	02.559 NUT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0502-0602
219	02.559 NUT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0603-
239	02.559 BOLT; GRAND 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0102-1004
239	02.559 BOLT; GRAND 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-
294	02.559 NUT 4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0102-0112
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0201-0301
294	02.559 NUT 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0302-0501
294	02.559 NUT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602
294	02.559 NUT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-
294	02.559 NUT 4HE1 ENG(RLY) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0102-0112
294	02.559 NUT 4HE1 ENG(RLY) M/T MBP6P(RNC) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0201-0207
294	02.559 NUT 4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MZZ6U(RSF) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0208-0301
294	02.559 NUT FLOOR REMOTE SHIFT<M11> 07.633 (C) M8 FLANGE	0-91150-108-0	02	1	0302-0501
294	02.559 NUT M/T MZZ6U(RSF),M/T MYY5T(RSM) 07.633 (C) M8 FLANGE	0-91150-108-0	02	1	0502-0602
294	02.559 NUT M/T MZZ6U(RSF),M/T MYY5T(RSM) 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0603-
294	02.559 NUT 4HE1 ENG(RLY) M/T MZZ6U(RSF) 07.633 (C) M8 FLANGE	0-91150-108-0	02	1	0208-0301
294	02.559 NUT M/T MZZ6U(RSF),M/T MYY5T(RSM) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0302-0602
294	02.559 NUT M/T MZZ6U(RSF),M/T MYY5T(RSM) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0603-
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0102-1004
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0102-0501
386	02.559 BOLT; GRAND HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0502-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
469	02.559 NUT; PROTECTOR 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	0102-0112
469	02.559 NUT; PROTECTOR 04.785 M10 FLANGE	0-91150-110-0	01	1	0201-0301
469	02.559 NUT; PROTECTOR 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	0302-0501
469	02.559 NUT; PROTECTOR 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0506
469	02.559 NUT; PROTECTOR FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0507-0602
469	02.559 NUT; PROTECTOR FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
511	02.559 SCREW; HARNESS COVER 08.845 (A) M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0102-0604
511	02.559 SCREW; HARNESS COVER 16.800 (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0605-0702
511	02.559 SCREW; HARNESS COVER 04.681 (B) T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	0703-
515	02.559 NUT; BRKT FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0502-0602
515	02.559 NUT; BRKT FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0603-
515	02.559 NUT; BRKT 4HE1 ENG(RLY) M/T MZZ6U(RSF) 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0208-0301
515	02.559 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0302-0501
515	02.559 NUT; BRKT 4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0302-0501
515	02.559 NUT; BRKT M/T MZZ6U(RSF),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0502-0502
515	02.559 NUT; BRKT M/T MZZ6U(RSF),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0503-0602
515	02.559 NUT; BRKT FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0503-0602
515	02.559 NUT; BRKT M/T MZZ6U(RSF),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0603-
515	02.559 NUT; BRKT FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0603-
519	02.559 NUT; EARTH CABLE 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	0102-0112
519	02.559 NUT; EARTH CABLE 04.785 M10 FLANGE	0-91150-110-0	01	1	0201-0301
519	02.559 NUT; EARTH CABLE 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	0302-0501
519	02.559 NUT; EARTH CABLE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0602
519	02.559 NUT; EARTH CABLE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
525	02.559 NUT; CLIP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	0102-0501
525	02.559 NUT; CLIP 4HE1-TCS ENG(RDS) 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0602
525	02.559 NUT; CLIP 4HE1-TCS ENG(RDS) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-

16 264 16 16 264 48 48 48 142 48 48 464 53 53 7 412 317 504 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	02.559 BRACKET; CONNECTOR	8-97094-992-1	01	1	0102-
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	0102-
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	0102-
16	02.559 CLIP; HARNESS 03.162 (C) L=140	5-09707-031-1	AR	1	0102-
16	02.559 CLIP; HARNESS (A) ID=15-32	8-97174-404-0	AR	1	0102-
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	AR	1	0302-
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22	8-94464-837-0	AR	1	0302-
16	02.559 CLIP; HARNESS 02.694 (E) ID=6 & 10-13	8-97069-515-0	AR	1	0302-
16	02.559 CLIP; HARNESS (H) L=135	1-09987-143-1	AR	1	0502-
48	02.559 CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	0102-
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	0102-
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	0102-
48	02.559 CLIP; FRAME HARNESS 04.785 (D) ID=9.6	8-94147-870-0	AR	1	0102-
48	02.559 CLIP; FRAME HARNESS 04.785 (E) ID=11 L=28	9-09525-055-0	AR	1	0102-0606
48	02.559 CLIP; FRAME HARNESS 02.525 (F) T=4.5 & 9	5-09709-023-0	AR	1	0102-
48	02.559 CLIP; FRAME HARNESS (G) ID=31 L=30	1-09700-969-0	AR	1	0102-
48	02.559 CLIP; FRAME HARNESS 04.197 (H) ID=32 L=75	1-09700-702-0	AR	1	0102-
48	02.559 CLIP; FRAME HARNESS (I) ID=9	8-97063-874-0	AR	1	0102-
48	02.559 CLIP; FRAME HARNESS (J) L=170.3	1-09987-182-0	AR	1	0102-
48	02.559 CLIP; FRAME HARNESS 03.162 (K) L=140	5-09707-031-1	AR	1	0302-
48	02.559 CLIP; FRAME HARNESS (L) T=6.0	5-09709-024-0	AR	1	0502-
48	02.559 CLIP; FRAME HARNESS (E) ID=11 L=28	0-95235-055-0	AR	1	0607-
53	02.483 BRACKET; HARNESS FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B)	8-98003-050-0	01	1	0502-
53	02.483 BRACKET; HARNESS 4HE1 ENG(RLY) M/T MZZ6U(RSF) (A)	8-97352-527-0	01	1	0208-0301
53	02.483 BRACKET; HARNESS 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97352-527-0	01	1	0302-0501
53	02.483 BRACKET; HARNESS 4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) (A)	8-97352-527-0	01	1	0302-0501
53	02.483 BRACKET; HARNESS M/T MZZ6U(RSF),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> (A)	8-97352-527-0	01	1	0502-
142	02.559 CLIP; HARNESS,ENG 4HE1-TCS ENG(RDS) 03.483 (B)	8-97101-436-0	01	1	0512-
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) 03.162 (A) L=140	5-09707-031-1	01	1	0102-0112
142	02.559 CLIP; HARNESS,ENG M/T MXA5R(RMT),M/T MBP6P(RNC) 03.162 (A) L=140	5-09707-031-1	01	1	0201-0301
142	02.559 CLIP; HARNESS,ENG FLOOR REMOTE SHIFT<M11> (C) L=170.3	1-09987-182-0	01	1	0302-0501
142	02.559 CLIP; HARNESS,ENG M/T MZZ6U(RSF),M/T MYY5T(RSM) (C) L=170.3	1-09987-182-0	01	1	0502-
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.483 (B)	8-97101-436-0	01	1	0102-0501
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (B) ID=10 & 16	8-94413-325-0	02	1	0102-0501
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 (A) ID=6 & 10-13	8-97069-515-0	01	1	0102-
317	02.559 CLAMP; CONNECTOR FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ>	8-94466-377-0	01	1	0201-0301
317	02.559 CLAMP; CONNECTOR 4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ>	8-94466-377-0	01	1	0302-0501
317	02.559 CLAMP; CONNECTOR 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ>	8-94466-377-0	01	1	0502-
412	02.559 BRACKET; HARNESS,TRANS 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97324-451-1	01	1	0208-0301
412	02.559 BRACKET; HARNESS,TRANS M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97324-451-1	01	1	0302-
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	0504-
464	02.525 CLIP; SEDIMENTER HARNESS EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTERWITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 02.559 (A) ID=6.5	8-94257-639-0	01	1	0201-0301
464	02.525 CLIP; SEDIMENTER HARNESS FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL> 02.559 (A) ID=6.5	8-94257-639-0	01	1	0201-0301
464	02.525 CLIP; SEDIMENTER HARNESS FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 02.559 (A) ID=6.5	8-94257-639-0	01	1	0201-0301
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTERWITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 02.559 (A) ID=6.5	8-94257-639-0	01	1	0302-0501
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL> 02.559 (A) ID=6.5	8-94257-639-0	01	1	0302-0501
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 02.559 (A) ID=6.5	8-94257-639-0	01	1	0302-0501
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (A) ID=6.5	8-94257-639-0	01	1	0502-0705
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTERWITH HEATER<6HU> 02.559 (A) ID=6.5	8-94257-639-0	01	1	0502-0705
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 02.559 (A) ID=6.5	8-94257-639-0	01	1	0502-0705
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (A) ID=6.5	8-94257-639-0	01	1	0706-
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTERWITH HEATER<6HU> 02.559 (A) ID=6.5	8-94257-639-0	01	1	0706-
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B) 02.559 (A) ID=6.5	8-94257-639-0	01	1	0706-
504	02.559 PROTECTOR; HARNESS 16.225 L=200 SERVICED BY L=3060	9-65731-223-1	01	1	0102-0112
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0201-
514	02.559 FINISHER; HARNESS 16.550 L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0102-0501
514	02.559 FINISHER; HARNESS L=120 SERVICED BY L=500	1-79937-746-0	01	1	0502-
514	02.559 FINISHER; HARNESS 16.550 L=120 SERVICED BY L=2040	1-71997-513-1	03	1	0102-0501
514	02.559 FINISHER; HARNESS L=120 SERVICED BY L=500	1-79937-746-0	03	1	0502-
514	02.559 FINISHER; HARNESS 16.550 L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0102-0501
514	02.559 FINISHER; HARNESS L=175 SERVICED BY L=500	1-79937-746-0	01	1	0502-0504
514	02.559 FINISHER; HARNESS 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) L=175 SERVICED BY L=500	1-79937-746-0	01	1	0505-
514	02.559 FINISHER; HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=290 SERVICED BY L=500	1-79937-746-0	01	1	0102-0501
514	02.559 FINISHER; HARNESS 4HE1-TCS ENG(RDS) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0502-0502
514	02.559 FINISHER; HARNESS 4HE1-TCS ENG(RDS) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0503-0506
514	02.559 FINISHER; HARNESS L=290 SERVICED BY L=500	1-79937-746-0	01	1	0503-0506
514	02.559 FINISHER; HARNESS L=290 SERVICED BY L=500	1-79937-746-0	01	1	0507-

16 48 142 220 483 593 488 16 205 48 142 48 16 48 464 48 48 48 16 16 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	0102-
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	0102-
16	02.559 CLIP; HARNESS 03.162 (C) L=140	5-09707-031-1	AR	1	0102-
16	02.559 CLIP; HARNESS (A) ID=15-32	8-97174-404-0	AR	1	0102-
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	AR	1	0302-
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22	8-94464-837-0	AR	1	0302-
16	02.559 CLIP; HARNESS 02.694 (E) ID=6 & 10-13	8-97069-515-0	AR	1	0302-
16	02.559 CLIP; HARNESS (H) L=135	1-09987-143-1	AR	1	0502-
48	02.559 CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	0102-
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	0102-
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	0102-
48	02.559 CLIP; FRAME HARNESS 04.785 (D) ID=9.6	8-94147-870-0	AR	1	0102-
48	02.559 CLIP; FRAME HARNESS 04.785 (E) ID=11 L=28	9-09525-055-0	AR	1	0102-0606
48	02.559 CLIP; FRAME HARNESS 02.525 (F) T=4.5 & 9	5-09709-023-0	AR	1	0102-
48	02.559 CLIP; FRAME HARNESS (G) ID=31 L=30	1-09700-969-0	AR	1	0102-
48	02.559 CLIP; FRAME HARNESS 04.197 (H) ID=32 L=75	1-09700-702-0	AR	1	0102-
48	02.559 CLIP; FRAME HARNESS (I) ID=9	8-97063-874-0	AR	1	0102-
48	02.559 CLIP; FRAME HARNESS (J) L=170.3	1-09987-182-0	AR	1	0102-
48	02.559 CLIP; FRAME HARNESS 03.162 (K) L=140	5-09707-031-1	AR	1	0302-
48	02.559 CLIP; FRAME HARNESS (L) T=6.0	5-09709-024-0	AR	1	0502-
48	02.559 CLIP; FRAME HARNESS (E) ID=11 L=28	0-95235-055-0	AR	1	0607-
142	02.559 CLIP; HARNESS,ENG 4HE1-TCS ENG(RDS) 03.483 (B)	8-97101-436-0	01	1	0512-
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) 03.162 (A) L=140	5-09707-031-1	01	1	0102-0112
142	02.559 CLIP; HARNESS,ENG M/T MXA5R(RMT),M/T MBP6P(RNC) 03.162 (A) L=140	5-09707-031-1	01	1	0201-0301
142	02.559 CLIP; HARNESS,ENG FLOOR REMOTE SHIFT<M11> (C) L=170.3	1-09987-182-0	01	1	0302-0501
142	02.559 CLIP; HARNESS,ENG M/T MZZ6U(RSF),M/T MYY5T(RSM) (C) L=170.3	1-09987-182-0	01	1	0502-
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.483 (B)	8-97101-436-0	01	1	0102-0501
205	02.559 CLIP; BACK LAMP HARNESS 4HE1 ENG(RLY) M/T MZZ6U(RSF) L=135	1-09987-143-1	01	1	0208-0301
205	02.559 CLIP; BACK LAMP HARNESS M/T MZZ6U(RSF),M/T MYY5T(RSM) L=135	1-09987-143-1	01	1	0302-
220	02.559 CLIP; HARNESS TO CABLE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (A) L=140	5-09707-031-1	01	1	0102-0112
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> 03.162 (A) L=140	5-09707-031-1	01	1	0201-0301
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) M/T MYY5T(RSM) CHARGE AIR COOLER<6PL> 03.162 (A) L=140	5-09707-031-1	01	1	0302-0501
220	02.559 CLIP; HARNESS TO CABLE 4HE1-TCS ENG(RDS) 03.162 (A) L=140	5-09707-031-1	01	1	0502-
220	02.559 CLIP; HARNESS TO CABLE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (B) ID=25.5 & 8.0	8-94363-538-0	01	1	0201-0501
220	02.559 CLIP; HARNESS TO CABLE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.680 (B) ID=25.5 & 8.0	8-94363-538-0	01	1	0502-
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	0504-
464	02.525 CLIP; SEDIMENTER HARNESS EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTERWITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 02.559 (A) ID=6.5	8-94257-639-0	01	1	0201-0301
464	02.525 CLIP; SEDIMENTER HARNESS FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL> 02.559 (A) ID=6.5	8-94257-639-0	01	1	0201-0301
464	02.525 CLIP; SEDIMENTER HARNESS FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 02.559 (A) ID=6.5	8-94257-639-0	01	1	0201-0301
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTERWITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 02.559 (A) ID=6.5	8-94257-639-0	01	1	0302-0501
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL> 02.559 (A) ID=6.5	8-94257-639-0	01	1	0302-0501
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 02.559 (A) ID=6.5	8-94257-639-0	01	1	0302-0501
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (A) ID=6.5	8-94257-639-0	01	1	0502-0705
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTERWITH HEATER<6HU> 02.559 (A) ID=6.5	8-94257-639-0	01	1	0502-0705
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 02.559 (A) ID=6.5	8-94257-639-0	01	1	0502-0705
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (A) ID=6.5	8-94257-639-0	01	1	0706-
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTERWITH HEATER<6HU> 02.559 (A) ID=6.5	8-94257-639-0	01	1	0706-
464	02.525 CLIP; SEDIMENTER HARNESS 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B) 02.559 (A) ID=6.5	8-94257-639-0	01	1	0706-
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 L=140	5-09707-031-1	02	1	0102-0112
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.162 L=140	5-09707-031-1	02	1	0201-0207
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.162 L=140	5-09707-031-1	02	1	0208-0301
483	02.559 CLIP; ENG HARNESS 4HF1 ENG(RLS) 03.162 L=140	5-09707-031-1	01	1	0201-0301
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.162 L=140	5-09707-031-1	02	1	0302-0501
483	02.559 CLIP; ENG HARNESS 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.162 L=140	5-09707-031-1	02	1	0502-1103
483	02.559 CLIP; ENG HARNESS 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ANTI EROSION SPEC<7XK> 03.162 L=140	5-09707-031-1	02	1	1104-
483	02.559 CLIP; ENG HARNESS 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> 03.162 L=140	5-09707-031-1	01	1	0310-
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0102-
593	02.559 CLIP 4HE1 ENG(RLY) M/T MZZ6U(RSF) 03.162 L=140	5-09707-031-1	01	1	0208-0301

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
