8-10 — WIRING HARNESS AND FUSE (#19483) — 249 parça

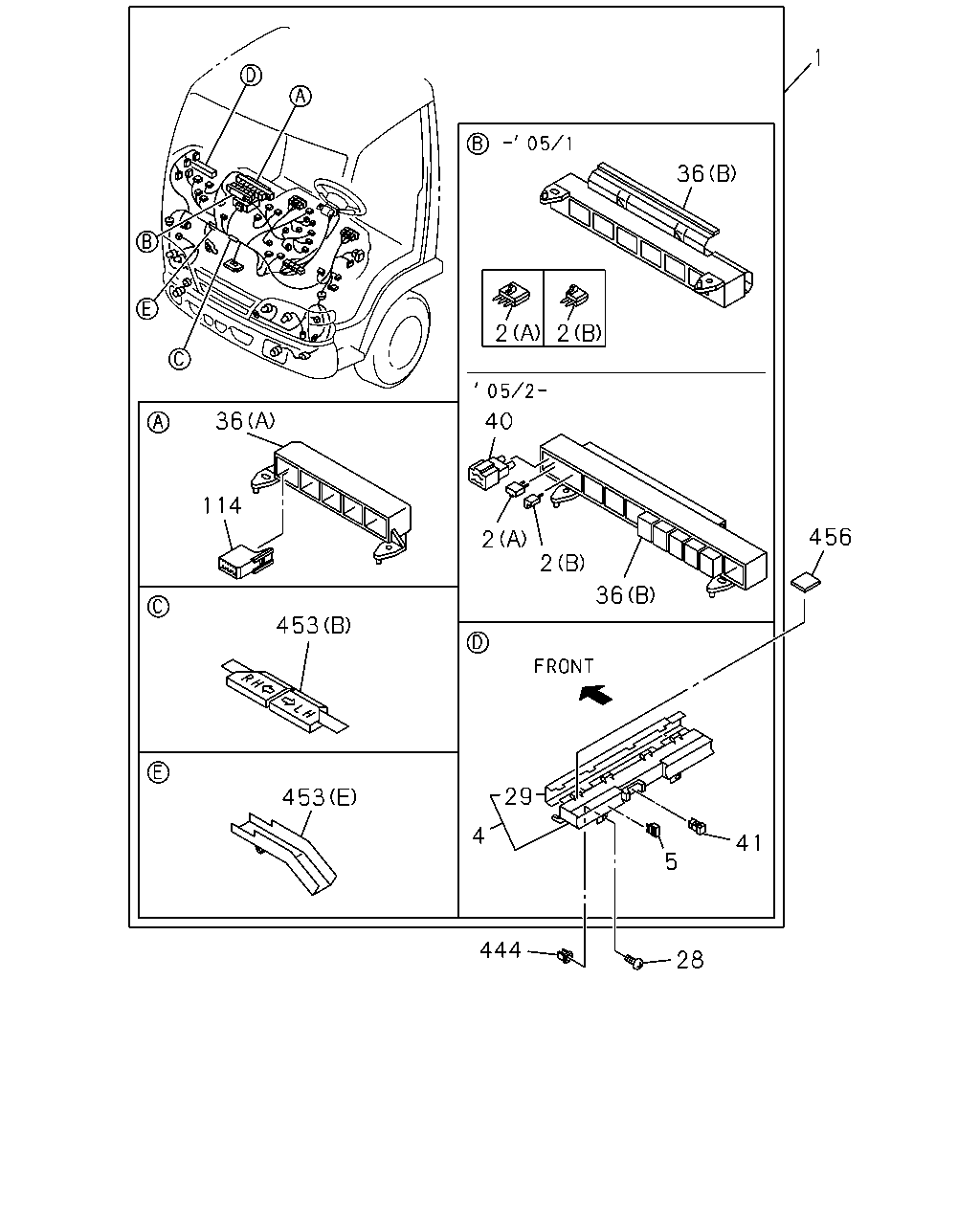

çizim 47888
36 2 40 2 36 456 453 453 29 4 5 41 28 444 2 2 36 114 1
BalonParca AdiParca NoAdetTipApplied Date
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-090-0 01 1 1207-1508
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM) PROVISIONAL PACKAGE SPEC<BCC> EXC. TAIWAN EQUIPMENT(RWV) 		8-98217-090-0 01 1 1509-
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97217-170-2 01 1 0102-0112
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-170-4 01 1 0201-0501
1 02.480 HARNESS; CAB
4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) 		8-97377-092-4 01 1 0502-1508
1 02.480 HARNESS; CAB
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97377-092-4 01 1 1509-
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),HYDRO BRAKE BOOSTER<7QQ> 		8-97217-165-2 01 1 0201-0201
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97217-166-4 01 1 0201-0501
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-97185-314-3 01 1 0201-0501
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) 		8-97377-083-4 01 1 0502-1206
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97377-083-4 01 1 1207-1508
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM) EXC. PROVISIONAL PACKAGE SPEC<BCC>,TAIWAN EQUIPMENT(RWV) 		8-97377-083-4 01 1 1509-
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0102-
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0102-
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94416-438-1 AR 1 0502-
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97214-415-0 01 1 0102-0112
4 02.483 BOX ASM; FUSE,HARNESS 8-97214-415-0 01 1 0201-0501
4 02.483 BOX ASM; FUSE,HARNESS 8-97187-921-1 01 1 0502-1508
4 02.483 BOX ASM; FUSE,HARNESS
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97187-921-1 01 1 1509-
4 02.483 BOX ASM; FUSE,HARNESS
4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM) EXC. TAIWAN EQUIPMENT(RWV) 		8-97187-921-1 01 1 1509-
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 0102-
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 0102-
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 0502-
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 0502-
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 AR 1 0502-
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0102-0604
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 0502-1508
29 02.483 COVER; FUSE BOX
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97074-955-0 01 1 1509-
29 02.483 COVER; FUSE BOX
4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM) EXC. TAIWAN EQUIPMENT(RWV) 		8-97074-955-0 01 1 1509-
36 02.530 BOX; RELAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97087-639-1 01 1 0102-0112
36 02.530 BOX; RELAY
(B) 		8-97087-639-1 01 1 0201-0501
36 02.530 BOX; RELAY
(B) 		8-97187-918-1 01 1 0502-1508
36 02.530 BOX; RELAY
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 		8-97187-918-1 01 1 1509-
36 02.530 BOX; RELAY
4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM) EXC. TAIWAN EQUIPMENT(RWV) (B) 		8-97187-918-1 01 1 1509-
36 02.530 BOX; RELAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97184-367-0 01 1 0102-0108
36 02.530 BOX; RELAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97087-640-1 01 1 0109-0112
36 02.530 BOX; RELAY
(A) 		8-97087-640-1 01 1 0201-1508
36 02.530 BOX; RELAY
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97087-640-1 01 1 1509-
36 02.530 BOX; RELAY
4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM) EXC. TAIWAN EQUIPMENT(RWV) (A) 		8-97087-640-1 01 1 1509-
40 02.483 BOX; DIODE
4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) NATURAL 8P 		8-97200-753-0 01 1 0502-1508
40 02.483 BOX; DIODE
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) EXC. PROVISIONAL PACKAGE SPEC<BCC> NATURAL 8P 		8-97200-753-0 01 1 1509-
41 08.821 PULLER; FUSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0102-0112
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0201-0501
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 0502-1508
41 08.821 PULLER; FUSE
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97103-388-0 01 1 1509-
41 08.821 PULLER; FUSE
4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM) EXC. TAIWAN EQUIPMENT(RWV) 		8-97103-388-0 01 1 1509-
114 02.483 BOX ASM; FUSE
4HF1 ENG(RLS) 		8-97189-222-0 01 1 0607-1508
114 02.483 BOX ASM; FUSE
4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM) EXC. TAIWAN EQUIPMENT(RWV) 		8-97189-222-0 01 1 1509-
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0102-
453 02.483 PROTECTOR; HARNESS
4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) (E) 		8-97088-615-0 01 1 0607-1508
453 02.483 PROTECTOR; HARNESS
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) EXC. PROVISIONAL PACKAGE SPEC<BCC> (E) 		8-97088-615-0 01 1 1509-
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 0102-0112
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0201-1508
453 02.483 PROTECTOR; HARNESS
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 		8-97074-957-0 01 1 1509-
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM) EXC. TAIWAN EQUIPMENT(RWV) (B) 		8-97074-957-0 01 1 1509-
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97120-591-1 01 1 0102-0112
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-591-1 01 1 0201-
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) 		8-97093-668-1 01 1 0201-0301
453 02.483 PROTECTOR; HARNESS
(C) 		8-97093-668-1 01 1 0302-
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6U(RSF) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> (D) 		8-97062-169-0 01 1 0302-0501
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0102-

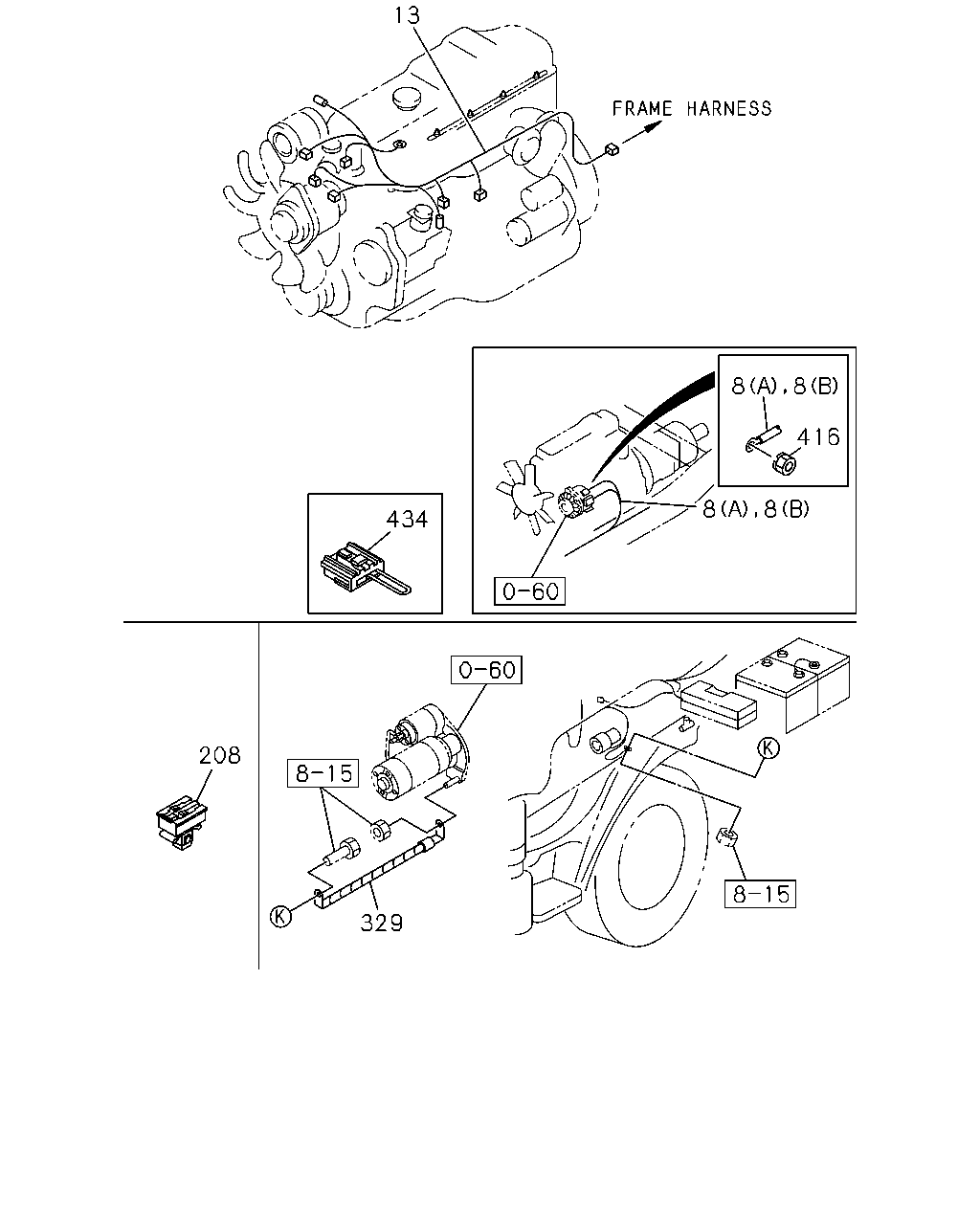

çizim 47966
13 8 8 416 8 8 434 208 329
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> EXC. TAIWAN EQUIPMENT(RWV),EGYPT EQUIPMENT(YJ4) (B) 		8-98186-930-0 01 1 1102-
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97217-579-0 01 1 0102-0112
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6P(RNC) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> (B) 		8-97316-731-1 01 1 0201-0301
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),VEHICLE CATEGORY NQR<7NQ> (B) 		8-97261-000-0 01 1 0201-0204
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),VEHICLE CATEGORY NQR<7NQ> (B) 		8-97261-000-1 01 1 0205-0301
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MYY5T(RSM) CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),VEHICLE CATEGORY NQR<7NQ> (B) 		8-97350-653-2 01 1 0302-0501
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> (B) 		8-97350-654-2 01 1 0302-0501
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97377-017-2 01 1 0502-1101
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) TAIWAN EQUIPMENT(RWV),EGYPT EQUIPMENT(YJ4) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97377-017-2 01 1 1102-
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97377-017-2 01 1 1102-
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6U(RSF) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> (B) 		8-97352-452-0 01 1 0208-0301
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6U(RSF) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> (B) 		8-97359-667-1 01 1 0302-0501
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (A) 		8-97260-981-1 01 1 0201-0301
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (B) 		8-97357-077-0 01 1 0302-0302
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97357-077-2 01 1 0303-0501
8 02.480 HARNESS; FRAME,FRT
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) (B) 		8-97377-027-1 01 1 0502-
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97172-971-2 01 1 0102-0112
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97172-971-2 01 1 0201-0301
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MZZ6U(RSF) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-756-0 01 1 0208-0208
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) M/T MZZ6U(RSF) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97356-989-0 01 1 0209-0301
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97356-989-0 01 1 0302-0501
13 02.525 HARNESS; ENG
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97356-989-0 01 1 0502-1103
13 02.525 HARNESS; ENG
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ANTI EROSION SPEC<7XK> 		8-97356-989-0 01 1 1104-
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXC. TAIWAN EQUIPMENT(RWV) 		8-97170-515-1 01 1 0201-0301
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> 		8-97356-988-1 01 1 0302-
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> EXC. HIGH ALTITUDE COMPENSATOR(EE2),FAST GLOW SYSTEM<KM6>,TAIWAN EQUIPMENT(RWV) 		8-97170-517-1 01 1 0201-0301
13 02.525 HARNESS; ENG
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. HIGH ALTITUDE COMPENSATOR(EE2),FAST GLOW SYSTEM<KM6>,POWER STEERING<N40>,TAIWAN EQUIPMENT(RWV) 		8-97170-517-1 01 1 0201-0301
208 02.483 HOLDER; CONNECTOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-94459-973-1 01 1 0102-0112
208 02.483 HOLDER; CONNECTOR
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-94459-973-1 01 1 0201-0201
208 02.483 HOLDER; CONNECTOR
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-94459-973-1 01 1 0201-0207
208 02.483 HOLDER; CONNECTOR
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC),M/T MZZ6U(RSF) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-94459-973-1 01 1 0208-0301
208 02.483 HOLDER; CONNECTOR
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-94459-973-1 01 1 0302-0501
208 02.483 HOLDER; CONNECTOR
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-94459-973-1 01 1 0502-1103
208 02.483 HOLDER; CONNECTOR
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ANTI EROSION SPEC<7XK> 		8-94459-973-1 01 1 1104-
329 02.480 CABLE; ENG TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97113-787-0 01 1 0201-0301
329 02.480 CABLE; ENG TO FRAME
4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97113-787-0 01 1 0302-0501
329 02.480 CABLE; ENG TO FRAME
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97113-787-0 01 1 0502-
329 02.480 CABLE; ENG TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97182-112-0 01 1 0102-0501
329 02.480 CABLE; ENG TO FRAME
4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> 		8-97182-112-0 01 1 0502-
416 02.559 NUT; TERMINAL
4HF1 ENG(RLS) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0201-
434 02.559 CONNECTOR; SHORT CIRCUIT
4HE1-TCS ENG(RDS) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-98000-898-0 01 1 0502-0510
434 02.559 CONNECTOR; SHORT CIRCUIT
4HE1-TCS ENG(RDS) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-98027-465-0 01 1 0511-
434 02.559 CONNECTOR; SHORT CIRCUIT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 		8-97388-449-0 01 1 0502-
434 02.559 CONNECTOR; SHORT CIRCUIT
4HF1 ENG(RLS) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97388-448-0 01 1 0502-
çizim 48159
347 337 9 195 204 340
BalonParca AdiParca NoAdetTipApplied Date
9 02.480 HARNESS; FRAME,RR
FRAME STRAIGHT TYPE<7KJ> 		8-97377-067-1 01 1 0502-
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97171-205-3 01 1 0102-0104
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97306-681-0 01 1 0105-0501
195 01.150 HARNESS; EXT
4HE1-TCS ENG(RDS) 		8-97306-681-0 01 1 0502-
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0102-0112
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-2 01 1 0201-0302
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97364-140-0 01 1 0303-0501
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0502-0502
204 02.559 HARNESS; CABLE,FLOOR
M/T MZZ6U(RSF),M/T MYY5T(RSM) 		8-97364-140-0 01 1 0503-
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97261-149-0 01 1 0201-0501
337 02.530 HARNESS; EXT,HTR
4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97261-149-0 01 1 0502-0705
337 02.530 HARNESS; EXT,HTR
4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B) 		8-97261-149-0 01 1 0706-
340 02.525 HARNESS; CABLE,SEDIMENTER
MINI BUS CHASSIS(V4B) 		8-94463-144-0 01 1 0706-
347 02.480 HARNESS; CABLE,RR BODY 8-97213-568-0 01 1 0102-0302
347 02.480 HARNESS; CABLE,RR BODY 8-97364-152-0 01 1 0303-

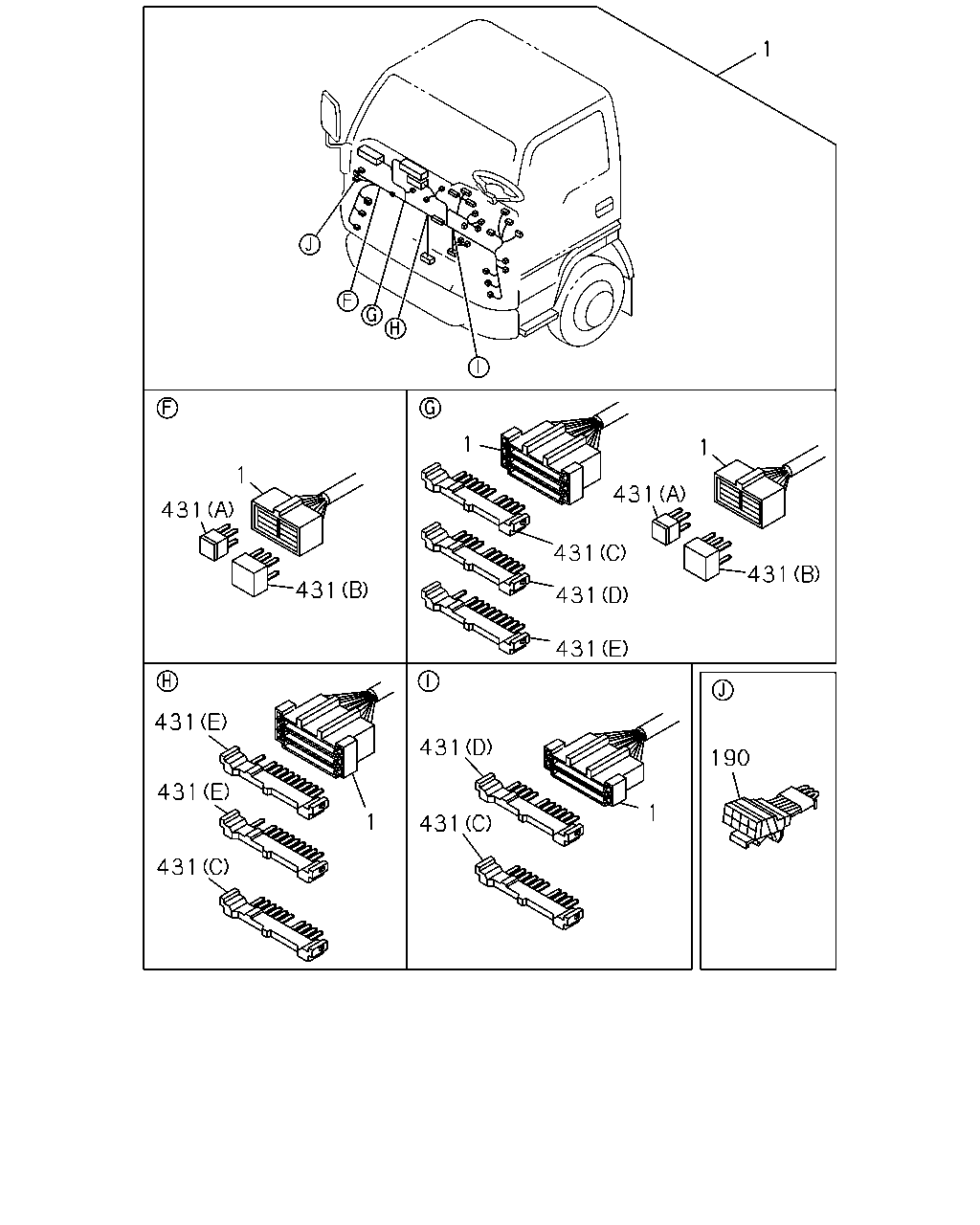

çizim 50051
1 1 1 1 431 431 431 431 431 431 431 431 431 190 431 1 1 431 431
BalonParca AdiParca NoAdetTipApplied Date
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-090-0 01 1 1207-1508
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM) PROVISIONAL PACKAGE SPEC<BCC> EXC. TAIWAN EQUIPMENT(RWV) 		8-98217-090-0 01 1 1509-
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97217-170-2 01 1 0102-0112
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97217-170-4 01 1 0201-0501
1 02.480 HARNESS; CAB
4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) 		8-97377-092-4 01 1 0502-1508
1 02.480 HARNESS; CAB
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97377-092-4 01 1 1509-
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),HYDRO BRAKE BOOSTER<7QQ> 		8-97217-165-2 01 1 0201-0201
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97217-166-4 01 1 0201-0501
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) 		8-97185-314-3 01 1 0201-0501
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) 		8-97377-083-4 01 1 0502-1206
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97377-083-4 01 1 1207-1508
1 02.480 HARNESS; CAB
4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM) EXC. PROVISIONAL PACKAGE SPEC<BCC>,TAIWAN EQUIPMENT(RWV) 		8-97377-083-4 01 1 1509-
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> 		8-98036-238-0 01 1 0607-
431 02.530 CONNECTOR; JOINT
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) (F) 6P 		8-97381-428-0 02 1 0502-0508
431 02.530 CONNECTOR; JOINT
(F) 6P 		8-97381-428-0 02 1 0509-
431 02.530 CONNECTOR; JOINT
4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) (D) 10P BLUE 		1-82699-598-0 02 1 0502-1508
431 02.530 CONNECTOR; JOINT
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) EXC. PROVISIONAL PACKAGE SPEC<BCC> (D) 10P BLUE 		1-82699-598-0 02 1 1509-
431 02.530 CONNECTOR; JOINT
4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) (C) 10P GREEN 		1-82699-599-0 03 1 0502-1508
431 02.530 CONNECTOR; JOINT
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) 10P GREEN 		1-82699-599-0 03 1 1509-
431 02.530 CONNECTOR; JOINT
4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) (E) 10P BROWN 		1-82699-601-0 03 1 0502-1508
431 02.530 CONNECTOR; JOINT
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) EXC. PROVISIONAL PACKAGE SPEC<BCC> (E) 10P BROWN 		1-82699-601-0 03 1 1509-
431 02.530 CONNECTOR; JOINT
4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) (A) 4P 		8-97077-939-0 02 1 0502-0701
431 02.530 CONNECTOR; JOINT
4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) (B) 6P 		8-97077-941-0 02 1 0502-0701

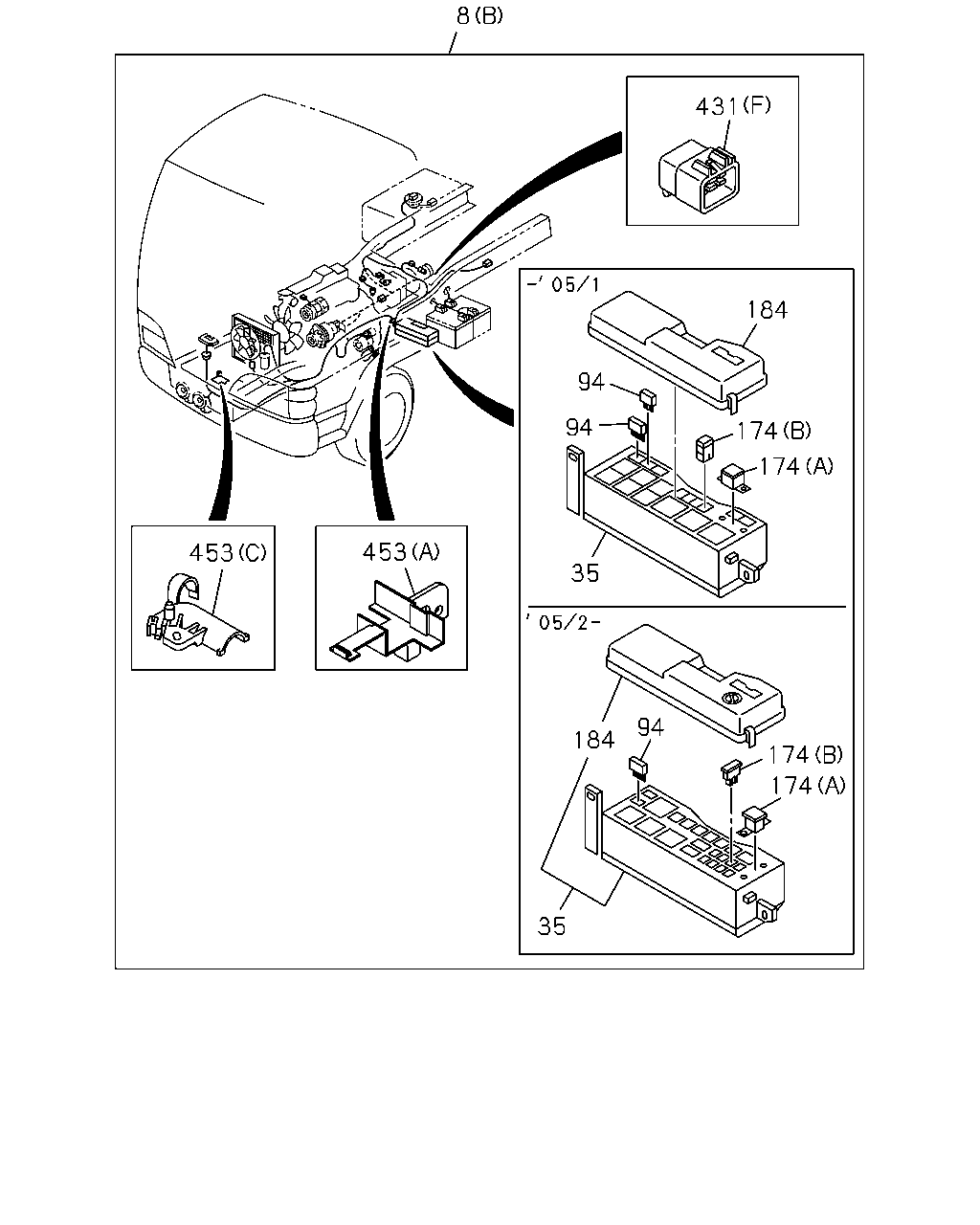

çizim 50173
8 184 94 94 174 174 453 453 35 94 184 174 174 35 431
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> EXC. TAIWAN EQUIPMENT(RWV),EGYPT EQUIPMENT(YJ4) (B) 		8-98186-930-0 01 1 1102-
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97217-579-0 01 1 0102-0112
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6P(RNC) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> (B) 		8-97316-731-1 01 1 0201-0301
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),VEHICLE CATEGORY NQR<7NQ> (B) 		8-97261-000-0 01 1 0201-0204
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),VEHICLE CATEGORY NQR<7NQ> (B) 		8-97261-000-1 01 1 0205-0301
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MYY5T(RSM) CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),VEHICLE CATEGORY NQR<7NQ> (B) 		8-97350-653-2 01 1 0302-0501
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> (B) 		8-97350-654-2 01 1 0302-0501
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97377-017-2 01 1 0502-1101
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) TAIWAN EQUIPMENT(RWV),EGYPT EQUIPMENT(YJ4) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97377-017-2 01 1 1102-
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97377-017-2 01 1 1102-
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6U(RSF) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> (B) 		8-97352-452-0 01 1 0208-0301
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6U(RSF) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> (B) 		8-97359-667-1 01 1 0302-0501
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (A) 		8-97260-981-1 01 1 0201-0301
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (B) 		8-97357-077-0 01 1 0302-0302
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97357-077-2 01 1 0303-0501
8 02.480 HARNESS; FRAME,FRT
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) (B) 		8-97377-027-1 01 1 0502-
35 02.530 BOX; RELAY & FUSE
4HF1 ENG(RLS) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> EXC. TAIWAN EQUIPMENT(RWV),EGYPT EQUIPMENT(YJ4) 		8-97377-739-0 01 1 1102-
35 02.530 BOX; RELAY & FUSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97063-150-1 01 1 0102-0112
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 0201-0501
35 02.530 BOX; RELAY & FUSE 8-97381-429-0 01 1 0502-1101
35 02.530 BOX; RELAY & FUSE
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) 		8-97381-429-0 01 1 1102-
35 02.530 BOX; RELAY & FUSE
4HF1 ENG(RLS) TAIWAN EQUIPMENT(RWV),EGYPT EQUIPMENT(YJ4) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> 		8-97381-429-0 01 1 1102-
35 02.530 BOX; RELAY & FUSE
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97381-429-0 01 1 1102-
94 02.483 DIODE; FRAME HARNESS
BLACK 3P-1.5A 		8-94422-640-1 AR 1 0102-
94 02.483 DIODE; FRAME HARNESS
BLACK 4P-1.5A 		8-94381-730-0 AR 1 0201-
174 08.965 FUSE; SLOW BLOW
(A) 60A YELLOW 		8-94388-303-1 AR 1 0102-
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 0102-
174 08.965 FUSE; SLOW BLOW
(A) 100A BLUE 		8-94388-306-0 AR 1 0201-
174 08.965 FUSE; SLOW BLOW
(A) 120A WHITE 		1-82516-028-1 AR 1 0502-
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-97183-643-0 AR 1 0502-
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-97183-644-0 AR 1 0502-
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 0502-
184 02.559 COVER; RELAY & FUSE BOX 8-97377-741-0 01 1 0502-
184 02.559 COVER; RELAY & FUSE BOX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97063-152-1 01 1 0102-0112
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 0201-0501
431 02.530 CONNECTOR; JOINT
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) (F) 6P 		8-97381-428-0 02 1 0502-0508
431 02.530 CONNECTOR; JOINT
(F) 6P 		8-97381-428-0 02 1 0509-
431 02.530 CONNECTOR; JOINT
4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) (D) 10P BLUE 		1-82699-598-0 02 1 0502-1508
431 02.530 CONNECTOR; JOINT
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) EXC. PROVISIONAL PACKAGE SPEC<BCC> (D) 10P BLUE 		1-82699-598-0 02 1 1509-
431 02.530 CONNECTOR; JOINT
4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) (C) 10P GREEN 		1-82699-599-0 03 1 0502-1508
431 02.530 CONNECTOR; JOINT
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) 10P GREEN 		1-82699-599-0 03 1 1509-
431 02.530 CONNECTOR; JOINT
4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) (E) 10P BROWN 		1-82699-601-0 03 1 0502-1508
431 02.530 CONNECTOR; JOINT
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) EXC. PROVISIONAL PACKAGE SPEC<BCC> (E) 10P BROWN 		1-82699-601-0 03 1 1509-
431 02.530 CONNECTOR; JOINT
4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) (A) 4P 		8-97077-939-0 02 1 0502-0701
431 02.530 CONNECTOR; JOINT
4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) (B) 6P 		8-97077-941-0 02 1 0502-0701
453 02.483 PROTECTOR; HARNESS
4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) (E) 		8-97088-615-0 01 1 0607-1508
453 02.483 PROTECTOR; HARNESS
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) EXC. PROVISIONAL PACKAGE SPEC<BCC> (E) 		8-97088-615-0 01 1 1509-
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 0102-0112
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0201-1508
453 02.483 PROTECTOR; HARNESS
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 		8-97074-957-0 01 1 1509-
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM) EXC. TAIWAN EQUIPMENT(RWV) (B) 		8-97074-957-0 01 1 1509-
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97120-591-1 01 1 0102-0112
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-591-1 01 1 0201-
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) 		8-97093-668-1 01 1 0201-0301
453 02.483 PROTECTOR; HARNESS
(C) 		8-97093-668-1 01 1 0302-
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6U(RSF) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> (D) 		8-97062-169-0 01 1 0302-0501
çizim 51928
8 184 453 453 94 174 174 35
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> EXC. TAIWAN EQUIPMENT(RWV),EGYPT EQUIPMENT(YJ4) (B) 		8-98186-930-0 01 1 1102-
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97217-579-0 01 1 0102-0112
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MBP6P(RNC) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> (B) 		8-97316-731-1 01 1 0201-0301
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),VEHICLE CATEGORY NQR<7NQ> (B) 		8-97261-000-0 01 1 0201-0204
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),VEHICLE CATEGORY NQR<7NQ> (B) 		8-97261-000-1 01 1 0205-0301
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MYY5T(RSM) CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV),VEHICLE CATEGORY NQR<7NQ> (B) 		8-97350-653-2 01 1 0302-0501
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> EXC. VEHICLE CATEGORY NQR<7NQ> (B) 		8-97350-654-2 01 1 0302-0501
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97377-017-2 01 1 0502-1101
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) TAIWAN EQUIPMENT(RWV),EGYPT EQUIPMENT(YJ4) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97377-017-2 01 1 1102-
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-97377-017-2 01 1 1102-
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6U(RSF) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> (B) 		8-97352-452-0 01 1 0208-0301
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) M/T MZZ6U(RSF) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> (B) 		8-97359-667-1 01 1 0302-0501
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (A) 		8-97260-981-1 01 1 0201-0301
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (B) 		8-97357-077-0 01 1 0302-0302
8 02.480 HARNESS; FRAME,FRT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97357-077-2 01 1 0303-0501
8 02.480 HARNESS; FRAME,FRT
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) (B) 		8-97377-027-1 01 1 0502-
35 02.530 BOX; RELAY & FUSE
4HF1 ENG(RLS) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> EXC. TAIWAN EQUIPMENT(RWV),EGYPT EQUIPMENT(YJ4) 		8-97377-739-0 01 1 1102-
35 02.530 BOX; RELAY & FUSE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97063-150-1 01 1 0102-0112
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 0201-0501
35 02.530 BOX; RELAY & FUSE 8-97381-429-0 01 1 0502-1101
35 02.530 BOX; RELAY & FUSE
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) 		8-97381-429-0 01 1 1102-
35 02.530 BOX; RELAY & FUSE
4HF1 ENG(RLS) TAIWAN EQUIPMENT(RWV),EGYPT EQUIPMENT(YJ4) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> 		8-97381-429-0 01 1 1102-
35 02.530 BOX; RELAY & FUSE
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97381-429-0 01 1 1102-
94 02.483 DIODE; FRAME HARNESS
BLACK 3P-1.5A 		8-94422-640-1 AR 1 0102-
94 02.483 DIODE; FRAME HARNESS
BLACK 4P-1.5A 		8-94381-730-0 AR 1 0201-
174 08.965 FUSE; SLOW BLOW
(A) 60A YELLOW 		8-94388-303-1 AR 1 0102-
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 0102-
174 08.965 FUSE; SLOW BLOW
(A) 100A BLUE 		8-94388-306-0 AR 1 0201-
174 08.965 FUSE; SLOW BLOW
(A) 120A WHITE 		1-82516-028-1 AR 1 0502-
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-97183-643-0 AR 1 0502-
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-97183-644-0 AR 1 0502-
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 0502-
184 02.559 COVER; RELAY & FUSE BOX 8-97377-741-0 01 1 0502-
184 02.559 COVER; RELAY & FUSE BOX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97063-152-1 01 1 0102-0112
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 0201-0501
453 02.483 PROTECTOR; HARNESS
4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) (E) 		8-97088-615-0 01 1 0607-1508
453 02.483 PROTECTOR; HARNESS
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) EXC. PROVISIONAL PACKAGE SPEC<BCC> (E) 		8-97088-615-0 01 1 1509-
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97074-957-0 01 1 0102-0112
453 02.483 PROTECTOR; HARNESS
(B) 		8-97074-957-0 01 1 0201-1508
453 02.483 PROTECTOR; HARNESS
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY5T(RSM) TAIWAN EQUIPMENT(RWV) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 		8-97074-957-0 01 1 1509-
453 02.483 PROTECTOR; HARNESS
4HF1 ENG(RLS) M/T MZZ6U(RSF),M/T MYY5T(RSM) EXC. TAIWAN EQUIPMENT(RWV) (B) 		8-97074-957-0 01 1 1509-
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97120-591-1 01 1 0102-0112
453 02.483 PROTECTOR; HARNESS
(A) 		8-97120-591-1 01 1 0201-
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) 		8-97093-668-1 01 1 0201-0301
453 02.483 PROTECTOR; HARNESS
(C) 		8-97093-668-1 01 1 0302-
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) M/T MZZ6U(RSF) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> (D) 		8-97062-169-0 01 1 0302-0501
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
