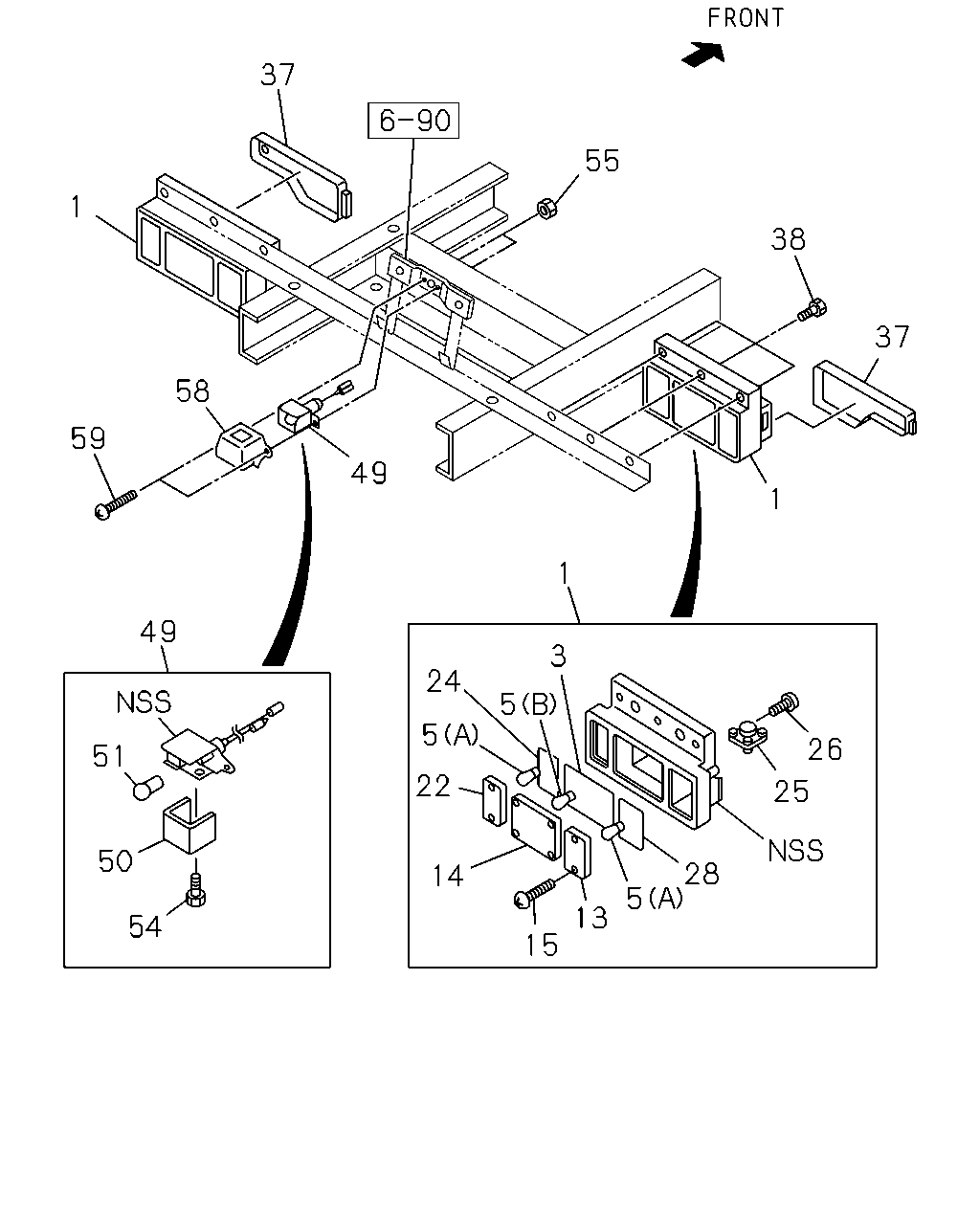

1 |
02.679 LAMP ASM; RR COMB
|
8-97213-369-0 |
01 |
1 |
0102-0806 |
| |
1 |
02.679 LAMP ASM; RR COMB
FRAME STRAIGHT TYPE<7KJ>
|
8-97213-369-0 |
01 |
1 |
0807- |
| |
1 |
02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9>
|
8-97213-370-0 |
01 |
1 |
0102-0806 |
| |
1 |
02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9>
FRAME STRAIGHT TYPE<7KJ>
|
8-97213-370-0 |
01 |
1 |
0807- |
| |
1 |
02.679 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9>
|
8-97213-368-0 |
01 |
1 |
0102-0806 |
| |
1 |
02.679 LAMP ASM; RR COMB
FRAME STRAIGHT TYPE<7KJ>
EXC. BACK BUZZER<YM9>
|
8-97213-368-0 |
01 |
1 |
0807- |
| |
3 |
02.684 GASKET; RR COMB LAMP
|
8-94257-505-0 |
02 |
1 |
0102- |
| |
5 |
08.991 BULB; RR COMB LAMP
(A)
24V 21W
|
1-82194-036-0 |
04 |
1 |
0102- |
| |
5 |
08.991 BULB; RR COMB LAMP
(B)
24V 21/5W
|
1-82194-038-0 |
02 |
1 |
0102- |
| |
13 |
02.682 LENS; TURN SIGNAL
|
8-94174-639-0 |
01 |
1 |
0102-0806 |
| |
13 |
02.682 LENS; TURN SIGNAL
FRAME STRAIGHT TYPE<7KJ>
|
8-94174-639-0 |
01 |
1 |
0807- |
| |
13 |
02.682 LENS; TURN SIGNAL
|
8-94174-638-0 |
01 |
1 |
0102-0806 |
| |
13 |
02.682 LENS; TURN SIGNAL
FRAME STRAIGHT TYPE<7KJ>
|
8-94174-638-0 |
01 |
1 |
0807- |
| |
14 |
02.682 LENS; TAIL & STOP,RR COMB LAMP
|
8-94178-625-0 |
01 |
1 |
0102-0806 |
| |
14 |
02.682 LENS; TAIL & STOP,RR COMB LAMP
FRAME STRAIGHT TYPE<7KJ>
|
8-94178-625-0 |
01 |
1 |
0807- |
| |
14 |
02.682 LENS; TAIL & STOP,RR COMB LAMP
|
8-94178-624-0 |
01 |
1 |
0102-0806 |
| |
14 |
02.682 LENS; TAIL & STOP,RR COMB LAMP
FRAME STRAIGHT TYPE<7KJ>
|
8-94178-624-0 |
01 |
1 |
0807- |
| |
15 |
02.664 SCREW; RR COMB LAMP
08.977
M4X20 TAPPING STAINLESS
|
0-71190-420-0 |
16 |
1 |
0102- |
| |
22 |
02.697 LENS; BACKUP,RR COMB LAMP
CLEAR
|
8-94257-512-1 |
02 |
1 |
0102- |
| |
24 |
02.697 GASKET; BACK,LAMP
|
8-94257-506-0 |
02 |
1 |
0302- |
| |
25 |
02.810 HORN ASM; BACK
BACK BUZZER<YM9>
|
8-94257-518-0 |
01 |
1 |
0102-0806 |
| |
25 |
02.810 HORN ASM; BACK
BACK BUZZER<YM9>
FRAME STRAIGHT TYPE<7KJ>
|
8-94257-518-0 |
01 |
1 |
0807- |
| |
26 |
02.812 SCREW; BACK HORN
09.655
M4X14 TAPPING
|
9-07076-414-0 |
01 |
1 |
0102-0806 |
| |
26 |
02.812 SCREW; BACK HORN
FRAME STRAIGHT TYPE<7KJ>
09.655
M4X14 TAPPING
|
9-07076-414-0 |
01 |
1 |
0807- |
| |
26 |
02.812 SCREW; BACK HORN
BACK BUZZER<YM9>
02.688
M4X12 TAPPING
|
9-07076-412-0 |
02 |
1 |
0102-0806 |
| |
26 |
02.812 SCREW; BACK HORN
BACK BUZZER<YM9>
FRAME STRAIGHT TYPE<7KJ>
02.688
M4X12 TAPPING
|
9-07076-412-0 |
02 |
1 |
0807- |
| |
26 |
02.812 SCREW; BACK HORN
EXC. BACK BUZZER<YM9>
02.688
M4X12 TAPPING
|
9-07076-412-0 |
01 |
1 |
0102-0806 |
| |
26 |
02.812 SCREW; BACK HORN
FRAME STRAIGHT TYPE<7KJ>
EXC. BACK BUZZER<YM9>
02.688
M4X12 TAPPING
|
9-07076-412-0 |
01 |
1 |
0807- |
| |
28 |
02.684 GASKET; TURN,LAMP
|
8-94257-507-0 |
02 |
1 |
0102- |
| |
37 |
02.680 COVER; RR COMB LAMP
|
8-94129-274-4 |
01 |
1 |
0102- |
| |
37 |
02.680 COVER; RR COMB LAMP
|
8-94128-858-4 |
01 |
1 |
0102- |
| |
38 |
02.689 BOLT; LAMP,RR COMB
02.664
M6X20
|
8-94402-623-0 |
06 |
1 |
0102- |
| |
49 |
02.700 LAMP; LICENSE PLATE
24V 12W
|
5-82120-021-1 |
01 |
1 |
0102- |
| |
50 |
02.709 LENS; LICENSE PLATE LAMP
|
5-82125-004-0 |
01 |
1 |
0102- |
| |
51 |
08.991 BULB; LICENSE PLATE LAMP
24V 12W
|
1-82194-004-0 |
01 |
1 |
0102- |
| |
54 |
02.708 SCREW; LICENSE PLATE LAMP
02.709
M4X8
|
8-94419-312-0 |
01 |
1 |
0102- |
| |
55 |
02.708 NUT; LICENSE PLATE LAMP
03.444
M5 FLANGE
|
8-94153-039-0 |
02 |
1 |
0102- |
| |
58 |
02.705 COVER; LICENSE PLATE LAMP
|
8-97076-590-1 |
01 |
1 |
0102- |
| |
59 |
02.708 SCREW; TAP,LICENSE LAMP BODY
14.550
M5X20
|
9-93490-520-0 |
02 |
1 |
0102- |
