◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 50915 - NP/NQ BUS LHDEXC.EU4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#19481) — 161 parça

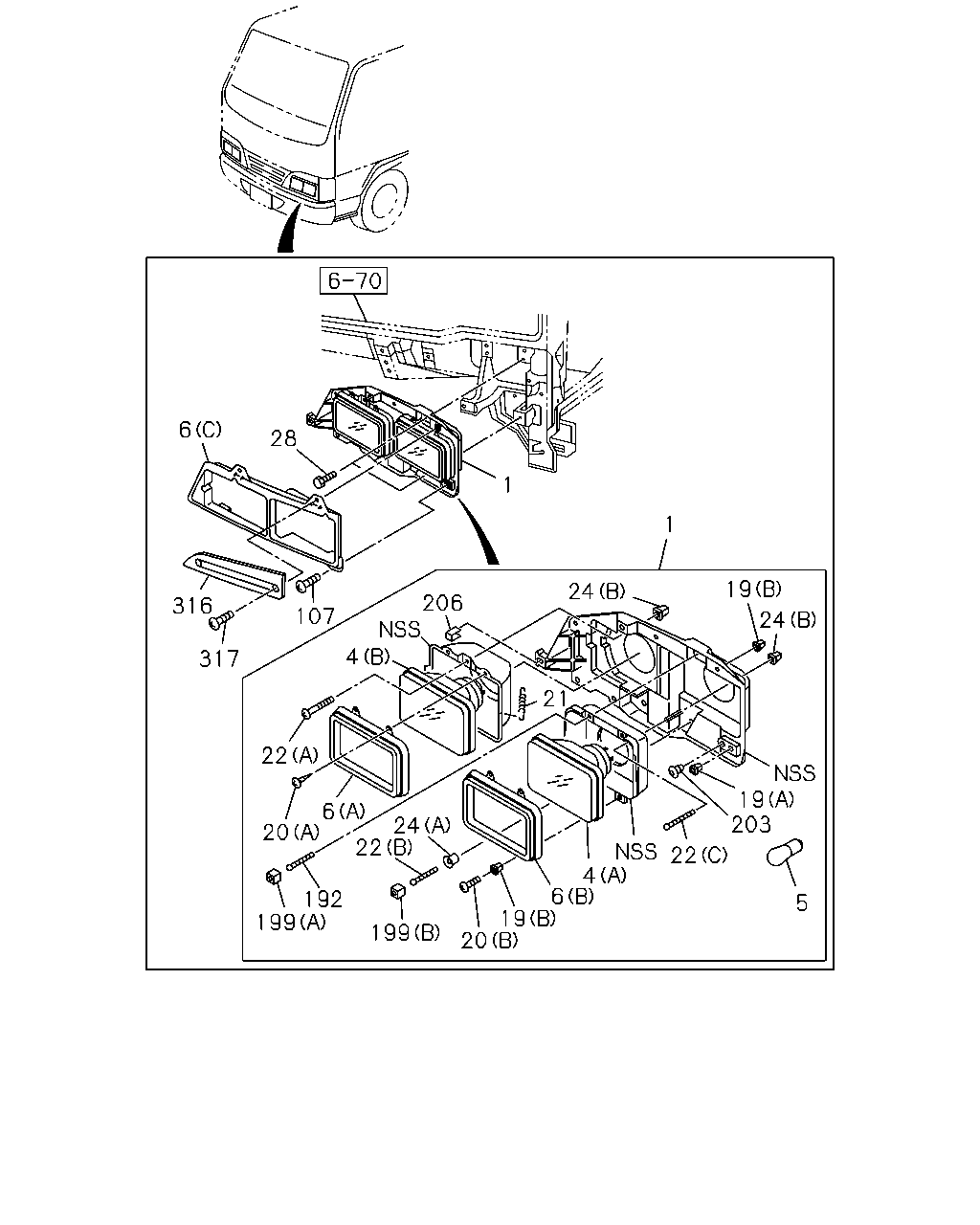

çizim 47890
6 28 1 1 19 24 206 4 316 107 24 21 317 22 19 203 6 24 22 20 4 6 19 20 22 192 199 5 199
BalonParca AdiParca NoAdetTipApplied Date
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> 		8-97189-556-0 01 1 0102-0301
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> 		8-97189-555-0 01 1 0102-0301
1 02.725 LAMP ASM; HEAD
EXC. YELLOW HEAD LAMP<T75> 		8-97855-089-4 01 1 0102-0301
1 02.725 LAMP ASM; HEAD 8-97855-089-4 01 1 0302-0501
1 02.725 LAMP ASM; HEAD 8-97376-898-2 01 1 0502-0701
1 02.725 LAMP ASM; HEAD 8-98053-914-0 01 1 0702-
1 02.725 LAMP ASM; HEAD
EXC. YELLOW HEAD LAMP<T75> 		8-97855-088-4 01 1 0102-0301
1 02.725 LAMP ASM; HEAD 8-97855-088-4 01 1 0302-0501
1 02.725 LAMP ASM; HEAD 8-97376-897-2 01 1 0502-0701
1 02.725 LAMP ASM; HEAD 8-98053-913-0 01 1 0702-
4 02.727 HEADLAMP UNIT
YELLOW HEAD LAMP<T75> (A) TYPE2 24V 75/70W 		1-82113-015-0 02 1 0102-0301
4 02.727 HEADLAMP UNIT
YELLOW HEAD LAMP<T75> (B) TYPE1 24V 70W 		1-82113-016-0 02 1 0102-0301
4 02.727 HEADLAMP UNIT
EXC. YELLOW HEAD LAMP<T75> (A) 24V 55/50W 		8-94101-734-0 02 1 0102-0301
4 02.727 HEADLAMP UNIT
(A) 24V 55/50W 		8-94101-734-0 02 1 0302-0501
4 02.727 HEADLAMP UNIT
(C) 		8-98009-822-0 01 1 0502-
4 02.727 HEADLAMP UNIT
EXC. YELLOW HEAD LAMP<T75> (B) 24V 55W 		8-94101-740-0 02 1 0102-0301
4 02.727 HEADLAMP UNIT
(B) 24V 55W 		8-94101-740-0 02 1 0302-0501
4 02.727 HEADLAMP UNIT
(C) 		8-98009-823-0 01 1 0502-
5 02.727 BULB; HEADLAMP
YELLOW HEAD LAMP<T75> 24V 70W 		8-94405-658-0 02 1 0102-0301
5 02.727 BULB; HEADLAMP
YELLOW HEAD LAMP<T75> 24V 75/70W 		8-97191-273-0 02 1 0102-0301
5 02.727 BULB; HEADLAMP
EXC. YELLOW HEAD LAMP<T75> 24V 55/50W CLEAR 		5-82193-003-0 04 1 0102-0301
5 02.727 BULB; HEADLAMP
24V 55/50W CLEAR 		5-82193-003-0 04 1 0302-0501
5 02.727 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0502-
6 02.728 RIM; HEADLAMP
(A) 		1-82114-016-0 02 1 0102-0501
6 02.728 RIM; HEADLAMP
(B) 		8-97855-211-0 02 1 0102-0501
6 02.728 RIM; HEADLAMP
(C) 		8-97890-801-0 01 1 0201-0211
6 02.728 RIM; HEADLAMP
(C) 		8-97581-089-0 01 1 0212-0501
6 02.728 RIM; HEADLAMP
(C) 		8-97890-800-0 01 1 0201-0211
6 02.728 RIM; HEADLAMP
(C) 		8-97581-088-0 01 1 0212-0501
19 02.726 NUT; HEADLAMP
(B) 		8-97044-618-0 08 1 0102-0501
19 02.726 NUT; HEADLAMP
(A) 		8-97044-623-0 08 1 0102-0501
20 02.736 SCREW; HEADLAMP
(A) M4X8 		8-94165-886-0 08 1 0102-0501
20 02.736 SCREW; HEADLAMP
(C) 		8-97378-871-0 02 1 0502-
20 02.736 SCREW; HEADLAMP
(B) 		8-97228-675-0 08 1 0102-0501
21 02.737 SPRING; ADJ HEADLAMP 1-82119-021-0 02 1 0102-0501
22 02.726 SCREW; ADJ,HEADLAMP
(A) 		8-97855-205-0 04 1 0102-0501
22 02.726 SCREW; ADJ,HEADLAMP
(B) 		8-97855-206-0 02 1 0102-0501
22 02.726 SCREW; ADJ,HEADLAMP
(C) 		8-97855-207-0 02 1 0102-0501
24 02.737 MOUNTING; ADJ SCREW HD LAMP
(B) 		8-94387-097-0 06 1 0102-0501
24 02.737 MOUNTING; ADJ SCREW HD LAMP
(A) 		8-97855-208-0 02 1 0102-0501
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0102-0607
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0608-1401
28 02.762 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1402-
107 02.729 SCREW; RIM,HEADLAMP
M4X20 TAPPING 		8-94279-391-0 04 1 0201-0202
107 02.729 SCREW; RIM,HEADLAMP
M4X20 TAPPING 		8-97326-998-0 04 1 0203-0501
192 02.765 PIVOT; HEADLAMP
02.737 		8-94381-595-0 02 1 0102-0501
199 02.737 BUSHING
(A) 		8-94381-605-0 04 1 0102-0501
199 02.737 BUSHING
(B) 		8-97855-212-0 02 1 0102-0501
203 02.726 FASTENER; HEADLAMP 8-94382-231-0 04 1 0102-0501
206 02.727 HOLDER; HEADLAMP 8-97868-156-0 02 1 0102-0501
316 02.726 ORNAMENT; HEAD LAMP 8-97863-623-0 01 1 0201-0301
316 02.726 ORNAMENT; HEAD LAMP 8-97867-775-0 01 1 0302-0311
316 02.726 ORNAMENT; HEAD LAMP
EXC. EXTERIOR ORNAMENTATION DELUXE<B57> 		8-97867-775-0 01 1 0312-0501
316 02.726 ORNAMENT; HEAD LAMP 8-97855-009-4 01 1 0201-0301
316 02.726 ORNAMENT; HEAD LAMP 8-97867-774-0 01 1 0302-0311
316 02.726 ORNAMENT; HEAD LAMP
EXC. EXTERIOR ORNAMENTATION DELUXE<B57> 		8-97867-774-0 01 1 0312-0501
316 02.726 ORNAMENT; HEAD LAMP
EXTERIOR ORNAMENTATION DELUXE<B57> 		8-97580-592-0 01 1 0312-0406
316 02.726 ORNAMENT; HEAD LAMP
EXTERIOR ORNAMENTATION DELUXE<B57> 		8-97994-793-0 01 1 0407-0501
316 02.726 ORNAMENT; HEAD LAMP
EXTERIOR ORNAMENTATION DELUXE<B57> 		8-97580-591-0 01 1 0312-0501
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-94279-391-0 04 1 0201-0202
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-97326-998-0 04 1 0203-0501
çizim 50042
136 28 137 414 70 121 241 1 60 28 75 1 4 408 182 20 23 5 420
BalonParca AdiParca NoAdetTipApplied Date
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> 		8-97189-556-0 01 1 0102-0301
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> 		8-97189-555-0 01 1 0102-0301
1 02.725 LAMP ASM; HEAD
EXC. YELLOW HEAD LAMP<T75> 		8-97855-089-4 01 1 0102-0301
1 02.725 LAMP ASM; HEAD 8-97855-089-4 01 1 0302-0501
1 02.725 LAMP ASM; HEAD 8-97376-898-2 01 1 0502-0701
1 02.725 LAMP ASM; HEAD 8-98053-914-0 01 1 0702-
1 02.725 LAMP ASM; HEAD
EXC. YELLOW HEAD LAMP<T75> 		8-97855-088-4 01 1 0102-0301
1 02.725 LAMP ASM; HEAD 8-97855-088-4 01 1 0302-0501
1 02.725 LAMP ASM; HEAD 8-97376-897-2 01 1 0502-0701
1 02.725 LAMP ASM; HEAD 8-98053-913-0 01 1 0702-
4 02.727 HEADLAMP UNIT
YELLOW HEAD LAMP<T75> (A) TYPE2 24V 75/70W 		1-82113-015-0 02 1 0102-0301
4 02.727 HEADLAMP UNIT
YELLOW HEAD LAMP<T75> (B) TYPE1 24V 70W 		1-82113-016-0 02 1 0102-0301
4 02.727 HEADLAMP UNIT
EXC. YELLOW HEAD LAMP<T75> (A) 24V 55/50W 		8-94101-734-0 02 1 0102-0301
4 02.727 HEADLAMP UNIT
(A) 24V 55/50W 		8-94101-734-0 02 1 0302-0501
4 02.727 HEADLAMP UNIT
(C) 		8-98009-822-0 01 1 0502-
4 02.727 HEADLAMP UNIT
EXC. YELLOW HEAD LAMP<T75> (B) 24V 55W 		8-94101-740-0 02 1 0102-0301
4 02.727 HEADLAMP UNIT
(B) 24V 55W 		8-94101-740-0 02 1 0302-0501
4 02.727 HEADLAMP UNIT
(C) 		8-98009-823-0 01 1 0502-
5 02.727 BULB; HEADLAMP
YELLOW HEAD LAMP<T75> 24V 70W 		8-94405-658-0 02 1 0102-0301
5 02.727 BULB; HEADLAMP
YELLOW HEAD LAMP<T75> 24V 75/70W 		8-97191-273-0 02 1 0102-0301
5 02.727 BULB; HEADLAMP
EXC. YELLOW HEAD LAMP<T75> 24V 55/50W CLEAR 		5-82193-003-0 04 1 0102-0301
5 02.727 BULB; HEADLAMP
24V 55/50W CLEAR 		5-82193-003-0 04 1 0302-0501
5 02.727 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0502-
20 02.736 SCREW; HEADLAMP
(A) M4X8 		8-94165-886-0 08 1 0102-0501
20 02.736 SCREW; HEADLAMP
(C) 		8-97378-871-0 02 1 0502-
20 02.736 SCREW; HEADLAMP
(B) 		8-97228-675-0 08 1 0102-0501
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0502-
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0102-0607
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0608-1401
28 02.762 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1402-
60 02.585 LAMP ASM; FRT COMB 8-97855-008-2 01 1 0102-0501
60 02.585 LAMP ASM; FRT COMB 8-97376-910-0 01 1 0502-0502
60 02.585 LAMP ASM; FRT COMB 8-98010-892-0 01 1 0503-
60 02.585 LAMP ASM; FRT COMB 8-97855-007-2 01 1 0102-0501
60 02.585 LAMP ASM; FRT COMB 8-97376-909-0 01 1 0502-0502
60 02.585 LAMP ASM; FRT COMB 8-98010-891-0 01 1 0503-
70 02.587 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 0102-0501
70 02.587 GROMMET; SCREW,FRT COMB LAMP
16.445 		1-09983-081-0 02 1 0502-
75 02.587 SCREW; FRT COMB LAMP
08.977 (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0102-0501
75 02.587 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0502-
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0502-
121 02.575 REFLECTOR; REFLEX 8-98013-990-0 02 1 0505-0509
136 02.726 SEAL; HEADLAMP
03.602 25X25 		8-94272-533-0 02 1 0502-
137 02.726 GROMMET; HEADLAMP 8-97581-666-0 02 1 0502-
182 02.722 GASKET; HEADLAMP 8-97378-869-0 02 1 0502-
241 02.726 GROMMET; FRT LAMP 8-94452-095-0 04 1 0102-0501
241 02.726 GROMMET; FRT LAMP 8-97380-030-0 02 1 0502-
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0502-
414 02.736 PIN; HEADLAMP,RIM 8-97581-667-0 02 1 0502-
420 02.737 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0502-
çizim 50135
60 93 75 75 315 67 419 76 68 68 75
BalonParca AdiParca NoAdetTipApplied Date
60 02.585 LAMP ASM; FRT COMB 8-97855-008-2 01 1 0102-0501
60 02.585 LAMP ASM; FRT COMB 8-97376-910-0 01 1 0502-0502
60 02.585 LAMP ASM; FRT COMB 8-98010-892-0 01 1 0503-
60 02.585 LAMP ASM; FRT COMB 8-97855-007-2 01 1 0102-0501
60 02.585 LAMP ASM; FRT COMB 8-97376-909-0 01 1 0502-0502
60 02.585 LAMP ASM; FRT COMB 8-98010-891-0 01 1 0503-
67 02.590 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 0102-0501
67 02.590 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0502-
68 08.991 BULB; FRT COMB LAMP
(A) 24V 30/10W 		1-82194-065-0 02 1 0102-0501
68 08.991 BULB; FRT COMB LAMP
(C) 24V 21/5W 		8-94125-957-0 02 1 0502-
68 08.991 BULB; FRT COMB LAMP
(B) 24V 25W 		9-82691-347-0 02 1 0102-0501
68 08.991 BULB; FRT COMB LAMP
(D) 24V 21W AMBER 		8-97323-806-0 02 1 0502-
75 02.587 SCREW; FRT COMB LAMP
08.977 (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0102-0501
75 02.587 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0502-
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0502-
76 02.589 LENS; FRT COMB LAMP 8-97378-966-0 01 1 0502-
76 02.589 LENS; FRT COMB LAMP 8-97378-965-0 01 1 0502-
93 02.892 BRACKET; SIDE COMB LAMP 8-97378-945-0 01 1 0502-
93 02.892 BRACKET; SIDE COMB LAMP 8-97378-943-0 01 1 0502-
315 02.596 HARNESS; FRT COMB LAMP 8-97378-969-0 02 1 0502-0502
315 02.596 HARNESS; FRT COMB LAMP 8-98010-916-0 02 1 0503-
419 02.589 LENS; INNER,FRT COMB LAMP 8-97378-947-0 01 1 0502-
419 02.589 LENS; INNER,FRT COMB LAMP 8-97378-946-0 01 1 0502-
çizim 51882
68 60 68 306 67 75 78 60 272 70 241 273
BalonParca AdiParca NoAdetTipApplied Date
60 02.585 LAMP ASM; FRT COMB 8-97855-008-2 01 1 0102-0501
60 02.585 LAMP ASM; FRT COMB 8-97376-910-0 01 1 0502-0502
60 02.585 LAMP ASM; FRT COMB 8-98010-892-0 01 1 0503-
60 02.585 LAMP ASM; FRT COMB 8-97855-007-2 01 1 0102-0501
60 02.585 LAMP ASM; FRT COMB 8-97376-909-0 01 1 0502-0502
60 02.585 LAMP ASM; FRT COMB 8-98010-891-0 01 1 0503-
67 02.590 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 0102-0501
67 02.590 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0502-
68 08.991 BULB; FRT COMB LAMP
(A) 24V 30/10W 		1-82194-065-0 02 1 0102-0501
68 08.991 BULB; FRT COMB LAMP
(C) 24V 21/5W 		8-94125-957-0 02 1 0502-
68 08.991 BULB; FRT COMB LAMP
(B) 24V 25W 		9-82691-347-0 02 1 0102-0501
68 08.991 BULB; FRT COMB LAMP
(D) 24V 21W AMBER 		8-97323-806-0 02 1 0502-
70 02.587 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 0102-0501
70 02.587 GROMMET; SCREW,FRT COMB LAMP
16.445 		1-09983-081-0 02 1 0502-
75 02.587 SCREW; FRT COMB LAMP
08.977 (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0102-0501
75 02.587 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0502-
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0502-
78 02.589 LENS ASM; FRT COMB 8-97855-131-0 01 1 0102-0501
78 02.589 LENS ASM; FRT COMB 8-97855-128-0 01 1 0102-0501
241 02.726 GROMMET; FRT LAMP 8-94452-095-0 04 1 0102-0501
241 02.726 GROMMET; FRT LAMP 8-97380-030-0 02 1 0502-
272 02.726 BRACKET; FRT COMB LAMP 8-97853-237-2 01 1 0102-0301
272 02.726 BRACKET; FRT COMB LAMP 8-97853-237-2 01 1 0302-0501
272 02.726 BRACKET; FRT COMB LAMP 8-97853-236-2 01 1 0102-0301
272 02.726 BRACKET; FRT COMB LAMP 8-97853-236-2 01 1 0302-0501
273 02.726 BOLT; BRKT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0102-0501
306 02.587 PIVOT; FRT COMB LAMP 8-97219-053-0 04 1 0102-0501
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
