◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10635 - FSS/FTS-LHD ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#1948) — 21 parça

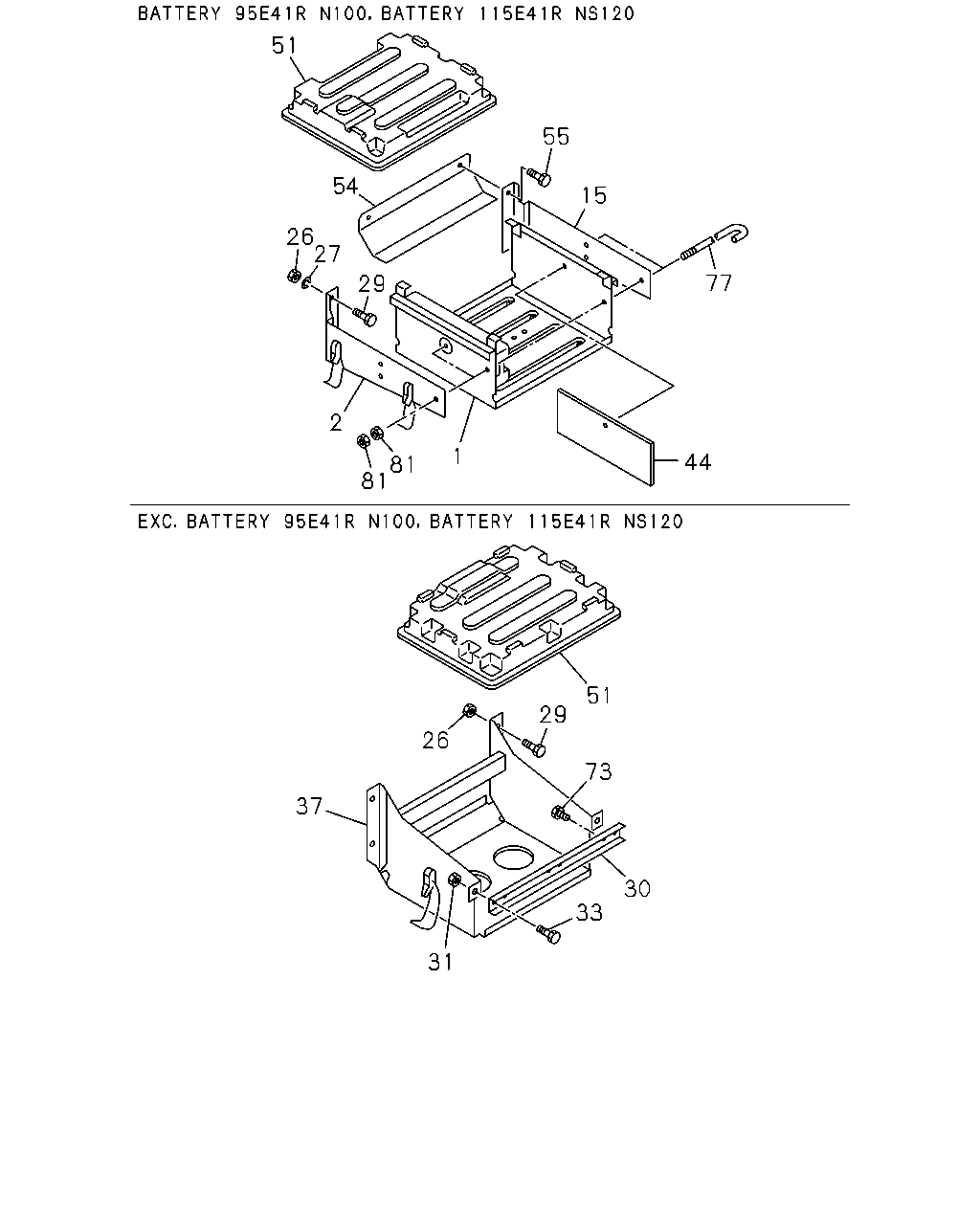

çizim 96480
51 55 54 15 26 27 77 29 2 1 44 81 81 51 29 26 73 37 30 33 31
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CARRIER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		9-53613-584-3 01 1 9207- ● ● ● ●
2 BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-205-0 01 1 9207- ● ● ● ●
15 BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-206-0 01 1 9207- ● ● ● ●
26 NUT; BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14 		9-99110-414-0 04 1 9207- ● ● ● ●
26 NUT; BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10 		9-09110-510-0 04 1 9207- ● ● ● ●
27 WASHER; LK,BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2 		9-09150-514-0 04 1 9207- ● ● ● ●
29 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X40 		0-20801-440-0 04 1 9207- ● ● ● ●
29 BOLT; BRKT TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X35 W/LK WASHER 		0-50041-035-0 04 1 9207-9307 ● ● ● ●
29 BOLT; BRKT TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X35 FLANGE 		0-28081-035-0 04 1 9308- ● ● ● ●
30 PLATE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53616-046-3 01 1 9207- ● ● ● ●
31 NUT; PLATE
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 02 1 9207- ● ● ● ●
33 BOLT; PLATE TO BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 FLANGE 		0-28080-820-0 02 1 9207- ● ● ● ●
37 BRACKET; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-354-3 01 1 9207- ● ● ● ●
44 SPACER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53619-006-0 02 1 9207- ● ● ● ●
51 COVER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53612-029-0 01 1 9207- ● ● ● ●
51 COVER; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53612-019-1 01 1 9207- ● ● ● ●
54 PROTECTOR; HEAT,BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53619-048-0 01 1 9207- ● ●
55 BOLT; HEAT PROTECTOR
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE 		0-28080-825-0 02 1 9207- ● ●
73 RUBBER; CUSHION,PLATE
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-09337-002-0 04 1 9207- ● ● ● ●
77 BOLT; BATTERY BRKT,FRT TO RR
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53616-101-0 02 1 9207- ● ● ● ●
81 NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 04 1 9207- ● ● ● ●
