Isuzu WW
▶
TRUCKS
▶
NP
▶
50915 - NP/NQ BUS LHDEXC.EU4
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶

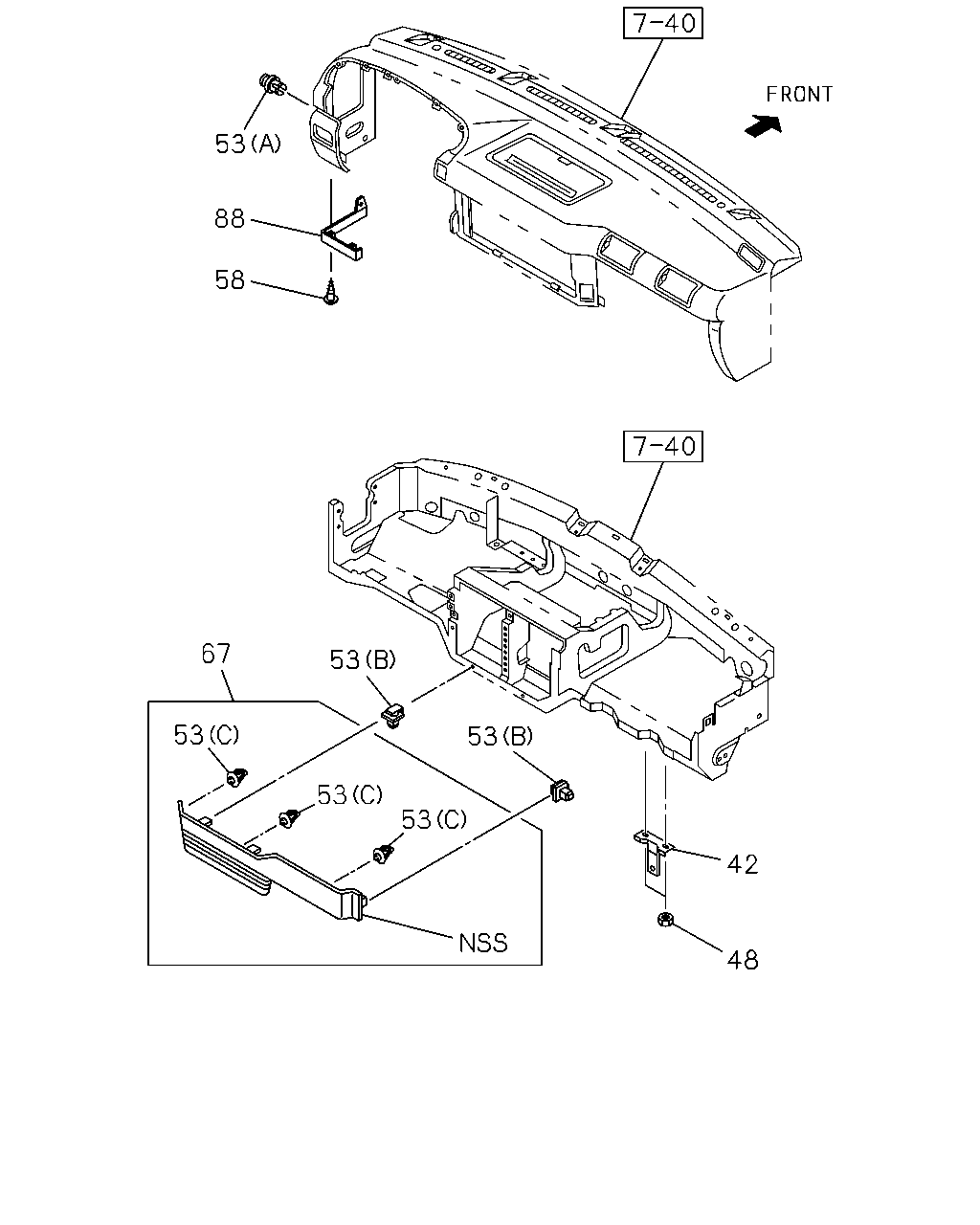

7-41 - UNDER COVER; INSTRUMENT
▶
7-41 — UNDER COVER; INSTRUMENT
(#19476) — 11 parça
53
88
58
67
53
53
53
53
53
42
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
16.110 BRACKET; UNDER COVER
8-97217-299-1
01
1
0502-0502
48
16.081 NUT; UNDER COVER
04.594 M6 FLANGE
0-91150-106-0
02
1
0502-0502
53
16.085 CLIP; UNDER COVER
06.521 (A) DARK GRAY
8-97857-542-0
01
1
0102-0501
53
16.085 CLIP; UNDER COVER
06.521 (A) DARK GRAY
8-97582-246-0
01
1
0502-
53
16.085 CLIP; UNDER COVER
16.100 (C)
8-97853-169-0
04
1
0502-0502
53
16.085 CLIP; UNDER COVER
(B)
8-97853-249-5
03
1
0502-0502
58
09.264 SCREW; UNDER COVER
16.067 M5X14
8-94279-325-0
02
1
0102-0612
58
09.264 SCREW; UNDER COVER
09.655 M5X14 TAPPING W/TORQUES
8-98061-856-0
02
1
0701-
67
16.081 COVER; UNDER,INST PNL
8-97857-188-3
01
1
0502-0502
88
16.081 COVER; UNDER,INST PNL SIDE
DARK GRAY
8-97857-539-1
01
1
0102-0501
88
16.081 COVER; UNDER,INST PNL SIDE
DARK GRAY
8-97585-432-1
01
1
0502-
