7-40 — INSTRUMENT PANEL AND BOX (#19475) — 130 parça

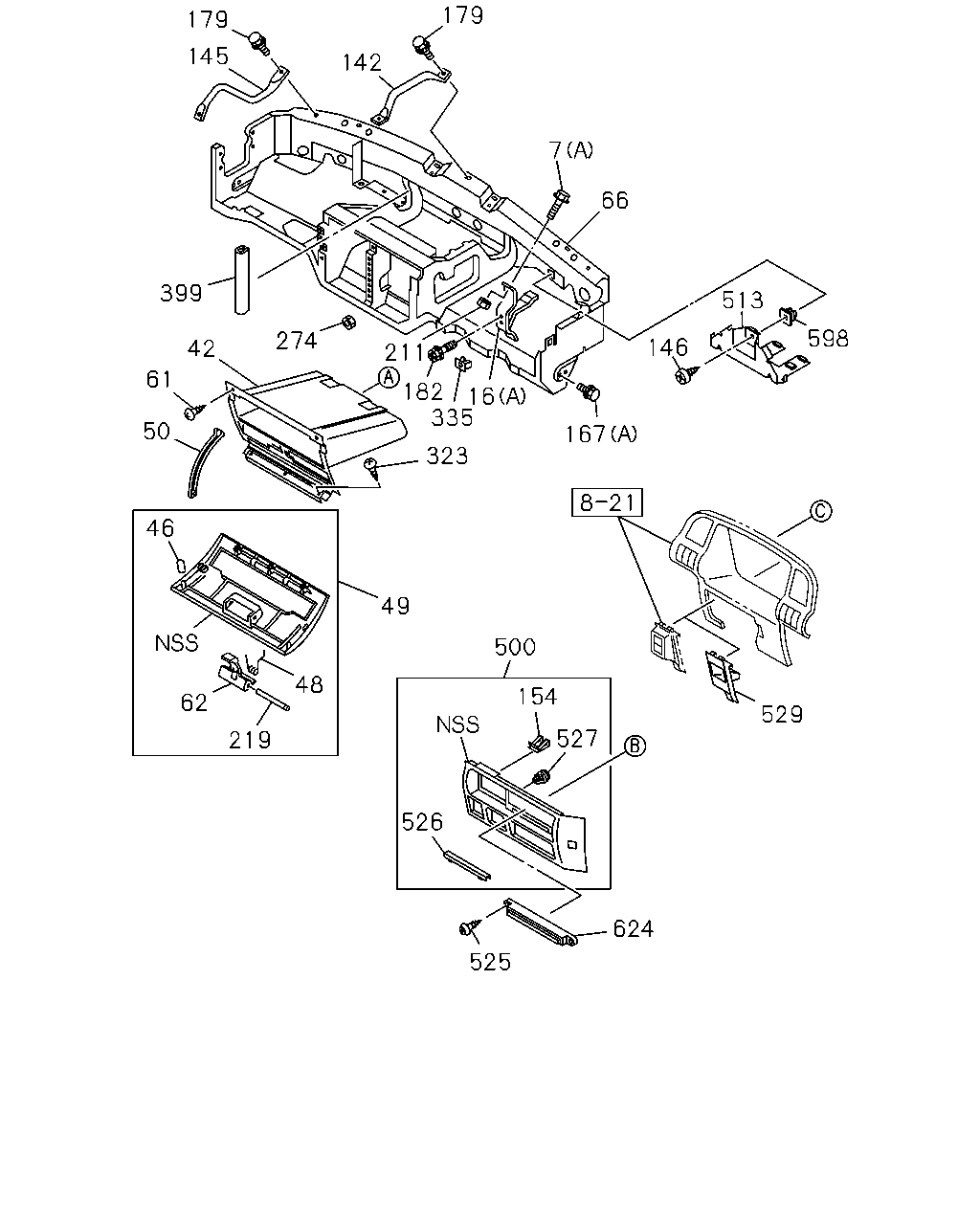

çizim 49881
179 179 145 142 7 66 399 513 598 274 146 42 211 61 182 16 335 50 167 323 46 49 500 48 154 62 529 527 219 526 624 525
BalonParca AdiParca NoAdetTipApplied Date
7 16.085 BOLT; SUPPORT,INST PNL
02.664 (A) M8X20 FLANGE 		0-28680-820-0 02 1 0102-0512
7 16.085 BOLT; SUPPORT,INST PNL
01.531 (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
7 16.085 BOLT; SUPPORT,INST PNL
(B) M8X20 FLANGE 		8-97114-431-0 04 1 0102-0106
7 16.085 BOLT; SUPPORT,INST PNL
16.090 (B) M8X23 FLANGE 		8-97264-766-0 04 1 0107-
16 16.085 BRACKET; INST PNL
(A) 		8-97853-306-7 01 1 0102-0301
16 16.085 BRACKET; INST PNL
4HF1 ENG(RLS),4HE1 ENG(RLY) (A) 		8-97853-306-7 01 1 0302-0501
16 16.085 BRACKET; INST PNL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (A) 		8-97853-306-7 01 1 0502-
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0102-
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0102-
42 16.100 BOX; GLOVE,INST PNL 8-97853-281-6 01 1 0102-
46 16.110 CAP; GLOVE BOX STOPPER 8-94270-538-0 02 1 0102-0208
48 16.110 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 0102-
49 16.110 LID; GLOVE BOX
DARK GRAY 		8-97857-496-4 01 1 0102-0501
49 16.110 LID; GLOVE BOX
DARK GRAY 		8-97582-808-4 01 1 0502-
50 16.110 STOPPER; LID,GLOVE BOX,INST CLUS 8-97853-152-0 02 1 0102-
61 16.100 SCREW; GLOVE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0102-0604
61 16.100 SCREW; GLOVE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605-0612
61 16.100 SCREW; GLOVE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0701-1101
61 16.100 SCREW; GLOVE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212
61 16.100 SCREW; GLOVE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
62 16.110 KNOB; GLOVE BOX LID
DARK GRAY 		8-97857-498-1 01 1 0102-0501
62 16.110 KNOB; GLOVE BOX LID
DARK GRAY 		8-97582-487-1 01 1 0502-
66 16.085 REINFORCEMENT; INST PANEL 8-97898-465-5 01 1 0102-0501
66 16.085 REINFORCEMENT; INST PANEL 8-97583-893-3 01 1 0502-0506
66 16.085 REINFORCEMENT; INST PANEL 8-98021-526-1 01 1 0507-
142 16.085 STAY; INST PANEL 8-97856-460-2 01 1 0102-
145 16.085 STAY; INST PANEL SIDE 8-97856-461-3 01 1 0102-
146 16.100 SCREW; TAP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0102-0308
146 16.100 SCREW; TAP
4HF1 ENG(RLS),4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0309-0310
146 16.100 SCREW; TAP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0309-0310
146 16.100 SCREW; TAP
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0311-0501
146 16.100 SCREW; TAP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0311-0501
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 03 1 0601-
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 01 1 0102-0501
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 04 1 0502-0512
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 01 1 0601-
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 03 1 0102-0501
167 16.085 BOLT; REINF TO INST
06.500 (A) M6X25 		8-94279-204-0 04 1 0102-
167 16.085 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 0102-
179 16.085 BOLT; STAY,INST PANEL
16.350 M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0102-0307
179 16.085 BOLT; STAY,INST PANEL
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 0308-0512
179 16.085 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50640-612-0 02 1 0601-
182 16.085 BOLT; BRKT,INST PANEL
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0102-
211 16.120 NUT; BRKT TO INST
04.594 M6 FLANGE 		0-91150-106-0 02 1 0102-0602
211 16.120 NUT; BRKT TO INST
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-
219 09.744 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 0102-
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 0102-
323 16.110 SCREW; GLOVE BOX LK
16.067 M5X14 		8-94279-325-0 03 1 0102-0612
323 16.110 SCREW; GLOVE BOX LK
09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 03 1 0701-
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0102-
399 16.085 FINISHER; HARNESS
03.885 L=50 		8-94270-377-1 01 1 0102-
500 16.081 CLUSTER; INST CENTER
DARK GRAY 		8-97857-501-8 01 1 0102-0501
500 16.081 CLUSTER; INST CENTER
DARK GRAY 		8-97585-434-8 01 1 0502-
513 16.120 BRACKET; RELAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97859-391-2 01 1 0102-0308
513 16.120 BRACKET; RELAY
4HF1 ENG(RLS),4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97859-391-2 01 1 0309-0310
513 16.120 BRACKET; RELAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97859-391-2 01 1 0309-0310
513 16.120 BRACKET; RELAY
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 		8-97859-391-2 01 1 0311-0501
513 16.120 BRACKET; RELAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97859-391-2 01 1 0311-0501
525 16.100 SCREW; CUP STAND
16.067 M5X14 		8-94279-325-0 02 1 0102-0612
525 16.100 SCREW; CUP STAND
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101
525 16.100 SCREW; CUP STAND
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
525 16.100 SCREW; CUP STAND
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97857-503-1 01 1 0102-0501
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97582-490-1 01 1 0502-
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 0102-
529 16.100 POCKET; COIN
BLACK 		8-97867-543-5 01 1 0102-
598 09.262 GROMMET; SCREW
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 0102-0308
598 09.262 GROMMET; SCREW
4HF1 ENG(RLS),4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 0309-0310
598 09.262 GROMMET; SCREW
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 0309-0310
598 09.262 GROMMET; SCREW
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 0311-0501
598 09.262 GROMMET; SCREW
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 0311-0501
624 16.085 COVER; CUP STAND 1-72438-139-1 01 1 0102-

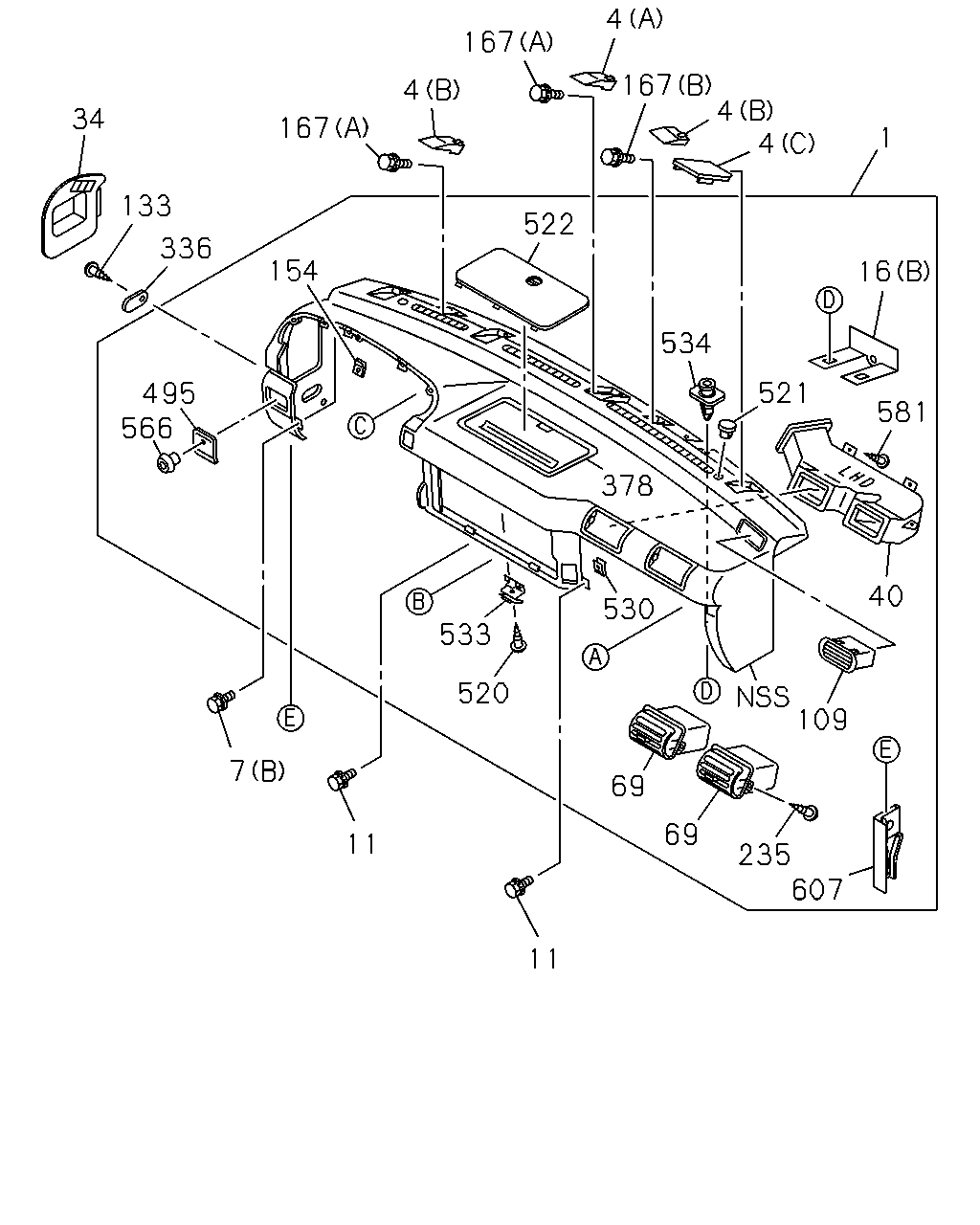

çizim 49929
4 167 167 4 4 4 34 167 1 133 522 336 154 16 534 521 495 566 581 378 40 530 533 520 109 7 69 69 11 235 607 11
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
DARK GRAY 		8-97195-962-1 01 1 0102-0501
1 16.080 PANEL; INST
DARK GRAY 		8-97585-435-1 01 1 0502-
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97857-523-3 02 1 0102-0501
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97582-215-3 02 1 0502-
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-525-3 01 1 0102-0501
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97582-217-3 01 1 0502-
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97857-527-1 01 1 0102-0501
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97582-813-1 01 1 0502-
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-524-3 01 1 0102-0501
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97582-216-3 01 1 0502-
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97857-526-1 01 1 0102-0501
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97582-812-1 01 1 0502-
7 16.085 BOLT; SUPPORT,INST PNL
02.664 (A) M8X20 FLANGE 		0-28680-820-0 02 1 0102-0512
7 16.085 BOLT; SUPPORT,INST PNL
01.531 (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
7 16.085 BOLT; SUPPORT,INST PNL
(B) M8X20 FLANGE 		8-97114-431-0 04 1 0102-0106
7 16.085 BOLT; SUPPORT,INST PNL
16.090 (B) M8X23 FLANGE 		8-97264-766-0 04 1 0107-
11 16.090 BOLT; INST PNL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0102-1210
11 16.090 BOLT; INST PNL
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 1211-
16 16.085 BRACKET; INST PNL
(A) 		8-97853-306-7 01 1 0102-0301
16 16.085 BRACKET; INST PNL
4HF1 ENG(RLS),4HE1 ENG(RLY) (A) 		8-97853-306-7 01 1 0302-0501
16 16.085 BRACKET; INST PNL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (A) 		8-97853-306-7 01 1 0502-
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0102-
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0102-
34 16.085 LID; OIL TANK
DARK GRAY 		8-97857-499-5 01 1 0102-0501
34 16.085 LID; OIL TANK
DARK GRAY 		8-97585-433-5 01 1 0502-
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-699-0 01 1 0102-
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97890-631-0 02 1 0102-0501
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97582-612-0 02 1 0502-
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97857-530-0 01 1 0102-0501
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97585-436-0 01 1 0502-
133 16.081 SCREW; COVER,INST PNL
09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 0102-0604
133 16.081 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74160-520-0 02 1 0605-0612
133 16.081 SCREW; COVER,INST PNL
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0701-
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 03 1 0601-
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 01 1 0102-0501
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 04 1 0502-0512
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 01 1 0601-
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 03 1 0102-0501
167 16.085 BOLT; REINF TO INST
06.500 (A) M6X25 		8-94279-204-0 04 1 0102-
167 16.085 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 0102-
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 0102-
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97857-528-4 02 1 0102-0501
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97582-218-4 02 1 0502-
378 09.743 SEAL; INST PANEL 8-97209-399-0 01 1 0102-
495 09.743 BEZEL; SW
DARK GRAY 		8-97857-548-4 01 1 0102-0501
495 09.743 BEZEL; SW
DARK GRAY 		8-97582-214-4 01 1 0502-
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 03 1 0102-
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97857-529-2 01 1 0102-0501
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97582-334-2 01 1 0502-
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97857-520-6 01 1 0102-0501
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97582-494-6 01 1 0502-
530 16.100 CLIP; GLOVE BOX 8-97856-135-0 01 1 0102-
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 0102-
534 16.100 CLIP; BRKT 8-97856-276-0 04 1 0102-
566 16.085 PLUG; HOLE
DARK GRAY 		8-97868-413-0 01 1 0102-0501
566 16.085 PLUG; HOLE
DARK GRAY 		8-97582-247-0 01 1 0502-
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 03 1 0102-
607 16.085 FIXING ASM; CLIP INST TO M/CSTR 8-97857-893-2 01 1 0102-
