Sayfa 7-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 50915 - NP/NQ BUS LHDEXC.EU4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶

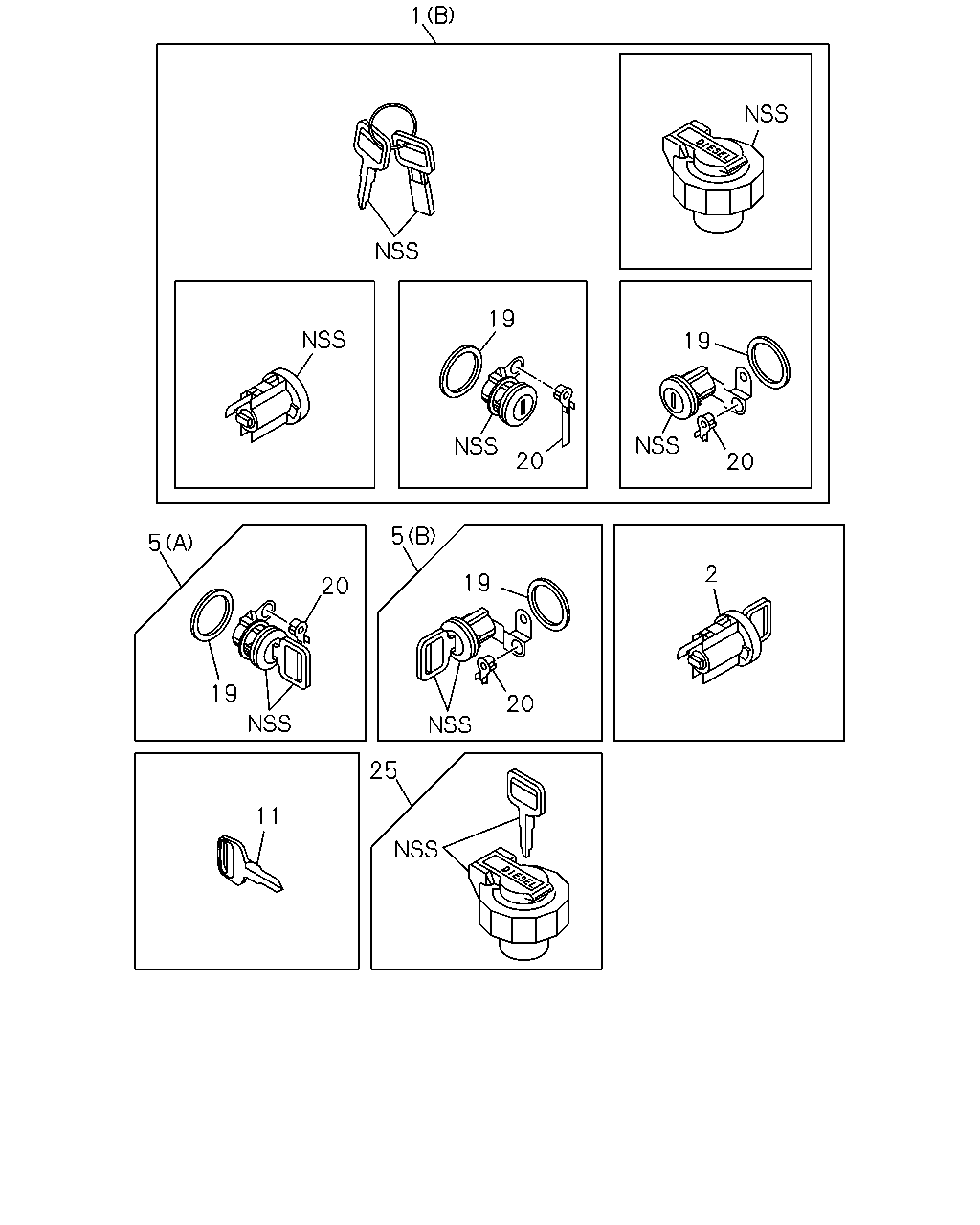

7-30 — LOCK CYLINDER SET (#19474) — 57 parça

1 19 19 20 20 5 5 2 19 20 19 20 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.188 CYLINDER SET; CAR LOCK MARK VEHICLE NAME<EK7> FUEL TANK CAP W/LOCK<N05> (B)	8-97092-406-1	01	1	0701-
1	02.188 CYLINDER SET; CAR LOCK MARK VEHICLE NAME<EK7> EXC. FUEL TANK CAP W/LOCK<N05> (A)	8-97092-405-1	01	1	0701-
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> (B)	8-97035-294-1	01	1	0102-0610
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. MARK VEHICLE NAME<EK7> (B)	8-97035-294-1	01	1	0611-
1	02.188 CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05> (A)	8-97035-293-1	01	1	0102-0610
1	02.188 CYLINDER SET; CAR LOCK EXC. MARK VEHICLE NAME<EK7>,FUEL TANK CAP W/LOCK<N05> (A)	8-97035-293-1	01	1	0611-
2	02.188 BARREL ASM; W/KEY,STRG LOCK MARK VEHICLE NAME<EK7>	8-97095-869-0	01	1	0701-
2	02.188 BARREL ASM; W/KEY,STRG LOCK	8-97095-682-2	01	1	0102-0610
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. MARK VEHICLE NAME<EK7>	8-97095-682-2	01	1	0611-
5	16.328 CYLINDER ASM; DOOR LOCK MARK VEHICLE NAME<EK7> (B)	8-97095-870-0	01	1	0701-
5	16.328 CYLINDER ASM; DOOR LOCK MARK VEHICLE NAME<EK7> (A)	8-97095-871-0	01	1	0701-
5	16.328 CYLINDER ASM; DOOR LOCK (A)	8-97095-685-2	01	1	0102-0610
5	16.328 CYLINDER ASM; DOOR LOCK EXC. MARK VEHICLE NAME<EK7> (A)	8-97095-685-2	01	1	0611-
5	16.328 CYLINDER ASM; DOOR LOCK (B)	8-97095-684-2	01	1	0102-0610
5	16.328 CYLINDER ASM; DOOR LOCK EXC. MARK VEHICLE NAME<EK7> (B)	8-97095-684-2	01	1	0611-
11	02.187 KEY; BLANK MARK VEHICLE NAME<EK7> WO/NOTCH	8-97108-649-0	AR	1	0701-
11	02.187 KEY; BLANK WO/NOTCH	8-97076-337-0	AR	1	0102-0610
11	02.187 KEY; BLANK EXC. MARK VEHICLE NAME<EK7> WO/NOTCH	8-97076-337-0	AR	1	0611-
19	16.328 GASKET; DOOR LOCK CYL	8-94128-739-0	02	1	0102-0610
19	16.328 GASKET; DOOR LOCK CYL EXC. MARK VEHICLE NAME<EK7>	8-94128-739-0	02	1	0611-0612
19	16.328 GASKET; DOOR LOCK CYL	8-94128-739-0	02	1	0701-
20	16.328 SNAP; DOOR LOCK CYL 10.474 BROWN	8-97040-453-0	01	1	0102-0610
20	16.328 SNAP; DOOR LOCK CYL EXC. MARK VEHICLE NAME<EK7> 10.474 BROWN	8-97040-453-0	01	1	0611-0612
20	16.328 SNAP; DOOR LOCK CYL 10.474 BROWN	8-97040-453-0	01	1	0701-
20	16.328 SNAP; DOOR LOCK CYL 10.474 YELLOW	8-97040-452-0	01	1	0102-0610
20	16.328 SNAP; DOOR LOCK CYL EXC. MARK VEHICLE NAME<EK7> 10.474 YELLOW	8-97040-452-0	01	1	0611-0612
20	16.328 SNAP; DOOR LOCK CYL 10.474 YELLOW	8-97040-452-0	01	1	0701-

1 19 19 20 20 5 5 2 19 20 19 20 25 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.188 CYLINDER SET; CAR LOCK MARK VEHICLE NAME<EK7> FUEL TANK CAP W/LOCK<N05> (B)	8-97092-406-1	01	1	0701-
1	02.188 CYLINDER SET; CAR LOCK MARK VEHICLE NAME<EK7> EXC. FUEL TANK CAP W/LOCK<N05> (A)	8-97092-405-1	01	1	0701-
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> (B)	8-97035-294-1	01	1	0102-0610
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. MARK VEHICLE NAME<EK7> (B)	8-97035-294-1	01	1	0611-
1	02.188 CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05> (A)	8-97035-293-1	01	1	0102-0610
1	02.188 CYLINDER SET; CAR LOCK EXC. MARK VEHICLE NAME<EK7>,FUEL TANK CAP W/LOCK<N05> (A)	8-97035-293-1	01	1	0611-
2	02.188 BARREL ASM; W/KEY,STRG LOCK MARK VEHICLE NAME<EK7>	8-97095-869-0	01	1	0701-
2	02.188 BARREL ASM; W/KEY,STRG LOCK	8-97095-682-2	01	1	0102-0610
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. MARK VEHICLE NAME<EK7>	8-97095-682-2	01	1	0611-
5	16.328 CYLINDER ASM; DOOR LOCK MARK VEHICLE NAME<EK7> (B)	8-97095-870-0	01	1	0701-
5	16.328 CYLINDER ASM; DOOR LOCK MARK VEHICLE NAME<EK7> (A)	8-97095-871-0	01	1	0701-
5	16.328 CYLINDER ASM; DOOR LOCK (A)	8-97095-685-2	01	1	0102-0610
5	16.328 CYLINDER ASM; DOOR LOCK EXC. MARK VEHICLE NAME<EK7> (A)	8-97095-685-2	01	1	0611-
5	16.328 CYLINDER ASM; DOOR LOCK (B)	8-97095-684-2	01	1	0102-0610
5	16.328 CYLINDER ASM; DOOR LOCK EXC. MARK VEHICLE NAME<EK7> (B)	8-97095-684-2	01	1	0611-
11	02.187 KEY; BLANK MARK VEHICLE NAME<EK7> WO/NOTCH	8-97108-649-0	AR	1	0701-
11	02.187 KEY; BLANK WO/NOTCH	8-97076-337-0	AR	1	0102-0610
11	02.187 KEY; BLANK EXC. MARK VEHICLE NAME<EK7> WO/NOTCH	8-97076-337-0	AR	1	0611-
19	16.328 GASKET; DOOR LOCK CYL	8-94128-739-0	02	1	0102-0610
19	16.328 GASKET; DOOR LOCK CYL EXC. MARK VEHICLE NAME<EK7>	8-94128-739-0	02	1	0611-0612
19	16.328 GASKET; DOOR LOCK CYL	8-94128-739-0	02	1	0701-
20	16.328 SNAP; DOOR LOCK CYL 10.474 BROWN	8-97040-453-0	01	1	0102-0610
20	16.328 SNAP; DOOR LOCK CYL EXC. MARK VEHICLE NAME<EK7> 10.474 BROWN	8-97040-453-0	01	1	0611-0612
20	16.328 SNAP; DOOR LOCK CYL 10.474 BROWN	8-97040-453-0	01	1	0701-
20	16.328 SNAP; DOOR LOCK CYL 10.474 YELLOW	8-97040-452-0	01	1	0102-0610
20	16.328 SNAP; DOOR LOCK CYL EXC. MARK VEHICLE NAME<EK7> 10.474 YELLOW	8-97040-452-0	01	1	0611-0612
20	16.328 SNAP; DOOR LOCK CYL 10.474 YELLOW	8-97040-452-0	01	1	0701-
25	03.028 CAP; FUEL TANK,W/KEY MARK VEHICLE NAME<EK7> FUEL TANK CAP W/LOCK<N05>	8-97095-872-0	01	1	0701-
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05>	8-97095-686-2	01	1	0102-0610
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> EXC. MARK VEHICLE NAME<EK7>	8-97095-686-2	01	1	0611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
