Isuzu WW
▶
TRUCKS
▶
NP
▶
50915 - NP/NQ BUS LHDEXC.EU4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

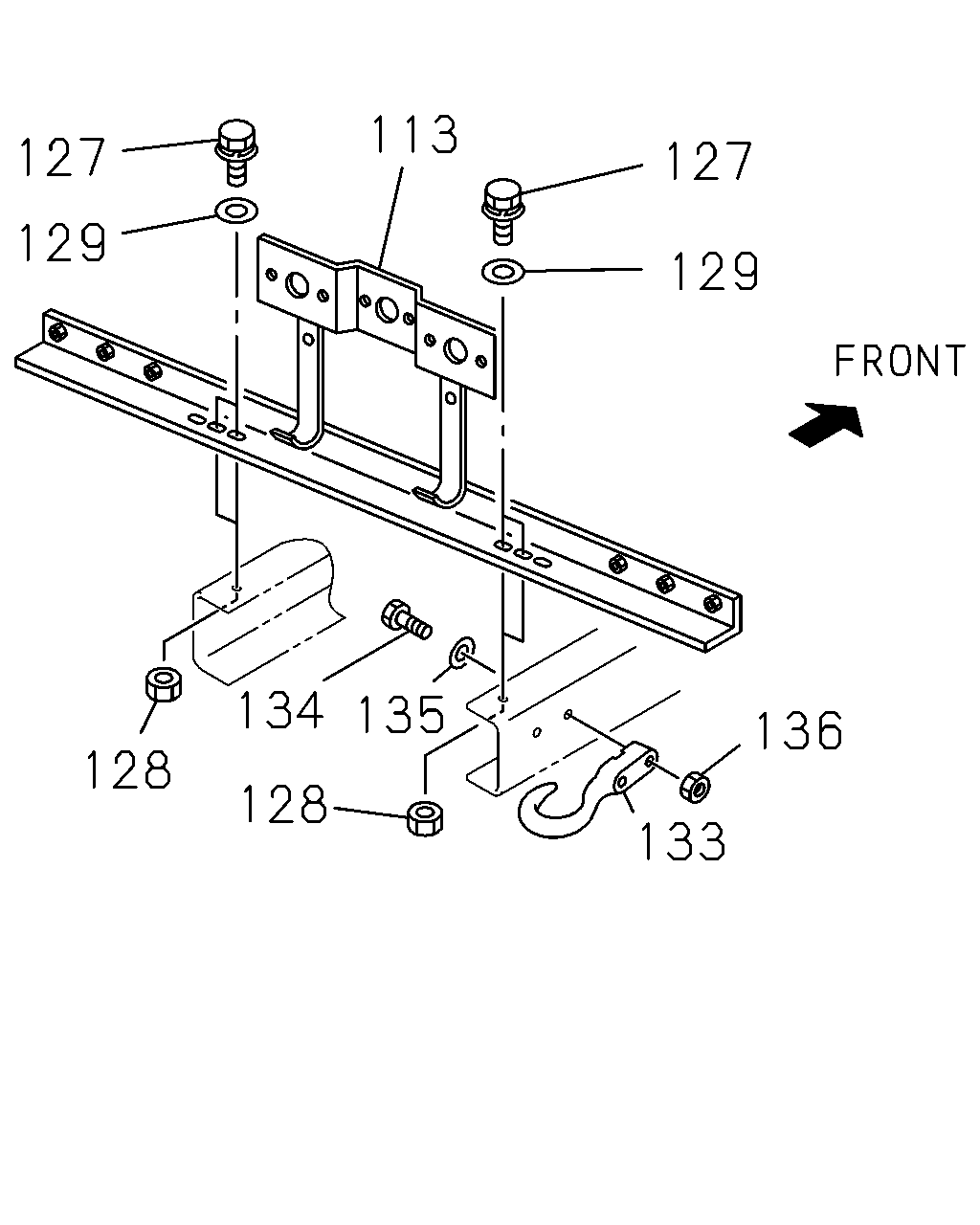

6-90 — REAR BUMPER
(#19471) — 16 parça
113
127
127
129
129
134
135
136
128
133
128
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
113
07.800 BRACKET; LICENSE PLATE
FRAME STRAIGHT TYPE<7KJ> 02.662
8-97122-800-2
01
1
0102-
127
02.662 BOLT; CROSS PLATE
03.483 M8X40 W/LK&PL WASHER
0-50140-840-0
02
1
0102-0403
127
02.662 BOLT; CROSS PLATE
03.704 M8X40 FLANGE
0-28680-840-0
02
1
0404-0408
127
02.662 BOLT; CROSS PLATE
03.704 M8X40 FLANGE
0-28680-840-0
02
1
0409-0512
127
02.662 BOLT; CROSS PLATE
00.685 M8X40 FLANGE
0-28650-840-0
02
1
0601-
128
02.662 NUT; CROSS PLATE
02.559 M8
9-09110-408-0
02
1
0102-0408
128
02.662 NUT; CROSS PLATE
02.559 M8
9-09110-408-0
02
1
0409-0512
128
02.662 NUT; CROSS PLATE
02.334 M8
0-91110-508-0
02
1
0601-0709
128
02.662 NUT; CROSS PLATE
01.062 M8 FLANGE
0-91180-108-0
02
1
0710-
129
03.162 WASHER; PL,CROSS PLATE
02.334 ID=8.4 OD=26
9-09164-808-0
02
1
0102-0408
129
03.162 WASHER; PL,CROSS PLATE
02.334 ID=8.4 OD=26
9-09164-808-0
02
1
0409-0605
129
03.162 WASHER; PL,CROSS PLATE
03.706 ID=8.4 OD=26
0-91614-808-0
02
1
0606-0709
133
07.112 HOOK
FRAME STRAIGHT TYPE<7KJ>
8-97122-535-0
01
1
0201-0201
134
07.068 BOLT; HOOK
07.039 M14X50
0-10806-450-0
02
1
0201-0201
135
07.068 WASHER; LK,HOOK
05.422 ID=14.2
9-09150-814-0
02
1
0201-0201
136
07.068 NUT; HOOK
07.529 M14
9-99110-514-0
02
1
0201-0201
