6-47 — MUD GUARD AND INSULATOR (#19466) — 80 parça

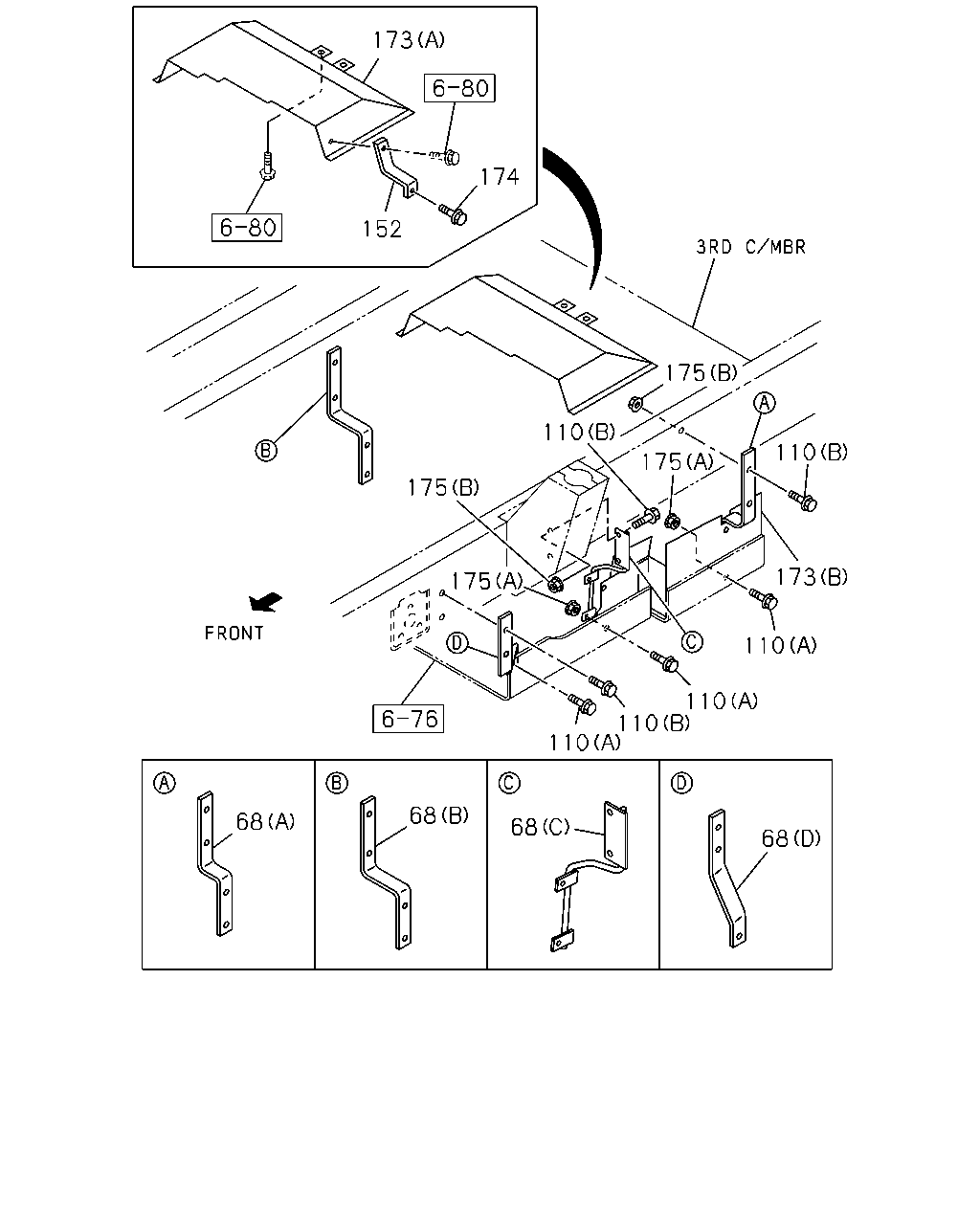

173 174 152 175 110 110 175 175 173 175 110 110 110 110 68 68 68 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
68	08.155 STAY; COVER 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (A)	8-97180-878-0	01	1	0502-0506
68	08.155 STAY; COVER 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 16.549 (A)	8-97180-878-0	01	1	0507-
68	08.155 STAY; COVER 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D)	8-97180-983-1	01	1	0502-0506
68	08.155 STAY; COVER 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 16.549 (D)	8-97180-983-1	01	1	0507-
68	08.155 STAY; COVER 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97216-695-2	01	1	0502-0506
68	08.155 STAY; COVER 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) (C)	8-97216-695-2	01	1	0507-
68	08.155 STAY; COVER 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (A)	8-97180-879-0	01	1	0502-0506
68	08.155 STAY; COVER 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 16.549 (A)	8-97180-879-0	01	1	0507-
68	08.155 STAY; COVER 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (B)	8-97180-880-0	01	1	0502-0506
68	08.155 STAY; COVER 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 16.549 (B)	8-97180-880-0	01	1	0507-
68	08.155 STAY; COVER 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D)	8-97180-984-1	01	1	0502-0506
68	08.155 STAY; COVER 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 16.549 (D)	8-97180-984-1	01	1	0507-
110	08.155 BOLT; BRKT 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE	0-28680-825-0	09	1	0502-0506
110	08.155 BOLT; BRKT 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 02.559 (A) M8X25 FLANGE	0-28680-825-0	09	1	0507-0512
110	08.155 BOLT; BRKT 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 06.216 (A) M8X25 FLANGE	0-28650-825-0	09	1	0601-
110	08.155 BOLT; BRKT 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 (B) M10X30 FLANGE	0-28681-030-0	10	1	0502-0506
110	08.155 BOLT; BRKT 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 03.405 (B) M10X30 FLANGE	0-28681-030-0	10	1	0507-0512
110	08.155 BOLT; BRKT 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 00.029 (B) M10X30 FLANGE	0-28651-030-0	10	1	0601-
152	04.275 BRACKET; PANEL,TRANS 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.545	8-97180-799-0	01	1	0502-0506
152	04.275 BRACKET; PANEL,TRANS 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 16.545	8-97180-799-0	01	1	0507-
152	04.275 BRACKET; PANEL,TRANS 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.545	8-97180-800-0	01	1	0502-0505
152	04.275 BRACKET; PANEL,TRANS 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF>	8-98020-077-0	01	1	0506-0506
152	04.275 BRACKET; PANEL,TRANS 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV)	8-98020-077-0	01	1	0507-
173	08.155 COVER; TRANS SIDE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97180-795-2	01	1	0502-0506
173	08.155 COVER; TRANS SIDE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) (A)	8-97180-795-2	01	1	0507-
173	08.155 COVER; TRANS SIDE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97205-594-0	01	1	0502-0506
173	08.155 COVER; TRANS SIDE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) (B)	8-97205-594-0	01	1	0507-
173	08.155 COVER; TRANS SIDE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97205-593-0	01	1	0502-0506
173	08.155 COVER; TRANS SIDE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) (B)	8-97205-593-0	01	1	0507-
174	08.155 BOLT; STAY FIX 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0506
174	08.155 BOLT; STAY FIX 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
174	08.155 BOLT; STAY FIX 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
174	08.155 BOLT; STAY FIX 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0502-0506
174	08.155 BOLT; STAY FIX 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0507-0512
174	08.155 BOLT; STAY FIX 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0601-
175	08.155 NUT; STAY FIX 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 (A) M8 FLANGE	0-91150-108-0	03	1	0502-0506
175	08.155 NUT; STAY FIX 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 07.633 (A) M8 FLANGE	0-91150-108-0	03	1	0507-0602
175	08.155 NUT; STAY FIX 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	0603-
175	08.155 NUT; STAY FIX 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 04.785 (B) M10 FLANGE	0-91150-110-0	06	1	0502-0506
175	08.155 NUT; STAY FIX 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 04.785 (B) M10 FLANGE	0-91150-110-0	06	1	0507-0602
175	08.155 NUT; STAY FIX 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 03.162 (B) M10 FLANGE	0-91180-110-0	06	1	0603-

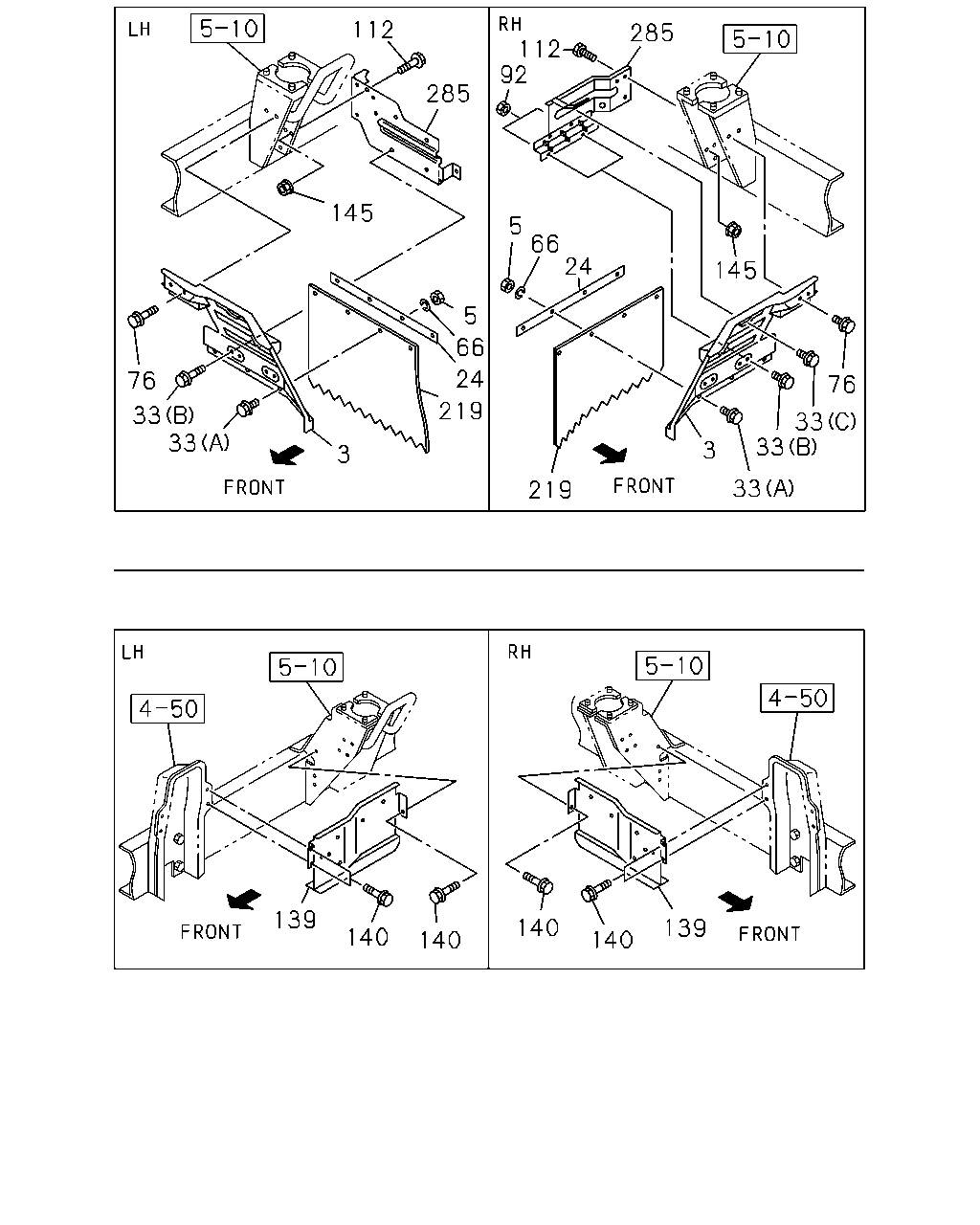

112 92 112 285 285 145 5 66 24 145 5 66 24 76 76 219 33 33 33 33 3 3 33 219 139 140 139 140 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	08.153 GUARD; MUD,RR	8-97048-729-1	01	1	0102-0312
3	08.153 GUARD; MUD,RR	8-97366-988-1	01	1	0401-
3	08.153 GUARD; MUD,RR	8-97048-728-3	01	1	0102-
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	0102-0512
5	08.155 NUT; FLAP RUBBER M6	0-91111-506-0	08	1	0601-
24	08.155 PLATE; MUD COVER	8-97095-186-0	02	1	0102-
33	08.155 BOLT; MUD COVER 00.738 (A) M6X16 FLANGE	0-28080-616-0	08	1	0102-0512
33	08.155 BOLT; MUD COVER 09.242 (A) M6X16 FLANGE	0-28050-616-0	08	1	0601-
33	08.155 BOLT; MUD COVER 07.010 (B) M8X20 FLANGE	0-28080-820-0	05	1	0102-0512
33	08.155 BOLT; MUD COVER 04.338 (B) M8X20 FLANGE	0-28050-820-0	05	1	0601-
33	08.155 BOLT; MUD COVER 16.320 (C) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0102-0805
33	08.155 BOLT; MUD COVER 16.085 (C) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	0102-0603
66	08.155 WASHER; LK ID=6.1	0-91510-506-0	08	1	0604-
76	08.155 BOLT; MUD GUARD 07.010 M8X20 FLANGE	0-28080-820-0	04	1	0102-0512
76	08.155 BOLT; MUD GUARD 04.338 M8X20 FLANGE	0-28050-820-0	04	1	0601-
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0102-0501
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602
92	08.155 NUT; MUD COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0102-0501
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0502-0512
112	08.155 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0601-
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ>	8-97171-996-0	01	1	0102-0501
139	08.153 PANEL; SIDE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97171-996-0	01	1	0502-
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ>	8-97188-736-0	01	1	0102-0501
139	08.153 PANEL; SIDE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97188-736-0	01	1	0502-
140	08.155 BOLT; SIDE PANEL 04.595 M8X20 FLANGE	0-28480-820-0	06	1	0102-0501
140	08.155 BOLT; SIDE PANEL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.595 M8X20 FLANGE	0-28480-820-0	06	1	0502-0512
140	08.155 BOLT; SIDE PANEL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 07.242 M8X20 FLANGE	0-28450-820-0	06	1	0601-
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	0102-0602
145	08.155 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	06	1	0603-
219	08.155 FLAP; MUD GUARD	8-97218-080-0	02	1	0102-
285	08.155 BRACKET; MUD COVER	8-97035-778-4	01	1	0102-0501
285	08.155 BRACKET; MUD COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97035-778-4	01	1	0502-
285	08.155 BRACKET; MUD COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97035-780-4	01	1	0102-0501
285	08.155 BRACKET; MUD COVER 4HE1-TCS ENG(RDS)	8-97035-780-4	01	1	0502-
285	08.155 BRACKET; MUD COVER 4HF1 ENG(RLS)	8-97092-037-2	01	1	0102-0501
285	08.155 BRACKET; MUD COVER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97092-037-2	01	1	0102-0501
285	08.155 BRACKET; MUD COVER 4HF1 ENG(RLS)	8-97092-037-2	01	1	0502-
