◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 50915 - NP/NQ BUS LHDEXC.EU4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#19464) — 89 parça

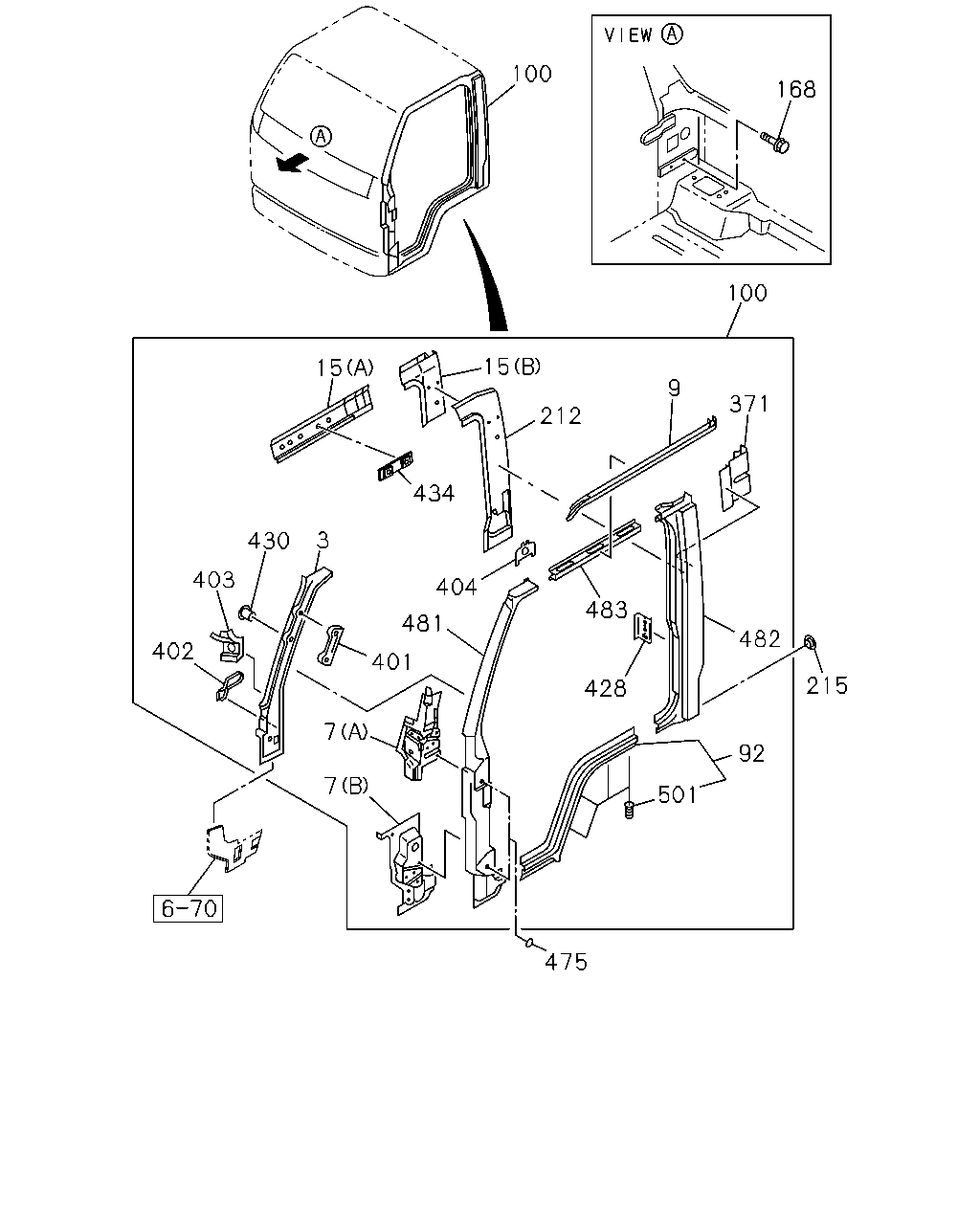

çizim 49838
100 168 100 15 15 9 371 212 434 3 430 403 404 483 481 482 402 401 215 428 7 92 7 501 475
BalonParca AdiParca NoAdetTipApplied Date
3 16.592 PANEL; CLOSING,FRT PILLAR
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97851-358-4 01 1 0102-0501
3 16.592 PANEL; CLOSING,FRT PILLAR
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97851-358-4 01 1 0502-
3 16.592 PANEL; CLOSING,FRT PILLAR
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97851-357-4 01 1 0102-0501
3 16.592 PANEL; CLOSING,FRT PILLAR
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97851-357-4 01 1 0502-
7 16.570 REINFORCEMENT; HINGE
4HF1 ENG(RLS),4HE1 ENG(RLY) (B) LOWER 		8-97851-074-5 01 1 0102-0501
7 16.570 REINFORCEMENT; HINGE
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (B) LOWER 		8-97851-074-5 01 1 0502-
7 16.570 REINFORCEMENT; HINGE
4HF1 ENG(RLS),4HE1 ENG(RLY) (A) UPPER 		8-97851-354-1 01 1 0102-0501
7 16.570 REINFORCEMENT; HINGE
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (A) UPPER 		8-97851-354-2 01 1 0502-
7 16.570 REINFORCEMENT; HINGE
4HF1 ENG(RLS),4HE1 ENG(RLY) (B) LOWER 		8-97851-073-5 01 1 0102-0501
7 16.570 REINFORCEMENT; HINGE
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (B) LOWER 		8-97851-073-5 01 1 0502-
7 16.570 REINFORCEMENT; HINGE
4HF1 ENG(RLS),4HE1 ENG(RLY) (A) UPPER 		8-97851-353-1 01 1 0102-0501
7 16.570 REINFORCEMENT; HINGE
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (A) UPPER 		8-97851-353-2 01 1 0502-
9 16.592 MOLDING; DRIP,CAB SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97851-020-9 01 1 0102-0501
9 16.592 MOLDING; DRIP,CAB SIDE
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97851-020-9 01 1 0502-1106
9 16.592 MOLDING; DRIP,CAB SIDE
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-98177-624-0 01 1 1107-
9 16.592 MOLDING; DRIP,CAB SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97851-019-9 01 1 0102-0501
9 16.592 MOLDING; DRIP,CAB SIDE
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97851-019-9 01 1 0502-1106
9 16.592 MOLDING; DRIP,CAB SIDE
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-98177-623-0 01 1 1107-
15 16.592 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) (A) 		8-97851-335-4 01 1 0102-0501
15 16.592 PANEL; CANT RAIL SIDE
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (A) 		8-97851-335-5 01 1 0502-
15 16.592 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) (B) 		8-97851-337-5 01 1 0102-0501
15 16.592 PANEL; CANT RAIL SIDE
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (B) 		8-97851-337-6 01 1 0502-
15 16.592 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) (A) 		8-97851-334-4 01 1 0102-0501
15 16.592 PANEL; CANT RAIL SIDE
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (A) 		8-97851-334-5 01 1 0502-
15 16.592 PANEL; CANT RAIL SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) (B) 		8-97851-336-5 01 1 0102-0501
15 16.592 PANEL; CANT RAIL SIDE
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (B) 		8-97851-336-6 01 1 0502-
92 16.570 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0102-
92 16.570 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0102-
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97890-396-1 01 1 0102-0501
100 16.570 PANEL ASM; BODY SIDE
4HE1-TCS ENG(RDS) 		8-97890-396-1 01 1 0502-
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) 		8-97890-400-1 01 1 0102-0501
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97890-400-1 01 1 0102-0501
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS) 		8-97890-400-1 01 1 0502-
100 16.570 PANEL ASM; BODY SIDE
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97890-395-1 01 1 0102-0501
100 16.570 PANEL ASM; BODY SIDE
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97890-395-1 01 1 0502-
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0102-
212 16.588 CLOSING; PILLAR
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97890-453-2 01 1 0102-0501
212 16.588 CLOSING; PILLAR
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97890-453-4 01 1 0502-
212 16.588 CLOSING; PILLAR
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97890-452-2 01 1 0102-0501
212 16.588 CLOSING; PILLAR
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97890-452-4 01 1 0502-
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 0102-
371 16.570 PATCH; SEAT BELT
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97851-049-1 01 1 0102-0501
371 16.570 PATCH; SEAT BELT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97851-049-1 01 1 0502-
371 16.570 PATCH; SEAT BELT
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97851-048-1 01 1 0102-0501
371 16.570 PATCH; SEAT BELT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97851-048-1 01 1 0502-
401 16.592 PATCH; CLOSING,FRT PILLAR
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97851-301-1 01 1 0102-0501
401 16.592 PATCH; CLOSING,FRT PILLAR
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97851-301-1 01 1 0102-0501
401 16.592 PATCH; CLOSING,FRT PILLAR
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97851-301-1 01 1 0502-
401 16.592 PATCH; CLOSING,FRT PILLAR
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97851-301-1 01 1 0502-
402 16.085 BRACKET; SUPPORT
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97851-086-1 01 1 0102-0501
402 16.085 BRACKET; SUPPORT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97851-086-1 01 1 0502-
402 16.085 BRACKET; SUPPORT
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97851-085-1 01 1 0102-0501
402 16.085 BRACKET; SUPPORT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97851-085-1 01 1 0502-
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97851-070-0 01 1 0102-0501
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97851-070-0 01 1 0502-
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97851-069-0 01 1 0102-0501
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97851-069-0 01 1 0502-
404 16.570 BRACKET
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97890-317-1 01 1 0102-0501
404 16.570 BRACKET
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97890-317-1 01 1 0502-
404 16.570 BRACKET
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97890-318-1 01 1 0102-0501
404 16.570 BRACKET
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97890-318-1 01 1 0502-
428 06.642 REINFORCEMENT; DOOR STRIKER
4HF1 ENG(RLS),4HE1 ENG(RLY) 16.588 		8-97851-446-1 01 1 0102-0501
428 06.642 REINFORCEMENT; DOOR STRIKER
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 16.588 		8-97851-446-1 01 1 0502-
428 06.642 REINFORCEMENT; DOOR STRIKER
4HF1 ENG(RLS),4HE1 ENG(RLY) 16.588 		8-97851-445-1 01 1 0102-0501
428 06.642 REINFORCEMENT; DOOR STRIKER
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 16.588 		8-97851-445-1 01 1 0502-
430 16.570 NUT; PANEL
4HF1 ENG(RLS) M8 POP NUT 		8-94279-538-0 02 1 0102-0501
430 16.570 NUT; PANEL
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M8 POP NUT 		8-94279-538-0 02 1 0102-0501
430 16.570 NUT; PANEL
4HF1 ENG(RLS) M8 POP NUT 		8-94279-538-0 02 1 0502-0805
430 16.570 NUT; PANEL
4HF1 ENG(RLS) 16.549 M8 POP NUT 		8-98021-404-0 02 1 0806-
430 16.570 NUT; PANEL
4HF1 ENG(RLS),4HE1 ENG(RLY) M6 POP NUT 		8-94279-537-0 01 1 0102-0501
430 16.570 NUT; PANEL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M6 POP NUT 		8-94279-537-0 01 1 0502-0805
430 16.570 NUT; PANEL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 09.786 M6 POP NUT 		8-98013-752-0 01 1 0806-
434 16.592 PATCH; ASSIST GRIP
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-94267-191-1 01 1 0102-0501
434 16.592 PATCH; ASSIST GRIP
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-94267-191-1 01 1 0502-
475 16.570 GROMMET; CTR PILLAR
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0304-0501
481 16.570 PANEL; SIDE FRT PILLAR 8-98268-138-0 01 1 1408-
481 16.570 PANEL; SIDE FRT PILLAR 8-98268-139-0 01 1 1408-
481 16.570 PANEL; SIDE FRT PILLAR 8-98268-138-0 01 1 0102-
481 16.570 PANEL; SIDE FRT PILLAR 8-98268-139-0 01 1 0102-
482 16.570 PANEL; SIDE RR PILLAR 8-97859-052-2 01 1 0102-
482 16.570 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 0102-
483 16.570 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 0102-
483 16.570 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 0102-
501 16.570 PIN; STUD
4HE1 ENG(RLY) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0102-0112
501 16.570 PIN; STUD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0102-0112
501 16.570 PIN; STUD
4HF1 ENG(RLS),4HE1 ENG(RLY) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0201-0501
501 16.570 PIN; STUD
4HF1 ENG(RLS),4HE1 ENG(RLY) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0201-0501
501 16.570 PIN; STUD
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0502-
501 16.570 PIN; STUD
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0502-
