Isuzu WW
▶
TRUCKS
▶
NP
▶
50915 - NP/NQ BUS LHDEXC.EU4
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

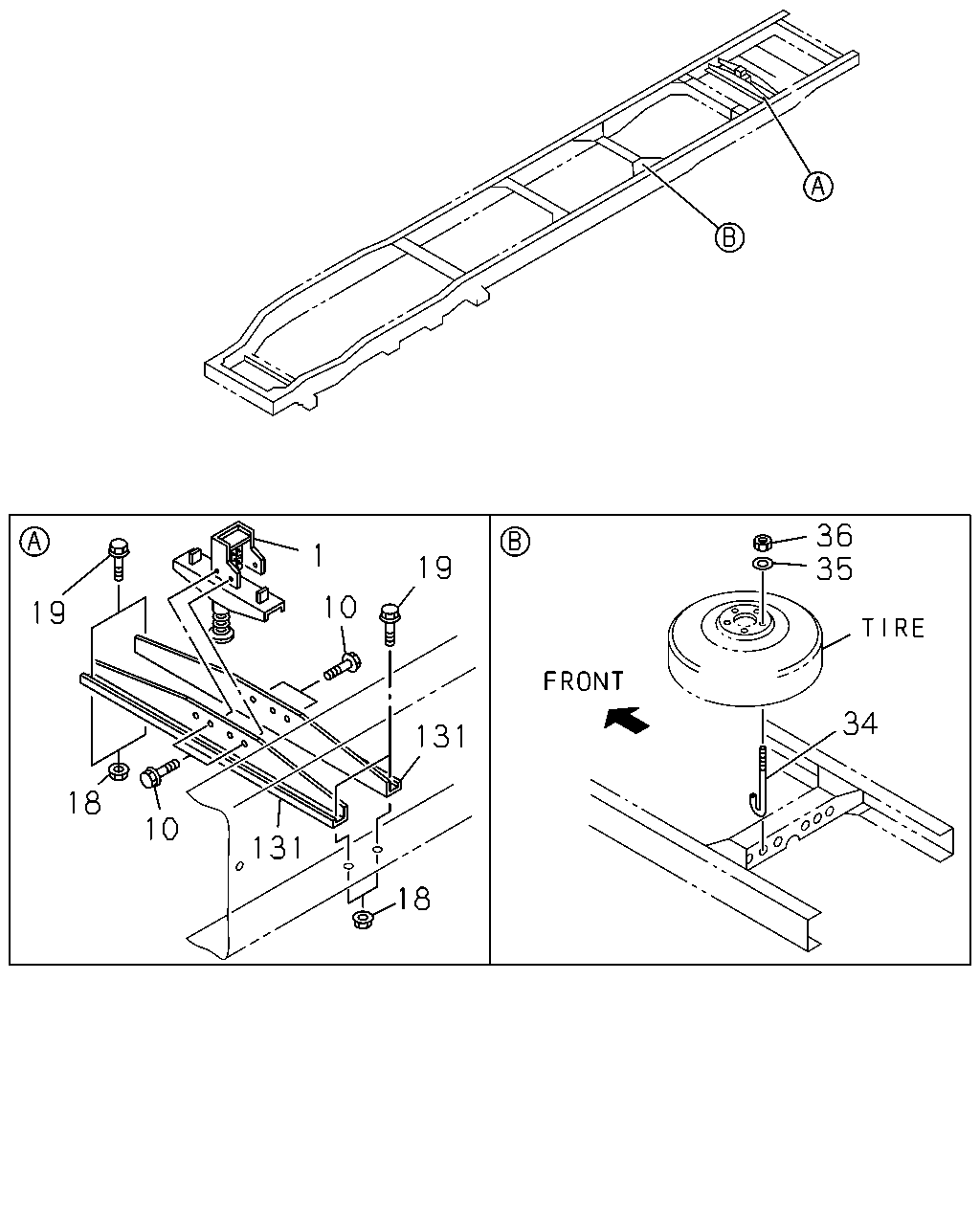

5-30 — SPARE TIRE CARRIER AND COVER
(#19461) — 14 parça
36
35
1
19
10
19
34
131
18
10
131
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.629 HANGER ASM; TIRE FT
FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRAME STRAIGHT TYPE<7KJ>
1-53630-188-3
01
1
0102-0112
1
07.629 HANGER ASM; TIRE FT
FRAME STRAIGHT TYPE<7KJ>
1-53630-188-3
01
1
0201-
10
07.632 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE
0-28681-025-0
04
1
0102-0512
10
07.632 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE
0-28651-025-0
04
1
0601-
18
07.633 NUT; MEMBER
FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE
0-91150-110-0
04
1
0102-0602
18
07.633 NUT; MEMBER
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE
0-91180-110-0
04
1
0603-
19
07.632 BOLT; C/MBR
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE
0-28681-030-0
04
1
0102-0512
19
07.632 BOLT; C/MBR
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE
0-28651-030-0
04
1
0601-
34
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X305
8-94441-189-0
02
1
0102-1209
34
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X330
8-98226-501-0
02
1
1210-
35
07.629 WASHER; PL,SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54
8-94466-483-0
02
1
0102-
36
07.629 NUT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 05.816 M12
9-99110-412-0
02
1
0102-0512
36
07.629 NUT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 05.002 M12
0-91110-512-0
02
1
0601-
131
07.629 CROSSMEMBER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
8-97167-802-0
02
1
0102-
