5-20 — BATTERY CARRIER (#19460) — 91 parça

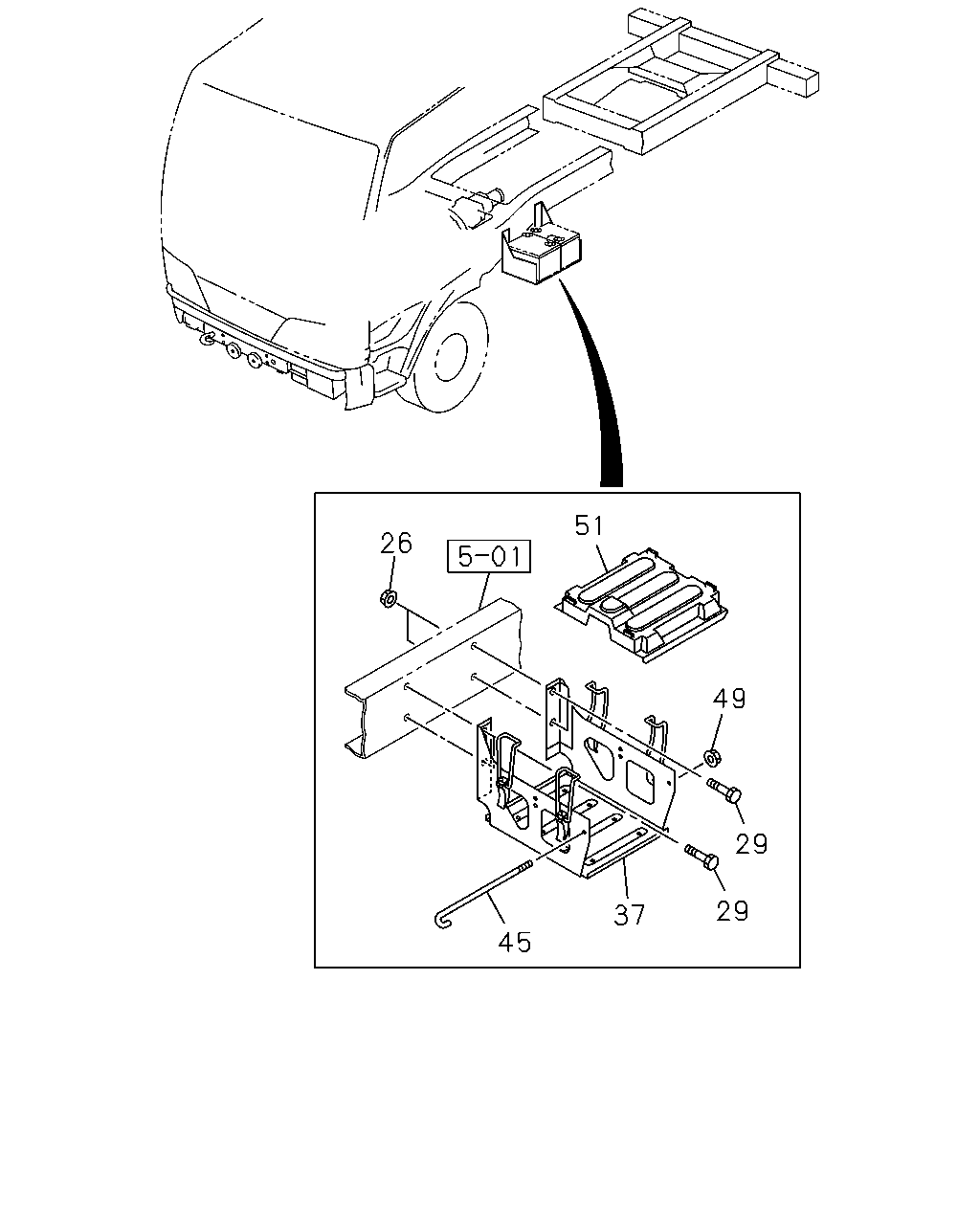

51 26 49 29 29 37 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	02.334 NUT; BRKT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0102-0112
26	02.334 NUT; BRKT 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0201-0501
26	02.334 NUT; BRKT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602
26	02.334 NUT; BRKT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 06.168 M10X35 FLANGE	0-28691-035-0	04	1	0102-0512
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0601-
29	02.334 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0102-0112
29	02.334 BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0201-0301
29	02.334 BOLT; BRKT TO FRAME 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0302-0501
29	02.334 BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0512
29	02.334 BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD>	8-97134-838-0	01	1	0102-0706
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD>	8-98091-497-0	01	1	0707-
37	02.333 BRACKET; BATTERY 4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD>	5-53613-009-5	01	1	0102-0112
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD>	5-53613-009-5	01	1	0201-0203
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD>	8-97327-537-0	01	1	0204-0207
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD>	8-97356-174-0	01	1	0208-0301
37	02.333 BRACKET; BATTERY 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD>	8-97356-174-0	01	1	0302-0501
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD>	8-97356-174-0	01	1	0502-0610
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD>	8-97384-068-2	01	1	0611-0612
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD>	8-97384-067-2	01	1	0701-
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD> L=430	8-97134-740-0	02	1	0102-
45	02.334 ROD; TENSION,BATTERY 4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0102-0112
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0201-0301
45	02.334 ROD; TENSION,BATTERY 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0302-0501
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0502-
49	02.334 NUT; ROD,BATTERY BATTERY 115E41R<6XD> 07.633 M8 FLANGE	0-91150-108-0	02	1	0102-0602
49	02.334 NUT; ROD,BATTERY BATTERY 115E41R<6XD> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-1	01	1	0102-
51	02.335 COVER; BATTERY 4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	0102-0112
51	02.335 COVER; BATTERY EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	0201-0301
51	02.335 COVER; BATTERY 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	0302-0501
51	02.335 COVER; BATTERY EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	0502-

26 52 52 51 42 43 42 40 43 45 45 37 39 36 29 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	02.334 NUT; BRKT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0102-0112
26	02.334 NUT; BRKT 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0201-0501
26	02.334 NUT; BRKT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602
26	02.334 NUT; BRKT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 06.168 M10X35 FLANGE	0-28691-035-0	04	1	0102-0512
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0601-
29	02.334 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0102-0112
29	02.334 BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0201-0301
29	02.334 BOLT; BRKT TO FRAME 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0302-0501
29	02.334 BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0512
29	02.334 BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-
35	02.334 WASHER; PL,BATTERY CARRIER 4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0102-0112
35	02.334 WASHER; PL,BATTERY CARRIER EXC. BATTERY 115E41R<6XD> 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0201-0301
35	02.334 WASHER; PL,BATTERY CARRIER 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0302-0501
35	02.334 WASHER; PL,BATTERY CARRIER EXC. BATTERY 115E41R<6XD> 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0502-0605
35	02.334 WASHER; PL,BATTERY CARRIER EXC. BATTERY 115E41R<6XD> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0606-
36	02.334 STOPPER; BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	8-94145-894-0	01	1	0201-
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD>	8-97134-838-0	01	1	0102-0706
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD>	8-98091-497-0	01	1	0707-
37	02.333 BRACKET; BATTERY 4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD>	5-53613-009-5	01	1	0102-0112
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD>	5-53613-009-5	01	1	0201-0203
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD>	8-97327-537-0	01	1	0204-0207
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD>	8-97356-174-0	01	1	0208-0301
37	02.333 BRACKET; BATTERY 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD>	8-97356-174-0	01	1	0302-0501
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD>	8-97356-174-0	01	1	0502-0610
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD>	8-97384-068-2	01	1	0611-0612
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD>	8-97384-067-2	01	1	0701-
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 04.594 M6 FLANGE	0-91150-106-0	01	1	0201-0602
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-
40	02.335 CLAMP; BATTERY 4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD>	5-53615-004-1	01	1	0102-0112
40	02.335 CLAMP; BATTERY EXC. BATTERY 115E41R<6XD>	5-53615-004-1	01	1	0201-0301
40	02.335 CLAMP; BATTERY 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD>	5-53615-004-1	01	1	0302-0501
40	02.335 CLAMP; BATTERY EXC. BATTERY 115E41R<6XD>	5-53615-004-1	01	1	0502-
42	02.334 NUT; CLAMP 4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> 02.559 M8	9-09110-408-0	02	1	0102-0112
42	02.334 NUT; CLAMP EXC. BATTERY 115E41R<6XD> 02.559 M8	9-09110-408-0	02	1	0201-0301
42	02.334 NUT; CLAMP 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> 02.559 M8	9-09110-408-0	02	1	0302-0501
42	02.334 NUT; CLAMP EXC. BATTERY 115E41R<6XD> 02.559 M8	9-09110-408-0	02	1	0502-0512
42	02.334 NUT; CLAMP EXC. BATTERY 115E41R<6XD> M8	0-91110-508-0	02	1	0601-
43	02.334 WASHER; PL,CLAMP 4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0102-0112
43	02.334 WASHER; PL,CLAMP EXC. BATTERY 115E41R<6XD> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0201-0301
43	02.334 WASHER; PL,CLAMP 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0302-0501
43	02.334 WASHER; PL,CLAMP EXC. BATTERY 115E41R<6XD> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0502-0605
43	02.334 WASHER; PL,CLAMP EXC. BATTERY 115E41R<6XD> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0606-
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD> L=430	8-97134-740-0	02	1	0102-
45	02.334 ROD; TENSION,BATTERY 4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0102-0112
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0201-0301
45	02.334 ROD; TENSION,BATTERY 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0302-0501
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0502-
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-1	01	1	0102-
51	02.335 COVER; BATTERY 4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	0102-0112
51	02.335 COVER; BATTERY EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	0201-0301
51	02.335 COVER; BATTERY 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	0302-0501
51	02.335 COVER; BATTERY EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	0502-
52	02.335 NUT; WING,COVER FIX 4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> M8 WING NUT	9-09118-408-0	02	1	0102-0112
52	02.335 NUT; WING,COVER FIX EXC. BATTERY 115E41R<6XD> M8 WING NUT	9-09118-408-0	02	1	0201-0301
52	02.335 NUT; WING,COVER FIX 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> M8 WING NUT	9-09118-408-0	02	1	0302-0501
52	02.335 NUT; WING,COVER FIX EXC. BATTERY 115E41R<6XD> M8 WING NUT	9-09118-408-0	02	1	0502-0512
52	02.335 NUT; WING,COVER FIX EXC. BATTERY 115E41R<6XD> M8 WING NUT	0-91118-408-0	02	1	0601-
