◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10635 - FSS/FTS-LHD ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#1946) — 48 parça

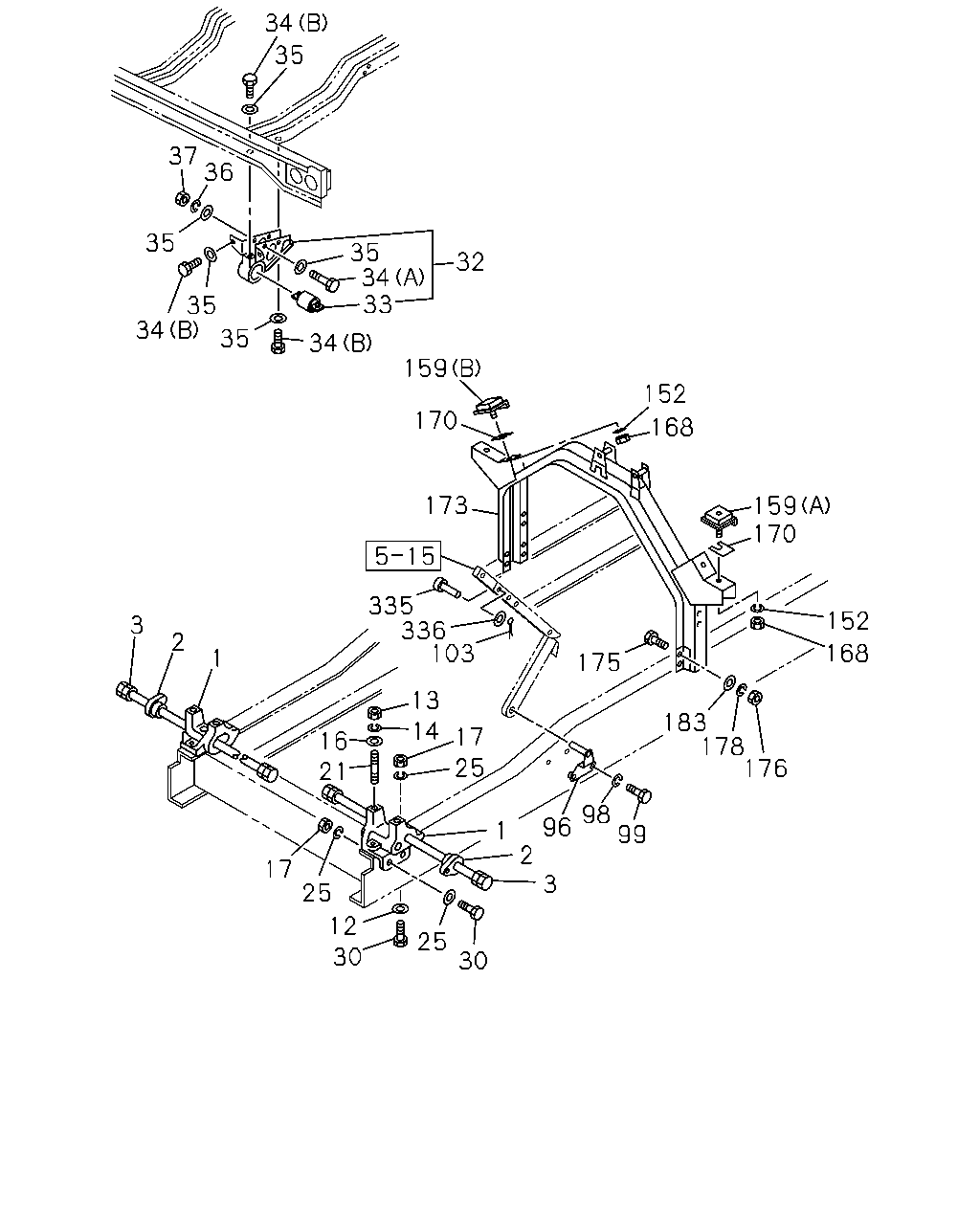

çizim 29322
34 35 37 36 35 35 34 33 32 35 34 35 34 159 152 170 168 173 159 170 335 336 103 152 3 2 168 1 175 13 183 178 176 14 17 16 21 25 98 99 96 2 3 1 17 25 12 25 30 30
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BRACKET; CAB MTG 1-53453-117-3 01 1 9207- ● ●
1 BRACKET; CAB MTG 1-53453-116-3 01 1 9207- ● ●
1 BRACKET; CAB MTG 1-53453-121-3 01 1 9207- ● ●
1 BRACKET; CAB MTG 1-53453-120-3 01 1 9207- ● ●
2 BUSHING; TORSION BAR 1-53459-783-0 02 1 9207- ● ● ● ●
3 TORSION BAR 1-09585-119-0 01 1 9207- ● ● ● ●
3 TORSION BAR 1-09585-118-0 01 1 9207- ● ● ● ●
12 WASHER; LK,BRKT
ID=15 		9-09651-069-0 12 1 9207- ● ● ● ●
13 NUT; BUSHING TO STUD
M12 		9-99110-512-0 04 1 9207- ● ● ● ●
14 WASHER; LK,STUD
ID=12.2 		9-09150-612-0 04 1 9207- ● ● ● ●
16 WASHER; PL,STUD
ID=12.5 		1-09503-171-0 04 1 9207- ● ● ● ●
17 NUT; BRKT,CAB TILT
M14 		9-99110-514-0 08 1 9207- ● ● ● ●
21 STUD; BRKT,CAB TILT 1-09302-101-0 04 1 9207- ● ● ● ●
25 WASHER; LK,BRKT,CAB TILT
ID=14.2 		9-09150-614-0 08 1 9207- ● ● ● ●
30 BOLT; CAB FRT FOOT
M14X50 		9-91066-450-0 06 1 9207- ● ●
30 BOLT; CAB FRT FOOT
M14X65 		9-91066-465-0 02 1 9207- ● ● ● ●
30 BOLT; CAB FRT FOOT
M14X45 		9-92061-445-0 06 1 9207- ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-185-5 01 1 9207- ● ● ● ●
32 BRACKET; CAB FRT MTG,CAB SIDE 1-62580-184-5 01 1 9207- ● ● ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53459-635-3 02 1 9207- ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(B) M10X30 		1-09980-546-0 08 1 9207- ● ● ● ●
34 BOLT; CAB MTG BRKT,CAB SIDE
(A) M10X100 		1-09980-547-0 04 1 9207- ● ● ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 T=2.0 		1-09985-183-0 02 1 9207- ● ● ● ●
35 WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 14 1 9207- ● ● ● ●
36 WASHER; LK,CAB MTG BRKT
ID=10 		1-09985-185-0 04 1 9207- ● ● ● ●
37 NUT; CAB MTG BRKT,CAB SIDE
M10 		1-09984-142-0 04 1 9207- ● ● ● ●
96 BRACKET; CAB STAY 1-62500-481-2 01 1 9207- ● ● ● ●
98 WASHER; LK,BRKT
ID=10.2 		9-09150-610-0 02 1 9207-9307 ● ● ● ●
99 BOLT; BRKT
M10X30 		9-02061-030-0 02 1 9207-9307 ● ●
99 BOLT; BRKT
M10X25 		9-02061-025-0 02 1 9207-9307 ● ●
99 BOLT; BRKT
M10X30 FLANGE 		0-28091-030-0 02 1 9308- ● ● ● ●
103 PIN; SPLIT,CAB STAY 1-09746-020-0 01 1 9207- ● ● ● ●
152 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 04 1 9207-9503 ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) 		1-53459-619-3 02 1 9207- ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) 		1-53459-620-3 02 1 9207- ● ● ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M12 		9-99110-512-0 04 1 9207-9503 ● ● ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M12 FLANGE 		0-91150-112-0 04 1 9504- ● ● ● ●
170 SHIM; CUSHION RUBBER
T=1.6 		1-53459-621-0 AR 1 9207- ● ● ● ●
173 MEMBER; CAB MTG RR 1-53454-420-1 01 1 9207- ● ●
173 MEMBER; CAB MTG RR 1-53454-419-1 01 1 9207- ● ●
175 BOLT; MEMBER TO FRAME
M10X40 		9-01066-040-0 08 1 9207- ● ● ● ●
176 NUT; MEMBER
M10 		9-09110-510-0 06 1 9207-9307 ● ●
176 NUT; MEMBER
M10 		9-09110-510-0 04 1 9207-9307 ● ●
176 NUT; MEMBER
M10 		9-09110-510-0 06 1 9308- ● ● ● ●
178 WASHER; LK,MEMBER
ID=10.2 		9-09150-610-0 08 1 9207- ● ● ● ●
183 WASHER; PL,MEMBER 1-09503-222-0 12 1 9207- ● ●
335 PIN; ADJ,STAY LOCK
OD=12 L=45 		1-09744-084-1 01 1 9207- ● ● ● ●
336 WASHER; PL,STAY LOCK
ID=12.5 OD=22 		8-94279-627-0 01 1 9207- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
