5-01 — FRAME AND OTHER PARTS (#1945) — 135 parça

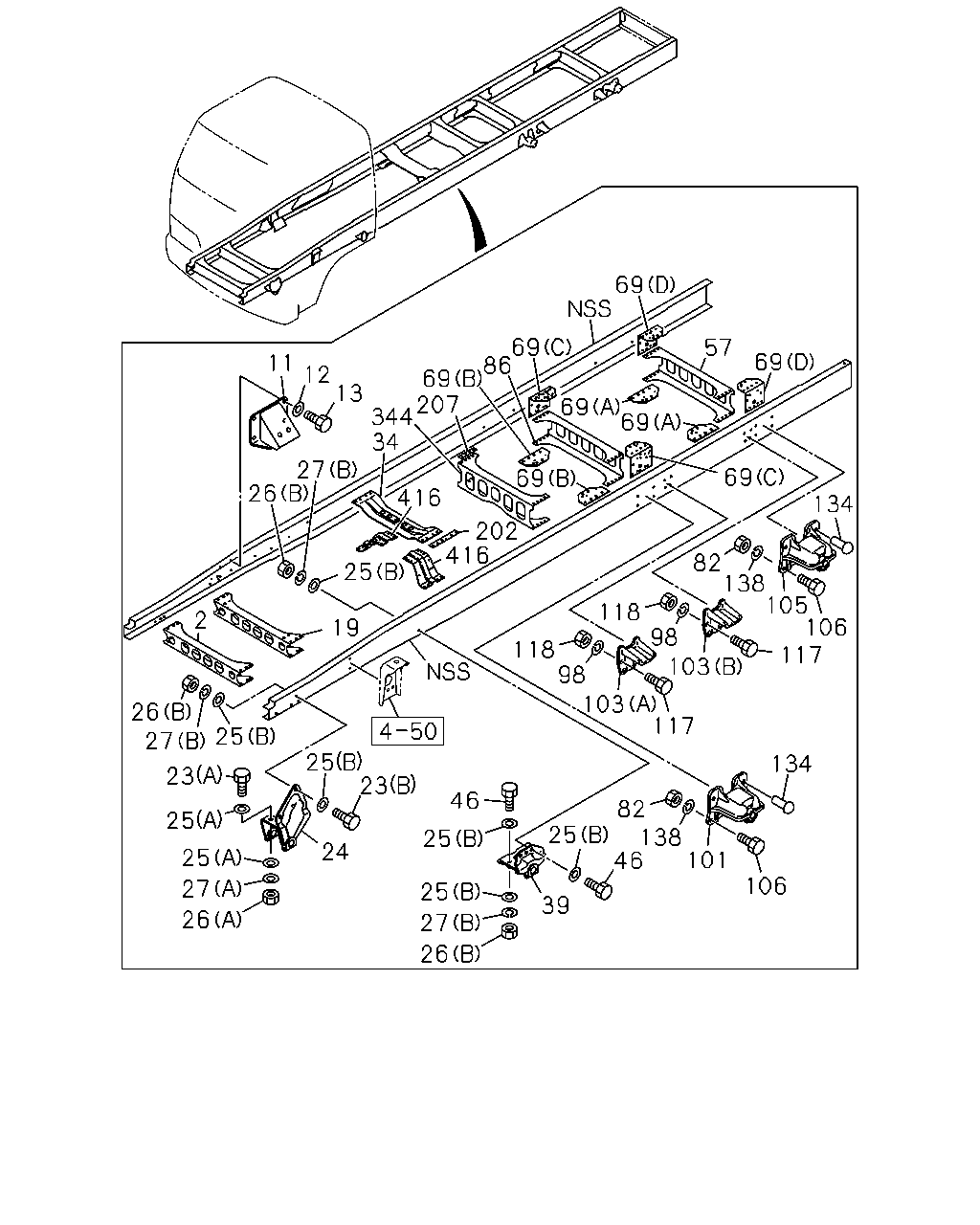

çizim 28642
69 69 86 12 69 13 207 344 34 57 69 11 69 69 69 69 27 26 416 134 202 416 25 82 138 105 106 117 2 118 19 98 118 98 103 103 117 26 27 25 25 23 134 23 46 82 25 138 46 101 25 25 24 2 106 27 25 39 26 27 26
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST
REINFORCEMENT BUMPER<VG7> 		1-53181-185-6 01 1 9207- ● ●
2 MEMBER; CROSS,1ST
EXC. REINFORCEMENT BUMPER<VG7> 		1-53181-219-2 01 1 9207- ● ●
2 MEMBER; CROSS,1ST
REINFORCEMENT BUMPER<VG7> 		1-53181-026-4 01 1 9207-9211 ● ●
2 MEMBER; CROSS,1ST
REINFORCEMENT BUMPER<VG7> 		1-53181-236-1 01 1 9212- ● ●
2 MEMBER; CROSS,1ST
EXC. REINFORCEMENT BUMPER<VG7> 		1-53181-246-2 01 1 9207- ● ●
11 BRACKET; ENG MTG 1-53211-155-0 02 1 9207- ● ●
11 BRACKET; ENG MTG 1-53211-116-0 02 1 9207- ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=12.5 		1-09503-171-0 08 1 9207- ● ●
13 BOLT; BRKT,ENG MTG 1-09030-050-0 08 1 9207- ● ●
13 BOLT; BRKT,ENG MTG 9-92061-232-0 08 1 9207- ● ●
19 MEMBER; CROSS,2ND 1-53181-221-5 01 1 9207- ● ●
19 MEMBER; CROSS,2ND 1-53181-068-5 01 1 9207- ● ●
23 BOLT; BRKT,SPR
(A) M16X50 		9-92061-650-0 04 1 9207- ● ●
23 BOLT; BRKT,SPR
(B) M14X45 		9-92061-445-0 06 1 9207- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-141-0 02 1 9207- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 9207- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 9207- ● ●
25 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 08 1 9207- ● ●
25 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 28 1 9207- ● ●
26 NUT; BRKT,SPR
(A) M16 		9-99110-516-0 04 1 9207- ● ●
26 NUT; BRKT,SPR
(B) M14 		9-99110-514-0 14 1 9207- ● ●
27 WASHER; LK,BRKT,FRT SPR
(A) ID=16.2 		9-09150-616-0 04 1 9207- ● ●
27 WASHER; LK,BRKT,FRT SPR
(B) ID=14.2 		9-09150-614-0 14 1 9207- ● ●
34 MEMBER; CROSS,3RD 1-53175-325-0 01 1 9207- ● ●
34 MEMBER; CROSS,3RD 1-53174-107-0 01 1 9207-9404 ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 9405- ● ●
39 BRACKET; FRT SPR,RR 1-53352-062-1 02 1 9207- ● ●
39 BRACKET; FRT SPR,RR 1-53352-091-3 01 1 9207- ● ●
39 BRACKET; FRT SPR,RR 1-53352-090-3 01 1 9207- ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 9207- ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-279-2 01 1 9207-9404 ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-691-4 01 1 9405- ● ●
69 GUSSET; RR SUSP,UPR
(A) LOWER 		1-53167-099-4 02 1 9207- ● ●
69 GUSSET; RR SUSP,UPR
(B) LOWER 		1-53167-100-3 02 1 9207- ● ●
69 GUSSET; RR SUSP,UPR
(C) UPPER 		1-53167-300-0 01 1 9207- ● ●
69 GUSSET; RR SUSP,UPR
(D) UPPER 		1-53167-302-0 01 1 9207- ● ●
69 GUSSET; RR SUSP,UPR
(C) UPPER 		1-53167-299-0 01 1 9207- ● ●
69 GUSSET; RR SUSP,UPR
(D) UPPER 		1-53167-301-0 01 1 9207- ● ●
82 NUT; BRKT
M14 		9-99110-414-0 04 1 9207- ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-279-2 01 1 9207-9404 ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-691-4 01 1 9405- ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 9207- ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-060-2 02 1 9207- ● ●
101 BRACKET; RR SPR,FRT 1-53353-057-2 02 1 9207- ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-037-1 02 1 9207- ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-028-1 02 1 9207- ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 9207- ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 9207- ● ●
105 BRACKET; RR SPR,RR 1-53353-060-2 02 1 9207- ● ●
105 BRACKET; RR SPR,RR 1-53353-057-2 02 1 9207- ● ●
106 BOLT; BRKT
M14X45 		0-20801-445-0 04 1 9207- ● ● ● ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 9207- ● ● ● ●
118 NUT; STOPPER
M14 		9-99110-414-0 16 1 9207- ● ● ● ●
134 RIVET; BRKT
D13X42 		1-09730-110-0 16 1 9207-9212 ● ●
134 RIVET; BRKT
D13X42 		1-09730-090-0 16 1 9301- ● ●
134 RIVET; BRKT
D13X45 		1-09730-111-0 16 1 9207-9212 ● ●
134 RIVET; BRKT
D13X45 		1-09730-091-0 16 1 9301- ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 04 1 9207- ● ● ● ●
202 SPACER; 3RD C/MBR 1-53168-101-0 02 1 9207-9404 ● ●
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 9405- ● ●
207 SPACER; 4TH C/MBR 1-53168-163-1 02 1 9407- ●
344 MEMBER; CROSS,4TH 1-53181-095-2 01 1 9207- ●
416 GUSSET; 3RD C/MBR 1-53164-151-1 01 1 9207-9404 ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 9405- ● ●
416 GUSSET; 3RD C/MBR 1-53164-111-0 01 1 9207-9404 ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 9405- ● ●

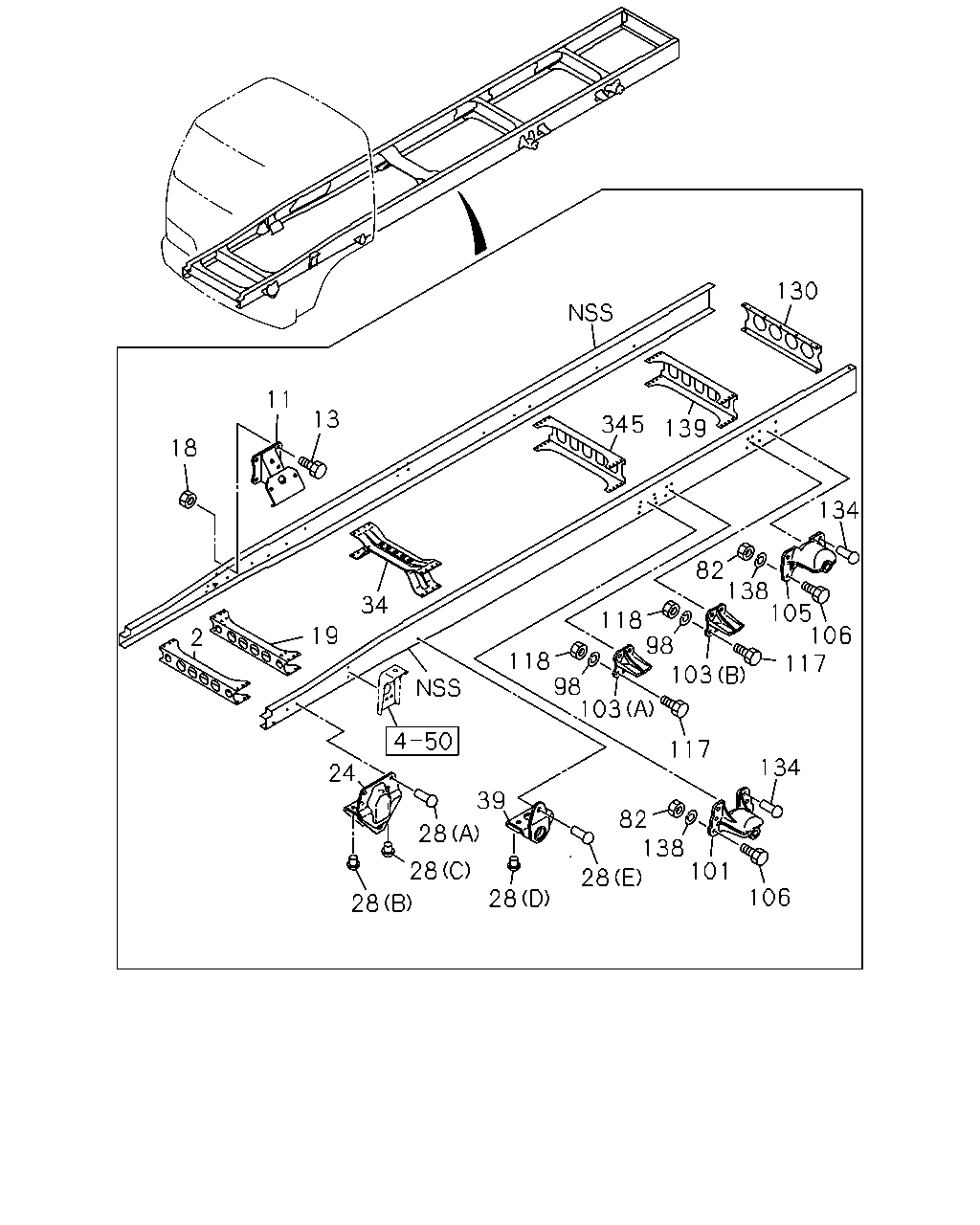

çizim 28645
130 11 13 345 139 18 134 82 138 105 106 117 34 2 118 98 19 118 98 103 117 134 24 39 82 138 101 28 28 28 106 28 28 103
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST
REINFORCEMENT BUMPER<VG7> 		1-53181-185-6 01 1 9207- ● ●
2 MEMBER; CROSS,1ST
EXC. REINFORCEMENT BUMPER<VG7> 		1-53181-219-2 01 1 9207- ● ●
2 MEMBER; CROSS,1ST
REINFORCEMENT BUMPER<VG7> 		1-53181-026-4 01 1 9207-9211 ● ●
2 MEMBER; CROSS,1ST
REINFORCEMENT BUMPER<VG7> 		1-53181-236-1 01 1 9212- ● ●
2 MEMBER; CROSS,1ST
EXC. REINFORCEMENT BUMPER<VG7> 		1-53181-246-2 01 1 9207- ● ●
11 BRACKET; ENG MTG 1-53211-155-0 02 1 9207- ● ●
11 BRACKET; ENG MTG 1-53211-116-0 02 1 9207- ● ●
13 BOLT; BRKT,ENG MTG 1-09030-050-0 08 1 9207- ● ●
13 BOLT; BRKT,ENG MTG 9-92061-232-0 08 1 9207- ● ●
18 NUT; BRKT,ENG MTG
M10 		9-09110-510-0 08 1 9207- ● ●
19 MEMBER; CROSS,2ND 1-53181-221-5 01 1 9207- ● ●
19 MEMBER; CROSS,2ND 1-53181-068-5 01 1 9207- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-141-0 02 1 9207- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 9207- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 9207- ● ●
28 RIVET; BRKT,FRT SPR
(E) D12X40 		1-09730-106-0 02 1 9207- ● ●
28 RIVET; BRKT,FRT SPR
(D) D11X36 		1-09730-114-0 04 1 9207- ● ●
28 RIVET; BRKT,FRT SPR
(A) D11X38 PLATED TAPER END 		1-09730-115-0 04 1 9207- ● ●
28 RIVET; BRKT,FRT SPR
(C) D12X38 		1-09730-116-0 02 1 9207- ● ●
28 RIVET; BRKT,FRT SPR
(B) D12X45 		1-09730-149-0 02 1 9207- ● ●
34 MEMBER; CROSS,3RD 1-53175-325-0 01 1 9207- ● ●
34 MEMBER; CROSS,3RD 1-53174-107-0 01 1 9207-9404 ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 9405- ● ●
39 BRACKET; FRT SPR,RR 1-53352-062-1 02 1 9207- ● ●
39 BRACKET; FRT SPR,RR 1-53352-091-3 01 1 9207- ● ●
39 BRACKET; FRT SPR,RR 1-53352-090-3 01 1 9207- ● ●
82 NUT; BRKT
M14 		9-99110-414-0 04 1 9207- ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 9207- ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-060-2 02 1 9207- ● ●
101 BRACKET; RR SPR,FRT 1-53353-057-2 02 1 9207- ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-037-1 02 1 9207- ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-028-1 02 1 9207- ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 9207- ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 9207- ● ●
105 BRACKET; RR SPR,RR 1-53353-060-2 02 1 9207- ● ●
105 BRACKET; RR SPR,RR 1-53353-057-2 02 1 9207- ● ●
106 BOLT; BRKT
M14X45 		0-20801-445-0 04 1 9207- ● ● ● ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 9207- ● ● ● ●
118 NUT; STOPPER
M14 		9-99110-414-0 16 1 9207- ● ● ● ●
130 MEMBER; CROSS,END
PINTLE HOOK<PP7> 		1-53171-660-1 01 1 9207- ● ●
130 MEMBER; CROSS,END
EXC. PINTLE HOOK<PP7> 		1-53171-907-4 01 1 9207- ● ●
130 MEMBER; CROSS,END
PINTLE HOOK<PP7> 		1-53181-178-2 01 1 9207- ● ●
130 MEMBER; CROSS,END
EXC. PINTLE HOOK<PP7> 		1-53171-948-2 01 1 9207-9211 ● ●
130 MEMBER; CROSS,END
EXC. PINTLE HOOK<PP7> 		1-53181-151-2 01 1 9212- ● ●
134 RIVET; BRKT
D13X42 		1-09730-110-0 16 1 9207-9212 ● ●
134 RIVET; BRKT
D13X42 		1-09730-090-0 16 1 9301- ● ●
134 RIVET; BRKT
D13X45 		1-09730-111-0 16 1 9207-9212 ● ●
134 RIVET; BRKT
D13X45 		1-09730-091-0 16 1 9301- ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 04 1 9207- ● ● ● ●
139 MEMBER; CROSS,6TH 1-53181-129-2 01 1 9207- ● ●
345 MEMBER; CROSS,5TH 1-53181-129-2 01 1 9207- ● ●

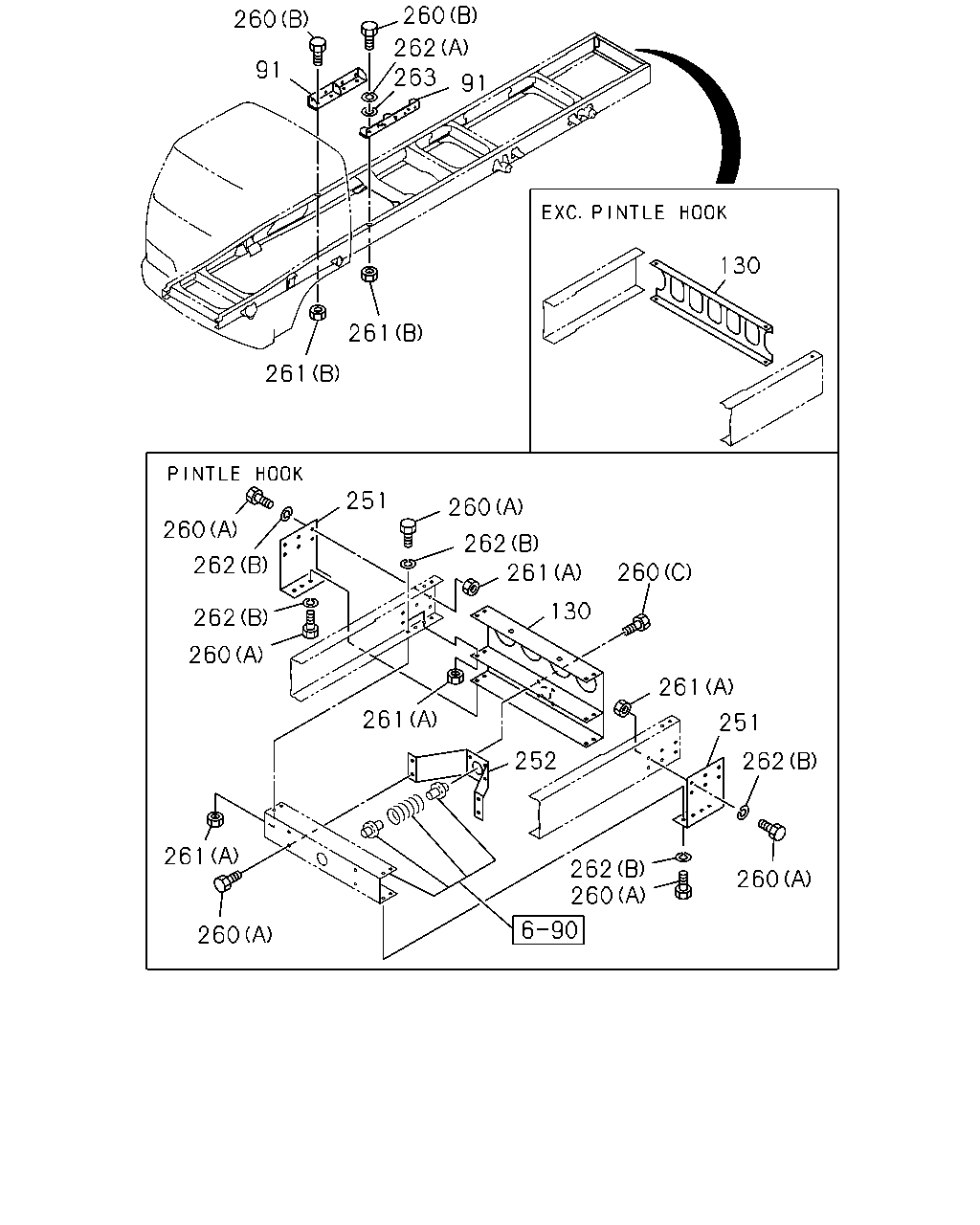

çizim 94450
260 260 262 91 263 91 130 261 261 251 260 260 262 261 262 260 130 262 260 261 261 251 252 262 261 262 260 260 260
BalonParca AdiParca NoAdetTipApplied Date A B C D
91 FRAME ASM; SUB 1-53631-246-3 01 1 9207- ● ●
91 FRAME ASM; SUB 1-53631-247-3 01 1 9207- ● ●
130 MEMBER; CROSS,END
PINTLE HOOK<PP7> 		1-53171-660-1 01 1 9207- ● ●
130 MEMBER; CROSS,END
EXC. PINTLE HOOK<PP7> 		1-53171-907-4 01 1 9207- ● ●
130 MEMBER; CROSS,END
PINTLE HOOK<PP7> 		1-53181-178-2 01 1 9207- ● ●
130 MEMBER; CROSS,END
EXC. PINTLE HOOK<PP7> 		1-53171-948-2 01 1 9207-9211 ● ●
130 MEMBER; CROSS,END
EXC. PINTLE HOOK<PP7> 		1-53181-151-2 01 1 9212- ● ●
251 SUPPORT; PINTLE HOOK
PINTLE HOOK<PP7> 		1-57189-183-1 01 1 9207- ● ●
251 SUPPORT; PINTLE HOOK
PINTLE HOOK<PP7> 		1-57189-184-1 01 1 9207- ● ●
252 STIFFENER; PINTLE HOOK
PINTLE HOOK<PP7> 		1-57189-187-0 01 1 9207- ● ●
260 BOLT; SUB FRAME
(B) M12X40 		9-92061-240-0 08 1 9207- ● ●
260 BOLT; SUB FRAME
PINTLE HOOK<PP7> (C) M12X40 W/LK WASHER 		0-50041-240-0 08 1 9207- ● ●
260 BOLT; SUB FRAME
PINTLE HOOK<PP7> (A) M14X35 		9-92061-435-0 28 1 9207- ● ●
261 NUT; SUB FRAME
(B) M12 		9-99110-512-0 08 1 9207- ● ●
261 NUT; SUB FRAME
PINTLE HOOK<PP7> (A) M14 		9-99110-514-0 20 1 9207- ● ●
262 WASHER; LK,SUB FRAME
(A) ID=12.2 		9-09150-612-0 08 1 9207- ● ●
262 WASHER; LK,SUB FRAME
PINTLE HOOK<PP7> (B) ID=14.2 		9-09150-614-0 28 1 9207- ● ●
263 WASHER; PL,SUB FRAME
ID=12.2 		1-09503-224-0 16 1 9207- ● ●
