◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 50915 - NP/NQ BUS LHDEXC.EU4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#19445) — 268 parça

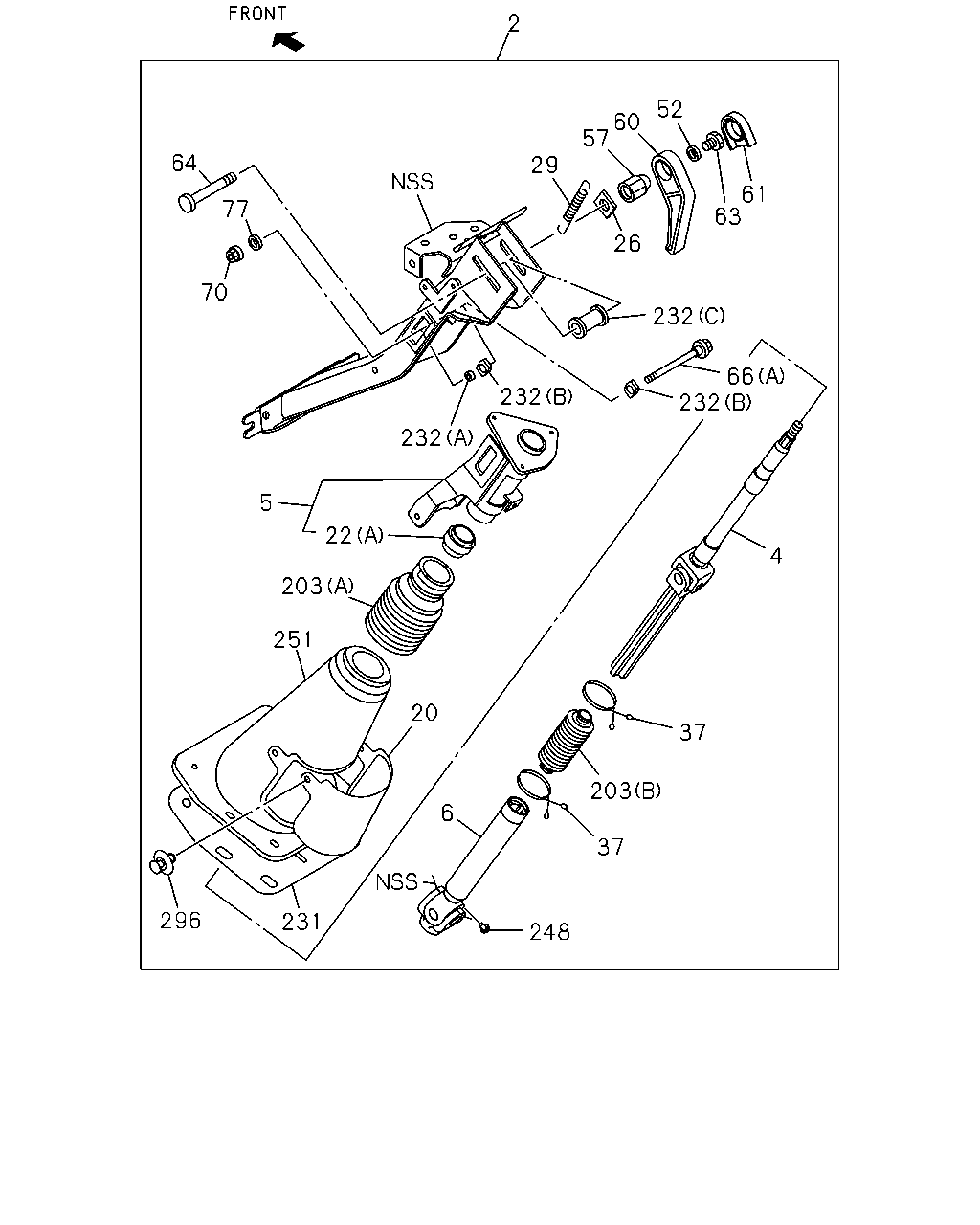

çizim 48119
2 52 60 57 64 29 61 63 77 26 70 232 66 232 232 232 5 22 4 203 251 20 37 203 6 37 296 231 248
BalonParca AdiParca NoAdetTipApplied Date
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-633-0 01 1 0102-0404
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-1 01 1 0405-
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0102-0404
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-056-1 01 1 0405-
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97159-172-0 01 1 0102-0207
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97394-700-1 01 1 0208-0311
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97398-853-0 01 1 0312-0404
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97400-061-1 01 1 0405-
4 06.524 SHAFT; STRG
TILT STEERING<N33> 		8-97201-110-1 01 1 0102-0311
4 06.524 SHAFT; STRG 8-97201-110-1 01 1 0312-0404
4 06.524 SHAFT; STRG 8-97378-634-0 01 1 0405-
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97173-634-0 01 1 0102-0207
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97351-830-0 01 1 0208-0311
5 06.518 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 0102-
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 0102-
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 06.760 		8-97173-626-0 01 1 0102-0311
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 0312-
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97201-107-0 01 1 0102-0311
6 06.524 SHAFT; STRG LWR 8-97201-107-0 01 1 0312-0404
6 06.524 SHAFT; STRG LWR 8-97378-632-0 01 1 0405-
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97173-635-0 01 1 0102-0207
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97351-831-0 01 1 0208-0311
20 06.525 COVER; STRG SHAFT
06.518 BLACK 		8-97291-634-1 01 1 0102-
22 06.525 BUSHING; STRG COLUMN
(B) 		8-97378-617-0 01 1 0405-
22 06.525 BUSHING; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-821-0 01 1 0102-0311
22 06.525 BUSHING; STRG COLUMN
(A) 		8-97076-821-0 01 1 0312-
22 06.525 BUSHING; STRG COLUMN
EXC. TILT STEERING<N33> (A) 		8-97201-085-0 01 1 0102-0207
26 06.514 PLATE; ADJ
TILT STEERING<N33> 		8-97222-989-0 01 1 0102-
29 06.514 SPRING; COLUMN
TILT STEERING<N33> 		8-97076-811-0 01 1 0102-
37 06.525 CLAMP; BOOT TO SHAFT 8-97173-630-0 02 1 0102-0404
52 06.514 WASHER; PL,ADJ LEVER
TILT STEERING<N33> 		8-97076-813-0 01 1 0102-
57 06.518 NUT; ADJ BOLT
TILT STEERING<N33> 		8-97222-988-0 01 1 0102-
60 06.518 LEVER; ADJ,STRG COLUMN
TILT STEERING<N33> 		8-97076-830-0 01 1 0102-
61 06.514 CAP; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97076-814-0 01 1 0102-
63 06.514 BOLT; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97222-986-0 01 1 0102-
64 06.518 BOLT; ADJ,PROTECTOR
TILT STEERING<N33> 		8-97222-987-0 01 1 0102-
66 06.514 BOLT; STRG COLUMN
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1201-
66 06.514 BOLT; STRG COLUMN
04.634 (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0102-0611
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0612-1112
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1201-
66 06.514 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 0102-
70 06.514 NUT; STRG COLUMN
TILT STEERING<N33> 		8-97076-807-0 01 1 0102-
77 06.760 WASHER; PL,COLUMN
TILT STEERING<N33> 		8-97076-804-0 01 1 0102-
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (A) 		8-97076-822-0 01 1 0102-0311
203 06.525 BOOT; STRG COLUMN LWR
06.518 (A) 		8-97076-822-0 01 1 0312-
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (B) 		8-97201-115-0 01 1 0102-0311
203 06.525 BOOT; STRG COLUMN LWR
(B) 		8-97201-115-0 01 1 0312-0404
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (B) 		8-97173-631-0 01 1 0102-0207
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (B) 		8-97351-851-0 01 1 0208-0311
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> 06.518 (A) 		8-97173-632-0 01 1 0102-0311
231 06.525 SEAL; RUBBER,STRG COLUMN
TILT STEERING<N33> 		8-97076-808-1 01 1 0102-0311
231 06.525 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 0312-
231 06.525 SEAL; RUBBER,STRG COLUMN
EXC. TILT STEERING<N33> 		8-97173-628-0 01 1 0102-0311
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (B) 		8-97076-805-0 02 1 0102-
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (A) 		8-97076-806-0 01 1 0102-
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (C) 		8-97148-277-0 01 1 0102-
248 06.518 SCREW; YOKE
TILT STEERING<N33> 		8-97222-984-0 01 1 0102-0311
248 06.518 SCREW; YOKE 8-97222-984-0 01 1 0312-
251 06.518 COVER; LWR
TILT STEERING<N33> 06.578 BLACK 		8-97159-168-1 01 1 0102-0311
251 06.518 COVER; LWR
06.578 BLACK 		8-97159-168-2 01 1 0312-
251 06.518 COVER; LWR
EXC. TILT STEERING<N33> 06.578 BLACK 		8-97159-175-0 01 1 0102-0311
296 06.525 CLIP; COVER
BLACK 		8-97868-409-0 01 1 0102-

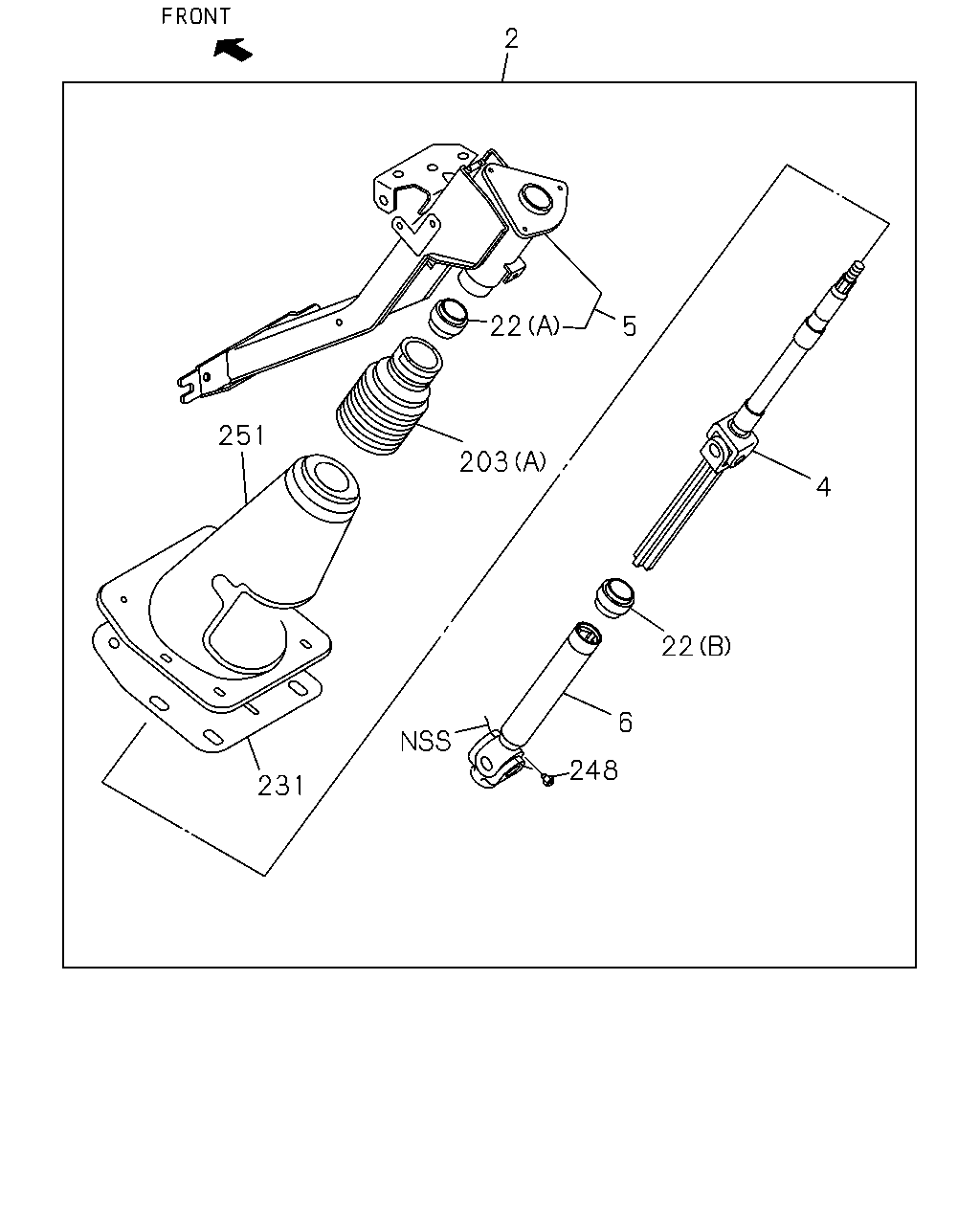

çizim 50098
2 22 5 251 203 4 22 6 248 231
BalonParca AdiParca NoAdetTipApplied Date
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-633-0 01 1 0102-0404
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-1 01 1 0405-
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0102-0404
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-056-1 01 1 0405-
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97159-172-0 01 1 0102-0207
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97394-700-1 01 1 0208-0311
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97398-853-0 01 1 0312-0404
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97400-061-1 01 1 0405-
4 06.524 SHAFT; STRG
TILT STEERING<N33> 		8-97201-110-1 01 1 0102-0311
4 06.524 SHAFT; STRG 8-97201-110-1 01 1 0312-0404
4 06.524 SHAFT; STRG 8-97378-634-0 01 1 0405-
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97173-634-0 01 1 0102-0207
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97351-830-0 01 1 0208-0311
5 06.518 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 0102-
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 0102-
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 06.760 		8-97173-626-0 01 1 0102-0311
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 0312-
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97201-107-0 01 1 0102-0311
6 06.524 SHAFT; STRG LWR 8-97201-107-0 01 1 0312-0404
6 06.524 SHAFT; STRG LWR 8-97378-632-0 01 1 0405-
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97173-635-0 01 1 0102-0207
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97351-831-0 01 1 0208-0311
22 06.525 BUSHING; STRG COLUMN
(B) 		8-97378-617-0 01 1 0405-
22 06.525 BUSHING; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-821-0 01 1 0102-0311
22 06.525 BUSHING; STRG COLUMN
(A) 		8-97076-821-0 01 1 0312-
22 06.525 BUSHING; STRG COLUMN
EXC. TILT STEERING<N33> (A) 		8-97201-085-0 01 1 0102-0207
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (A) 		8-97076-822-0 01 1 0102-0311
203 06.525 BOOT; STRG COLUMN LWR
06.518 (A) 		8-97076-822-0 01 1 0312-
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (B) 		8-97201-115-0 01 1 0102-0311
203 06.525 BOOT; STRG COLUMN LWR
(B) 		8-97201-115-0 01 1 0312-0404
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (B) 		8-97173-631-0 01 1 0102-0207
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (B) 		8-97351-851-0 01 1 0208-0311
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> 06.518 (A) 		8-97173-632-0 01 1 0102-0311
231 06.525 SEAL; RUBBER,STRG COLUMN
TILT STEERING<N33> 		8-97076-808-1 01 1 0102-0311
231 06.525 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 0312-
231 06.525 SEAL; RUBBER,STRG COLUMN
EXC. TILT STEERING<N33> 		8-97173-628-0 01 1 0102-0311
248 06.518 SCREW; YOKE
TILT STEERING<N33> 		8-97222-984-0 01 1 0102-0311
248 06.518 SCREW; YOKE 8-97222-984-0 01 1 0312-
251 06.518 COVER; LWR
TILT STEERING<N33> 06.578 BLACK 		8-97159-168-1 01 1 0102-0311
251 06.518 COVER; LWR
06.578 BLACK 		8-97159-168-2 01 1 0312-
251 06.518 COVER; LWR
EXC. TILT STEERING<N33> 06.578 BLACK 		8-97159-175-0 01 1 0102-0311

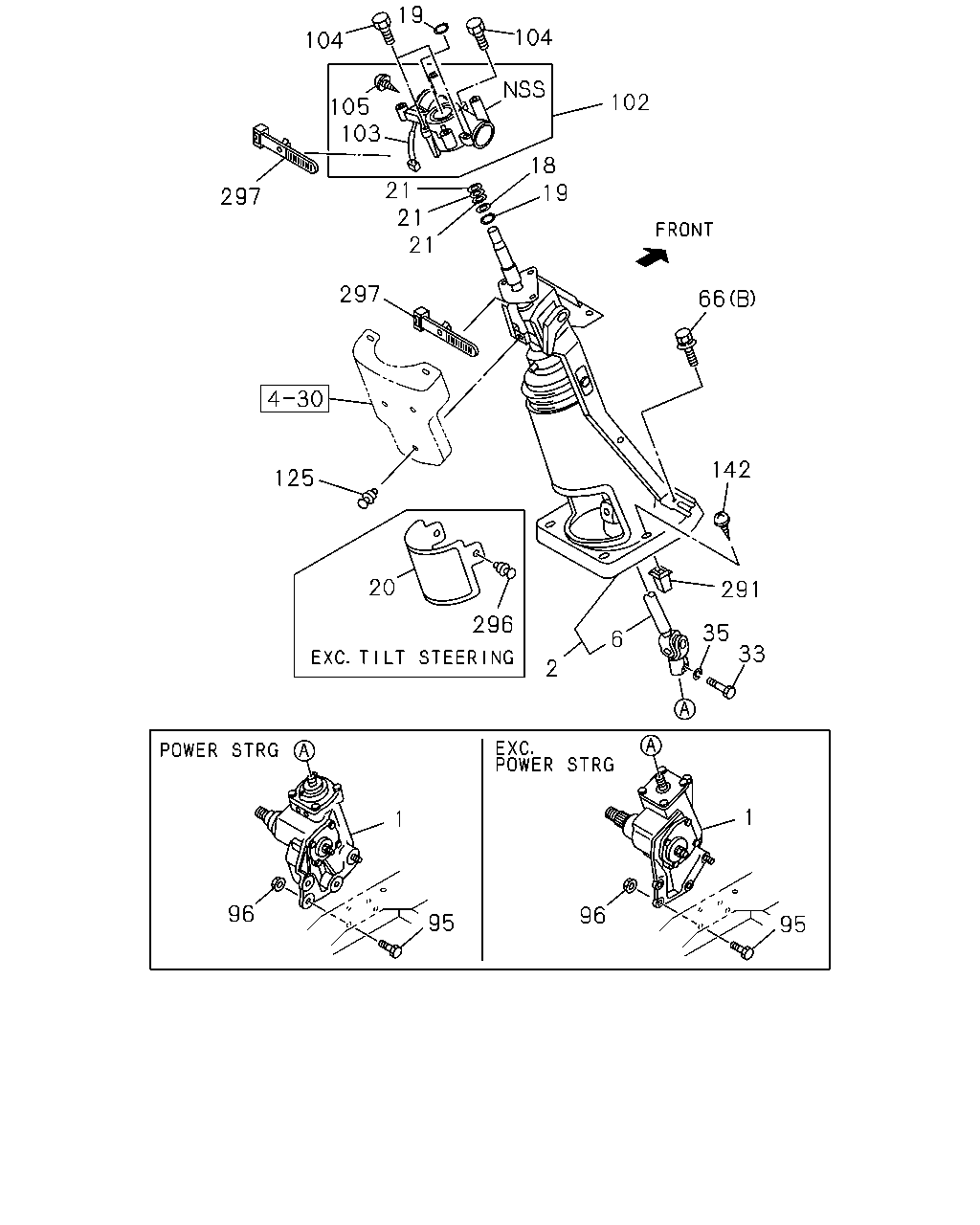

çizim 50168
19 104 104 102 105 103 18 19 21 21 21 297 297 66 142 125 20 291 296 35 33 6 2 1 1 96 96 95 95
BalonParca AdiParca NoAdetTipApplied Date
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97251-841-0 01 1 0102-0112
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97305-047-8 01 1 0201-1308
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-98251-948-0 01 1 1309-
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> 		8-97224-870-0 01 1 0201-
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-633-0 01 1 0102-0404
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-1 01 1 0405-
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0102-0404
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-056-1 01 1 0405-
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97159-172-0 01 1 0102-0207
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97394-700-1 01 1 0208-0311
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97398-853-0 01 1 0312-0404
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97400-061-1 01 1 0405-
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97201-107-0 01 1 0102-0311
6 06.524 SHAFT; STRG LWR 8-97201-107-0 01 1 0312-0404
6 06.524 SHAFT; STRG LWR 8-97378-632-0 01 1 0405-
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97173-635-0 01 1 0102-0207
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97351-831-0 01 1 0208-0311
18 06.525 WASHER; STEERING SHAFT
06.500 ID=19 		8-94146-919-0 01 1 0102-
19 06.515 RING; SNAP,STRG SHAFT
00.349 ID=17.5 		9-09180-019-0 02 1 0102-
20 06.525 COVER; STRG SHAFT
06.518 BLACK 		8-97291-634-1 01 1 0102-
21 06.500 WASHER; WAVE,STRG LOCK TO SHAFT 8-94174-865-0 03 1 0102-
33 06.525 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> M8X30 		8-94247-692-0 01 1 0102-0311
33 06.525 BOLT; STRG SHAFT TO UNIT
M8X30 		8-94247-692-0 01 1 0312-0610
33 06.525 BOLT; STRG SHAFT TO UNIT
M8X30 		8-97359-615-0 01 1 0611-
33 06.525 BOLT; STRG SHAFT TO UNIT
EXC. TILT STEERING<N33> M10X33 		8-94249-011-1 01 1 0102-0311
35 06.525 WASHER; LK,STRG SHAFT
TILT STEERING<N33> 00.002 ID=8.2 		9-09150-508-0 01 1 0102-0311
35 06.525 WASHER; LK,STRG SHAFT
00.002 ID=8.2 		9-09150-508-0 01 1 0312-0603
35 06.525 WASHER; LK,STRG SHAFT
04.439 ID=8.2 		0-91510-508-0 01 1 0604-0610
35 06.525 WASHER; LK,STRG SHAFT
02.559 ID=8.2 		0-91510-808-0 01 1 0611-
35 06.525 WASHER; LK,STRG SHAFT
EXC. TILT STEERING<N33> 08.929 ID=10.2 		9-09150-810-0 01 1 0102-0311
66 06.514 BOLT; STRG COLUMN
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1201-
66 06.514 BOLT; STRG COLUMN
04.634 (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0102-0611
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0612-1112
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1201-
66 06.514 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 0102-
95 06.509 BOLT; STRG UNIT
M12X45 		8-97212-810-1 03 1 0102-
96 06.509 NUT; STRG UNIT
M12 FLANGE 		8-94436-194-0 04 1 0102-0610
96 06.509 NUT; STRG UNIT
M12 FLANGE 		8-97359-618-0 04 1 0611-
102 06.500 LOCK ASM; STRG
4HE1 ENG(RLY) 		8-97170-364-0 01 1 0102-0112
102 06.500 LOCK ASM; STRG 8-97170-364-0 01 1 0201-0301
102 06.500 LOCK ASM; STRG
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97170-364-0 01 1 0302-0501
102 06.500 LOCK ASM; STRG
FLOOR REMOTE SHIFT<M11> 		8-97170-364-0 01 1 0502-
103 02.188 SWITCH; IGNITION
4HE1 ENG(RLY) 		8-97088-268-0 01 1 0102-0112
103 02.188 SWITCH; IGNITION 8-97088-268-0 01 1 0201-0301
103 02.188 SWITCH; IGNITION
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97088-268-0 01 1 0302-0501
103 02.188 SWITCH; IGNITION
FLOOR REMOTE SHIFT<M11> 		8-97088-268-0 01 1 0502-
104 06.500 BOLT; STRG LOCK TO COLUMN
M6X30 W/LK&PL WASHER 		8-97189-885-0 01 1 0102-
104 06.500 BOLT; STRG LOCK TO COLUMN
M6X30 W/LK&PL WASHER 		8-97189-885-0 02 1 0102-
105 06.500 SCREW; IGN SW
4HE1 ENG(RLY) M4X12 W/LK WASHER 		9-03910-412-0 01 1 0102-0112
105 06.500 SCREW; IGN SW
M4X12 W/LK WASHER 		9-03910-412-0 01 1 0201-0301
105 06.500 SCREW; IGN SW
4HF1 ENG(RLS),4HE1 ENG(RLY) M4X12 W/LK WASHER 		9-03910-412-0 01 1 0302-0501
105 06.500 SCREW; IGN SW
FLOOR REMOTE SHIFT<M11> M4X12 W/LK WASHER 		9-03910-412-0 01 1 0502-
125 06.521 CLIP; STRG SHAFT
DARK GRAY 		8-97857-542-0 01 1 0102-0301
125 06.521 CLIP; STRG SHAFT
06.525 BLACK 		8-97868-409-0 01 1 0302-0501
125 06.521 CLIP; STRG SHAFT
DARK GRAY 		8-97582-246-0 01 1 0502-
142 06.518 SCREW; BRKT COWL
M5X20 TAPPING W/PL WASHER 		0-74305-520-0 06 1 0102-0604
142 06.518 SCREW; BRKT COWL
M5X20 TAPPING W/PL WASHER 		0-74365-520-0 06 1 0605-0612
142 06.518 SCREW; BRKT COWL
06.514 M5X18 TAPPING 		0-72180-518-0 06 1 0701-
291 06.518 GROMMET; STRG SHAFT COVER
04.931 H=15 		8-94463-268-1 06 1 0102-
296 06.525 CLIP; COVER
BLACK 		8-97868-409-0 01 1 0102-
297 06.525 CLIP; BAND
02.559 L=145 		8-94257-575-1 03 1 0102-

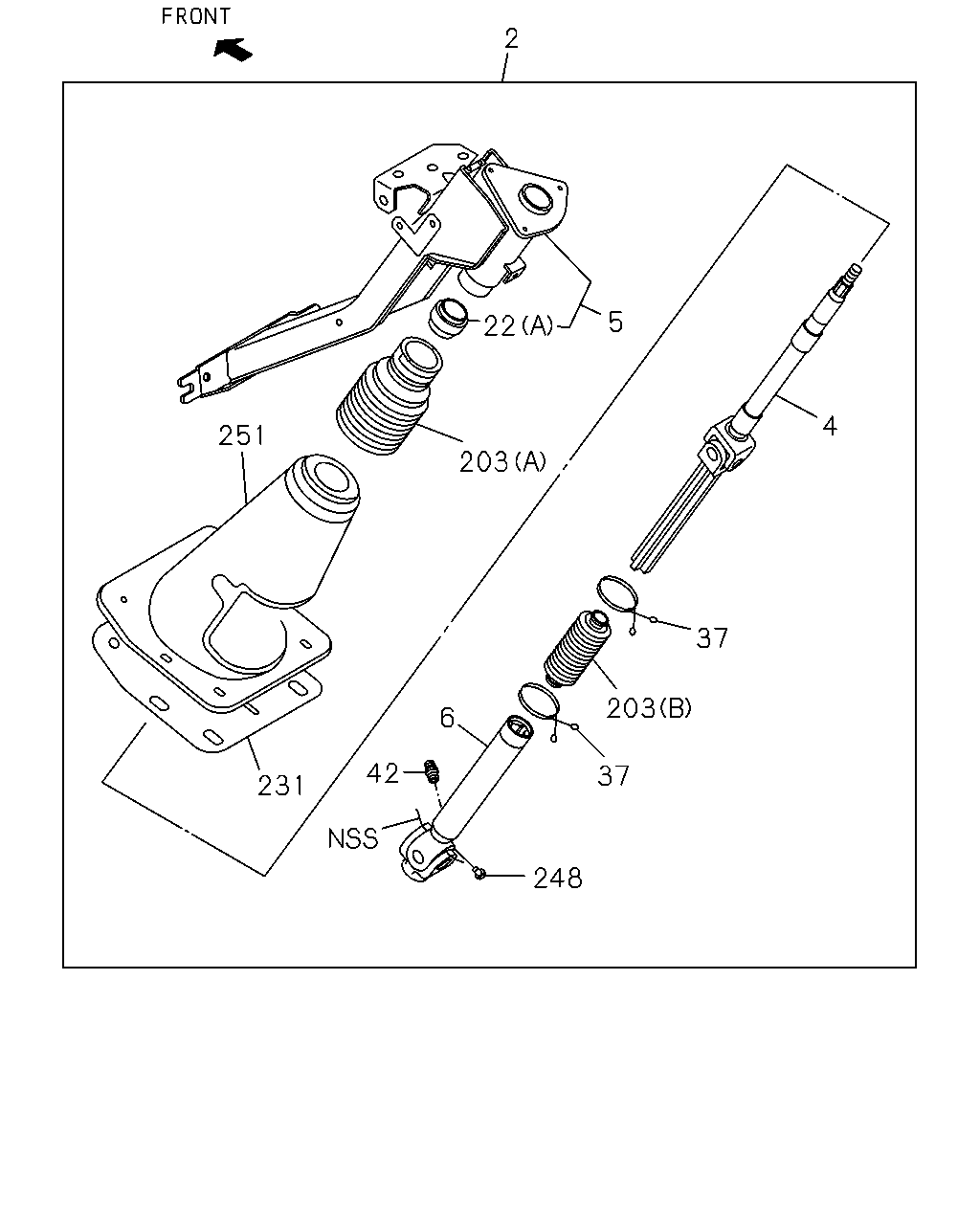

çizim 50169
2 5 22 4 251 203 37 203 6 42 37 231 248
BalonParca AdiParca NoAdetTipApplied Date
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-633-0 01 1 0102-0404
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-1 01 1 0405-
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0102-0404
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-056-1 01 1 0405-
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97159-172-0 01 1 0102-0207
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97394-700-1 01 1 0208-0311
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97398-853-0 01 1 0312-0404
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97400-061-1 01 1 0405-
4 06.524 SHAFT; STRG
TILT STEERING<N33> 		8-97201-110-1 01 1 0102-0311
4 06.524 SHAFT; STRG 8-97201-110-1 01 1 0312-0404
4 06.524 SHAFT; STRG 8-97378-634-0 01 1 0405-
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97173-634-0 01 1 0102-0207
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97351-830-0 01 1 0208-0311
5 06.518 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 0102-
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 0102-
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 06.760 		8-97173-626-0 01 1 0102-0311
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 0312-
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97201-107-0 01 1 0102-0311
6 06.524 SHAFT; STRG LWR 8-97201-107-0 01 1 0312-0404
6 06.524 SHAFT; STRG LWR 8-97378-632-0 01 1 0405-
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97173-635-0 01 1 0102-0207
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97351-831-0 01 1 0208-0311
22 06.525 BUSHING; STRG COLUMN
(B) 		8-97378-617-0 01 1 0405-
22 06.525 BUSHING; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-821-0 01 1 0102-0311
22 06.525 BUSHING; STRG COLUMN
(A) 		8-97076-821-0 01 1 0312-
22 06.525 BUSHING; STRG COLUMN
EXC. TILT STEERING<N33> (A) 		8-97201-085-0 01 1 0102-0207
37 06.525 CLAMP; BOOT TO SHAFT 8-97173-630-0 02 1 0102-0404
42 05.586 NIPPLE; GREASE,SLEEVE YOKE
EXC. TILT STEERING<N33> 		8-97178-201-0 01 1 0208-0311
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (A) 		8-97076-822-0 01 1 0102-0311
203 06.525 BOOT; STRG COLUMN LWR
06.518 (A) 		8-97076-822-0 01 1 0312-
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (B) 		8-97201-115-0 01 1 0102-0311
203 06.525 BOOT; STRG COLUMN LWR
(B) 		8-97201-115-0 01 1 0312-0404
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (B) 		8-97173-631-0 01 1 0102-0207
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (B) 		8-97351-851-0 01 1 0208-0311
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> 06.518 (A) 		8-97173-632-0 01 1 0102-0311
231 06.525 SEAL; RUBBER,STRG COLUMN
TILT STEERING<N33> 		8-97076-808-1 01 1 0102-0311
231 06.525 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 0312-
231 06.525 SEAL; RUBBER,STRG COLUMN
EXC. TILT STEERING<N33> 		8-97173-628-0 01 1 0102-0311
248 06.518 SCREW; YOKE
TILT STEERING<N33> 		8-97222-984-0 01 1 0102-0311
248 06.518 SCREW; YOKE 8-97222-984-0 01 1 0312-
251 06.518 COVER; LWR
TILT STEERING<N33> 06.578 BLACK 		8-97159-168-1 01 1 0102-0311
251 06.518 COVER; LWR
06.578 BLACK 		8-97159-168-2 01 1 0312-
251 06.518 COVER; LWR
EXC. TILT STEERING<N33> 06.578 BLACK 		8-97159-175-0 01 1 0102-0311

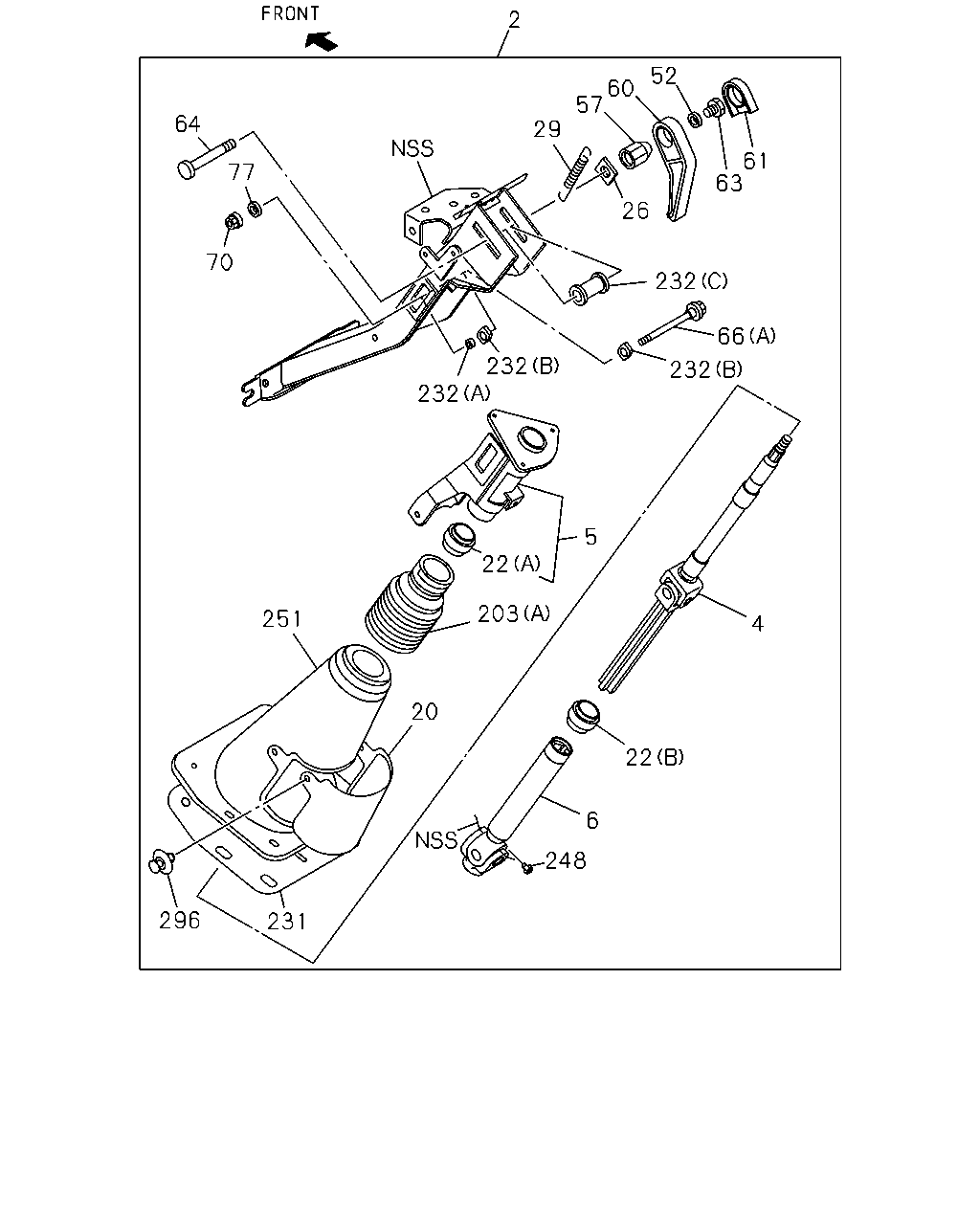

çizim 52029
2 52 60 57 64 29 61 63 77 26 70 232 66 232 232 232 5 22 203 251 4 20 22 6 248 296 231
BalonParca AdiParca NoAdetTipApplied Date
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-633-0 01 1 0102-0404
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-1 01 1 0405-
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0102-0404
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-056-1 01 1 0405-
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97159-172-0 01 1 0102-0207
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97394-700-1 01 1 0208-0311
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97398-853-0 01 1 0312-0404
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97400-061-1 01 1 0405-
4 06.524 SHAFT; STRG
TILT STEERING<N33> 		8-97201-110-1 01 1 0102-0311
4 06.524 SHAFT; STRG 8-97201-110-1 01 1 0312-0404
4 06.524 SHAFT; STRG 8-97378-634-0 01 1 0405-
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97173-634-0 01 1 0102-0207
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97351-830-0 01 1 0208-0311
5 06.518 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 0102-
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 0102-
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 06.760 		8-97173-626-0 01 1 0102-0311
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 0312-
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97201-107-0 01 1 0102-0311
6 06.524 SHAFT; STRG LWR 8-97201-107-0 01 1 0312-0404
6 06.524 SHAFT; STRG LWR 8-97378-632-0 01 1 0405-
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97173-635-0 01 1 0102-0207
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97351-831-0 01 1 0208-0311
20 06.525 COVER; STRG SHAFT
06.518 BLACK 		8-97291-634-1 01 1 0102-
22 06.525 BUSHING; STRG COLUMN
(B) 		8-97378-617-0 01 1 0405-
22 06.525 BUSHING; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-821-0 01 1 0102-0311
22 06.525 BUSHING; STRG COLUMN
(A) 		8-97076-821-0 01 1 0312-
22 06.525 BUSHING; STRG COLUMN
EXC. TILT STEERING<N33> (A) 		8-97201-085-0 01 1 0102-0207
26 06.514 PLATE; ADJ
TILT STEERING<N33> 		8-97222-989-0 01 1 0102-
29 06.514 SPRING; COLUMN
TILT STEERING<N33> 		8-97076-811-0 01 1 0102-
52 06.514 WASHER; PL,ADJ LEVER
TILT STEERING<N33> 		8-97076-813-0 01 1 0102-
57 06.518 NUT; ADJ BOLT
TILT STEERING<N33> 		8-97222-988-0 01 1 0102-
60 06.518 LEVER; ADJ,STRG COLUMN
TILT STEERING<N33> 		8-97076-830-0 01 1 0102-
61 06.514 CAP; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97076-814-0 01 1 0102-
63 06.514 BOLT; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97222-986-0 01 1 0102-
64 06.518 BOLT; ADJ,PROTECTOR
TILT STEERING<N33> 		8-97222-987-0 01 1 0102-
66 06.514 BOLT; STRG COLUMN
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1201-
66 06.514 BOLT; STRG COLUMN
04.634 (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0102-0611
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0612-1112
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1201-
66 06.514 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 0102-
70 06.514 NUT; STRG COLUMN
TILT STEERING<N33> 		8-97076-807-0 01 1 0102-
77 06.760 WASHER; PL,COLUMN
TILT STEERING<N33> 		8-97076-804-0 01 1 0102-
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (A) 		8-97076-822-0 01 1 0102-0311
203 06.525 BOOT; STRG COLUMN LWR
06.518 (A) 		8-97076-822-0 01 1 0312-
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (B) 		8-97201-115-0 01 1 0102-0311
203 06.525 BOOT; STRG COLUMN LWR
(B) 		8-97201-115-0 01 1 0312-0404
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (B) 		8-97173-631-0 01 1 0102-0207
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (B) 		8-97351-851-0 01 1 0208-0311
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> 06.518 (A) 		8-97173-632-0 01 1 0102-0311
231 06.525 SEAL; RUBBER,STRG COLUMN
TILT STEERING<N33> 		8-97076-808-1 01 1 0102-0311
231 06.525 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 0312-
231 06.525 SEAL; RUBBER,STRG COLUMN
EXC. TILT STEERING<N33> 		8-97173-628-0 01 1 0102-0311
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (B) 		8-97076-805-0 02 1 0102-
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (A) 		8-97076-806-0 01 1 0102-
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (C) 		8-97148-277-0 01 1 0102-
248 06.518 SCREW; YOKE
TILT STEERING<N33> 		8-97222-984-0 01 1 0102-0311
248 06.518 SCREW; YOKE 8-97222-984-0 01 1 0312-
251 06.518 COVER; LWR
TILT STEERING<N33> 06.578 BLACK 		8-97159-168-1 01 1 0102-0311
251 06.518 COVER; LWR
06.578 BLACK 		8-97159-168-2 01 1 0312-
251 06.518 COVER; LWR
EXC. TILT STEERING<N33> 06.578 BLACK 		8-97159-175-0 01 1 0102-0311
296 06.525 CLIP; COVER
BLACK 		8-97868-409-0 01 1 0102-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
