4-30 — STEERING WHEEL AND COWL (#19444) — 95 parça

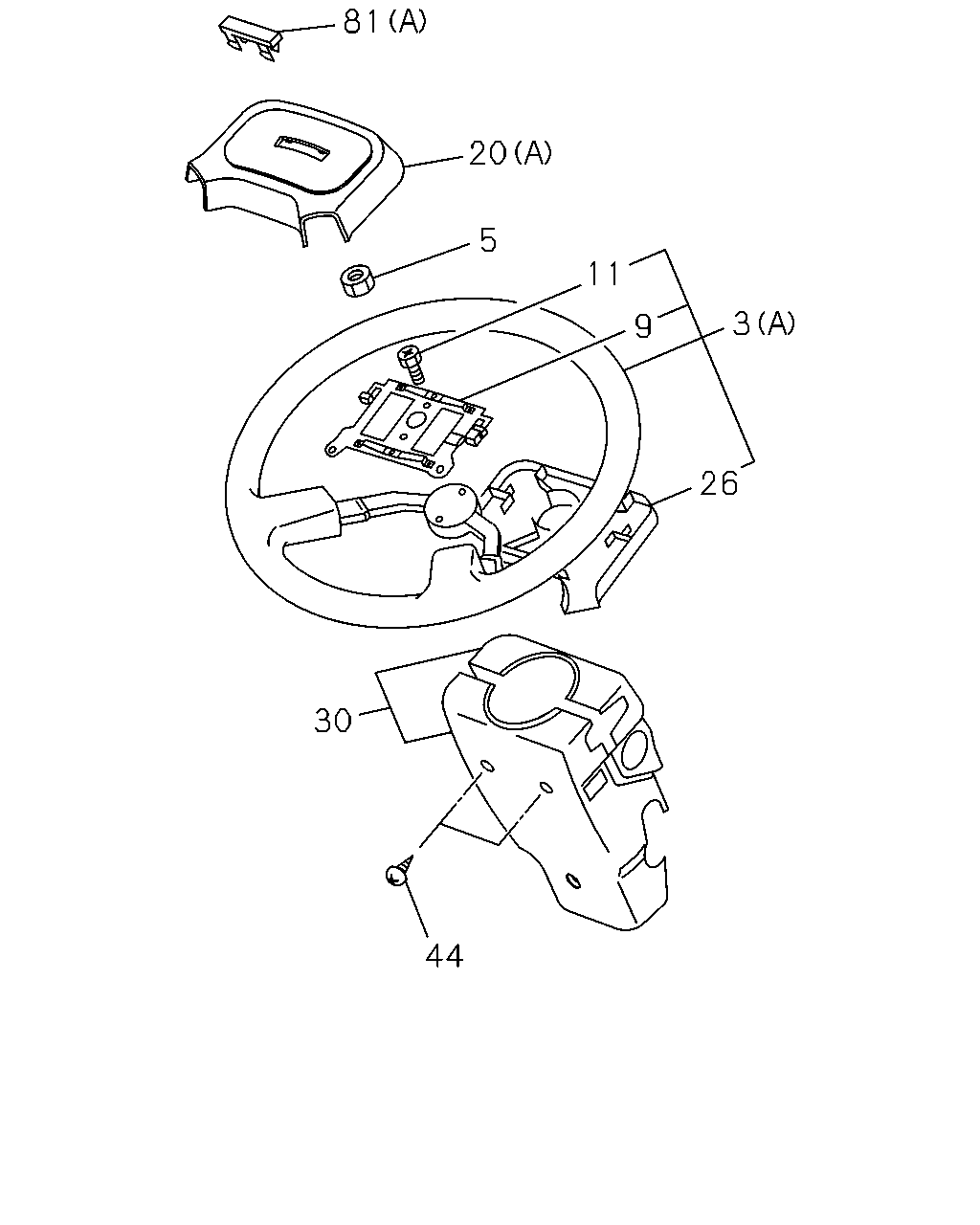

81 20 5 11 3 9 26 30 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	06.513 WHEEL; STRG (A) DARK GRAY	8-97098-531-1	01	1	0102-0112
3	06.513 WHEEL; STRG POWER STEERING<N40> (A) DARK GRAY	8-97098-531-2	01	1	0201-0501
3	06.513 WHEEL; STRG POWER STEERING<N40> (A) DARK GRAY	8-97400-081-2	01	1	0502-
3	06.513 WHEEL; STRG DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (B) DARK GRAY	1-44110-163-0	01	1	0201-0301
3	06.513 WHEEL; STRG EXC. DELUXE STEERING WHEEL URETHANE<N30>, POWER STEERING<N40> (C) DARK GRAY	8-97158-727-0	01	1	0201-0301
3	06.513 WHEEL; STRG EXC. POWER STEERING<N40> (C) DARK GRAY	8-97158-727-0	01	1	0302-0501
3	06.513 WHEEL; STRG EXC. POWER STEERING<N40> (C) DARK GRAY	8-97400-399-0	01	1	0502-
5	06.515 NUT; STRG WHEEL TO SHAFT 06.172 M14	9-99111-414-0	01	1	0102-0512
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	0601-
9	02.819 PLATE; HORN CONTACT	8-97076-688-1	01	1	0102-0112
9	02.819 PLATE; HORN CONTACT POWER STEERING<N40>	8-97076-688-1	01	1	0201-
9	02.819 PLATE; HORN CONTACT DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40>	8-94437-939-0	01	1	0201-0301
11	06.514 SCREW; PLATE TO BUTTON	8-97076-690-1	02	1	0102-0112
11	06.514 SCREW; PLATE TO BUTTON POWER STEERING<N40>	8-97076-690-1	02	1	0201-0309
11	06.514 SCREW; PLATE TO BUTTON POWER STEERING<N40>	8-97076-690-1	01	1	0310-
20	06.512 SHROUD; PAD,STRG WHEEL (A) DARK GRAY	8-97098-526-0	01	1	0102-0112
20	06.512 SHROUD; PAD,STRG WHEEL POWER STEERING<N40> (A) DARK GRAY	8-97098-526-0	01	1	0201-0501
20	06.512 SHROUD; PAD,STRG WHEEL POWER STEERING<N40> (A) DARK GRAY	8-97400-049-0	01	1	0502-
20	06.512 SHROUD; PAD,STRG WHEEL DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (B) DARK GRAY	8-97154-485-0	01	1	0201-0301
20	06.512 SHROUD; PAD,STRG WHEEL EXC. DELUXE STEERING WHEEL URETHANE<N30>, POWER STEERING<N40> (C) DARK GRAY	8-97158-724-0	01	1	0201-0301
20	06.512 SHROUD; PAD,STRG WHEEL EXC. POWER STEERING<N40> (C) DARK GRAY	8-97158-724-0	01	1	0302-0501
20	06.512 SHROUD; PAD,STRG WHEEL EXC. POWER STEERING<N40> (C) DARK GRAY	8-97400-396-0	01	1	0502-
26	06.514 COVER; STRG WHEEL,LWR DARK GRAY	8-97098-534-1	01	1	0102-0112
26	06.514 COVER; STRG WHEEL,LWR POWER STEERING<N40> DARK GRAY	8-97098-534-1	01	1	0201-0501
26	06.514 COVER; STRG WHEEL,LWR POWER STEERING<N40> DARK GRAY	8-97400-089-1	01	1	0502-
26	06.514 COVER; STRG WHEEL,LWR DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40>	1-44110-160-0	01	1	0201-0301
30	06.518 COWL; STEERING TILT STEERING<N33> DARK GRAY	8-97857-532-8	01	1	0102-0301
30	06.518 COWL; STEERING TILT STEERING<N33> BLACK	8-97197-936-8	01	1	0302-0501
30	06.518 COWL; STEERING TILT STEERING<N33> DARK GRAY	8-97582-824-8	01	1	0502-
30	06.518 COWL; STEERING EXC. TILT STEERING<N33> DARK GRAY	8-97868-358-7	01	1	0102-0301
30	06.518 COWL; STEERING EXC. TILT STEERING<N33> BLACK	8-97997-903-7	01	1	0302-0501
30	06.518 COWL; STEERING EXC. TILT STEERING<N33> DARK GRAY	8-97587-492-7	01	1	0502-
44	06.514 SCREW; STRG COWL M5X16 W/LK&PL WASHER	8-94279-400-0	02	1	0102-0612
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	02	1	0701-
81	02.820 EMBLEM; STRG WHEEL MARK VEHICLE NAME<EK7> POWER STEERING<N40> (A) DARK GRAY	8-97400-048-0	01	1	0611-
81	02.820 EMBLEM; STRG WHEEL MARK VEHICLE NAME<EK7> EXC. POWER STEERING<N40> (C) DARK GRAY	8-97400-398-0	01	1	0611-
81	02.820 EMBLEM; STRG WHEEL (A) DARK GRAY	8-97098-527-0	01	1	0102-0112
81	02.820 EMBLEM; STRG WHEEL POWER STEERING<N40> (A) DARK GRAY	8-97098-527-0	01	1	0201-0501
81	02.820 EMBLEM; STRG WHEEL POWER STEERING<N40> (A) DARK GRAY	8-97400-060-0	01	1	0502-0610
81	02.820 EMBLEM; STRG WHEEL POWER STEERING<N40> EXC. MARK VEHICLE NAME<EK7> (A) DARK GRAY	8-97400-060-0	01	1	0611-
81	02.820 EMBLEM; STRG WHEEL EXC. DELUXE STEERING WHEEL URETHANE<N30>, POWER STEERING<N40> (B) DARK GRAY	8-97158-725-0	01	1	0201-0301
81	02.820 EMBLEM; STRG WHEEL EXC. POWER STEERING<N40> (B) DARK GRAY	8-97158-725-0	01	1	0302-0501
81	02.820 EMBLEM; STRG WHEEL EXC. POWER STEERING<N40> (B) DARK GRAY	8-97400-397-0	01	1	0502-0610
81	02.820 EMBLEM; STRG WHEEL EXC. MARK VEHICLE NAME<EK7>,POWER STEERING<N40> (B) DARK GRAY	8-97400-397-0	01	1	0611-

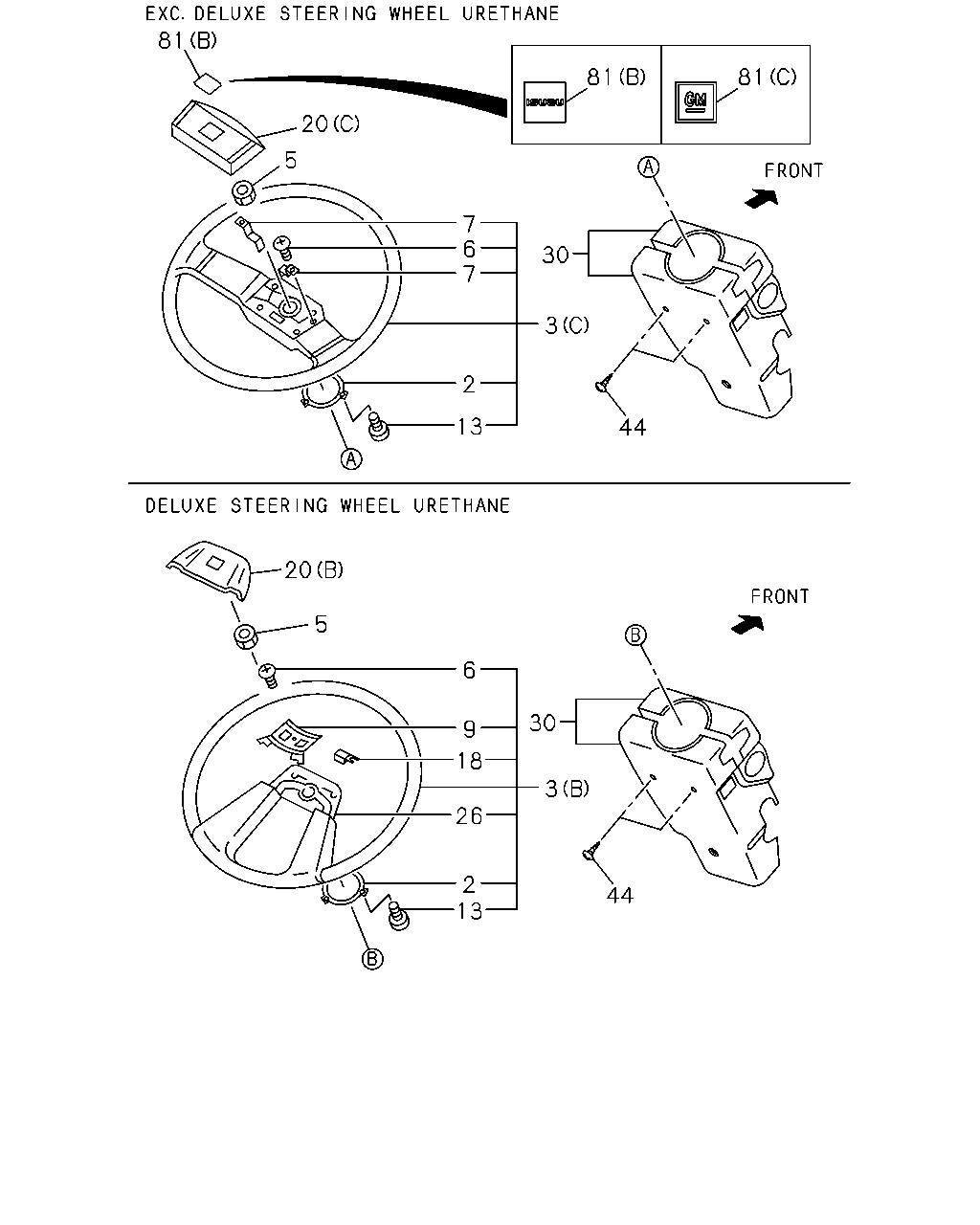

81 81 81 20 5 7 6 7 30 3 2 13 44 20 5 6 30 9 18 3 26 2 13 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	06.514 RING; HORN CONTACT DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40>	8-94437-938-0	01	1	0201-0301
2	06.514 RING; HORN CONTACT EXC. DELUXE STEERING WHEEL URETHANE<N30>, POWER STEERING<N40> 02.819	8-94150-223-0	01	1	0201-0301
2	06.514 RING; HORN CONTACT EXC. POWER STEERING<N40> 02.819	8-94150-223-0	01	1	0302-
3	06.513 WHEEL; STRG (A) DARK GRAY	8-97098-531-1	01	1	0102-0112
3	06.513 WHEEL; STRG POWER STEERING<N40> (A) DARK GRAY	8-97098-531-2	01	1	0201-0501
3	06.513 WHEEL; STRG POWER STEERING<N40> (A) DARK GRAY	8-97400-081-2	01	1	0502-
3	06.513 WHEEL; STRG DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (B) DARK GRAY	1-44110-163-0	01	1	0201-0301
3	06.513 WHEEL; STRG EXC. DELUXE STEERING WHEEL URETHANE<N30>, POWER STEERING<N40> (C) DARK GRAY	8-97158-727-0	01	1	0201-0301
3	06.513 WHEEL; STRG EXC. POWER STEERING<N40> (C) DARK GRAY	8-97158-727-0	01	1	0302-0501
3	06.513 WHEEL; STRG EXC. POWER STEERING<N40> (C) DARK GRAY	8-97400-399-0	01	1	0502-
5	06.515 NUT; STRG WHEEL TO SHAFT 06.172 M14	9-99111-414-0	01	1	0102-0512
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	0601-
6	02.820 SCREW; HORN SPR CONTACT DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 06.514	9-93090-308-0	02	1	0201-0301
6	02.820 SCREW; HORN SPR CONTACT EXC. DELUXE STEERING WHEEL URETHANE<N30>, POWER STEERING<N40>	8-94458-316-0	02	1	0201-0301
6	02.820 SCREW; HORN SPR CONTACT EXC. POWER STEERING<N40>	8-94458-316-0	02	1	0302-
7	02.819 SPRING; HORN CONTACT EXC. DELUXE STEERING WHEEL URETHANE<N30>, POWER STEERING<N40>	8-94150-222-0	02	1	0201-0301
7	02.819 SPRING; HORN CONTACT EXC. POWER STEERING<N40>	8-94150-222-0	02	1	0302-
9	02.819 PLATE; HORN CONTACT	8-97076-688-1	01	1	0102-0112
9	02.819 PLATE; HORN CONTACT POWER STEERING<N40>	8-97076-688-1	01	1	0201-
9	02.819 PLATE; HORN CONTACT DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40>	8-94437-939-0	01	1	0201-0301
13	06.514 SCREW; CONTACT RING EXC. POWER STEERING<N40> M3X10 TAPPING	9-07076-310-0	03	1	0201-
18	06.508 CONDENSER ASM; STEERING WHEEL DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40>	8-94462-321-0	01	1	0201-0301
20	06.512 SHROUD; PAD,STRG WHEEL (A) DARK GRAY	8-97098-526-0	01	1	0102-0112
20	06.512 SHROUD; PAD,STRG WHEEL POWER STEERING<N40> (A) DARK GRAY	8-97098-526-0	01	1	0201-0501
20	06.512 SHROUD; PAD,STRG WHEEL POWER STEERING<N40> (A) DARK GRAY	8-97400-049-0	01	1	0502-
20	06.512 SHROUD; PAD,STRG WHEEL DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (B) DARK GRAY	8-97154-485-0	01	1	0201-0301
20	06.512 SHROUD; PAD,STRG WHEEL EXC. DELUXE STEERING WHEEL URETHANE<N30>, POWER STEERING<N40> (C) DARK GRAY	8-97158-724-0	01	1	0201-0301
20	06.512 SHROUD; PAD,STRG WHEEL EXC. POWER STEERING<N40> (C) DARK GRAY	8-97158-724-0	01	1	0302-0501
20	06.512 SHROUD; PAD,STRG WHEEL EXC. POWER STEERING<N40> (C) DARK GRAY	8-97400-396-0	01	1	0502-
26	06.514 COVER; STRG WHEEL,LWR DARK GRAY	8-97098-534-1	01	1	0102-0112
26	06.514 COVER; STRG WHEEL,LWR POWER STEERING<N40> DARK GRAY	8-97098-534-1	01	1	0201-0501
26	06.514 COVER; STRG WHEEL,LWR POWER STEERING<N40> DARK GRAY	8-97400-089-1	01	1	0502-
26	06.514 COVER; STRG WHEEL,LWR DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40>	1-44110-160-0	01	1	0201-0301
30	06.518 COWL; STEERING TILT STEERING<N33> DARK GRAY	8-97857-532-8	01	1	0102-0301
30	06.518 COWL; STEERING TILT STEERING<N33> BLACK	8-97197-936-8	01	1	0302-0501
30	06.518 COWL; STEERING TILT STEERING<N33> DARK GRAY	8-97582-824-8	01	1	0502-
30	06.518 COWL; STEERING EXC. TILT STEERING<N33> DARK GRAY	8-97868-358-7	01	1	0102-0301
30	06.518 COWL; STEERING EXC. TILT STEERING<N33> BLACK	8-97997-903-7	01	1	0302-0501
30	06.518 COWL; STEERING EXC. TILT STEERING<N33> DARK GRAY	8-97587-492-7	01	1	0502-
44	06.514 SCREW; STRG COWL M5X16 W/LK&PL WASHER	8-94279-400-0	02	1	0102-0612
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	02	1	0701-
81	02.820 EMBLEM; STRG WHEEL MARK VEHICLE NAME<EK7> POWER STEERING<N40> (A) DARK GRAY	8-97400-048-0	01	1	0611-
81	02.820 EMBLEM; STRG WHEEL MARK VEHICLE NAME<EK7> EXC. POWER STEERING<N40> (C) DARK GRAY	8-97400-398-0	01	1	0611-
81	02.820 EMBLEM; STRG WHEEL (A) DARK GRAY	8-97098-527-0	01	1	0102-0112
81	02.820 EMBLEM; STRG WHEEL POWER STEERING<N40> (A) DARK GRAY	8-97098-527-0	01	1	0201-0501
81	02.820 EMBLEM; STRG WHEEL POWER STEERING<N40> (A) DARK GRAY	8-97400-060-0	01	1	0502-0610
81	02.820 EMBLEM; STRG WHEEL POWER STEERING<N40> EXC. MARK VEHICLE NAME<EK7> (A) DARK GRAY	8-97400-060-0	01	1	0611-
81	02.820 EMBLEM; STRG WHEEL EXC. DELUXE STEERING WHEEL URETHANE<N30>, POWER STEERING<N40> (B) DARK GRAY	8-97158-725-0	01	1	0201-0301
81	02.820 EMBLEM; STRG WHEEL EXC. POWER STEERING<N40> (B) DARK GRAY	8-97158-725-0	01	1	0302-0501
81	02.820 EMBLEM; STRG WHEEL EXC. POWER STEERING<N40> (B) DARK GRAY	8-97400-397-0	01	1	0502-0610
81	02.820 EMBLEM; STRG WHEEL EXC. MARK VEHICLE NAME<EK7>,POWER STEERING<N40> (B) DARK GRAY	8-97400-397-0	01	1	0611-
