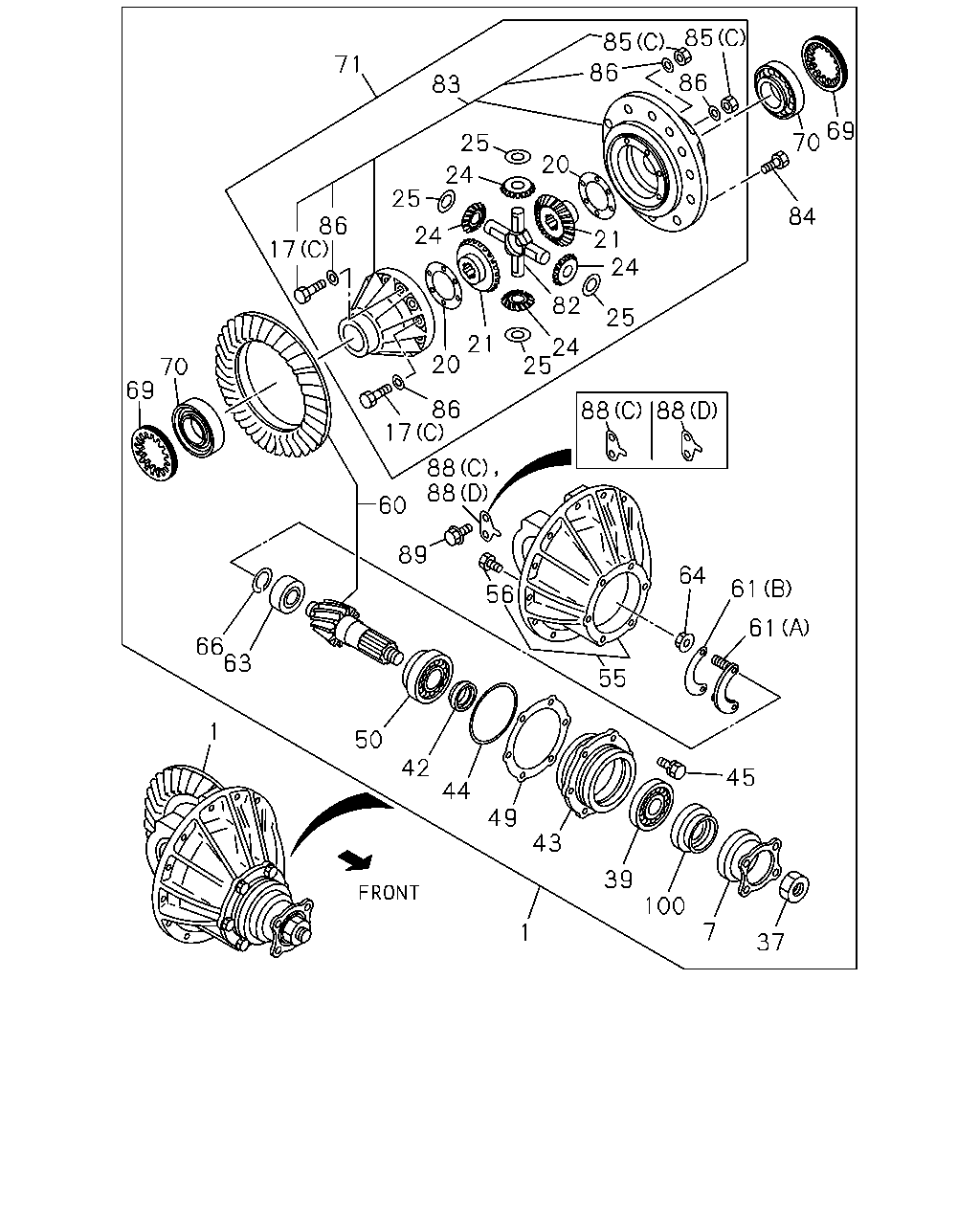

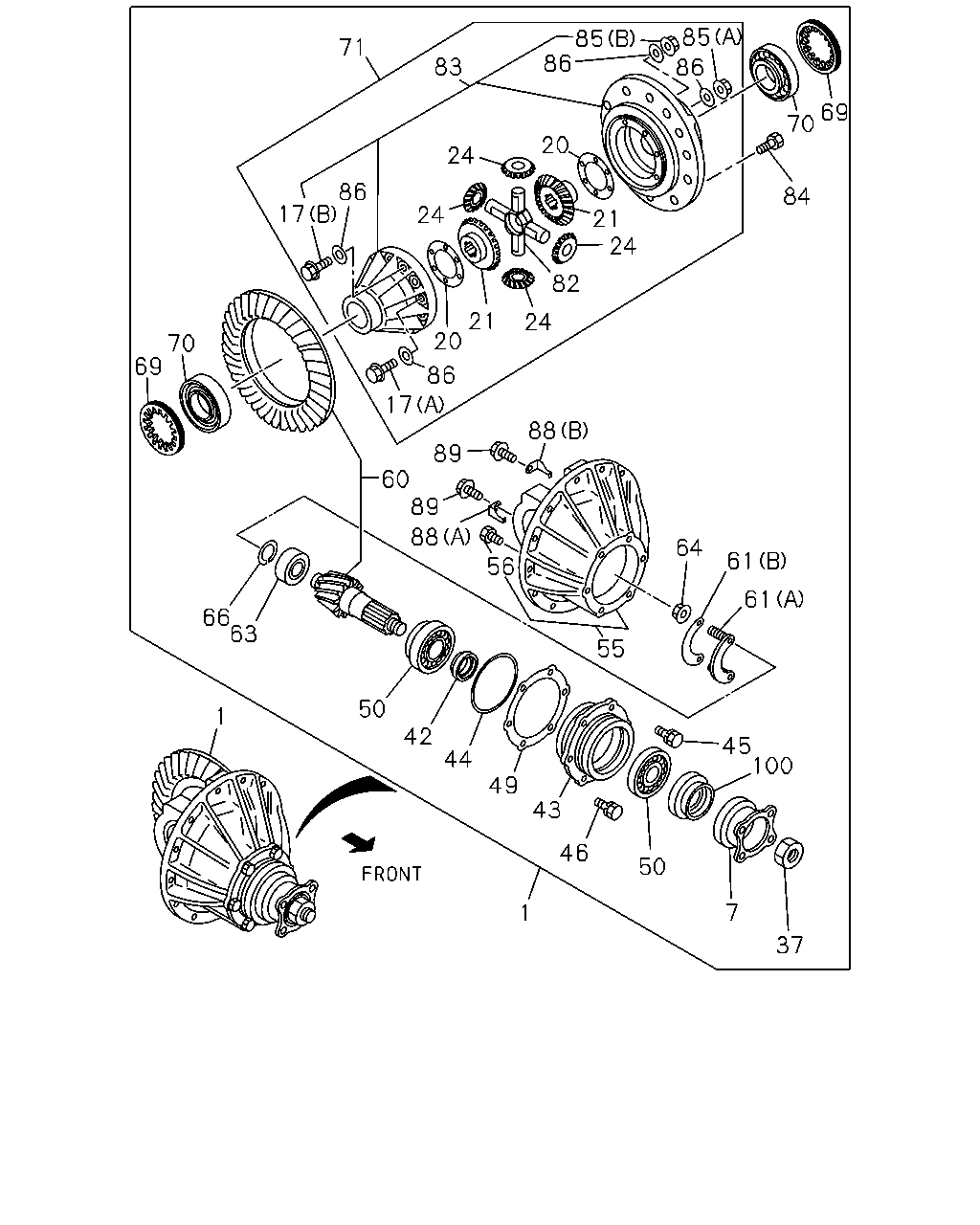

4-25 — REAR FINAL DRIVE (#19443) — 545 parça

85 86 85 86 71 83 69 70 20 24 86 17 84 24 21 24 82 21 20 24 70 69 86 17 88 89 60 89 88 64 61 56 61 66 63 55 50 1 42 45 100 44 49 43 46 50 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) 39/7	8-97367-509-0	01	1	0607-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97035-415-0	01	1	0201-0203
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97319-244-0	01	1	0204-0301
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97319-244-0	01	1	0302-0303
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97356-426-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97363-099-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97367-503-0	01	1	0305-0501
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97367-503-0	01	1	0502-0510
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-98015-128-0	01	1	0511-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-97035-416-0	01	1	0201-0203
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-97319-245-0	01	1	0204-0301
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-97319-245-0	01	1	0302-0303
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-97356-427-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-97363-100-0	01	1	0304-0501
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-97363-100-0	01	1	0502-0510
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-98015-129-0	01	1	0511-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97035-417-0	01	1	0201-0203
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97319-246-0	01	1	0204-0301
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97319-246-0	01	1	0302-0303
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97356-428-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97363-101-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97367-504-0	01	1	0305-0501
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97367-504-0	01	1	0502-0510
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-98015-130-0	01	1	0511-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FINAL GEAR RATIO 41/6(6YB) 41/6	8-97094-685-0	01	1	0201-0301
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FINAL GEAR RATIO 41/7(R41) 41/7	8-97094-682-0	01	1	0201-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FINAL GEAR RATIO 43/7(R42) 43/7	8-97094-684-0	01	1	0201-
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1) FRAME STRAIGHT TYPE<7KJ> 41/8	8-97203-879-0	01	1	0102-0112
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97203-879-0	01	1	0201-0304
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97367-508-0	01	1	0305-
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> 43/9	8-97094-681-0	01	1	0102-0112
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97094-681-0	01	1	0201-
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 39/7	8-97134-575-0	01	1	0201-0301
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 43/10	8-97094-679-0	01	1	0201-0301
1	05.505 DRIVE ASM; FINAL,RR 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ> HYDRO BRAKE BOOSTER<7QQ> 39/7	8-97121-902-0	01	1	0502-
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	0201-0501
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX)	8-94477-723-4	01	1	0502-
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 41/6(6YB)	8-97073-802-2	01	1	0201-0301
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)	8-97073-802-2	01	1	0302-0501
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)	8-97073-802-2	01	1	0502-
7	05.545 FLANGE; FINAL 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ>	8-97047-095-2	01	1	0102-0112
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FIN AL GEAR RATIO 43/10(S7C)	8-97047-095-2	01	1	0201-0301
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J)	8-97047-095-2	01	1	0302-0606
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX)	8-97047-095-2	01	1	0607-
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J)	8-97047-095-2	01	1	0607-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) (A) M10X75	5-09000-213-0	08	1	0201-0203
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) (B) M10X75 FLANGE	8-97232-161-0	04	1	0201-0203
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) (A),(B) M10X75 FLANGE	8-97232-161-0	12	1	0204-0501
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) (A),(B) M10X75 FLANGE	8-97232-161-0	12	1	0502-
17	05.510 BOLT; DIFF CAGE SETTING 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> (C) M12X90	8-97047-295-0	12	1	0102-0112
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (C) M12X90	8-97047-295-0	12	1	0201-1208
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (C) M12X90	8-98219-448-0	12	1	1209-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	0201-0501
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) T=1.40	9-41562-601-0	02	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> T=2.80	1-41562-073-0	AR	1	0102-0112
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	0201-
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> T=2.90	1-41562-074-0	AR	1	0102-0112
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	0201-
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> T=3.00	1-41562-075-0	AR	1	0102-0112
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	0201-
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> T=3.10	1-41562-076-0	AR	1	0102-0112
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	0201-
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> T=3.20	1-41562-077-0	AR	1	0102-0112
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	0201-
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> T=3.30	1-41562-078-0	AR	1	0102-0112
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	0201-
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> T=3.40	1-41562-079-0	AR	1	0102-0112
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	0201-
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=20	8-97300-266-0	02	1	0201-0303
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=20	8-97362-598-0	02	1	0304-0501
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) Z=20	8-97362-598-1	02	1	0502-
21	05.528 GEAR; SIDE,DIFF 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> Z=16	1-41561-093-0	02	1	0102-0112
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	1-41561-093-0	02	1	0201-1004
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	8-98165-935-0	02	1	1005-
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-97300-265-0	04	1	0201-0303
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-97356-349-0	04	1	0304-0501
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) Z=10	8-97356-349-0	04	1	0502-0510
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) Z=10	8-98015-202-0	04	1	0511-
24	05.526 GEAR; PINION,DIFF 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> Z=10	1-41551-024-0	04	1	0102-0112
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-024-0	04	1	0201-1004
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-050-0	04	1	1005-
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	0201-0501
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) M24 FLANGE	8-94329-526-1	01	1	0502-
37	05.595 NUT; DRIVING PINION 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> M30 FLANGE	8-97047-146-0	01	1	0102-0112
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	0201-
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	0201-0501
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) L=19.6	9-41219-603-1	01	1	0502-
42	05.453 COLLAR; DIST,COLLAPSIBLE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ>	8-97047-097-0	01	1	0102-0112
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	0201-
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	0201-0501
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX)	8-94400-890-0	01	1	0502-
43	05.453 CAGE; FINAL PINION 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ>	8-97047-098-0	01	1	0102-0112
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	0201-
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	0201-0501
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 05.458	9-09720-505-0	01	1	0502-
44	05.476 GASKET; PINION CAGE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ>	8-97048-053-0	01	1	0102-0112
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	0201-
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50051-238-0	05	1	0201-0501
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) M12X38 W/LK WASHER	0-50051-238-0	05	1	0502-0909
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-
45	05.453 BOLT; FINAL PINION CAGE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> M12X40 W/LK WASHER	0-50071-240-0	06	1	0102-0112
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	0-50071-240-0	06	1	0201-0909
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50051-435-0	01	1	0201-0501
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) M14X35 W/LK WASHER	0-50051-435-0	01	1	0502-0909
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	0201-0501
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) ID=132 T=0.10	8-94401-335-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	0201-0501
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) ID=132 T=0.12	8-94401-336-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	0201-0501
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) ID=132 T=0.14	8-94401-337-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	0201-0501
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) ID=132 T=0.16	8-94401-338-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	0201-0501
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) ID=132 T=0.18	8-94401-339-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	0201-0501
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) ID=132 T=0.20	8-94401-340-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> ID=142 T=0.12	8-97047-298-0	AR	1	0102-0112
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	0201-
49	05.458 SHIM; FINAL PINION CAGE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> ID=142 T=0.15	8-97047-299-0	AR	1	0102-0112
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	0201-
49	05.458 SHIM; FINAL PINION CAGE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> ID=142 T=0.20	8-97047-300-0	AR	1	0102-0112
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	0201-
49	05.458 SHIM; FINAL PINION CAGE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> ID=142 T=0.25	8-97048-418-0	AR	1	0102-0112
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	0201-
49	05.458 SHIM; FINAL PINION CAGE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0102-0112
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0201-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	0701-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	0201-0501
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 05.484 JTEKT	5-09812-062-1	02	1	0502-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	0201-0501
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 05.484 NSK	5-09812-063-0	02	1	0502-
50	05.447 BEARING; FINAL PINION 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> 05.484 NSK	1-09812-041-2	01	1	0102-0112
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	0201-
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-94365-264-0	01	1	0201-0202
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	0203-0501
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX)	8-97307-760-0	01	1	0502-
55	05.505 CARRIER; DIFF 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ>	8-97094-637-0	01	1	0102-0112
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	0201-
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	0201-0501
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 05.387 M14X80	8-94365-377-3	04	1	0502-
56	05.506 BOLT; BRG CAP 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> M14X95 FLANGE	1-09070-027-0	04	1	0102-0112
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	0201-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97035-453-0	01	1	0201-0203
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97319-160-0	01	1	0204-0301
60	05.529 GEAR SET; FINAL DRIVE,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97319-160-0	01	1	0302-0501
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97319-160-0	01	1	0502-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-97035-454-0	01	1	0201-0203
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-97319-161-0	01	1	0204-0301
60	05.529 GEAR SET; FINAL DRIVE,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-97319-161-0	01	1	0302-0501
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-97319-161-0	01	1	0502-1201
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-98092-031-1	01	1	1202-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97035-455-0	01	1	0201-0203
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97320-103-0	01	1	0204-0301
60	05.529 GEAR SET; FINAL DRIVE,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97320-103-0	01	1	0302-0501
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97320-103-0	01	1	0502-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FINAL GEAR RATIO 41/6(6YB) 41/6	8-97047-092-1	01	1	0201-0301
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FINAL GEAR RATIO 41/7(R41) 41/7	8-97083-126-0	01	1	0201-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FINAL GEAR RATIO 43/7(R42) 43/7	8-97092-946-0	01	1	0201-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1) FRAME STRAIGHT TYPE<7KJ> 41/8	8-97174-099-0	01	1	0102-0112
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	0201-1505
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) 41/8	8-98092-137-0	01	1	1506-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> 43/9	8-97061-850-0	01	1	0102-0112
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97061-850-0	01	1	0201-1505
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J) 43/9	8-98092-146-0	01	1	1506-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 39/7	8-97121-593-1	01	1	0201-0301
60	05.529 GEAR SET; FINAL DRIVE,RR 4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 43/10	8-97047-115-0	01	1	0201-0301
60	05.529 GEAR SET; FINAL DRIVE,RR 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ> HYDRO BRAKE BOOSTER<7QQ> 39/7	8-97121-593-1	01	1	0502-0606
60	05.529 GEAR SET; FINAL DRIVE,RR 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ> HYDRO BRAKE BOOSTER<7QQ> 39/7	8-97121-593-1	01	1	0607-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97121-593-1	01	1	0607-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	0201-0501
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) (A) W/STUD	5-41227-001-0	01	1	0502-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	0201-0501
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) (B)	9-41227-601-0	01	1	0502-
61	05.476 RETAINER; PILOT BRG,PINION 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> (A) W/STUD	8-97047-149-0	01	1	0102-0112
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	0201-
61	05.476 RETAINER; PILOT BRG,PINION 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> (B)	8-97047-150-0	01	1	0102-0112
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	0201-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	0201-0501
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) NSK	5-09810-008-1	01	1	0502-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	0201-0501
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) JTEKT	8-97107-548-0	01	1	0502-
63	05.447 BEARING; PINION PILOT 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> NSK	8-97047-296-0	01	1	0102-0112
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	0201-
63	05.447 BEARING; PINION PILOT 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> JTEKT	8-97047-928-0	01	1	0102-0112
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	0201-
64	05.476 NUT; RET 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	02	1	0102-0112
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	0201-0602
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	0201-0501
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX)	9-09752-002-0	01	1	0502-
66	05.476 RING; SNAP,PILOT BRG 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ>	8-97047-297-0	01	1	0102-0112
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	0201-
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	0201-0501
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) M110 H=10	5-41121-001-0	02	1	0502-
69	05.506 NUT; ADJ,DIFF CAGE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> M115 H=20	1-41121-039-0	02	1	0102-0112
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	0201-
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	0201-0501
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) NSK	9-00093-602-0	02	1	0502-
70	05.536 BEARING; DIFF CAGE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0102-0112
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0201-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73)	8-94461-234-1	01	1	0201-0203
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73)	8-97319-039-0	01	1	0204-0303
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73)	8-97356-483-0	01	1	0304-0304
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73)	8-97363-156-0	01	1	0304-0501
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX)	8-97363-156-0	01	1	0502-0510
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX)	8-98015-179-1	01	1	0511-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1) FRAME STRAIGHT TYPE<7KJ>	8-97047-100-1	01	1	0102-0112
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FIN AL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 41/6(6YB)	8-97047-100-1	01	1	0201-0301
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)	8-97047-100-1	01	1	0302-0501
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FIN AL GEAR RATIO 43/7(R42)	8-97047-100-4	01	1	0502-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY) FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ>	8-97047-099-1	01	1	0102-0112
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C)	8-97047-099-1	01	1	0201-0301
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J)	8-97047-099-4	01	1	0302-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.520	5-41521-008-0	01	1	0201-0501
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 05.520	5-41521-008-0	01	1	0502-
82	05.517 SPIDER; DIFF PINION 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> 05.520	1-41521-035-0	01	1	0102-0112
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	0201-1004
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41521-062-0	01	1	1005-1309
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	1310-
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-94159-027-0	01	1	0201-0203
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97319-396-1	01	1	0204-0501
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX)	8-97319-396-1	01	1	0502-
83	05.510 CAGE ASM; DIFF 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1) FRAME STRAIGHT TYPE<7KJ>	8-97047-117-1	01	1	0102-0112
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FIN AL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 41/6(6YB)	8-97047-117-1	01	1	0201-0301
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)	8-97047-117-1	01	1	0302-0501
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FIN AL GEAR RATIO 43/7(R42)	8-97047-117-2	01	1	0502-1208
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FIN AL GEAR RATIO 43/7(R42)	8-98219-707-0	01	1	1209-
83	05.510 CAGE ASM; DIFF 4HE1 ENG(RLY) FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ>	8-97047-101-1	01	1	0102-0112
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C)	8-97047-101-1	01	1	0201-0301
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J)	8-97047-101-2	01	1	0302-1208
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J)	8-98219-705-0	01	1	1209-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M12X25	9-09606-505-2	12	1	0201-0203
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M14X25	8-97318-938-1	12	1	0204-0501
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) M14X25	8-97318-938-1	12	1	0502-
84	05.531 BOLT; FINAL DRIVE GEAR 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> M16X30	8-97047-147-0	12	1	0102-0112
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	0201-
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 08.917 (B) M10 FLANGE	0-91150-210-0	04	1	0201-0203
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 08.917 (A),(B) M10 FLANGE	0-91150-210-0	12	1	0204-0501
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 08.917 (A),(B) M10 FLANGE	0-91150-210-0	12	1	0502-0602
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 04.085 (A),(B) M10 FLANGE	0-91180-210-0	12	1	0603-
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 05.586 (A) M10	8-94159-009-1	08	1	0201-0203
85	05.510 NUT; DIFF CAGE SETTING 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> (C) M12	8-97065-214-0	12	1	0102-0112
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (C) M12	8-97065-214-0	12	1	0201-
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) ID=10 OD=18 T=2	9-09651-116-0	24	1	0201-0203
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0102-0112
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0201-1208
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	0201-0501
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) (A)	8-97027-281-0	AR	1	0502-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	0201-0501
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) (B)	8-97027-282-0	AR	1	0502-
88	05.506 PLATE; LK,ADJ NUT 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> (D) T=2.3	8-97087-821-0	AR	1	0102-0112
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D) T=2.3	8-97087-821-0	AR	1	0201-
88	05.506 PLATE; LK,ADJ NUT 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> (C) T=2.3	9-41124-015-0	AR	1	0102-0112
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	0201-
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0201-0501
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-
89	05.506 BOLT; LK PLATE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0102-0112
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0201-0501
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0502-0512
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	0201-0501
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) OD=103	8-94408-083-0	01	1	0502-
100	05.469 SEAL; OIL,FINAL PINION 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> NOK	8-97047-609-0	01	1	0102-0112
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	8-97047-609-0	01	1	0201-0406
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	0407-

85 85 86 71 86 83 69 70 25 20 24 25 84 86 17 24 21 24 82 25 21 20 24 25 70 69 86 17 88 88 88 88 60 89 64 61 56 61 66 63 55 1 50 42 45 44 49 43 39 100 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) 39/7	8-97367-509-0	01	1	0607-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97035-415-0	01	1	0201-0203
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97319-244-0	01	1	0204-0301
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97319-244-0	01	1	0302-0303
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97356-426-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97363-099-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97367-503-0	01	1	0305-0501
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97367-503-0	01	1	0502-0510
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-98015-128-0	01	1	0511-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-97035-416-0	01	1	0201-0203
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-97319-245-0	01	1	0204-0301
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-97319-245-0	01	1	0302-0303
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-97356-427-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-97363-100-0	01	1	0304-0501
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-97363-100-0	01	1	0502-0510
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-98015-129-0	01	1	0511-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97035-417-0	01	1	0201-0203
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97319-246-0	01	1	0204-0301
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97319-246-0	01	1	0302-0303
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97356-428-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97363-101-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97367-504-0	01	1	0305-0501
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97367-504-0	01	1	0502-0510
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-98015-130-0	01	1	0511-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FINAL GEAR RATIO 41/6(6YB) 41/6	8-97094-685-0	01	1	0201-0301
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FINAL GEAR RATIO 41/7(R41) 41/7	8-97094-682-0	01	1	0201-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FINAL GEAR RATIO 43/7(R42) 43/7	8-97094-684-0	01	1	0201-
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1) FRAME STRAIGHT TYPE<7KJ> 41/8	8-97203-879-0	01	1	0102-0112
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97203-879-0	01	1	0201-0304
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97367-508-0	01	1	0305-
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> 43/9	8-97094-681-0	01	1	0102-0112
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97094-681-0	01	1	0201-
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 39/7	8-97134-575-0	01	1	0201-0301
1	05.505 DRIVE ASM; FINAL,RR 4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 43/10	8-97094-679-0	01	1	0201-0301
1	05.505 DRIVE ASM; FINAL,RR 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ> HYDRO BRAKE BOOSTER<7QQ> 39/7	8-97121-902-0	01	1	0502-
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	0201-0501
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX)	8-94477-723-4	01	1	0502-
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 41/6(6YB)	8-97073-802-2	01	1	0201-0301
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)	8-97073-802-2	01	1	0302-0501
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)	8-97073-802-2	01	1	0502-
7	05.545 FLANGE; FINAL 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ>	8-97047-095-2	01	1	0102-0112
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FIN AL GEAR RATIO 43/10(S7C)	8-97047-095-2	01	1	0201-0301
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J)	8-97047-095-2	01	1	0302-0606
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX)	8-97047-095-2	01	1	0607-
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J)	8-97047-095-2	01	1	0607-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) (A) M10X75	5-09000-213-0	08	1	0201-0203
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) (B) M10X75 FLANGE	8-97232-161-0	04	1	0201-0203
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) (A),(B) M10X75 FLANGE	8-97232-161-0	12	1	0204-0501
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) (A),(B) M10X75 FLANGE	8-97232-161-0	12	1	0502-
17	05.510 BOLT; DIFF CAGE SETTING 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> (C) M12X90	8-97047-295-0	12	1	0102-0112
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (C) M12X90	8-97047-295-0	12	1	0201-1208
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (C) M12X90	8-98219-448-0	12	1	1209-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	0201-0501
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) T=1.40	9-41562-601-0	02	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> T=2.80	1-41562-073-0	AR	1	0102-0112
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	0201-
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> T=2.90	1-41562-074-0	AR	1	0102-0112
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	0201-
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> T=3.00	1-41562-075-0	AR	1	0102-0112
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	0201-
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> T=3.10	1-41562-076-0	AR	1	0102-0112
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	0201-
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> T=3.20	1-41562-077-0	AR	1	0102-0112
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	0201-
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> T=3.30	1-41562-078-0	AR	1	0102-0112
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	0201-
20	05.543 WASHER; THRUST,SIDE GEAR 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> T=3.40	1-41562-079-0	AR	1	0102-0112
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	0201-
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=20	8-97300-266-0	02	1	0201-0303
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=20	8-97362-598-0	02	1	0304-0501
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) Z=20	8-97362-598-1	02	1	0502-
21	05.528 GEAR; SIDE,DIFF 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> Z=16	1-41561-093-0	02	1	0102-0112
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	1-41561-093-0	02	1	0201-1004
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	8-98165-935-0	02	1	1005-
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-97300-265-0	04	1	0201-0303
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-97356-349-0	04	1	0304-0501
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) Z=10	8-97356-349-0	04	1	0502-0510
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) Z=10	8-98015-202-0	04	1	0511-
24	05.526 GEAR; PINION,DIFF 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> Z=10	1-41551-024-0	04	1	0102-0112
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-024-0	04	1	0201-1004
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-050-0	04	1	1005-
25	05.528 WASHER; THRUST,PINION 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ>	1-41552-020-0	04	1	0102-0112
25	05.528 WASHER; THRUST,PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41552-020-0	04	1	0201-
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	0201-0501
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) M24 FLANGE	8-94329-526-1	01	1	0502-
37	05.595 NUT; DRIVING PINION 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> M30 FLANGE	8-97047-146-0	01	1	0102-0112
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	0201-
39	05.484 BEARING; FINAL PINION 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> JTEKT	5-09812-062-1	01	1	0102-0112
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	5-09812-062-1	01	1	0201-
39	05.484 BEARING; FINAL PINION 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> NSK	5-09812-063-0	01	1	0102-0112
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NSK	5-09812-063-0	01	1	0201-
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	0201-0501
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) L=19.6	9-41219-603-1	01	1	0502-
42	05.453 COLLAR; DIST,COLLAPSIBLE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ>	8-97047-097-0	01	1	0102-0112
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	0201-
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	0201-0501
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX)	8-94400-890-0	01	1	0502-
43	05.453 CAGE; FINAL PINION 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ>	8-97047-098-0	01	1	0102-0112
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	0201-
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	0201-0501
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 05.458	9-09720-505-0	01	1	0502-
44	05.476 GASKET; PINION CAGE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ>	8-97048-053-0	01	1	0102-0112
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	0201-
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50051-238-0	05	1	0201-0501
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) M12X38 W/LK WASHER	0-50051-238-0	05	1	0502-0909
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-
45	05.453 BOLT; FINAL PINION CAGE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> M12X40 W/LK WASHER	0-50071-240-0	06	1	0102-0112
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	0-50071-240-0	06	1	0201-0909
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	0201-0501
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) ID=132 T=0.10	8-94401-335-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	0201-0501
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) ID=132 T=0.12	8-94401-336-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	0201-0501
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) ID=132 T=0.14	8-94401-337-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	0201-0501
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) ID=132 T=0.16	8-94401-338-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	0201-0501
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) ID=132 T=0.18	8-94401-339-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	0201-0501
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) ID=132 T=0.20	8-94401-340-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> ID=142 T=0.12	8-97047-298-0	AR	1	0102-0112
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	0201-
49	05.458 SHIM; FINAL PINION CAGE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> ID=142 T=0.15	8-97047-299-0	AR	1	0102-0112
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	0201-
49	05.458 SHIM; FINAL PINION CAGE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> ID=142 T=0.20	8-97047-300-0	AR	1	0102-0112
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	0201-
49	05.458 SHIM; FINAL PINION CAGE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> ID=142 T=0.25	8-97048-418-0	AR	1	0102-0112
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	0201-
49	05.458 SHIM; FINAL PINION CAGE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0102-0112
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0201-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	0701-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	0201-0501
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 05.484 JTEKT	5-09812-062-1	02	1	0502-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	0201-0501
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 05.484 NSK	5-09812-063-0	02	1	0502-
50	05.447 BEARING; FINAL PINION 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> 05.484 NSK	1-09812-041-2	01	1	0102-0112
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	0201-
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-94365-264-0	01	1	0201-0202
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	0203-0501
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX)	8-97307-760-0	01	1	0502-
55	05.505 CARRIER; DIFF 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ>	8-97094-637-0	01	1	0102-0112
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	0201-
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	0201-0501
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 05.387 M14X80	8-94365-377-3	04	1	0502-
56	05.506 BOLT; BRG CAP 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> M14X95 FLANGE	1-09070-027-0	04	1	0102-0112
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	0201-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97035-453-0	01	1	0201-0203
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97319-160-0	01	1	0204-0301
60	05.529 GEAR SET; FINAL DRIVE,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97319-160-0	01	1	0302-0501
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97319-160-0	01	1	0502-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-97035-454-0	01	1	0201-0203
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-97319-161-0	01	1	0204-0301
60	05.529 GEAR SET; FINAL DRIVE,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-97319-161-0	01	1	0302-0501
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-97319-161-0	01	1	0502-1201
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 41/7	8-98092-031-1	01	1	1202-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97035-455-0	01	1	0201-0203
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97320-103-0	01	1	0204-0301
60	05.529 GEAR SET; FINAL DRIVE,RR 4HF1 ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97320-103-0	01	1	0302-0501
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 43/7	8-97320-103-0	01	1	0502-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FINAL GEAR RATIO 41/6(6YB) 41/6	8-97047-092-1	01	1	0201-0301
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FINAL GEAR RATIO 41/7(R41) 41/7	8-97083-126-0	01	1	0201-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FINAL GEAR RATIO 43/7(R42) 43/7	8-97092-946-0	01	1	0201-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1) FRAME STRAIGHT TYPE<7KJ> 41/8	8-97174-099-0	01	1	0102-0112
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	0201-1505
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) 41/8	8-98092-137-0	01	1	1506-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HE1 ENG(RLY) FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> 43/9	8-97061-850-0	01	1	0102-0112
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97061-850-0	01	1	0201-1505
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J) 43/9	8-98092-146-0	01	1	1506-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 39/7	8-97121-593-1	01	1	0201-0301
60	05.529 GEAR SET; FINAL DRIVE,RR 4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 43/10	8-97047-115-0	01	1	0201-0301
60	05.529 GEAR SET; FINAL DRIVE,RR 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ> HYDRO BRAKE BOOSTER<7QQ> 39/7	8-97121-593-1	01	1	0502-0606
60	05.529 GEAR SET; FINAL DRIVE,RR 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ> HYDRO BRAKE BOOSTER<7QQ> 39/7	8-97121-593-1	01	1	0607-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 39/7	8-97121-593-1	01	1	0607-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	0201-0501
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) (A) W/STUD	5-41227-001-0	01	1	0502-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	0201-0501
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) (B)	9-41227-601-0	01	1	0502-
61	05.476 RETAINER; PILOT BRG,PINION 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> (A) W/STUD	8-97047-149-0	01	1	0102-0112
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	0201-
61	05.476 RETAINER; PILOT BRG,PINION 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> (B)	8-97047-150-0	01	1	0102-0112
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	0201-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	0201-0501
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) NSK	5-09810-008-1	01	1	0502-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	0201-0501
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) JTEKT	8-97107-548-0	01	1	0502-
63	05.447 BEARING; PINION PILOT 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> NSK	8-97047-296-0	01	1	0102-0112
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	0201-
63	05.447 BEARING; PINION PILOT 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> JTEKT	8-97047-928-0	01	1	0102-0112
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	0201-
64	05.476 NUT; RET 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	02	1	0102-0112
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	0201-0602
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	0201-0501
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX)	9-09752-002-0	01	1	0502-
66	05.476 RING; SNAP,PILOT BRG 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ>	8-97047-297-0	01	1	0102-0112
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	0201-
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	0201-0501
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) M110 H=10	5-41121-001-0	02	1	0502-
69	05.506 NUT; ADJ,DIFF CAGE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> M115 H=20	1-41121-039-0	02	1	0102-0112
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	0201-
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	0201-0501
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) NSK	9-00093-602-0	02	1	0502-
70	05.536 BEARING; DIFF CAGE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0102-0112
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0201-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73)	8-94461-234-1	01	1	0201-0203
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73)	8-97319-039-0	01	1	0204-0303
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73)	8-97356-483-0	01	1	0304-0304
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73)	8-97363-156-0	01	1	0304-0501
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX)	8-97363-156-0	01	1	0502-0510
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX)	8-98015-179-1	01	1	0511-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1) FRAME STRAIGHT TYPE<7KJ>	8-97047-100-1	01	1	0102-0112
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FIN AL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 41/6(6YB)	8-97047-100-1	01	1	0201-0301
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)	8-97047-100-1	01	1	0302-0501
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FIN AL GEAR RATIO 43/7(R42)	8-97047-100-4	01	1	0502-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HE1 ENG(RLY) FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ>	8-97047-099-1	01	1	0102-0112
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C)	8-97047-099-1	01	1	0201-0301
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J)	8-97047-099-4	01	1	0302-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.520	5-41521-008-0	01	1	0201-0501
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 05.520	5-41521-008-0	01	1	0502-
82	05.517 SPIDER; DIFF PINION 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> 05.520	1-41521-035-0	01	1	0102-0112
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	0201-1004
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41521-062-0	01	1	1005-1309
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	1310-
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-94159-027-0	01	1	0201-0203
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97319-396-1	01	1	0204-0501
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX)	8-97319-396-1	01	1	0502-
83	05.510 CAGE ASM; DIFF 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1) FRAME STRAIGHT TYPE<7KJ>	8-97047-117-1	01	1	0102-0112
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FIN AL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 41/6(6YB)	8-97047-117-1	01	1	0201-0301
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)	8-97047-117-1	01	1	0302-0501
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FIN AL GEAR RATIO 43/7(R42)	8-97047-117-2	01	1	0502-1208
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FIN AL GEAR RATIO 43/7(R42)	8-98219-707-0	01	1	1209-
83	05.510 CAGE ASM; DIFF 4HE1 ENG(RLY) FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ>	8-97047-101-1	01	1	0102-0112
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C)	8-97047-101-1	01	1	0201-0301
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J)	8-97047-101-2	01	1	0302-1208
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/9(S2J)	8-98219-705-0	01	1	1209-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M12X25	9-09606-505-2	12	1	0201-0203
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M14X25	8-97318-938-1	12	1	0204-0501
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) M14X25	8-97318-938-1	12	1	0502-
84	05.531 BOLT; FINAL DRIVE GEAR 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> M16X30	8-97047-147-0	12	1	0102-0112
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	0201-
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 08.917 (B) M10 FLANGE	0-91150-210-0	04	1	0201-0203
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 08.917 (A),(B) M10 FLANGE	0-91150-210-0	12	1	0204-0501
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 08.917 (A),(B) M10 FLANGE	0-91150-210-0	12	1	0502-0602
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 04.085 (A),(B) M10 FLANGE	0-91180-210-0	12	1	0603-
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 05.586 (A) M10	8-94159-009-1	08	1	0201-0203
85	05.510 NUT; DIFF CAGE SETTING 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> (C) M12	8-97065-214-0	12	1	0102-0112
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (C) M12	8-97065-214-0	12	1	0201-
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) ID=10 OD=18 T=2	9-09651-116-0	24	1	0201-0203
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0102-0112
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0201-1208
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	0201-0501
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) (A)	8-97027-281-0	AR	1	0502-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	0201-0501
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) (B)	8-97027-282-0	AR	1	0502-
88	05.506 PLATE; LK,ADJ NUT 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> (D) T=2.3	8-97087-821-0	AR	1	0102-0112
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D) T=2.3	8-97087-821-0	AR	1	0201-
88	05.506 PLATE; LK,ADJ NUT 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> (C) T=2.3	9-41124-015-0	AR	1	0102-0112
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	0201-
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0201-0501
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-
89	05.506 BOLT; LK PLATE 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0102-0112
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0201-0501
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0502-0512
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	0201-0501
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) OD=103	8-94408-083-0	01	1	0502-
100	05.469 SEAL; OIL,FINAL PINION 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRAME STRAIGHT TYPE<7KJ> NOK	8-97047-609-0	01	1	0102-0112
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	8-97047-609-0	01	1	0201-0406
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	0407-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
