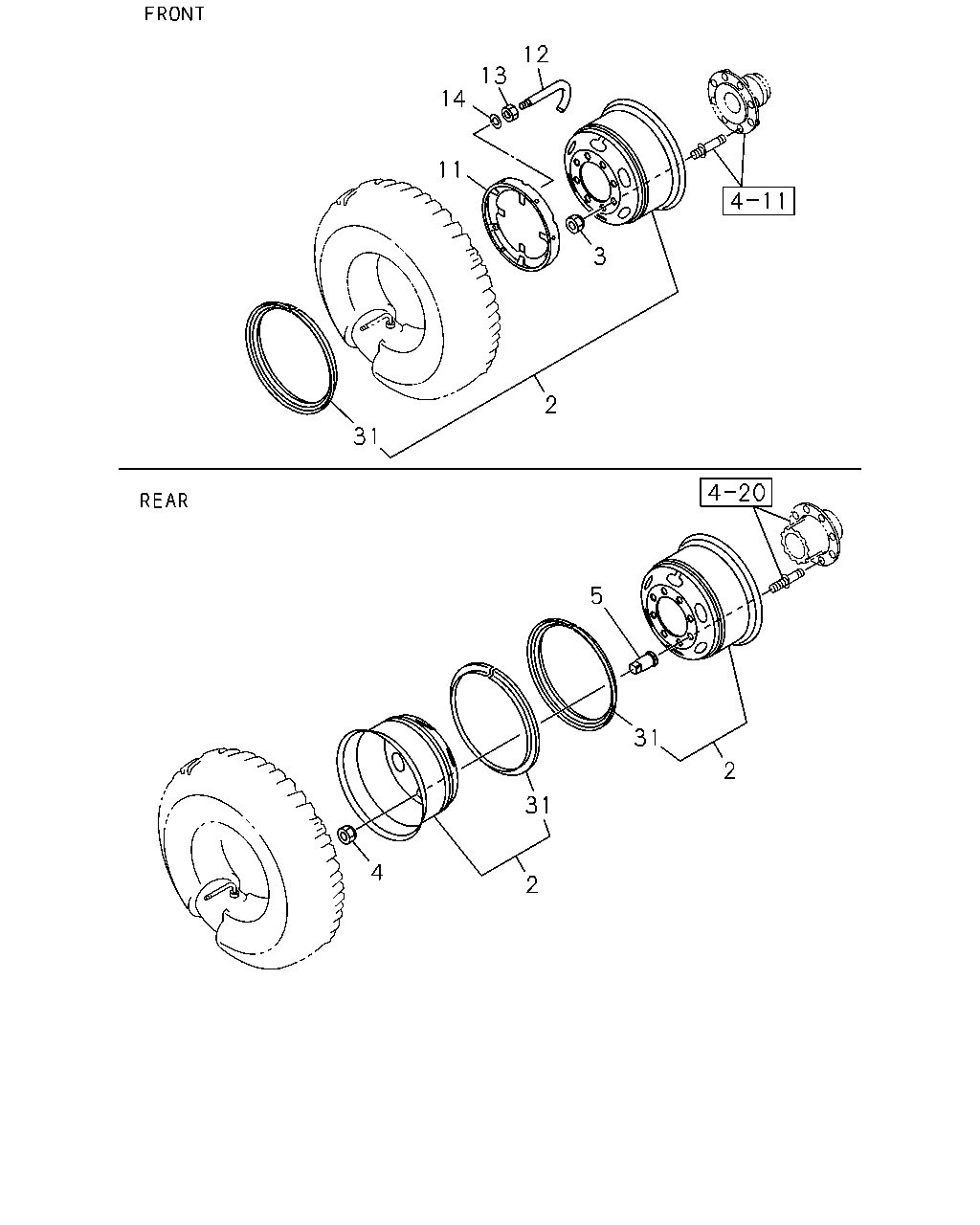

4-80 — ROAD WHEEL (#1944) — 29 parça

12 13 14 11 3 2 31 5 31 2 31 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	WHEEL; DISC WHEEL 8STUD 6.00SX20 135-10(SBB)	1-42350-197-0	06	1	9207-	●	●
2	WHEEL; DISC WHEEL 8STUD 6.00SX20 135-10(SBB) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>	1-42350-197-0	01	1	9207-	●	●
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) 8-STUD	1-42350-302-2	06	1	9207-	●	●
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> 8-STUD	1-42350-302-2	01	1	9207-	●	●
2	WHEEL; DISC DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> EXC. WHEEL 8STUD 7.00TX20 162-12(Q54)	1-42350-268-2	01	1	9207-			●	●
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12(Q54)	1-42350-131-3	06	1	9207-9402			●	●
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12(Q54)	1-42350-478-0	06	1	9403-			●	●
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12(Q54) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>	1-42350-131-3	01	1	9207-9402			●	●
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12(Q54) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>	1-42350-478-0	01	1	9403-			●	●
2	WHEEL; DISC EXC. WHEEL 8STUD 7.00TX20 162-12(Q54)	1-42350-268-2	02	1	9207-			●	●
2	WHEEL; DISC EXC. WHEEL 8STUD 7.00TX20 162-12(Q54)	1-42350-268-2	04	1	9207-			●	●
3	NUT; WHEEL,FRT AXLE M20 LH THREAD	1-42334-021-0	08	1	9207-	●	●	●	●
3	NUT; WHEEL,FRT AXLE M20 RH THREAD	1-42333-021-0	08	1	9207-	●	●	●	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	08	1	9207-	●	●	●	●
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	08	1	9207-	●	●	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-0	08	1	9207-	●	●	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-0	08	1	9207-	●	●	●	●
11	STEP; DISC WHEEL SIDE	1-43139-002-2	02	1	9207-	●	●	●	●
12	U-BOLT; STEP DISC L=44	9-43139-023-1	06	1	9207-	●	●	●	●
13	NUT; STEP DISC M10	9-09110-510-0	06	1	9207-	●	●	●	●
14	WASHER; LK,STEP DISC ID=10.2	9-09150-510-0	06	1	9207-	●	●	●	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.00SX20 135-10(SBB)	1-42355-002-0	06	1	9207-	●	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.00SX20 135-10(SBB) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>	1-42355-002-0	01	1	9207-	●	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 145-10(Q47)	1-42355-012-1	06	1	9207-	●	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>	1-42355-012-1	01	1	9207-	●	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12(Q54)	1-42355-003-1	06	1	9207-			●	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12(Q54) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>	1-42355-003-1	01	1	9207-			●	●
31	RING; SIDE,DISC WHEEL EXC. WHEEL 8STUD 7.00TX20 162-12(Q54)	1-42355-012-1	02	1	9207-			●	●
31	RING; SIDE,DISC WHEEL EXC. WHEEL 8STUD 7.00TX20 162-12(Q54)	1-42355-012-1	04	1	9207-			●	●
