Sayfa 3-60 - Isuzu EPC

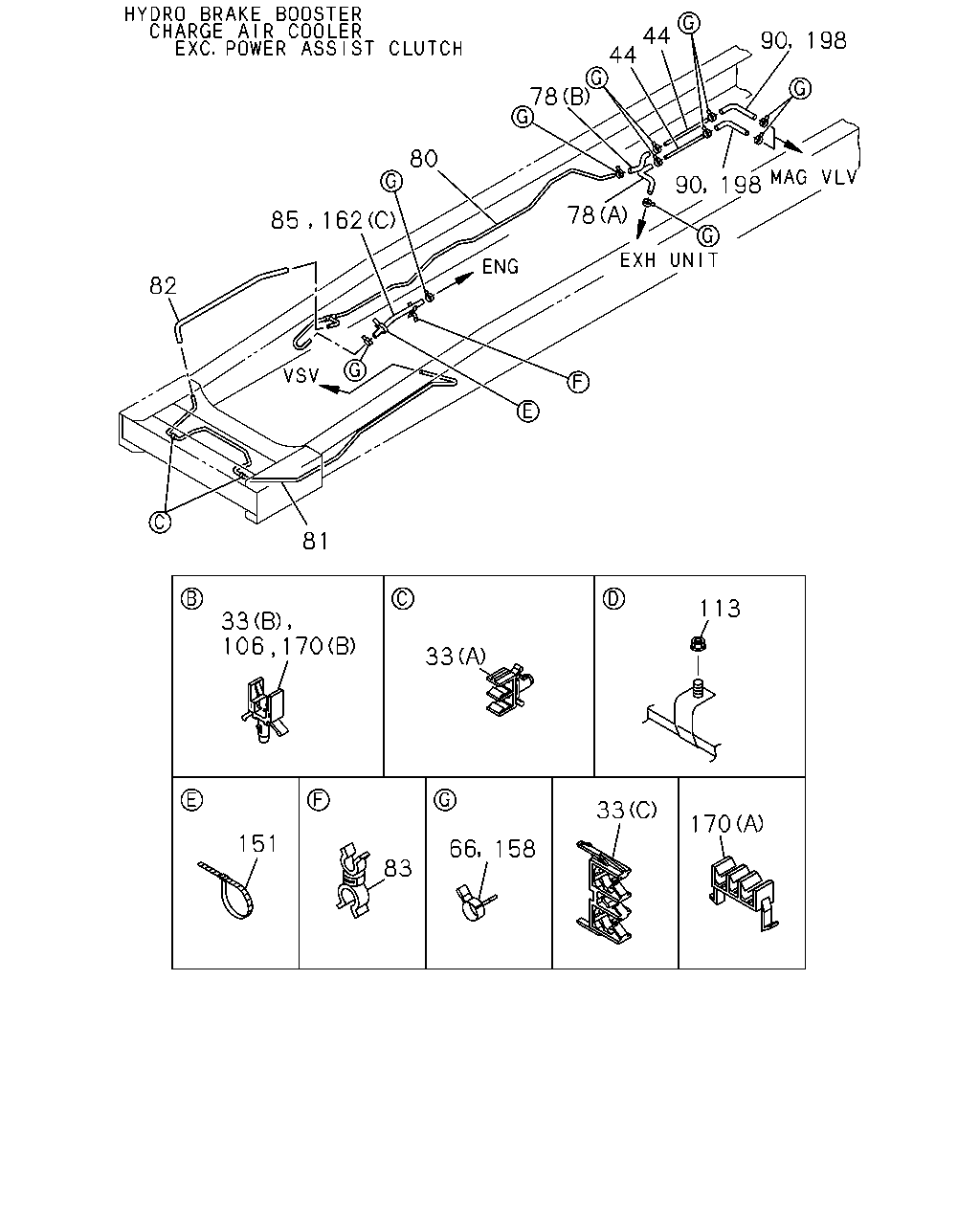

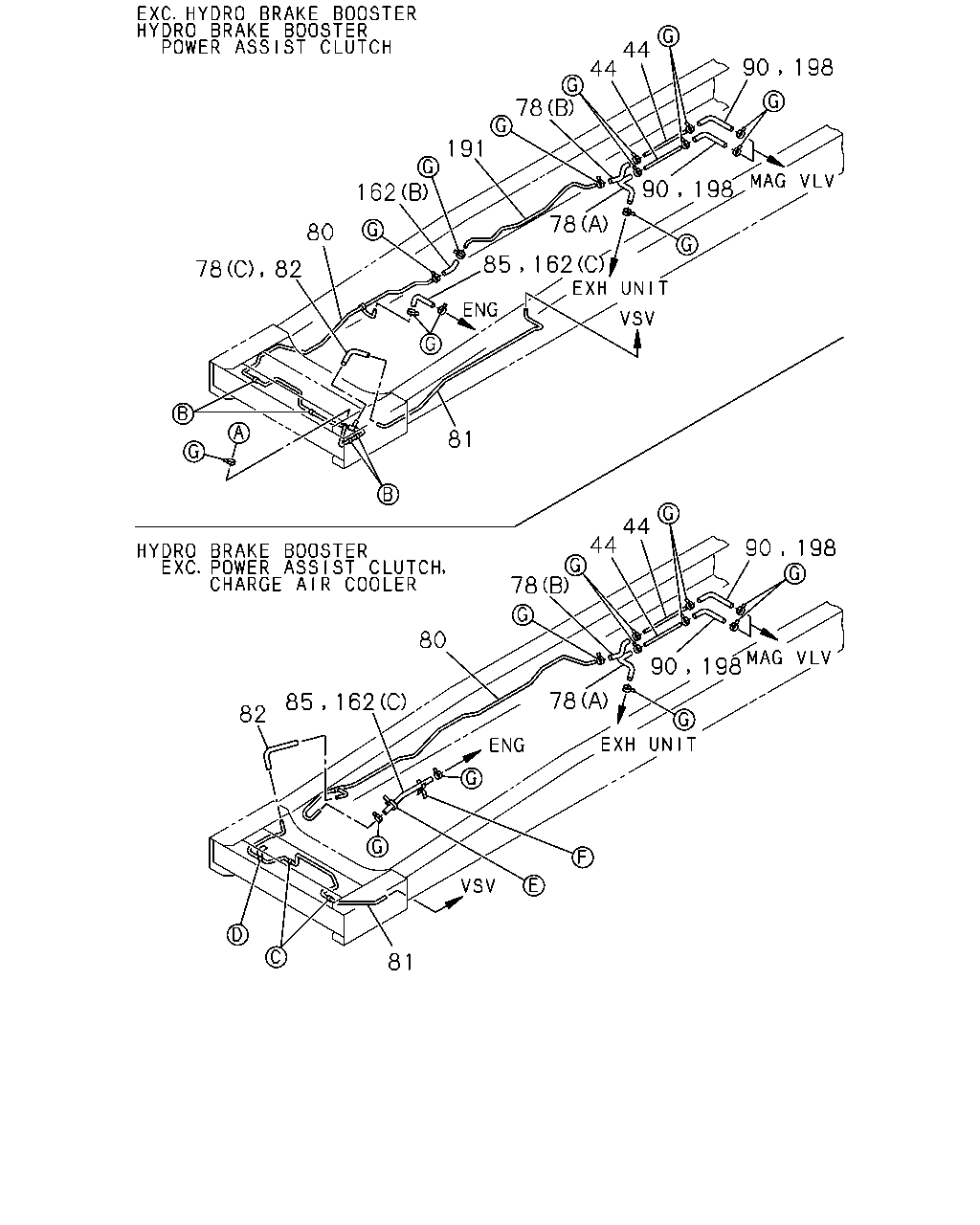

3-60 — BRAKE PIPING; VACUUM (#19438) — 385 parça

44 44 78 90 198 80 198 90 78 85 162 82 81 113 33 33 33 170 151 66 158 83 106 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.930 CLIP; VAC PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	03	1	0302-
33	04.930 CLIP; VAC PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. POWER ASSIST CLUTCH(S2T) 04.686 (A) ID=4.8X2	8-94316-410-0	01	1	0102-0112
33	04.930 CLIP; VAC PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 04.686 (A) ID=4.8X2	8-94316-410-0	01	1	0201-0301
33	04.930 CLIP; VAC PIPE 4HE1 ENG(RLY) EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 04.686 (A) ID=4.8X2	8-94316-410-0	01	1	0302-0501
33	04.930 CLIP; VAC PIPE 4HE1-TCS ENG(RDS) EXHAUST BRAKE<NF8> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 04.686 (A) ID=4.8X2	8-94316-410-0	01	1	0502-
33	04.930 CLIP; VAC PIPE 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T),CHARGE AIR COOLER<6PL> 04.686 (A) ID=4.8X2	8-94316-410-0	02	1	0201-0301
33	04.930 CLIP; VAC PIPE 4HE1 ENG(RLY) EXHAUST BRAKE<NF8> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T),CHARGE AIR COOLER<6PL> 04.686 (A) ID=4.8X2	8-94316-410-0	02	1	0302-0302
33	04.930 CLIP; VAC PIPE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T),CHARGE AIR COOLER<6PL> 04.686 (A) ID=4.8X2	8-94316-410-0	02	1	0303-0501
33	04.930 CLIP; VAC PIPE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 04.686 (A) ID=4.8X2	8-94316-410-0	02	1	0502-
33	04.930 CLIP; VAC PIPE 4HF1 ENG(RLS),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (B) ID=10 H=40	8-94462-219-0	02	1	0302-0501
33	04.930 CLIP; VAC PIPE 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (B) ID=10 H=40	8-94462-219-0	02	1	0302-0501
33	04.930 CLIP; VAC PIPE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (B) ID=10 H=40	8-94462-219-0	02	1	0302-0501
33	04.930 CLIP; VAC PIPE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (B) ID=10 H=40	8-94462-219-0	02	1	0302-0501
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (B) ID=10 H=40	8-94462-219-0	02	1	0502-
33	04.930 CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (B) ID=10 H=40	8-94462-219-0	02	1	0502-
33	04.930 CLIP; VAC PIPE EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (B) ID=10 H=40	8-94462-219-0	02	1	0502-
33	04.930 CLIP; VAC PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (B) ID=10 H=40	8-94462-219-0	02	1	0502-
44	04.930 PIPE; VAC,MAG VLV 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97096-972-0	02	1	0102-0112
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ>	8-97096-972-0	02	1	0201-0301
44	04.930 PIPE; VAC,MAG VLV EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-97096-972-0	02	1	0302-
66	04.930 CLIP; VAC HOSE,M/VAC 4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) ID=16	8-94238-568-0	10	1	0302-0302
66	04.930 CLIP; VAC HOSE,M/VAC 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) ID=16	8-94238-568-0	10	1	0303-0501
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) ID=16	8-94238-568-0	10	1	0502-0911
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	10	1	0912-
66	04.930 CLIP; VAC HOSE,M/VAC 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	13	1	0302-0501
66	04.930 CLIP; VAC HOSE,M/VAC 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	13	1	0302-0501
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	13	1	0502-0911
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	13	1	0502-0911
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.162 ID=16	8-98008-098-0	13	1	0912-
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.162 ID=16	8-98008-098-0	13	1	0912-
78	04.931 HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98045-768-0	01	1	0607-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.630 (A) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0201-0301
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.630 (A) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0501
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 08.962 (C) L=160 SERVICED BY L=3000	0-04740-300-0	01	1	0201-0301
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ> 08.962 (C) L=160 SERVICED BY L=3000	0-04740-300-0	01	1	0201-0301
78	04.931 HOSE; VAC,PIPE TO PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0102-0301
78	04.931 HOSE; VAC,PIPE TO PIPE 4HE1 ENG(RLY) EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0501
78	04.931 HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG(RDS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
78	04.931 HOSE; VAC,PIPE TO PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0102-0112
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0201-0301
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0501
78	04.931 HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0502-0606
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0607-
80	04.930 PIPE; VAC,ENG SIDE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T),CHARGE AIR COOLER<6PL>	8-97180-792-2	01	1	0201-0301
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T),CHARGE AIR COOLER<6PL>	8-97180-792-2	01	1	0302-0306
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T),CHARGE AIR COOLER<6PL>	8-97370-407-0	01	1	0307-0501
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-97370-407-0	01	1	0502-
80	04.930 PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97096-967-4	01	1	0201-0301
80	04.930 PIPE; VAC,ENG SIDE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97096-967-4	01	1	0201-0301
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97096-967-4	01	1	0302-0302
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97096-967-4	01	1	0302-0302
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97360-790-1	01	1	0303-0501
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97360-790-1	01	1	0303-0501
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97360-790-1	01	1	0502-
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97360-790-1	01	1	0502-
80	04.930 PIPE; VAC,ENG SIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. POWER ASSIST CLUTCH(S2T)	8-97148-808-3	01	1	0102-0112
80	04.930 PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-97148-808-3	01	1	0201-0210
80	04.930 PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-97359-032-0	01	1	0211-0301
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-97359-032-0	01	1	0302-0501
80	04.930 PIPE; VAC,ENG SIDE 4HE1-TCS ENG(RDS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-97376-072-1	01	1	0502-
80	04.930 PIPE; VAC,ENG SIDE 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-026-1	01	1	0102-0112
80	04.930 PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH(S2T) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97171-026-1	01	1	0201-0301
80	04.930 PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97171-026-1	01	1	0201-0301
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97171-026-1	01	1	0302-0302
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97171-026-1	01	1	0302-0302
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97360-792-1	01	1	0303-0501
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97360-792-1	01	1	0303-0501
80	04.930 PIPE; VAC,ENG SIDE 4HE1-TCS ENG(RDS) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97360-792-1	01	1	0502-
80	04.930 PIPE; VAC,ENG SIDE 4HE1-TCS ENG(RDS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97360-792-1	01	1	0502-
81	04.930 PIPE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T),CHARGE AIR COOLER<6PL>	8-97096-968-5	01	1	0201-0301
81	04.930 PIPE; VAC,VSV 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T),CHARGE AIR COOLER<6PL>	8-97096-968-5	01	1	0302-0501
81	04.930 PIPE; VAC,VSV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-97096-968-5	01	1	0502-
81	04.930 PIPE; VAC,VSV POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97096-969-0	01	1	0201-0301
81	04.930 PIPE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97096-969-0	01	1	0201-0301
81	04.930 PIPE; VAC,VSV 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97096-969-0	01	1	0302-0501
81	04.930 PIPE; VAC,VSV 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97096-969-0	01	1	0302-0501
81	04.930 PIPE; VAC,VSV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97096-969-0	01	1	0502-
81	04.930 PIPE; VAC,VSV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97096-969-0	01	1	0502-
81	04.930 PIPE; VAC,VSV 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. POWER ASSIST CLUTCH(S2T)	8-97181-226-2	01	1	0102-0112
81	04.930 PIPE; VAC,VSV 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-97181-226-2	01	1	0201-0301
81	04.930 PIPE; VAC,VSV 4HE1 ENG(RLY) EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-97181-226-2	01	1	0302-0501
81	04.930 PIPE; VAC,VSV 4HE1-TCS ENG(RDS) EXHAUST BRAKE<NF8> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-97386-703-0	01	1	0502-
82	04.931 HOSE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> EXC. POWER ASSIST CLUTCH(S2T) 08.962 L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0102-0112
82	04.931 HOSE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 08.962 L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0201-0301
82	04.931 HOSE; VAC,VSV EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 08.962 L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0302-0501
82	04.931 HOSE; VAC,VSV 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 08.962 L=160 SERVICED BY L=3000	0-04740-300-0	01	1	0302-0501
82	04.931 HOSE; VAC,VSV 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ> 08.962 L=160 SERVICED BY L=3000	0-04740-300-0	01	1	0302-0501
82	04.931 HOSE; VAC,VSV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 08.962 L=160 SERVICED BY L=3000	0-04740-300-0	01	1	0502-
82	04.931 HOSE; VAC,VSV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 08.962 L=160 SERVICED BY L=3000	0-04740-300-0	01	1	0502-
83	04.931 CLIP; VSV HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. POWER ASSIST CLUTCH(S2T) 00.855 ID=8.3 & 16.5	8-94169-027-0	01	1	0102-0112
83	04.931 CLIP; VSV HOSE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 00.855 ID=8.3 & 16.5	8-94169-027-0	01	1	0201-0301
83	04.931 CLIP; VSV HOSE 4HE1 ENG(RLY) EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 00.855 ID=8.3 & 16.5	8-94169-027-0	01	1	0302-0302
83	04.931 CLIP; VSV HOSE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 00.855 ID=8.3 & 16.5	8-94169-027-0	01	1	0303-0501
83	04.931 CLIP; VSV HOSE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 00.855 ID=8.3 & 16.5	8-94169-027-0	01	1	0502-0504
83	04.931 CLIP; VSV HOSE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 00.855 ID=8.3 & 16.5	8-94169-027-0	01	1	0505-
85	04.931 HOSE; VAC,ENG SIDE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97239-327-0	01	1	0302-0501
85	04.931 HOSE; VAC,ENG SIDE 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ>	8-97239-327-0	01	1	0502-
85	04.931 HOSE; VAC,ENG SIDE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51)	8-97091-966-0	01	1	0302-0501
85	04.931 HOSE; VAC,ENG SIDE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97091-966-0	01	1	0502-
90	04.931 HOSE; VAC,MAG VLV 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 03.630 L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0102-0112
90	04.931 HOSE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> 03.630 L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0201-0301
106	04.930 CLIP; PIPE 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> ID=10 H=40	8-94462-219-0	02	1	0102-0112
106	04.930 CLIP; PIPE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> ID=10 H=40	8-94462-219-0	02	1	0201-0301
106	04.930 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> ID=10 H=40	8-94462-219-0	02	1	0201-0301
113	04.930 NUT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	01	1	0102-0112
113	04.930 NUT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0301
113	04.930 NUT 4HE1 ENG(RLY) EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0501
113	04.930 NUT 4HE1-TCS ENG(RDS) EXHAUST BRAKE<NF8> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602
113	04.930 NUT 4HE1-TCS ENG(RDS) EXHAUST BRAKE<NF8> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
151	04.931 CLIP; BAND 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 03.162 L=140	5-09707-031-1	03	1	0506-
151	04.931 CLIP; BAND FRAME STRAIGHT TYPE<7KJ> EXC. POWER ASSIST CLUTCH(S2T) 03.162 L=140	5-09707-031-1	03	1	0102-0112
151	04.931 CLIP; BAND FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 03.162 L=140	5-09707-031-1	03	1	0201-0301
151	04.931 CLIP; BAND EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 03.162 L=140	5-09707-031-1	03	1	0302-0309
151	04.931 CLIP; BAND EXHAUST BRAKE<NF8> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 03.162 L=140	5-09707-031-1	03	1	0310-0501
151	04.931 CLIP; BAND EXHAUST BRAKE<NF8> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 03.162 L=140	5-09707-031-1	04	1	0502-0504
158	04.681 CLIP; HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	10	1	0102-0112
158	04.681 CLIP; HOSE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	10	1	0201-0301
158	04.681 CLIP; HOSE 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> 04.930 ID=16	8-94238-568-0	13	1	0102-0112
158	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.930 ID=16	8-94238-568-0	13	1	0201-0301
158	04.681 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 ID=16	8-94238-568-0	13	1	0201-0301
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-97081-535-1	01	1	0102-0112
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (A)	8-97081-535-1	01	1	0201-
162	04.931 HOSE; VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97081-535-1	01	1	0201-
162	04.931 HOSE; VAC 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C)	8-97239-327-0	01	1	0102-0212
162	04.931 HOSE; VAC 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C)	8-97239-327-0	01	1	0301-0301
162	04.931 HOSE; VAC 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0102-0112
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0201-0301
162	04.931 HOSE; VAC FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0201-0301
162	04.931 HOSE; VAC 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0501
162	04.931 HOSE; VAC 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0501
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
162	04.931 HOSE; VAC 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (C)	8-97091-966-0	01	1	0201-0301
170	04.930 CLIP; VAC PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.128 (A) ID=10X2 & 6.4	8-97103-601-0	03	1	0102-0112
170	04.930 CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> 04.128 (A) ID=10X2 & 6.4	8-97103-601-0	03	1	0201-0301
170	04.930 CLIP; VAC PIPE 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> (B) ID=10 H=40	8-94462-219-0	02	1	0102-0112
170	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (B) ID=10 H=40	8-94462-219-0	02	1	0201-0301
170	04.930 CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (B) ID=10 H=40	8-94462-219-0	02	1	0201-0301
198	04.931 HOSE; VAC,PIPE TO MAG VLV EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.630 L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0302-

116 12 203 39 12 12 13 39 39 12 39 12 13 116 12 13 12 203 39 12 39 184 165 201 39 39 175 162 39 200 184 173 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0201-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5	8-94167-480-0	04	1	0102-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	01	1	0102-
13	04.681 JOINT; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> 04.686 (A) 3WAY	8-94441-184-0	01	1	0201-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.931 (B) 3WAY	8-94167-478-0	01	1	0102-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.931 (B) 3WAY	8-94167-478-0	02	1	0201-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	5-09707-023-2	02	1	0201-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (C) ID=25.5	8-97077-492-0	01	1	0201-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	5-09707-023-2	01	1	0102-0112
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	5-09707-023-2	01	1	0201-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	03	1	0102-0112
39	04.681 CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	06	1	0201-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	01	1	0201-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	03	1	0201-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	03	1	0201-

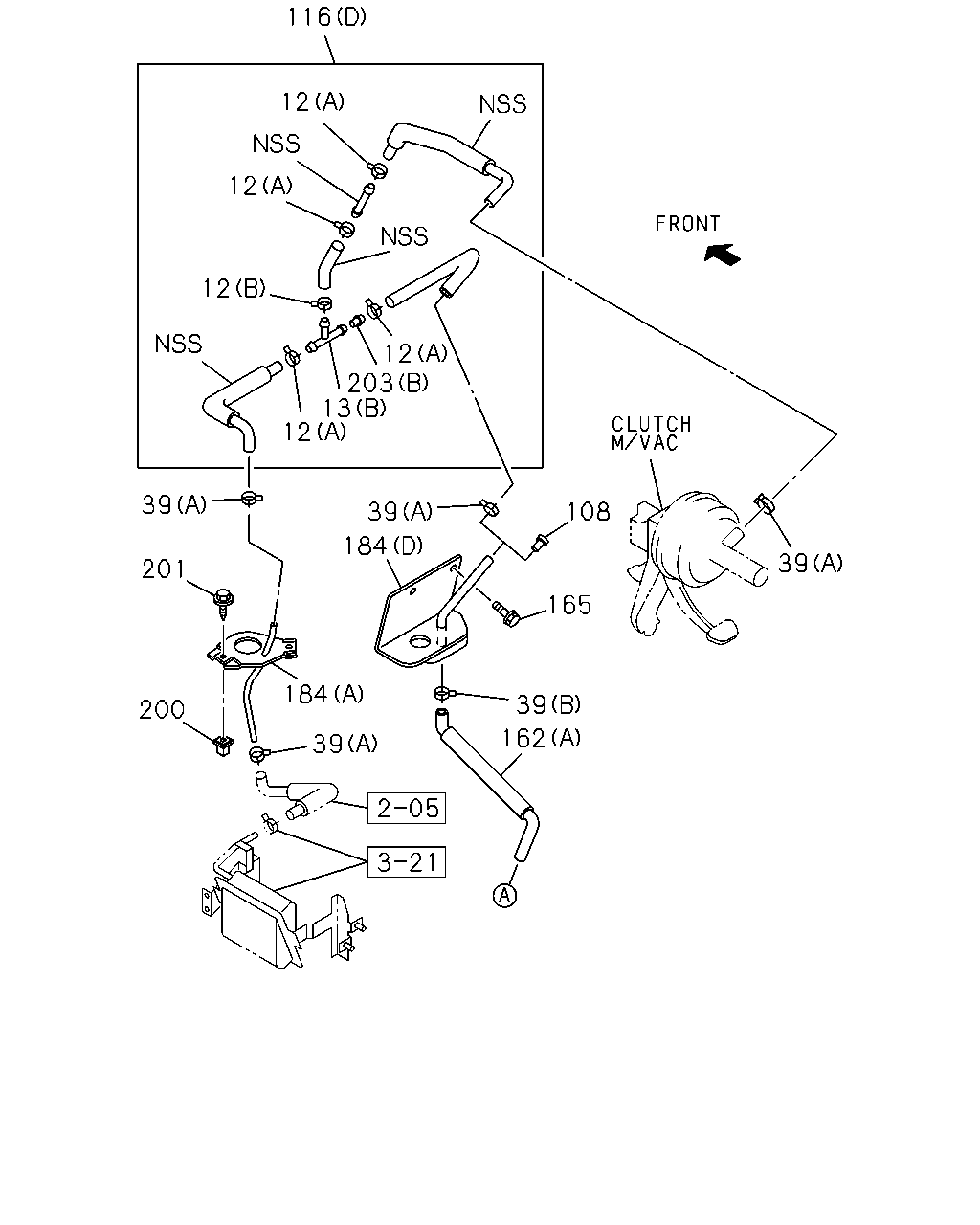

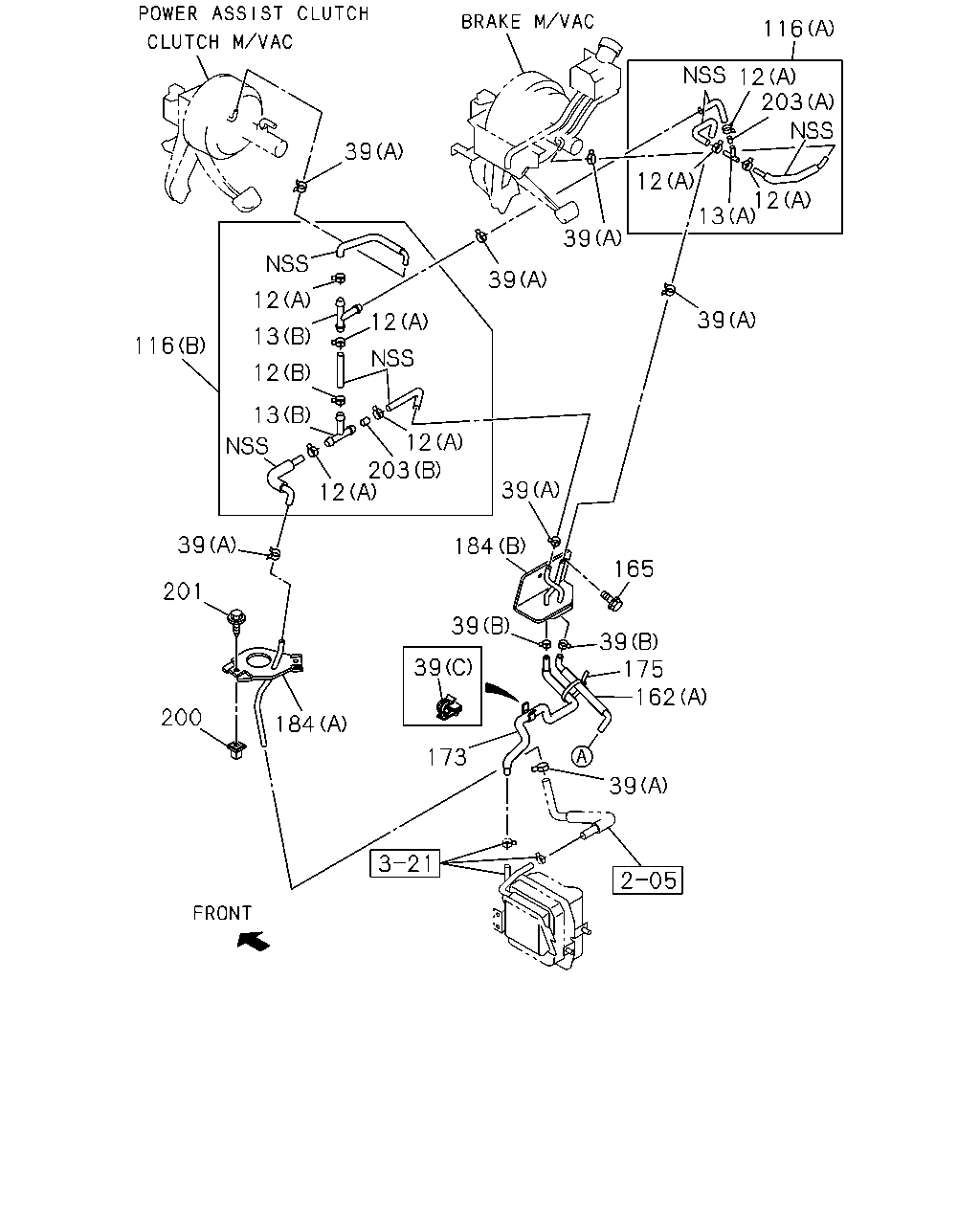

116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97188-946-0	01	1	0102-0112
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (D)	8-97188-946-2	01	1	0201-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97178-727-2	01	1	0201-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97314-596-1	01	1	0201-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (C)	8-97314-597-1	01	1	0201-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-97081-535-1	01	1	0102-0112
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (A)	8-97081-535-1	01	1	0201-
162	04.931 HOSE; VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97081-535-1	01	1	0201-
162	04.931 HOSE; VAC 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C)	8-97239-327-0	01	1	0102-0212
162	04.931 HOSE; VAC 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C)	8-97239-327-0	01	1	0301-0301
162	04.931 HOSE; VAC 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0102-0112
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0201-0301
162	04.931 HOSE; VAC FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0201-0301
162	04.931 HOSE; VAC 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0501
162	04.931 HOSE; VAC 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0501
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
162	04.931 HOSE; VAC 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (C)	8-97091-966-0	01	1	0201-0301
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0102-0512
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97129-872-0	01	1	0201-
175	04.930 CLIP; BAND,VAC HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 L=219.5	1-09987-136-0	01	1	0201-
184	04.685 BRACKET; UNION FIX (D)	8-97175-473-1	01	1	0102-0112
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER<7QQ> (D)	8-97175-473-1	01	1	0201-
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97078-460-5	01	1	0201-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (A)	8-97094-011-3	01	1	0102-0501
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (A)	8-98009-402-1	01	1	0502-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97094-014-4	01	1	0102-
200	04.931 GROMMET; SCREW H=15	8-94463-268-1	02	1	0102-
201	04.686 SCREW; BRKT 10.240 M5X16 TAPPING W/PL WASHER	0-74305-516-0	02	1	0102-0604
201	04.686 SCREW; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	0605-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0102-
203	04.690 VALVE; CHECK EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-94386-540-0	01	1	0102-

116 12 12 12 12 203 13 12 39 39 108 184 39 201 165 184 39 200 162 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0201-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5	8-94167-480-0	04	1	0102-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	01	1	0102-
13	04.681 JOINT; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> 04.686 (A) 3WAY	8-94441-184-0	01	1	0201-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.931 (B) 3WAY	8-94167-478-0	01	1	0102-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.931 (B) 3WAY	8-94167-478-0	02	1	0201-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	5-09707-023-2	02	1	0201-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (C) ID=25.5	8-97077-492-0	01	1	0201-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	5-09707-023-2	01	1	0102-0112
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	5-09707-023-2	01	1	0201-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	03	1	0102-0112
39	04.681 CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	06	1	0201-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	01	1	0201-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	03	1	0201-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	03	1	0201-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T)	9-09956-353-0	01	1	0102-0112
108	04.931 GROMMET; PIPE HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	9-09956-353-0	01	1	0201-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97188-946-0	01	1	0102-0112
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (D)	8-97188-946-2	01	1	0201-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97178-727-2	01	1	0201-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97314-596-1	01	1	0201-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (C)	8-97314-597-1	01	1	0201-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-97081-535-1	01	1	0102-0112
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (A)	8-97081-535-1	01	1	0201-
162	04.931 HOSE; VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97081-535-1	01	1	0201-
162	04.931 HOSE; VAC 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C)	8-97239-327-0	01	1	0102-0212
162	04.931 HOSE; VAC 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C)	8-97239-327-0	01	1	0301-0301
162	04.931 HOSE; VAC 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0102-0112
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0201-0301
162	04.931 HOSE; VAC FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0201-0301
162	04.931 HOSE; VAC 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0501
162	04.931 HOSE; VAC 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0501
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
162	04.931 HOSE; VAC 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (C)	8-97091-966-0	01	1	0201-0301
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0102-0512
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-
184	04.685 BRACKET; UNION FIX (D)	8-97175-473-1	01	1	0102-0112
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER<7QQ> (D)	8-97175-473-1	01	1	0201-
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97078-460-5	01	1	0201-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (A)	8-97094-011-3	01	1	0102-0501
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (A)	8-98009-402-1	01	1	0502-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97094-014-4	01	1	0102-
200	04.931 GROMMET; SCREW H=15	8-94463-268-1	02	1	0102-
201	04.686 SCREW; BRKT 10.240 M5X16 TAPPING W/PL WASHER	0-74305-516-0	02	1	0102-0604
201	04.686 SCREW; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	0605-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0102-
203	04.690 VALVE; CHECK EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-94386-540-0	01	1	0102-

116 12 203 13 12 39 12 39 39 184 165 39 39 39 175 162 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=14.5	8-94167-480-0	03	1	0201-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5	8-94167-480-0	04	1	0102-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	01	1	0102-
13	04.681 JOINT; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> 04.686 (A) 3WAY	8-94441-184-0	01	1	0201-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.931 (B) 3WAY	8-94167-478-0	01	1	0102-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.931 (B) 3WAY	8-94167-478-0	02	1	0201-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	5-09707-023-2	02	1	0201-
39	04.681 CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (C) ID=25.5	8-97077-492-0	01	1	0201-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	5-09707-023-2	01	1	0102-0112
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	5-09707-023-2	01	1	0201-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	03	1	0102-0112
39	04.681 CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	06	1	0201-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	01	1	0201-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	03	1	0201-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	03	1	0201-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97188-946-0	01	1	0102-0112
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (D)	8-97188-946-2	01	1	0201-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97178-727-2	01	1	0201-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97314-596-1	01	1	0201-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (C)	8-97314-597-1	01	1	0201-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-97081-535-1	01	1	0102-0112
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (A)	8-97081-535-1	01	1	0201-
162	04.931 HOSE; VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97081-535-1	01	1	0201-
162	04.931 HOSE; VAC 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C)	8-97239-327-0	01	1	0102-0212
162	04.931 HOSE; VAC 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C)	8-97239-327-0	01	1	0301-0301
162	04.931 HOSE; VAC 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0102-0112
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0201-0301
162	04.931 HOSE; VAC FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0201-0301
162	04.931 HOSE; VAC 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0501
162	04.931 HOSE; VAC 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0501
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
162	04.931 HOSE; VAC 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (C)	8-97091-966-0	01	1	0201-0301
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0102-0512
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97129-872-0	01	1	0201-
175	04.930 CLIP; BAND,VAC HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 L=219.5	1-09987-136-0	01	1	0201-
184	04.685 BRACKET; UNION FIX (D)	8-97175-473-1	01	1	0102-0112
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER<7QQ> (D)	8-97175-473-1	01	1	0201-
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97078-460-5	01	1	0201-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (A)	8-97094-011-3	01	1	0102-0501
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (A)	8-98009-402-1	01	1	0502-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97094-014-4	01	1	0102-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0102-
203	04.690 VALVE; CHECK EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-94386-540-0	01	1	0102-

44 44 90 198 78 191 162 90 198 78 80 162 85 82 78 81 44 44 78 90 198 80 198 90 78 85 162 82 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	04.930 PIPE; VAC,MAG VLV 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97096-972-0	02	1	0102-0112
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ>	8-97096-972-0	02	1	0201-0301
44	04.930 PIPE; VAC,MAG VLV EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-97096-972-0	02	1	0302-
78	04.931 HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98045-768-0	01	1	0607-
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.630 (A) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0201-0301
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.630 (A) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0501
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 08.962 (C) L=160 SERVICED BY L=3000	0-04740-300-0	01	1	0201-0301
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ> 08.962 (C) L=160 SERVICED BY L=3000	0-04740-300-0	01	1	0201-0301
78	04.931 HOSE; VAC,PIPE TO PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0102-0301
78	04.931 HOSE; VAC,PIPE TO PIPE 4HE1 ENG(RLY) EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0501
78	04.931 HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG(RDS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
78	04.931 HOSE; VAC,PIPE TO PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0102-0112
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0201-0301
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0501
78	04.931 HOSE; VAC,PIPE TO PIPE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0502-0606
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0607-
80	04.930 PIPE; VAC,ENG SIDE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T),CHARGE AIR COOLER<6PL>	8-97180-792-2	01	1	0201-0301
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T),CHARGE AIR COOLER<6PL>	8-97180-792-2	01	1	0302-0306
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T),CHARGE AIR COOLER<6PL>	8-97370-407-0	01	1	0307-0501
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-97370-407-0	01	1	0502-
80	04.930 PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97096-967-4	01	1	0201-0301
80	04.930 PIPE; VAC,ENG SIDE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97096-967-4	01	1	0201-0301
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97096-967-4	01	1	0302-0302
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97096-967-4	01	1	0302-0302
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97360-790-1	01	1	0303-0501
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97360-790-1	01	1	0303-0501
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97360-790-1	01	1	0502-
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97360-790-1	01	1	0502-
80	04.930 PIPE; VAC,ENG SIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. POWER ASSIST CLUTCH(S2T)	8-97148-808-3	01	1	0102-0112
80	04.930 PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-97148-808-3	01	1	0201-0210
80	04.930 PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-97359-032-0	01	1	0211-0301
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-97359-032-0	01	1	0302-0501
80	04.930 PIPE; VAC,ENG SIDE 4HE1-TCS ENG(RDS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-97376-072-1	01	1	0502-
80	04.930 PIPE; VAC,ENG SIDE 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-026-1	01	1	0102-0112
80	04.930 PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH(S2T) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97171-026-1	01	1	0201-0301
80	04.930 PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97171-026-1	01	1	0201-0301
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97171-026-1	01	1	0302-0302
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97171-026-1	01	1	0302-0302
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97360-792-1	01	1	0303-0501
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97360-792-1	01	1	0303-0501
80	04.930 PIPE; VAC,ENG SIDE 4HE1-TCS ENG(RDS) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97360-792-1	01	1	0502-
80	04.930 PIPE; VAC,ENG SIDE 4HE1-TCS ENG(RDS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97360-792-1	01	1	0502-
81	04.930 PIPE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T),CHARGE AIR COOLER<6PL>	8-97096-968-5	01	1	0201-0301
81	04.930 PIPE; VAC,VSV 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T),CHARGE AIR COOLER<6PL>	8-97096-968-5	01	1	0302-0501
81	04.930 PIPE; VAC,VSV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-97096-968-5	01	1	0502-
81	04.930 PIPE; VAC,VSV POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97096-969-0	01	1	0201-0301
81	04.930 PIPE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97096-969-0	01	1	0201-0301
81	04.930 PIPE; VAC,VSV 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97096-969-0	01	1	0302-0501
81	04.930 PIPE; VAC,VSV 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97096-969-0	01	1	0302-0501
81	04.930 PIPE; VAC,VSV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97096-969-0	01	1	0502-
81	04.930 PIPE; VAC,VSV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97096-969-0	01	1	0502-
81	04.930 PIPE; VAC,VSV 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. POWER ASSIST CLUTCH(S2T)	8-97181-226-2	01	1	0102-0112
81	04.930 PIPE; VAC,VSV 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-97181-226-2	01	1	0201-0301
81	04.930 PIPE; VAC,VSV 4HE1 ENG(RLY) EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-97181-226-2	01	1	0302-0501
81	04.930 PIPE; VAC,VSV 4HE1-TCS ENG(RDS) EXHAUST BRAKE<NF8> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-97386-703-0	01	1	0502-
82	04.931 HOSE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> EXC. POWER ASSIST CLUTCH(S2T) 08.962 L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0102-0112
82	04.931 HOSE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 08.962 L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0201-0301
82	04.931 HOSE; VAC,VSV EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) 08.962 L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0302-0501
82	04.931 HOSE; VAC,VSV 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 08.962 L=160 SERVICED BY L=3000	0-04740-300-0	01	1	0302-0501
82	04.931 HOSE; VAC,VSV 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ> 08.962 L=160 SERVICED BY L=3000	0-04740-300-0	01	1	0302-0501
82	04.931 HOSE; VAC,VSV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 08.962 L=160 SERVICED BY L=3000	0-04740-300-0	01	1	0502-
82	04.931 HOSE; VAC,VSV 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 08.962 L=160 SERVICED BY L=3000	0-04740-300-0	01	1	0502-
85	04.931 HOSE; VAC,ENG SIDE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97239-327-0	01	1	0302-0501
85	04.931 HOSE; VAC,ENG SIDE 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ>	8-97239-327-0	01	1	0502-
85	04.931 HOSE; VAC,ENG SIDE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51)	8-97091-966-0	01	1	0302-0501
85	04.931 HOSE; VAC,ENG SIDE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97091-966-0	01	1	0502-
90	04.931 HOSE; VAC,MAG VLV 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 03.630 L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0102-0112
90	04.931 HOSE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> 03.630 L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0201-0301
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-97081-535-1	01	1	0102-0112
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (A)	8-97081-535-1	01	1	0201-
162	04.931 HOSE; VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97081-535-1	01	1	0201-
162	04.931 HOSE; VAC 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C)	8-97239-327-0	01	1	0102-0212
162	04.931 HOSE; VAC 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C)	8-97239-327-0	01	1	0301-0301
162	04.931 HOSE; VAC 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0102-0112
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0201-0301
162	04.931 HOSE; VAC FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0201-0301
162	04.931 HOSE; VAC 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0501
162	04.931 HOSE; VAC 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0501
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
162	04.931 HOSE; VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
162	04.931 HOSE; VAC 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) (C)	8-97091-966-0	01	1	0201-0301
191	04.685 PIPE; VAC 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ>	8-97104-170-4	01	1	0102-0112
191	04.685 PIPE; VAC 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97104-170-4	01	1	0201-0301
191	04.685 PIPE; VAC 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97104-170-4	01	1	0201-0301
191	04.685 PIPE; VAC 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97104-170-4	01	1	0201-0301
191	04.685 PIPE; VAC 4HF1 ENG(RLS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-97104-170-4	01	1	0302-0302
191	04.685 PIPE; VAC 4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97104-170-4	01	1	0302-0302
191	04.685 PIPE; VAC 4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97104-170-4	01	1	0302-0302
191	04.685 PIPE; VAC 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97104-170-4	01	1	0303-0501
191	04.685 PIPE; VAC 4HF1 ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97104-170-4	01	1	0303-0501
191	04.685 PIPE; VAC EXHAUST BRAKE<NF8> POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-98010-980-1	01	1	0502-
191	04.685 PIPE; VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98010-980-1	01	1	0502-
198	04.931 HOSE; VAC,PIPE TO MAG VLV EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.630 L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0302-

201 184 200 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
184	04.685 BRACKET; UNION FIX (D)	8-97175-473-1	01	1	0102-0112
184	04.685 BRACKET; UNION FIX HYDRO BRAKE BOOSTER<7QQ> (D)	8-97175-473-1	01	1	0201-
184	04.685 BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97078-460-5	01	1	0201-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (A)	8-97094-011-3	01	1	0102-0501
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (A)	8-98009-402-1	01	1	0502-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97094-014-4	01	1	0102-
200	04.931 GROMMET; SCREW H=15	8-94463-268-1	02	1	0102-
201	04.686 SCREW; BRKT 10.240 M5X16 TAPPING W/PL WASHER	0-74305-516-0	02	1	0102-0604
201	04.686 SCREW; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	0605-
202	04.686 SEAL EXC. POWER ASSIST CLUTCH(S2T) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0102-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
