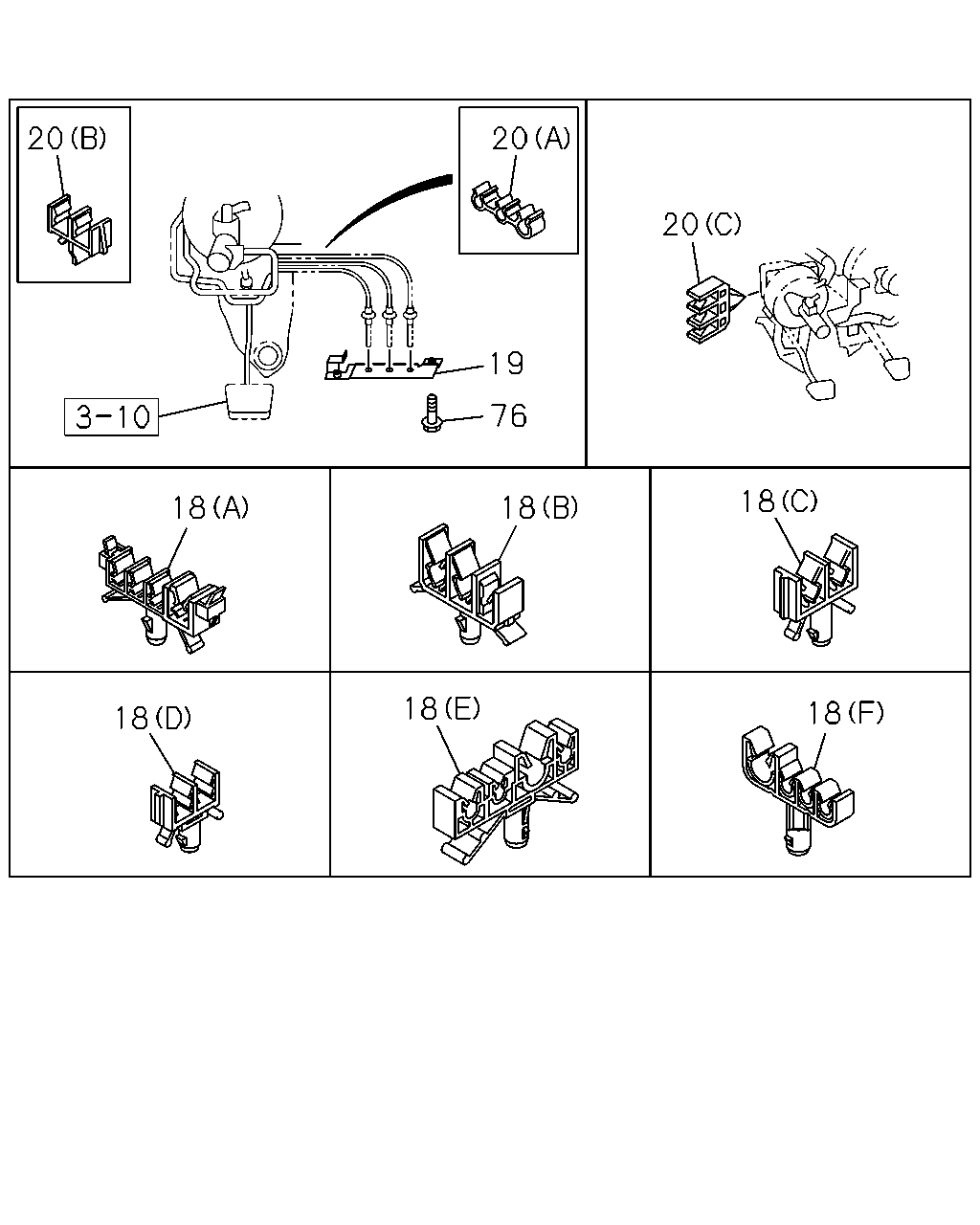

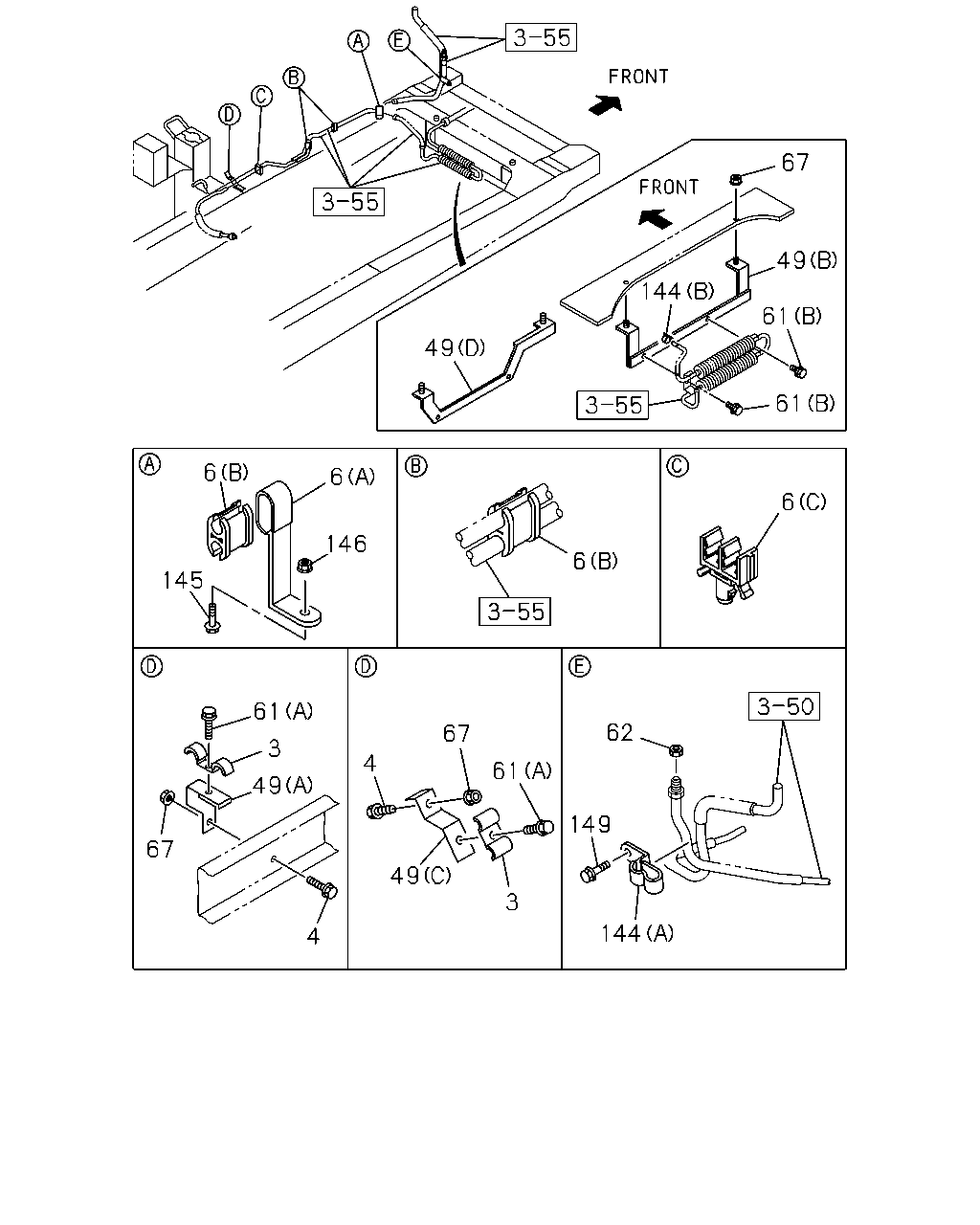

3-58 — FIXING PARTS; OIL PIPING (#19437) — 104 parça

20 20 20 19 76 18 18 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	04.686 CLIP; BRK PIPE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A) ID=10 & 4.76X3	8-97326-158-1	07	1	1006-
18	04.686 CLIP; BRK PIPE FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0302-
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (F) ID=10 & 4.76X3	8-97168-819-0	02	1	0302-
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=10 & 4.76X3	8-97326-158-1	08	1	0302-0501
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=10 & 4.76X3	8-97326-158-1	09	1	0502-1005
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=10 & 4.76X3	8-97326-158-1	01	1	1006-
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2	8-94316-410-0	01	1	0302-0705
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2	8-94316-410-0	01	1	0706-
18	04.686 CLIP; BRK PIPE MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2	8-94316-410-0	01	1	0706-
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94455-816-0	01	1	0302-0705
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (C) ID=4.8X2	8-94455-816-0	01	1	0706-
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0302-0501
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0302-0501
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0502-
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0502-
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=10 & 4.76X3	8-97326-158-1	05	1	0302-
18	04.686 CLIP; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	02	1	0302-0501
18	04.686 CLIP; BRK PIPE 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	02	1	0502-
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0302-0303
18	04.686 CLIP; BRK PIPE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0302-0303
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0302-0303
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0304-0501
18	04.686 CLIP; BRK PIPE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0304-0501
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0304-0501
18	04.686 CLIP; BRK PIPE FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0502-
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0502-
18	04.686 CLIP; BRK PIPE 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0502-
19	04.686 BRACKET; OIL PIPE	8-97171-018-3	01	1	0102-0112
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97171-018-3	01	1	0201-
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97178-320-1	01	1	0201-
20	04.686 CLIP; BRK PIPE (A) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0102-
20	04.686 CLIP; BRK PIPE 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	0102-
20	04.686 CLIP; BRK PIPE (C) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0102-
76	04.686 BOLT; BRKT,OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0102-0512
76	04.686 BOLT; BRKT,OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-

67 49 144 61 49 61 6 6 6 146 6 145 61 62 67 3 4 61 49 149 67 49 3 144 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	04.685 CLIP; BRK PIPE 04.047 ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0102-0112
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0201-
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0102-0112
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0201-0301
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0302-0302
4	04.686 BOLT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0303-0501
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0303-0501
4	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0502-0512
4	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0601-
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0302-0501
6	04.686 CLIP; PIPE 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0102-0112
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0201-
6	04.686 CLIP; PIPE 06.672 (B) ID=10X2 H=22	8-94252-455-2	03	1	0102-0112
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	03	1	0201-0301
6	04.686 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	03	1	0302-
6	04.686 CLIP; PIPE 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0102-0112
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0201-
49	04.686 BRACKET; BRK PIPE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-1	01	1	0505-1103
49	04.686 BRACKET; BRK PIPE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-1	01	1	1104-
49	04.686 BRACKET; BRK PIPE (B)	8-97180-993-1	01	1	0102-0112
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-1	01	1	0201-0301
49	04.686 BRACKET; BRK PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-1	01	1	0302-0501
49	04.686 BRACKET; BRK PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (D)	8-97378-054-0	01	1	0502-0504
49	04.686 BRACKET; BRK PIPE 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (D)	8-97378-054-0	01	1	0505-1103
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97174-638-0	01	1	0102-0112
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0201-0301
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0302-0302
49	04.686 BRACKET; BRK PIPE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0303-0306
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0303-0306
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0307-0501
49	04.686 BRACKET; BRK PIPE 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0502-
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (C)	8-97177-074-0	01	1	0201-0301
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (C)	8-97177-074-0	01	1	0302-0501
49	04.686 BRACKET; BRK PIPE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97370-411-0	01	1	0307-
61	04.686 BOLT; BRK PIPE 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0102-0112
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0201-0512
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0601-
61	04.686 BOLT; BRK PIPE 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0102-0112
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0201-0512
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
62	04.686 NUT 06.172 M14	9-99111-414-0	01	1	0102-0112
62	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 06.172 M14	9-99111-414-0	01	1	0201-0512
62	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 06.515 M14	0-91111-514-0	01	1	0601-
67	04.686 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0102-0112
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
67	04.686 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0501
67	04.686 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.785 M10 FLANGE	0-91150-110-0	03	1	0502-0602
67	04.686 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 03.162 M10 FLANGE	0-91180-110-0	03	1	0603-
67	04.686 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	0102-0112
67	04.686 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0201-0301
67	04.686 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0302-0302
67	04.686 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0303-0501
67	04.686 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0303-0501
67	04.686 NUT; BRKT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0501
144	04.686 CLIP; HOSE (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0102-0112
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0201-
144	04.686 CLIP; HOSE (B) ID=11-19.5	8-94426-597-0	03	1	0102-0112
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5	8-94426-597-0	03	1	0201-1005
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.681 (B) ID=11-17	8-98173-762-1	03	1	1006-
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0102-0112
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0201-0301
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0302-0512
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-
146	04.686 NUT; PIPE 07.633 M8 FLANGE	0-91150-108-0	01	1	0102-0112
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0602
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
149	04.686 BOLT; HOSE 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0102-0112
149	04.686 BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0201-0512
149	04.686 BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-
