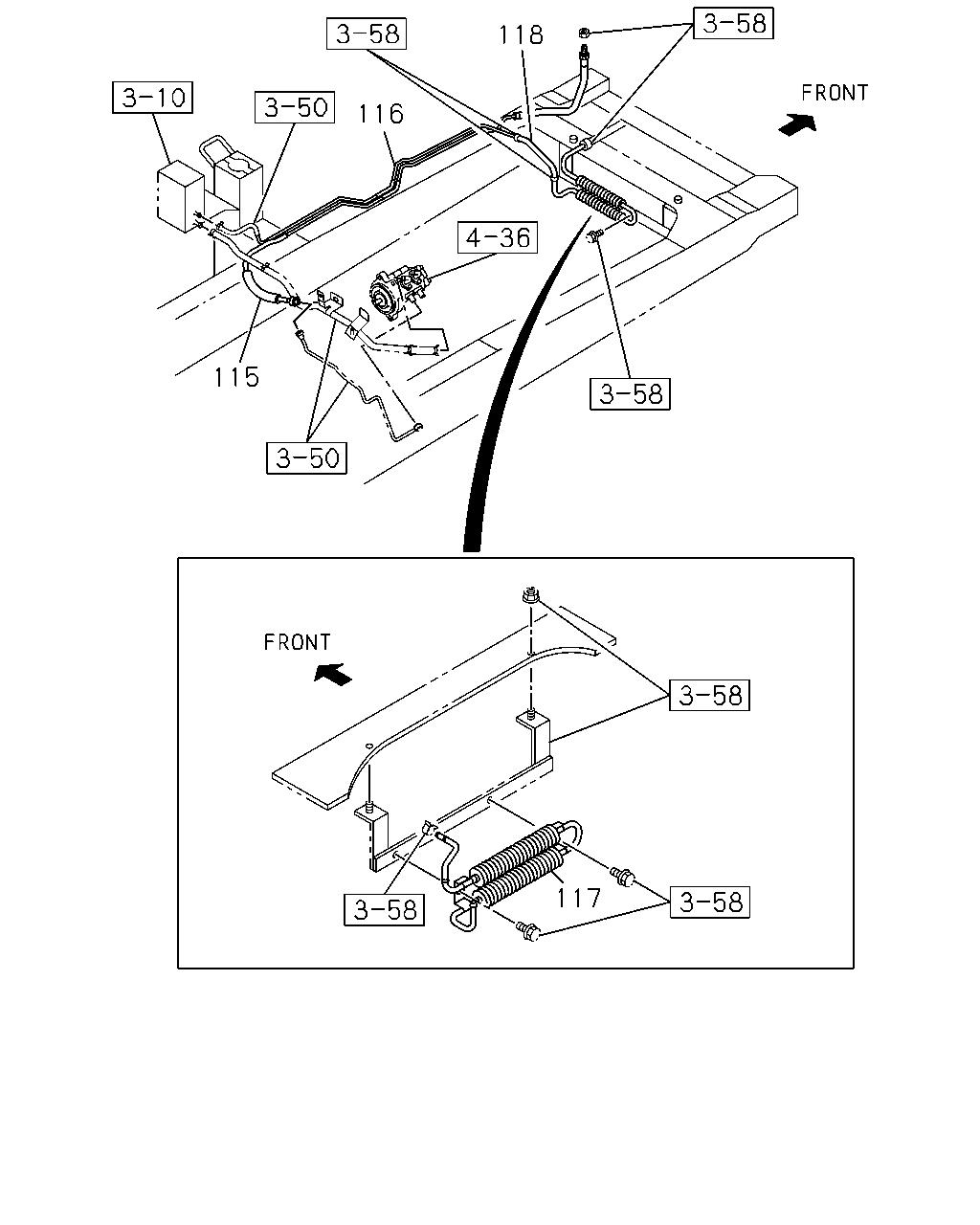

3-55 — BRAKE PIPING; OIL,REAR (#19436) — 39 parça

118 116 115 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
115	04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97201-969-1	01	1	0102-0112
115	04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97201-969-1	01	1	0201-0301
115	04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97201-969-1	01	1	0302-0501
115	04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97378-146-0	01	1	0502-
115	04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97364-099-1	01	1	0303-0501
115	04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97364-099-1	01	1	0502-
116	04.685 PIPE; BRK,PIPE TO TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97201-970-0	01	1	0102-0112
116	04.685 PIPE; BRK,PIPE TO TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97201-970-0	01	1	0201-0301
116	04.685 PIPE; BRK,PIPE TO TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97201-970-0	01	1	0302-0501
116	04.685 PIPE; BRK,PIPE TO TANK 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97330-452-3	01	1	0502-
116	04.685 PIPE; BRK,PIPE TO TANK 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97364-100-1	01	1	0303-
117	04.685 PIPE; BRK,RETURN	8-97180-991-2	01	1	0102-0112
117	04.685 PIPE; BRK,RETURN HYDRO BRAKE BOOSTER<7QQ>	8-97180-991-2	01	1	0201-
118	04.680 HOSE; PIPE TO PIPE	8-97181-217-2	01	1	0102-0112
118	04.680 HOSE; PIPE TO PIPE HYDRO BRAKE BOOSTER<7QQ>	8-97181-217-2	01	1	0201-

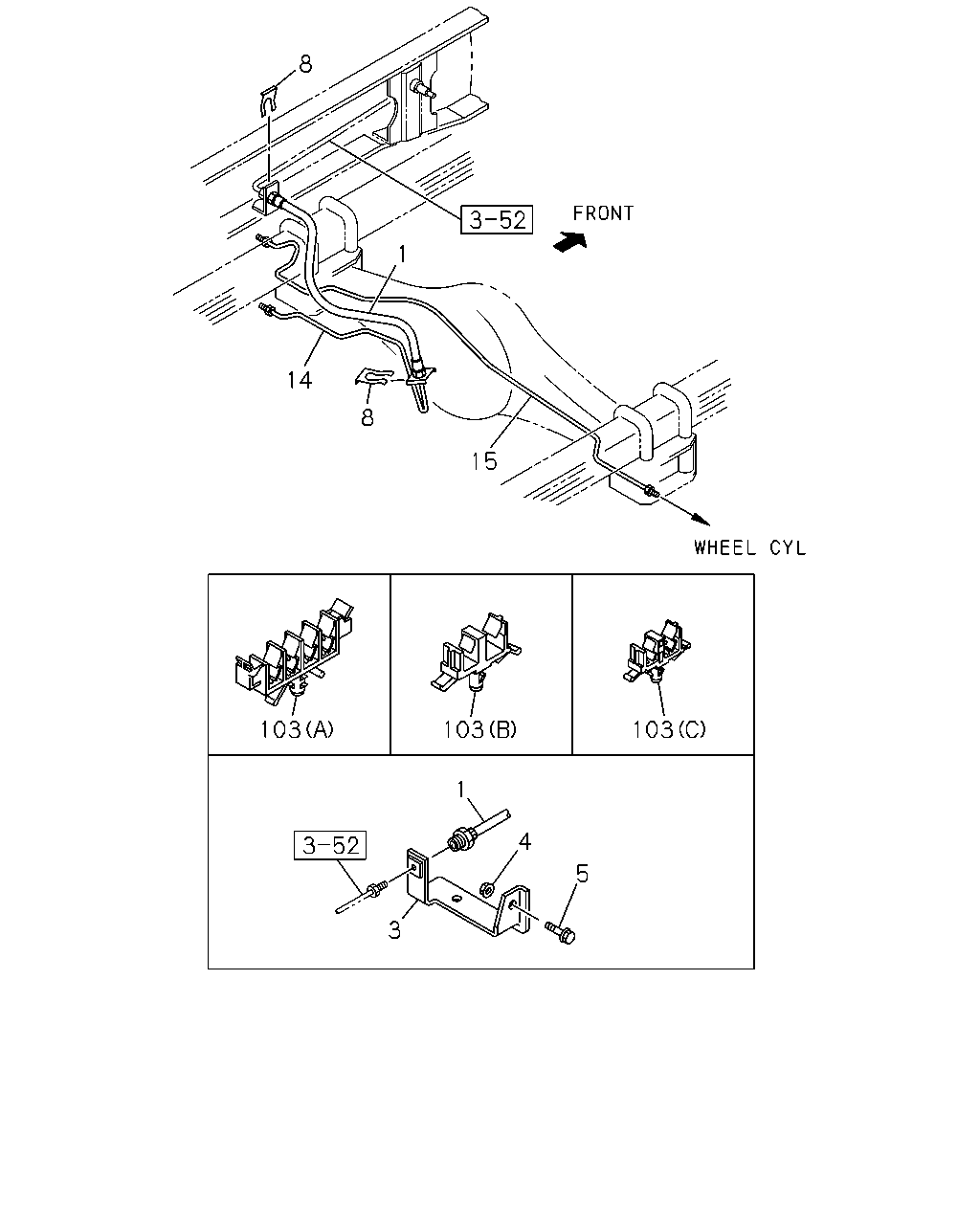

8 1 14 8 15 103 103 103 1 4 5 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.680 HOSE; FLEX,RR BRK 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> L=405	8-97089-061-0	01	1	0102-0112
1	04.680 HOSE; FLEX,RR BRK FRAME STRAIGHT TYPE<7KJ> L=405	8-97089-061-0	01	1	0201-
3	04.681 BRACKET; FLEX HOSE,RR BRK FRAME STRAIGHT TYPE<7KJ>	8-97205-714-1	01	1	0102-
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0102-0602
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
5	04.681 BOLT; BRKT,FLEX HOSE,RR BRK FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0102-0512
5	04.681 BOLT; BRKT,FLEX HOSE,RR BRK FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
8	04.686 CLIP; RR BRK 04.681	8-94137-662-0	02	1	0102-0610
8	04.686 CLIP; RR BRK	8-97360-054-0	02	1	0611-
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ>	8-97212-795-2	01	1	0102-0501
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ>	8-97212-795-2	01	1	0502-0701
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ>	8-97359-748-0	01	1	0702-
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ>	8-97206-086-1	01	1	0201-0501
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ>	8-97206-086-1	01	1	0502-0701
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ>	8-97359-746-0	01	1	0702-
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL FRAME STRAIGHT TYPE<7KJ>	8-97122-715-1	01	1	0102-0112
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ>	8-97122-715-1	01	1	0201-
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ>	8-97129-745-1	01	1	0201-
103	04.686 CLIP; PIPE,BRK FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0102-0301
103	04.686 CLIP; PIPE,BRK FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94455-816-0	01	1	0102-0301
103	04.686 CLIP; PIPE,BRK FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10 & 4.8X3	8-97103-600-0	07	1	0102-0301
103	04.686 CLIP; PIPE,BRK FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10 & 4.8X3	8-97103-600-0	08	1	0102-0301
103	04.686 CLIP; PIPE,BRK 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0102-0112
103	04.686 CLIP; PIPE,BRK FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0201-0301
