3-52 — BRAKE PIPING; OIL,FRONT (#19435) — 21 parça

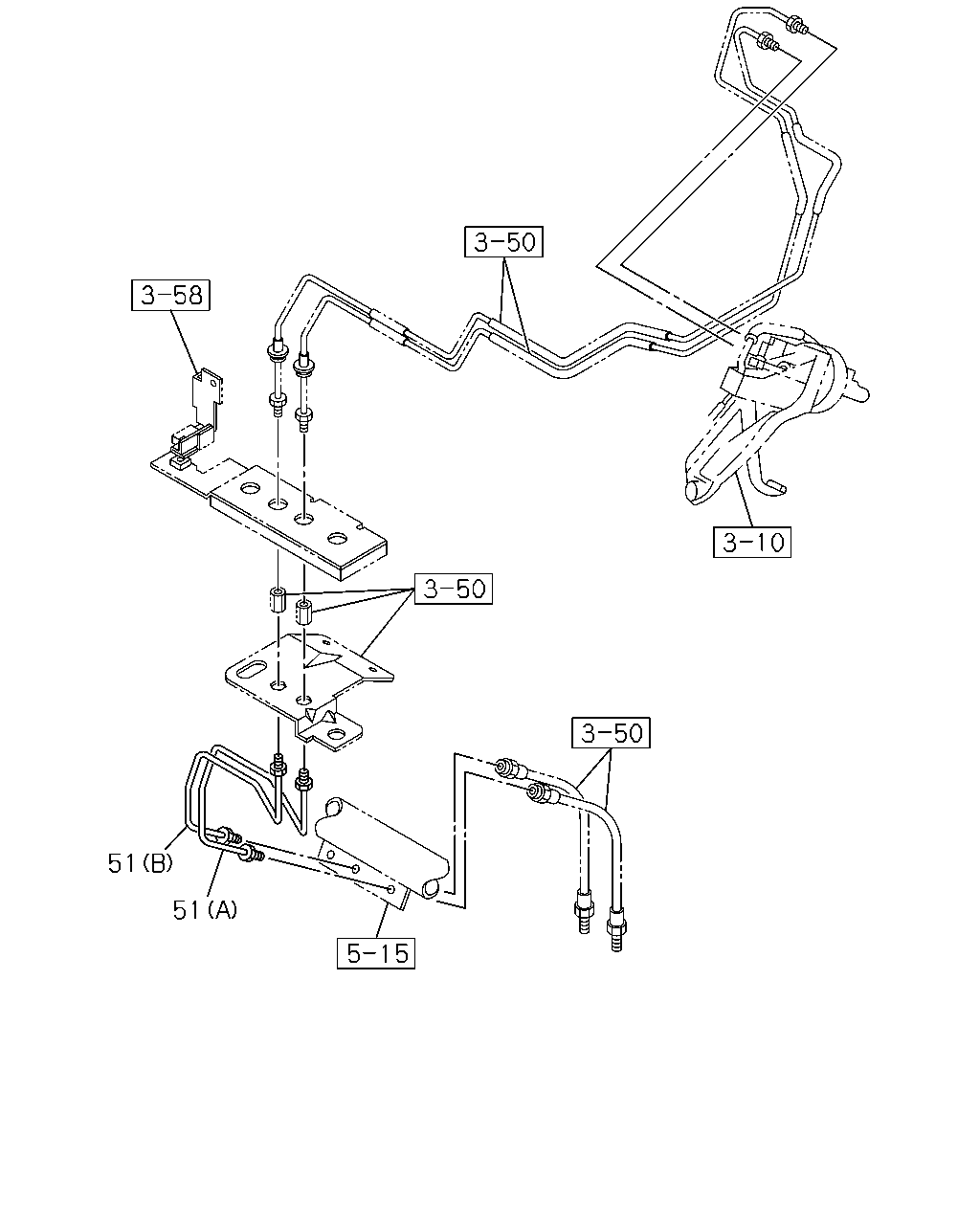

çizim 11683
51 51
BalonParca AdiParca NoAdetTipApplied Date
51 04.685 PIPE; BRK
(A) FRONT 		8-97073-076-1 01 1 0102-
51 04.685 PIPE; BRK
(B) REAR 		8-97073-078-1 01 1 0102-
çizim 11875
71
BalonParca AdiParca NoAdetTipApplied Date
71 04.686 GROMMET; OIL PIPE
05.002 		8-97044-742-1 02 1 0102-

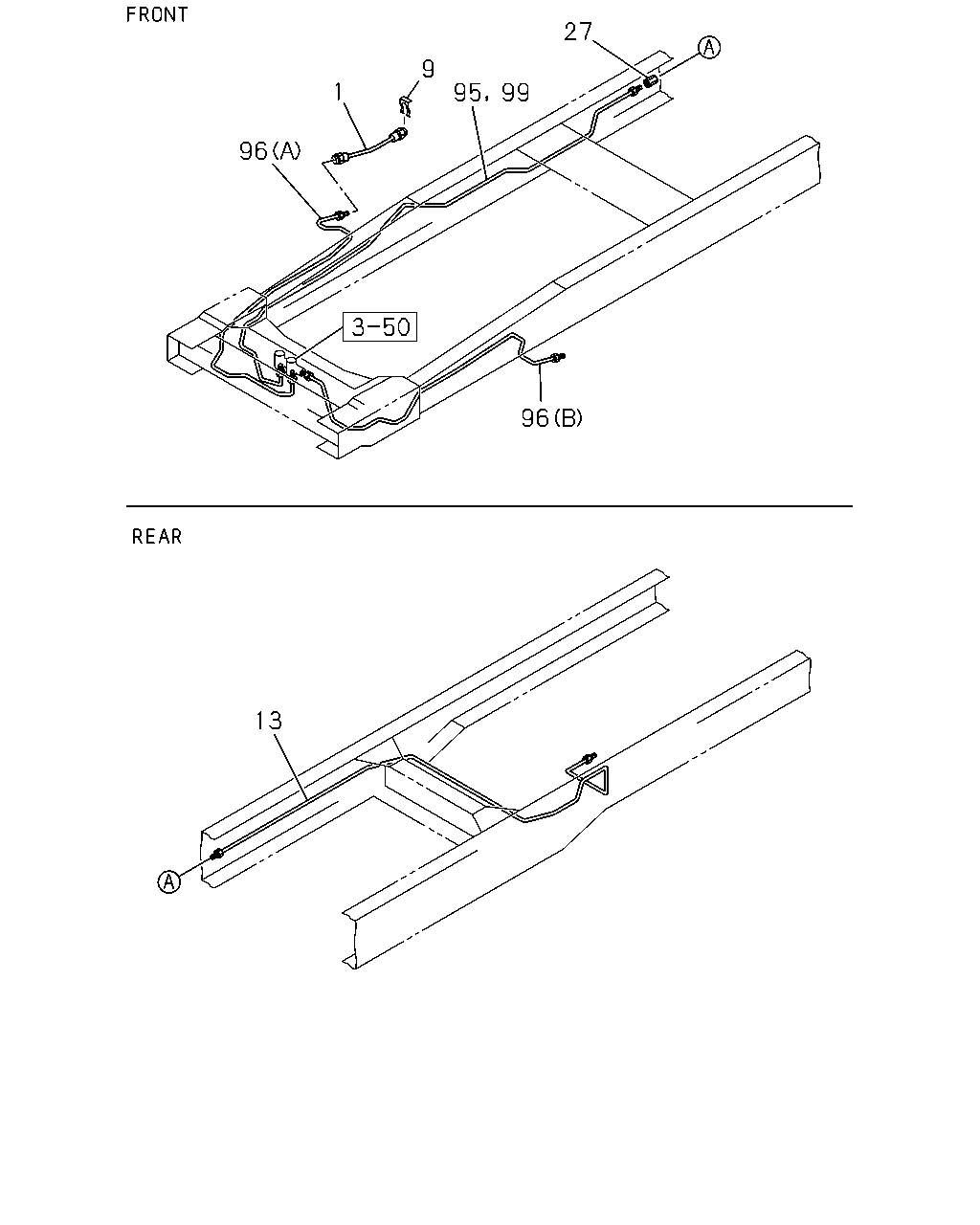

çizim 50174
27 9 1 95 99 96 96 13
BalonParca AdiParca NoAdetTipApplied Date
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 0102-
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0102-0610
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0102-0610
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611-
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611-
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> 		8-97205-718-0 01 1 0102-
27 04.686 UNION; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 0502-0607
27 04.686 UNION; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> M10 STRAIGHT 		0-92107-005-0 01 1 0608-
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 01 1 0102-0301
27 04.686 UNION; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 0302-0501
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97142-709-0 01 1 0102-0112
96 04.686 PIPE ASM; 6 WAY
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97096-954-1 01 1 0102-
96 04.686 PIPE ASM; 6 WAY
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97096-950-0 01 1 0102-0501
96 04.686 PIPE ASM; 6 WAY
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97096-950-0 01 1 0502-
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 		8-97142-709-0 01 1 0201-0301
99 04.686 PIPE ASM; 4/5/6 WAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97142-709-0 01 1 0201-0301
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> 		8-97142-709-0 01 1 0302-0501
99 04.686 PIPE ASM; 4/5/6 WAY
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97142-709-0 01 1 0502-
