◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 50915 - NP/NQ BUS LHDEXC.EU4 ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#19434) — 167 parça

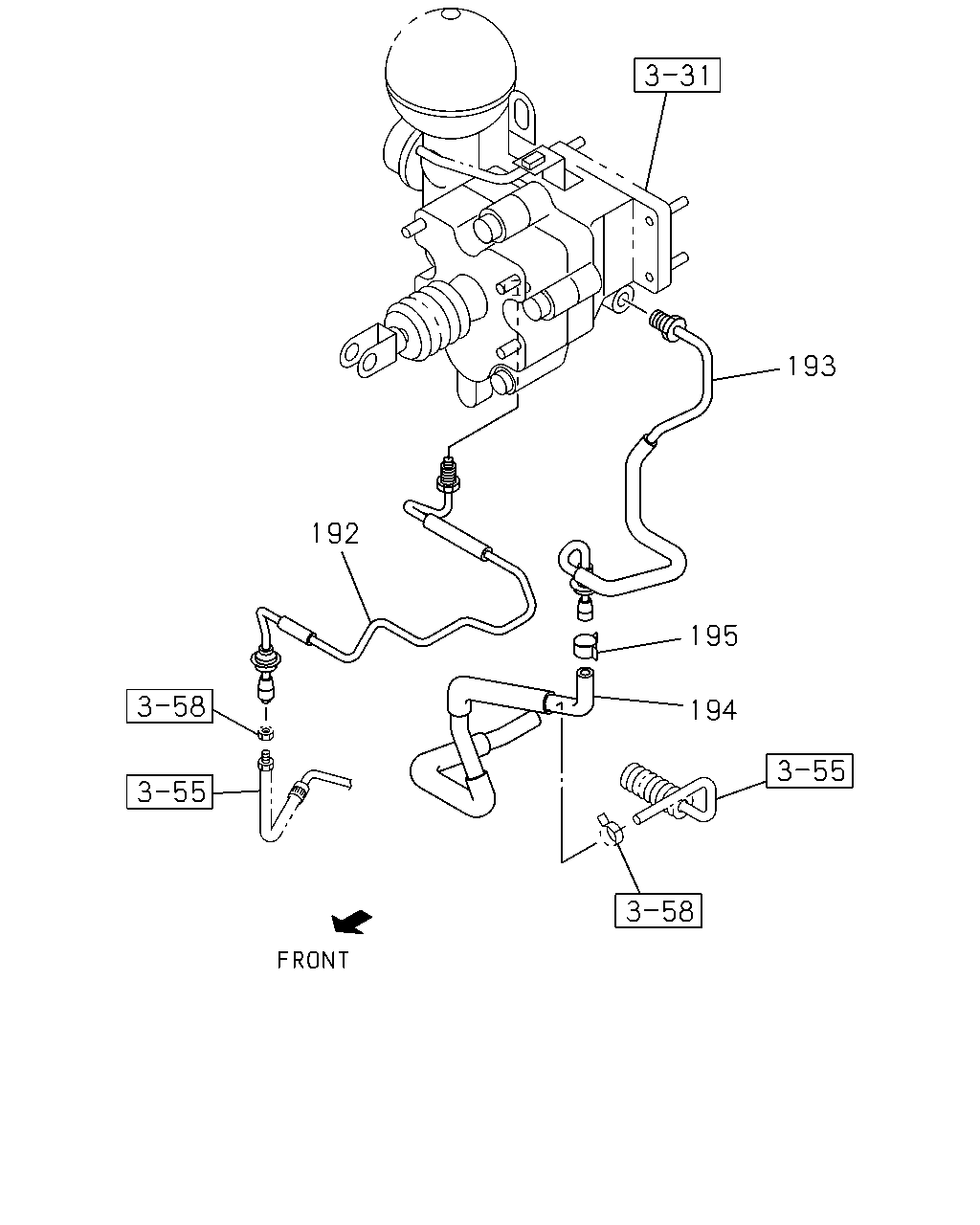

çizim 9530
193 192 195 194
BalonParca AdiParca NoAdetTipApplied Date
192 04.685 PIPE; PRESSURE 8-97148-805-2 01 1 0102-0112
192 04.685 PIPE; PRESSURE
HYDRO BRAKE BOOSTER<7QQ> 		8-97148-805-2 01 1 0201-
193 04.685 PIPE; RETURN 8-97171-016-2 01 1 0102-0112
193 04.685 PIPE; RETURN
HYDRO BRAKE BOOSTER<7QQ> 		8-97171-016-2 01 1 0201-
194 04.681 HOSE; CAB TO PIPE 8-97201-847-3 01 1 0102-0112
194 04.681 HOSE; CAB TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97201-847-3 01 1 0201-
195 04.681 CLIP; HOSE
04.686 ID=11-19.5 		8-94426-597-0 01 1 0102-0112
195 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 04.686 ID=11-19.5 		8-94426-597-0 01 1 0201-1005
195 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> ID=11-17 		8-98173-762-1 01 1 1006-

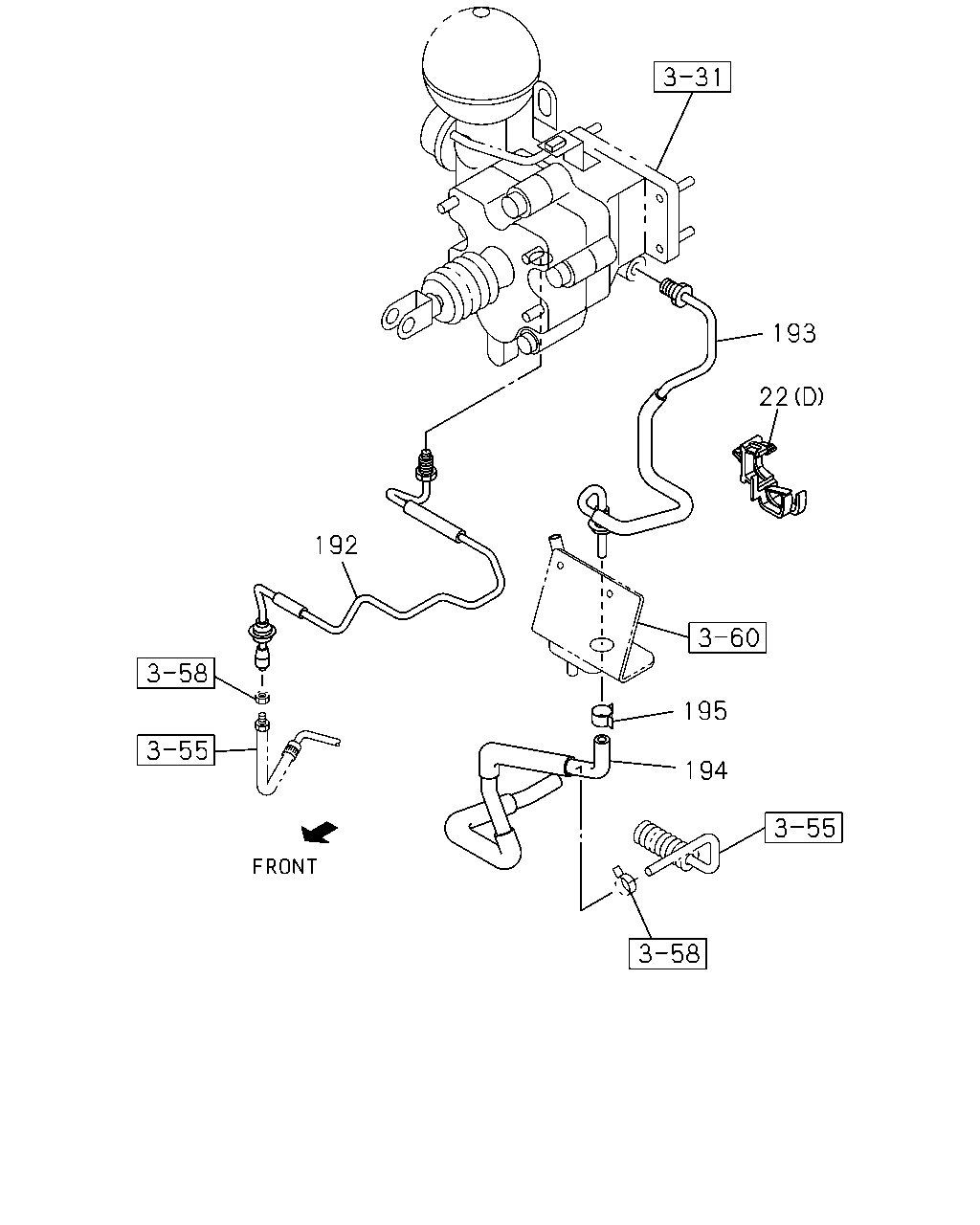

çizim 11309
193 22 192 195 194
BalonParca AdiParca NoAdetTipApplied Date
22 04.685 CLIP
02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0102-0112
22 04.685 CLIP
HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0201-0301
22 04.685 CLIP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0302-0501
22 04.685 CLIP
4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0502-0606
22 04.685 CLIP
4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> (A) ID=11 L=16 		0-95235-025-0 02 1 0607-
22 04.685 CLIP
CHARGE AIR COOLER<6PL> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0102-0112
22 04.685 CLIP
CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0201-0301
22 04.685 CLIP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0302-0501
22 04.685 CLIP
4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0502-0606
22 04.685 CLIP
4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20 		0-95235-836-0 01 1 0607-
22 04.685 CLIP
HYDRO BRAKE BOOSTER<7QQ> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 0408-
22 04.685 CLIP
HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 (C) L=250 		5-09707-030-1 01 1 0201-0301
22 04.685 CLIP
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 02.559 (C) L=250 		5-09707-030-1 02 1 0302-0501
22 04.685 CLIP
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (C) L=250 		5-09707-030-1 02 1 0502-
22 04.685 CLIP
HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 08.846 (B) ID=19 L=32 		9-09525-866-0 01 1 0201-0301
22 04.685 CLIP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 08.846 (B) ID=19 L=32 		9-09525-866-0 01 1 0302-0501
22 04.685 CLIP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 (C) L=250 		5-09707-030-1 01 1 0302-0501
192 04.685 PIPE; PRESSURE 8-97148-805-2 01 1 0102-0112
192 04.685 PIPE; PRESSURE
HYDRO BRAKE BOOSTER<7QQ> 		8-97148-805-2 01 1 0201-
193 04.685 PIPE; RETURN 8-97171-016-2 01 1 0102-0112
193 04.685 PIPE; RETURN
HYDRO BRAKE BOOSTER<7QQ> 		8-97171-016-2 01 1 0201-
194 04.681 HOSE; CAB TO PIPE 8-97201-847-3 01 1 0102-0112
194 04.681 HOSE; CAB TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97201-847-3 01 1 0201-
195 04.681 CLIP; HOSE
04.686 ID=11-19.5 		8-94426-597-0 01 1 0102-0112
195 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 04.686 ID=11-19.5 		8-94426-597-0 01 1 0201-1005
195 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> ID=11-17 		8-98173-762-1 01 1 1006-

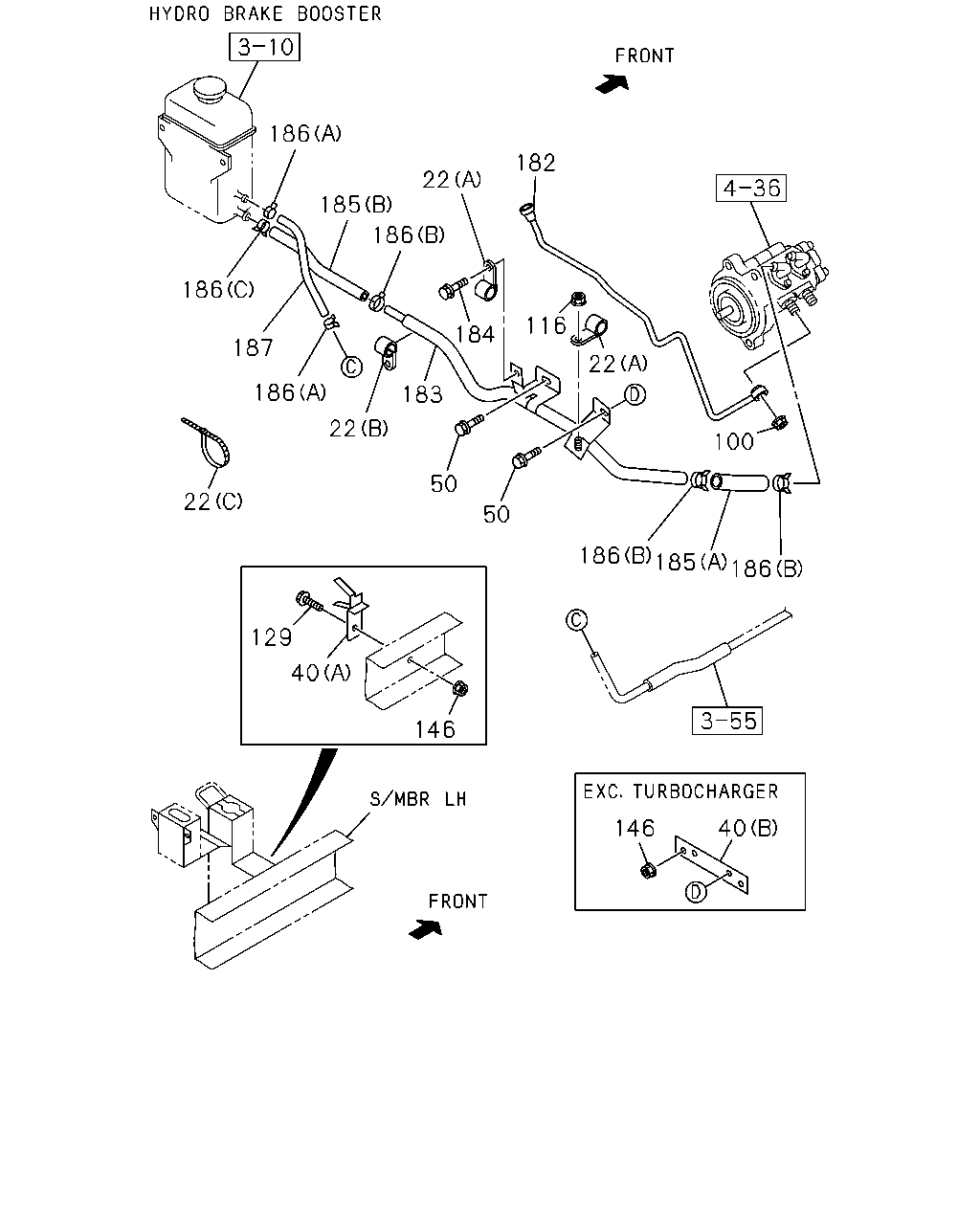

çizim 48617
186 182 22 185 186 186 116 184 187 22 186 183 22 100 50 22 50 186 185 186 129 40 146 40 146
BalonParca AdiParca NoAdetTipApplied Date
22 04.685 CLIP
02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0102-0112
22 04.685 CLIP
HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0201-0301
22 04.685 CLIP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0302-0501
22 04.685 CLIP
4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0502-0606
22 04.685 CLIP
4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> (A) ID=11 L=16 		0-95235-025-0 02 1 0607-
22 04.685 CLIP
CHARGE AIR COOLER<6PL> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0102-0112
22 04.685 CLIP
CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0201-0301
22 04.685 CLIP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0302-0501
22 04.685 CLIP
4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0502-0606
22 04.685 CLIP
4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20 		0-95235-836-0 01 1 0607-
22 04.685 CLIP
HYDRO BRAKE BOOSTER<7QQ> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 0408-
22 04.685 CLIP
HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 (C) L=250 		5-09707-030-1 01 1 0201-0301
22 04.685 CLIP
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 02.559 (C) L=250 		5-09707-030-1 02 1 0302-0501
22 04.685 CLIP
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (C) L=250 		5-09707-030-1 02 1 0502-
22 04.685 CLIP
HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 08.846 (B) ID=19 L=32 		9-09525-866-0 01 1 0201-0301
22 04.685 CLIP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 08.846 (B) ID=19 L=32 		9-09525-866-0 01 1 0302-0501
22 04.685 CLIP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 (C) L=250 		5-09707-030-1 01 1 0302-0501
40 04.690 BRACKET
HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97188-262-0 01 1 0201-0301
40 04.690 BRACKET
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97188-262-0 01 1 0302-0501
40 04.690 BRACKET
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> EXC. TURBOCHARGER(K51) (B) 		8-97334-384-0 01 1 0302-0306
40 04.690 BRACKET
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> EXC. TURBOCHARGER(K51) (B) 		8-97370-408-0 01 1 0307-0501
40 04.690 BRACKET
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97370-408-0 01 1 0502-
50 04.710 BOLT; PIPE
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0102-0112
50 04.710 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0201-0512
50 04.710 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-
100 04.730 NUT; HYDRAULIC UNIT
06.606 M12 SELF LOCK 		8-97028-390-1 01 1 0102-0112
100 04.730 NUT; HYDRAULIC UNIT
HYDRO BRAKE BOOSTER<7QQ> 06.606 M12 SELF LOCK 		8-97028-390-1 01 1 0201-
116 04.686 NUT
07.633 M8 FLANGE 		0-91150-108-0 02 1 0102-0112
116 04.686 NUT
FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0201-0301
116 04.686 NUT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0501
116 04.686 NUT
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602
116 04.686 NUT
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-
116 04.686 NUT
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0302-0501
116 04.686 NUT
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0502-0602
116 04.686 NUT
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-
129 04.710 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201-0301
129 04.710 BOLT; BRKT
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0501
146 04.685 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 02 1 0102-0301
146 04.685 NUT; BRKT
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0501
146 04.685 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0201-0301
146 04.685 NUT; BRKT
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> EXC. TURBOCHARGER(K51) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0501
146 04.685 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0501
146 04.685 NUT; BRKT
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602
146 04.685 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602
146 04.685 NUT; BRKT
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-
146 04.685 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-
182 04.685 PIPE; HYDRAULIC BRK BOOSTER 8-97264-895-0 01 1 0102-0112
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97264-895-0 01 1 0201-0201
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
M/T MBP6P(RNC) HYDRO BRAKE BOOSTER<7QQ> 		8-97264-895-0 01 1 0201-0301
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97334-118-1 01 1 0302-0501
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 		8-97334-118-1 01 1 0502-
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
M/T MZZ6U(RSF) HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 0208-0301
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 0302-0501
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 0502-
183 04.685 PIPE; SUCTION
CHARGE AIR COOLER<6PL> 		8-97184-067-4 01 1 0102-0112
183 04.685 PIPE; SUCTION
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97184-067-4 01 1 0201-0201
183 04.685 PIPE; SUCTION
M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97184-067-4 01 1 0201-0301
183 04.685 PIPE; SUCTION
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97334-119-1 01 1 0302-0306
183 04.685 PIPE; SUCTION
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97370-410-0 01 1 0307-0501
183 04.685 PIPE; SUCTION
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 		8-97370-410-0 01 1 0502-
183 04.685 PIPE; SUCTION
FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97181-946-5 01 1 0201-0201
183 04.685 PIPE; SUCTION
M/T MBP6P(RNC) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97181-946-5 01 1 0201-0301
183 04.685 PIPE; SUCTION
M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 0208-0301
183 04.685 PIPE; SUCTION
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 0302-0501
183 04.685 PIPE; SUCTION
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 0502-
183 04.685 PIPE; SUCTION
M/T MZZ6U(RSF) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97328-694-0 01 1 0208-0301
183 04.685 PIPE; SUCTION
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97328-694-0 01 1 0302-0501
184 04.681 BOLT; CLIP
HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0201-0301
184 04.681 BOLT; CLIP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0302-0501
185 04.681 HOSE; RUBBER,SUCTION
06.670 (A) 		0-09814-120-0 01 1 0102-0112
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER<7QQ> 06.670 (A) 		0-09814-120-0 01 1 0201-0204
185 04.681 HOSE; RUBBER,SUCTION
M/T MBP6P(RNC) HYDRO BRAKE BOOSTER<7QQ> 06.670 (A) 		0-09814-120-0 01 1 0205-0301
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97330-513-0 01 1 0302-
185 04.681 HOSE; RUBBER,SUCTION
CHARGE AIR COOLER<6PL> 06.670 (B) SERVICED BY L=300 		0-09814-300-0 01 1 0102-0112
185 04.681 HOSE; RUBBER,SUCTION
CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300 		0-09814-300-0 01 1 0201-0301
185 04.681 HOSE; RUBBER,SUCTION
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300 		0-09814-300-0 01 1 0302-0501
185 04.681 HOSE; RUBBER,SUCTION
4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300 		0-09814-300-0 01 1 0502-
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97188-851-0 01 1 0201-0301
185 04.681 HOSE; RUBBER,SUCTION
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97188-851-0 01 1 0302-0501
185 04.681 HOSE; RUBBER,SUCTION
M/T MZZ6U(RSF) HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97330-513-0 01 1 0208-0301
185 04.681 HOSE; RUBBER,SUCTION
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97334-259-1 01 1 0302-
186 04.681 CLIP; HOSE
04.930 (A) ID=16 		8-94238-568-0 02 1 0102-0112
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16 		8-94238-568-0 02 1 0201-0911
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 03.162 (A) ID=16 		8-98008-098-0 02 1 0912-
186 04.681 CLIP; HOSE
06.672 (B) ID=21 		8-94242-034-0 03 1 0102-0112
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21 		8-94242-034-0 03 1 0201-0911
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> (B) ID=21 		8-98150-355-0 03 1 0912-
186 04.681 CLIP; HOSE
08.846 (C) ID=22 		8-94382-401-0 01 1 0102-0112
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22 		8-94382-401-0 01 1 0201-1003
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 03.278 (C) ID=22 		8-97359-141-0 01 1 1004-
187 04.681 HOSE; RUBBER,OIL TANK
CHARGE AIR COOLER<6PL> L=270 		0-09809-270-0 01 1 0102-0112
187 04.681 HOSE; RUBBER,OIL TANK
CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> L=270 		0-09809-270-0 01 1 0201-0301
187 04.681 HOSE; RUBBER,OIL TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> L=270 		0-09809-270-0 01 1 0302-0501
187 04.681 HOSE; RUBBER,OIL TANK
4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000 		0-19809-300-0 01 1 0502-
187 04.681 HOSE; RUBBER,OIL TANK
HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97181-961-2 01 1 0201-0301
187 04.681 HOSE; RUBBER,OIL TANK
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97181-961-2 01 1 0302-0501
187 04.681 HOSE; RUBBER,OIL TANK
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 		8-97358-026-0 01 1 0302-0306
187 04.681 HOSE; RUBBER,OIL TANK
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 		8-97370-427-0 01 1 0307-

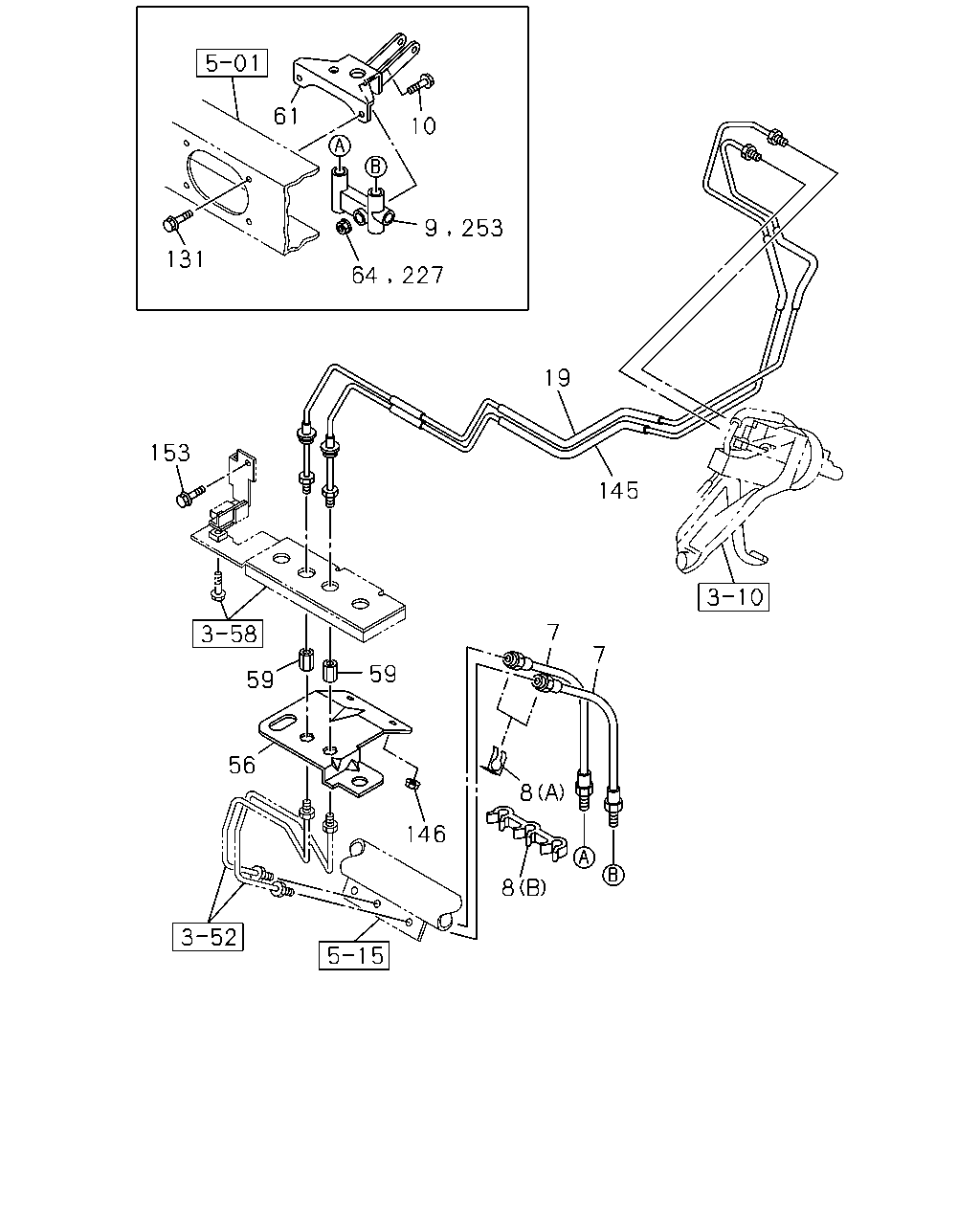

çizim 51203
61 10 9 253 131 19 153 145 7 7 59 59 56 8 146 8 64 227
BalonParca AdiParca NoAdetTipApplied Date
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-97171-031-0 02 1 0102-
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
00.785 (A) 		8-94167-006-0 02 1 0102-0610
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 0611-
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B) 		8-97076-471-0 01 1 0102-
9 04.686 JOINT; BRK & CLU PIPE,CAB SIDE 5-47456-009-1 01 1 0102-0301
10 04.686 BOLT; JOINT
03.163 M6X40 FLANGE 		0-28680-640-0 01 1 0102-0512
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 0601-
19 04.685 PIPE; BRK,M/CYL TO UNION
REAR 		8-97119-830-0 01 1 0102-0112
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER<7QQ> REAR 		8-97119-830-0 01 1 0201-
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER<7QQ> REAR 		8-97314-593-0 01 1 0201-
56 04.686 BRACKET; UNION,BRK 8-97171-017-1 01 1 0102-
59 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 02 1 0102-0607
59 04.686 UNION; BRK PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0608-
61 04.686 BRACKET; 5 WAY JOINT
FRAME STRAIGHT TYPE<7KJ> 		8-97170-632-0 01 1 0102-
64 04.686 NUT; 5 WAY TO BRKT
FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0102-0301
131 04.710 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0102-0512
131 04.710 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601-
145 04.685 PIPE; BRK,METERING VLV TO UNION
FRONT 		8-97119-829-0 01 1 0102-0112
145 04.685 PIPE; BRK,METERING VLV TO UNION
HYDRO BRAKE BOOSTER<7QQ> FRONT 		8-97119-829-0 01 1 0201-
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. HYDRO BRAKE BOOSTER<7QQ> FRONT 		8-97314-586-0 01 1 0201-
146 04.685 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 02 1 0102-0301
146 04.685 NUT; BRKT
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0501
146 04.685 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0201-0301
146 04.685 NUT; BRKT
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> EXC. TURBOCHARGER(K51) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0501
146 04.685 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0501
146 04.685 NUT; BRKT
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602
146 04.685 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602
146 04.685 NUT; BRKT
4HF1 ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-
146 04.685 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-
153 04.730 SCREW; BRKT FIX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0102-0604
153 04.730 SCREW; BRKT FIX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605-
227 04.685 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0302-0602
227 04.685 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-
253 04.840 JOINT
04.686 		5-47456-009-1 01 1 0302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
