◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 50915 - NP/NQ BUS LHDEXC.EU4 ▶ 3 - Brakes, Brake System ▶ 3-31 - BRAKE MASTER VAC AND BRAKE BOOSTER ▶
3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#19433) — 30 parça
çizim 49801
1 17 16 24 15 12 11 23 3
BalonParca AdiParca NoAdetTipApplied Date
1 04.901 MASTER VAC ASM; BRK
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97162-800-1 01 1 0201-
3 04.906 RETAINER; FRT SHELL,M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		9-83315-319-0 01 1 0201-
11 04.906 FILTER; M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97205-576-0 01 1 0201-
12 04.906 SILENCER; M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97205-577-0 01 1 0201-
15 04.906 RETAINER; GUARD,M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-94375-083-0 01 1 0201-
16 04.662 NUT; VLV ROD,M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> M10 		1-52139-008-0 01 1 0201-
17 04.662 CLEVIS; YOKE,M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97224-610-0 01 1 0201-
23 04.910 SEAL; M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97079-350-0 01 1 0201-
24 04.906 GUARD; VLV BODY,M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97205-578-0 01 1 0201-

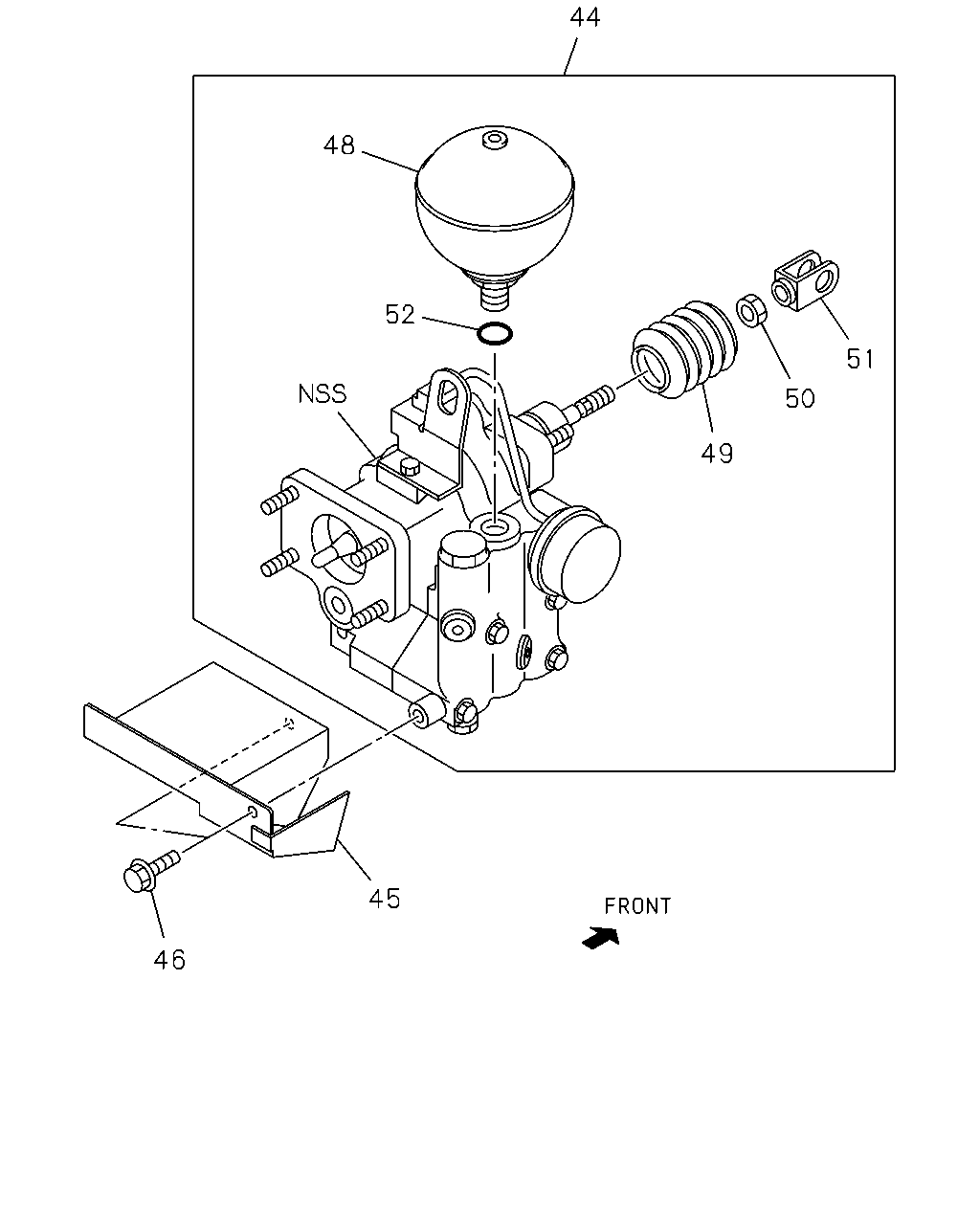

çizim 49930
44 48 52 51 50 49 45 46
BalonParca AdiParca NoAdetTipApplied Date
44 04.901 BOOSTER; HYDRAULIC BRK 8-97209-212-0 01 1 0102-0112
44 04.901 BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER<7QQ> 		8-97209-212-0 01 1 0201-0610
44 04.901 BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER<7QQ> 		8-98031-414-0 01 1 0611-
45 04.901 PROTECTOR; HEAT 8-97182-354-1 01 1 0102-0112
45 04.901 PROTECTOR; HEAT
HYDRO BRAKE BOOSTER<7QQ> 		8-97182-354-1 01 1 0201-
46 04.901 BOLT; HEAT PROTECTOR
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 0102-0112
46 04.901 BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER<7QQ> 02.500 M6X10 FLANGE 		0-28080-610-0 02 1 0201-0512
46 04.901 BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER<7QQ> 03.671 M6X10 FLANGE 		0-28050-610-0 02 1 0601-
48 04.906 ACCUMULATOR; HYDRO BOOSTER 8-97191-040-0 01 1 0102-0112
48 04.906 ACCUMULATOR; HYDRO BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97191-040-0 01 1 0201-0610
48 04.906 ACCUMULATOR; HYDRO BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-98038-346-0 01 1 0611-
49 04.906 GUARD; HYDRO BRK BOOSTER 8-97191-043-0 01 1 0102-0112
49 04.906 GUARD; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97191-043-0 01 1 0201-
50 04.906 NUT; HYDRO BRK BOOSTER
04.662 		8-97191-042-0 01 1 0102-0112
50 04.906 NUT; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 04.662 		8-97191-042-0 01 1 0201-0610
50 04.906 NUT; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-98038-349-0 01 1 0611-
51 04.906 CLEVIS; HYDRO BRK BOOSTER
04.662 		8-97191-041-0 01 1 0102-0112
51 04.906 CLEVIS; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 04.662 		8-97191-041-0 01 1 0201-0610
51 04.906 CLEVIS; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-98038-347-0 01 1 0611-
52 04.906 GASKET; HYDRO BRK BOOSTER
04.910 		8-97191-038-0 01 1 0102-0112
52 04.906 GASKET; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 04.910 		8-97191-038-0 01 1 0201-
