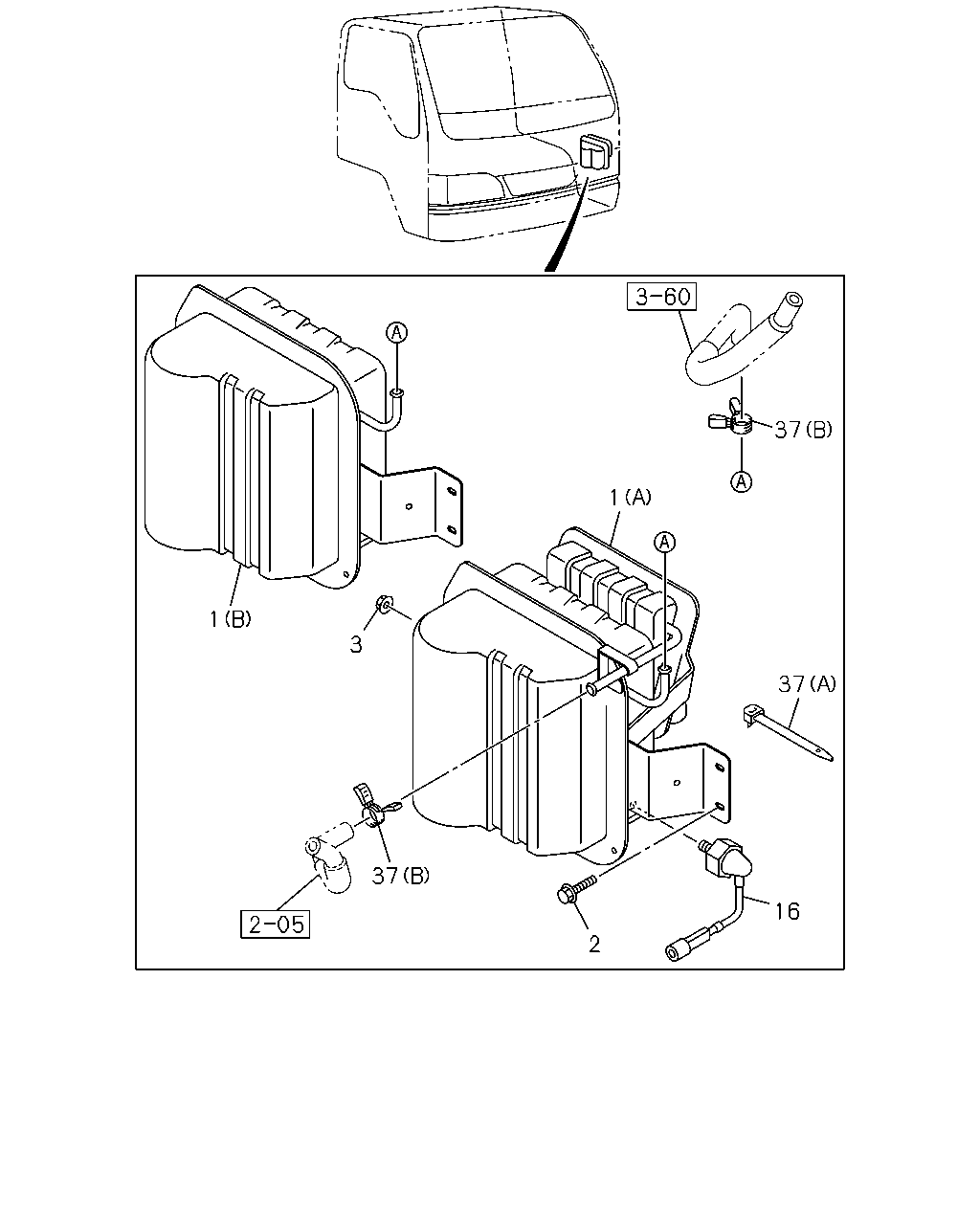

3-21 — VACUUM TANK (#19431) — 45 parça

37 1 1 3 37 37 16 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (C)	8-97172-123-0	01	1	0102-0112
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (C)	8-97172-123-1	01	1	0201-
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97078-215-2	01	1	0201-
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (B)	8-97078-216-2	01	1	0201-
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0102-0109
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0110-0112
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0201-0512
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0201-0512
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	02	1	0102-0112
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0212
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0212
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0602
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0602
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
16	04.906 SWITCH; VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97073-374-1	01	1	0201-
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	01	1	0102-0112
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0201-
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0201-
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5	1-09987-136-0	01	1	0201-
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	02	1	0201-

1 3 37 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (C)	8-97172-123-0	01	1	0102-0112
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (C)	8-97172-123-1	01	1	0201-
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97078-215-2	01	1	0201-
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (B)	8-97078-216-2	01	1	0201-
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0102-0109
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0110-0112
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0201-0512
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0201-0512
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	02	1	0102-0112
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0212
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0212
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0602
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0602
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	01	1	0102-0112
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0201-
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0201-
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5	1-09987-136-0	01	1	0201-
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	02	1	0201-
